Chapter 2: System Configuration

2.20 PORT STATUS SCREEN

The Port Status is a read-only screen that allows the user to view on the current status of all
interfaces of each individual 9A686-04 installed in the SmartSwitch 9500.
To access the Port Status screen, perform the following steps:
1. Use the arrow keys to highlight the PORT STATUS menu item of the Module
Configuration Menu screen.
2. Press ENTER. The Port Status screen,
The Port Status screen displays interfaces in the order they were discovered and
NOTE
created. This allows the user to determine the order of interface discovery.
Section 1.4
Port Status screen.

2.20.1 Port Status Screen Fields

The following section provides definitions of each Port Status screen field:
Link
Reads either UP or DOWN. UP signifies that there is valid physical connectivity on the
interface. DOWN signifies there is no valid physical connectivity present on the interface.
2-38

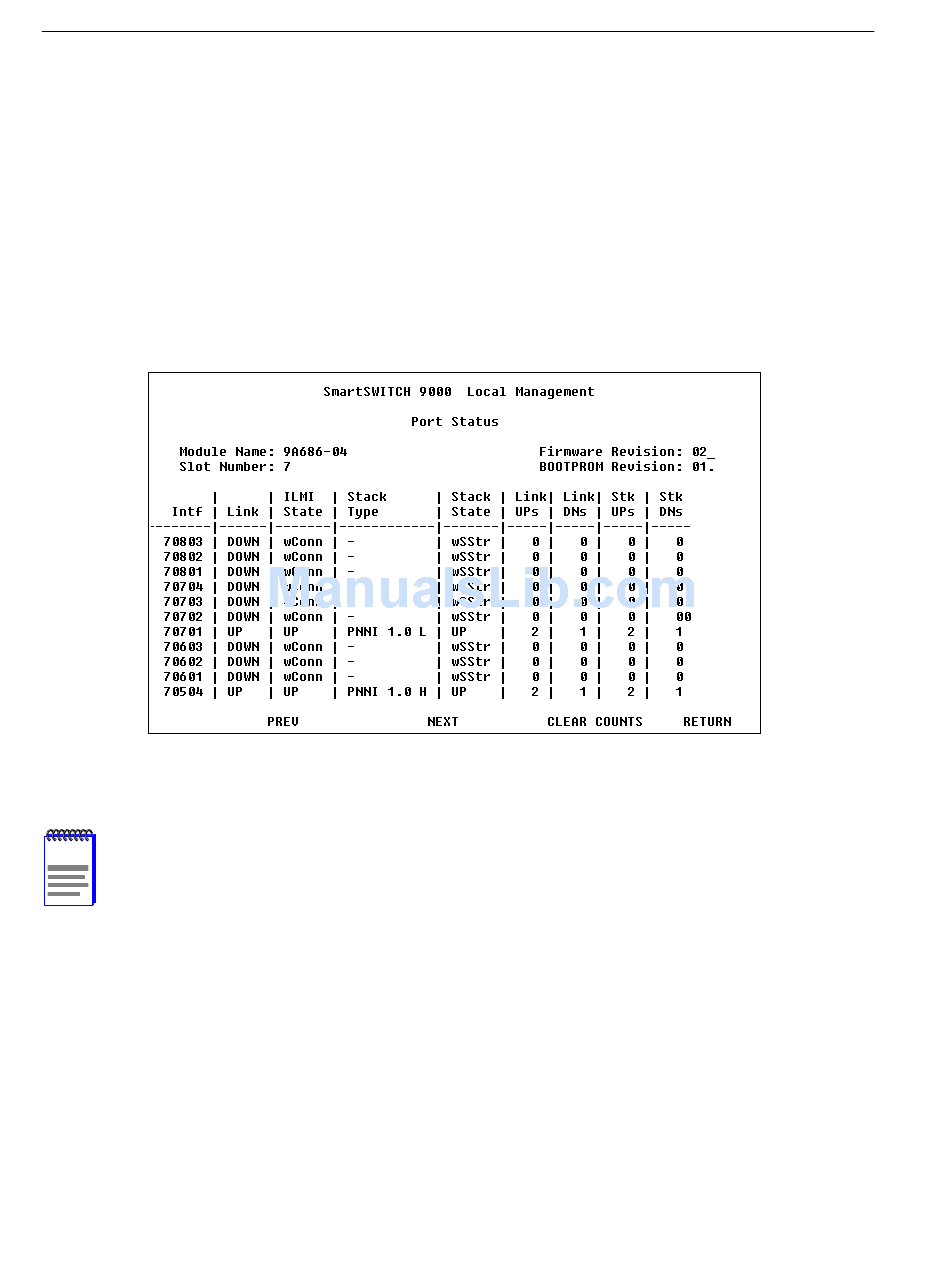

Figure 2-21 Port Status Screen
provides a description of the interface numbering scheme used on the
Figure 2-21, displays.
