Chapter 2: System Configuration
A
Displays the name of the MIB command used to perform this procedure
(atmVclTransmitTrafficDescrIndex) and the OID string the SNMP application is using to
access this information (1.3.6.1.2.1.37.1.7.1.7).
B
Displays the instance that has been entered for this PVC (70101.2.50) This indicates that the
interface selected is 70101, and it has been assigned a VPI/VCI pair of 2.50. This also displays
the traffic descriptor value that has been assigned (10).
C
Confirmation that the selected interface and VPI/VCI pair has been assigned to the traffic
descriptor value 10.
After these steps have been completed for the transmit side of the first interface, the same
configuration must be performed for the transmit side of the second interface. In this case, the
SNMP command line would be:
snmpset -h 134.141.87.75 1.3.6.1.2.1.37.1.7.1.7.70102.2.50 Integer 10

2.31.6 Setting the VCL Status to Active

This section provides instructions on setting the VCL Status to active. Refer to Figure 2-37.
A
C B

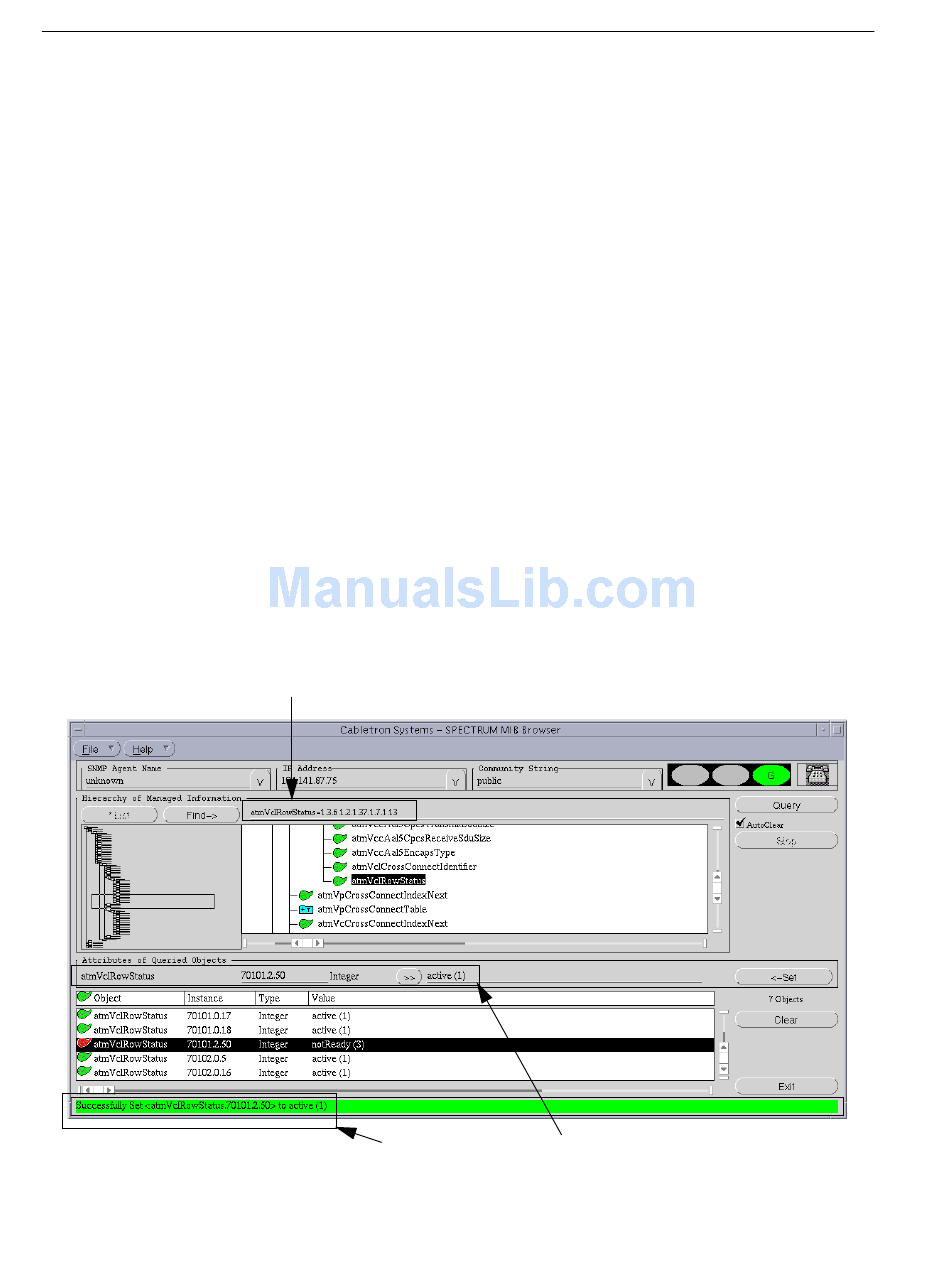

Figure 2-37 Setting the VCL Status to Active
2-84 9A656-04/9A686-04 Configuration Guide
