Chapter 2: System Configuration
2.15 SYSTEM CONFIGURATION MENU SCREEN
The System Configuration Menu screen contains three menu items that open screens that are
used to perform the following tasks:
•
Configure the 9A686-04/SmartSwitch 9500 to operate in a PNNI network.
•
Set the minimum Switched Virtual Channel Connection (SVCC) Virtual Channel Identifier
(VCI) that the 9A686-04/SmartSwitch 9500 may use.
•
Set the maximum Switched Virtual Channel Connection (SVCC) Virtual Path Identifier
(VPI) that the 9A686-04/SmartSwitch 9500 may use.
•
Set the maximum Switched Virtual Path Connection (SVPC) Virtual Path Identifier (VPI)
that the 9A686-04/SmartSwitch 9500 may use.
•
Enable or disable ATM diagnostics that the 9A686-04/SmartSwitch 9500 performs when
power to each module is cycled, or the RESET button on the front panel is pressed.
To access the System Configuration Menu screen, perform the following steps:
1.
Use the arrow keys to highlight the SYSTEM CONFIGURATION menu item from the
Configuration Menu screen.
2.
Press ENTER. The System Configuration Menu screen,
2-26

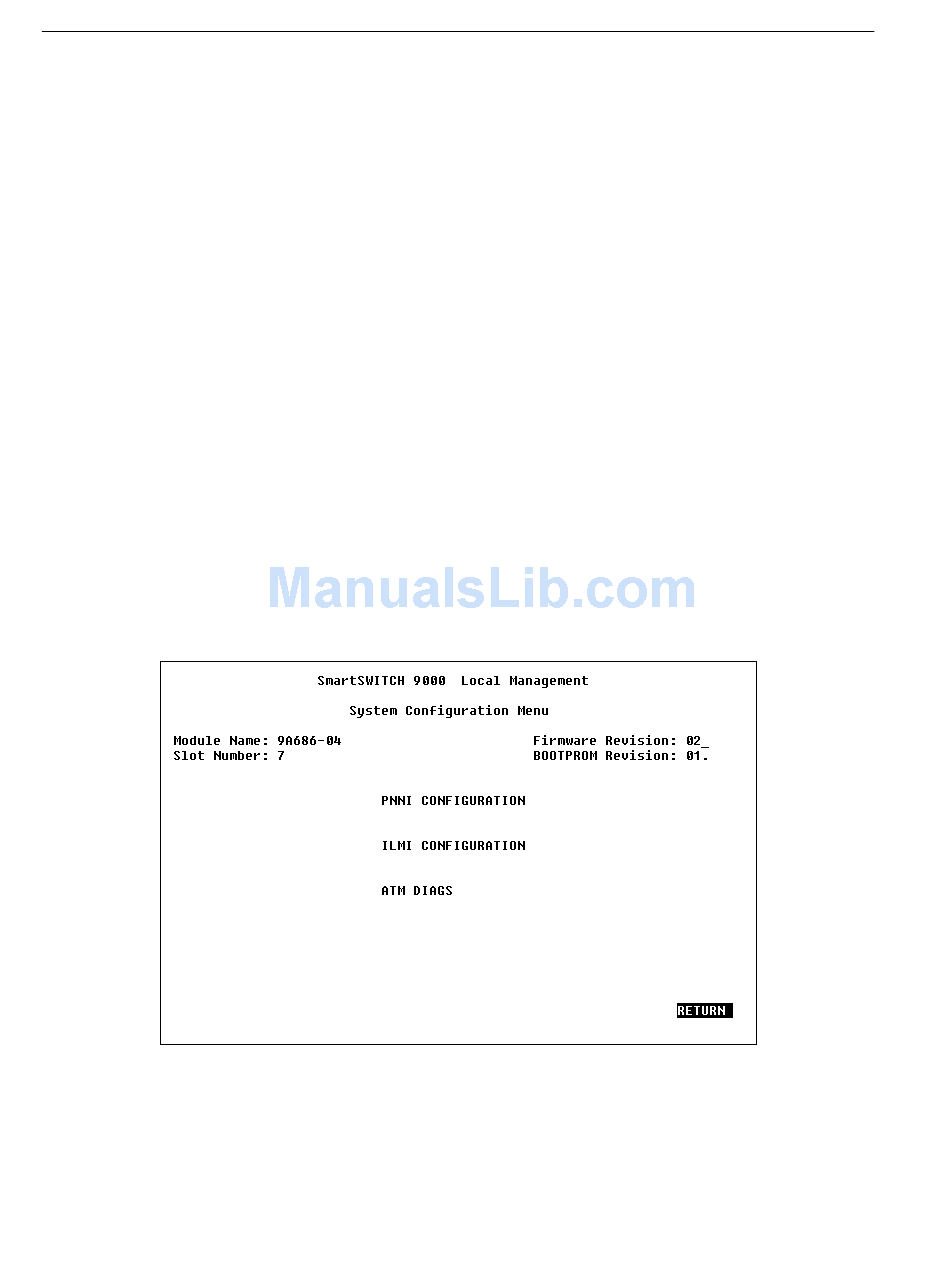

Figure 2-13 System Configuration Menu Screen
Figure
2-13, displays.
9A656-04/9A686-04 Configuration Guide
