2.25 SPVC DESTINATION CREATION SCREEN

The SPVC Destination Creation screen is used to configure the applicable settings required
for a 9A686-04 interface to support the destination end of a SPVC (VCL) or SPVP (VPL).
To access the SPVC Destination Creation screen, perform the following steps:
1. Use the arrow keys to highlight the CREATE DESTINATION menu item from the SPVC
Connection Management screen.
2. Press ENTER. The SPVC Destination Creation screen,

2.25.1 SPVC Destination Creation Screen Fields

The following list describes each field of the SPVC Source Creation screen:
INTERFACE (Modifiable)
Used to enter the physical interface that will serve as the destination port for the SPVC or
SPVP. Table 1-1 in Chapter 1
Section describes the Port Status screen, which displays all interfaces on this 9A686-04.
VPI (Modifiable)
Used to enter the VPI of the destination end of the SPVC (VCL). If the 9A686-04 is using the
default ILMI settings, the available range for this field is between 33 and 4095.
If the ILMI settings have been changed from the default values, the available range
NOTE
for this field depends on the current ILMI settings. Refer to
Chapter 3 for more information ILMI.
9A656-04/9A686-04 Configuration Guide

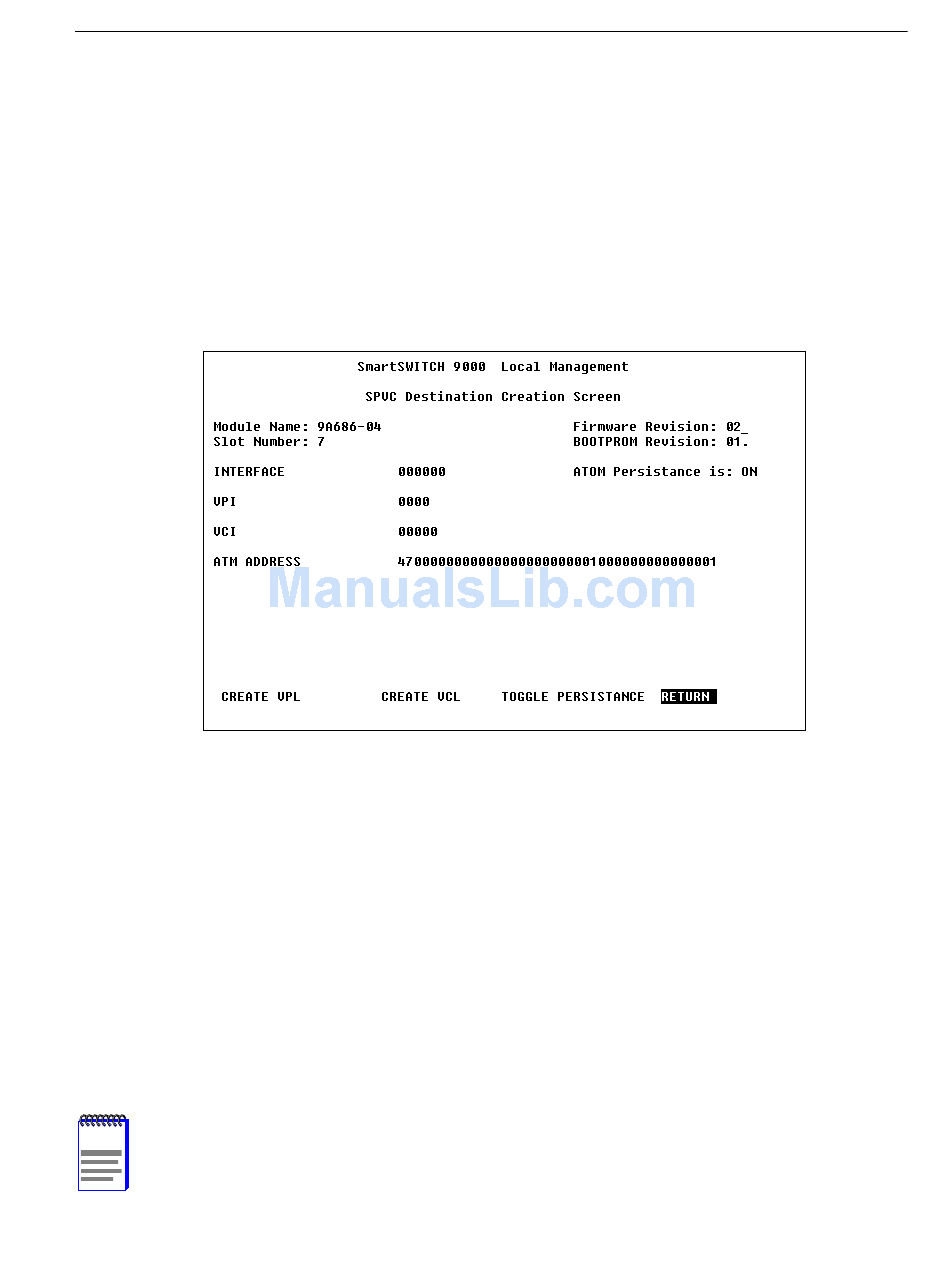

Figure 2-26 SPVC Destination Creation Screen
details the interface numbering scheme of the 9A686-04.
SPVC Destination Creation Screen
Figure 2-26, displays.
Section 2.17 and
2-53
