2.24 SPVC SOURCE CREATION SCREEN

The SPVC Source Creation Screen is used to configure the source end of a SPVC or SPVP
connection. It also provides screen fields to enter the destination end values of the SPVC or
SPVP. However, this destination information must also be set on the device that will support
the destination end of the SPVC or SPVP.
To access the SPVC Source Creation Screen, perform the following steps:
1. Use the arrow keys to highlight the CREATE SOURCE MENU item from the SPVC
Connection Management Menu screen.
2. Press ENTER. The SPVC Source Creation screen,

2.24.1 SPVC Source Creation Screen Fields

The following list describes each field of the SPVC Source Creation screen:
SOURCE INTERFACE (Modifiable)
Used to enter the physical interface number that will serve as the source port for the SPVC or
SPVP. Table 1-1 in Chapter 1
Section describes the Port Status screen, which displays all interfaces on this 9A686-04.
9A656-04/9A686-04 Configuration Guide

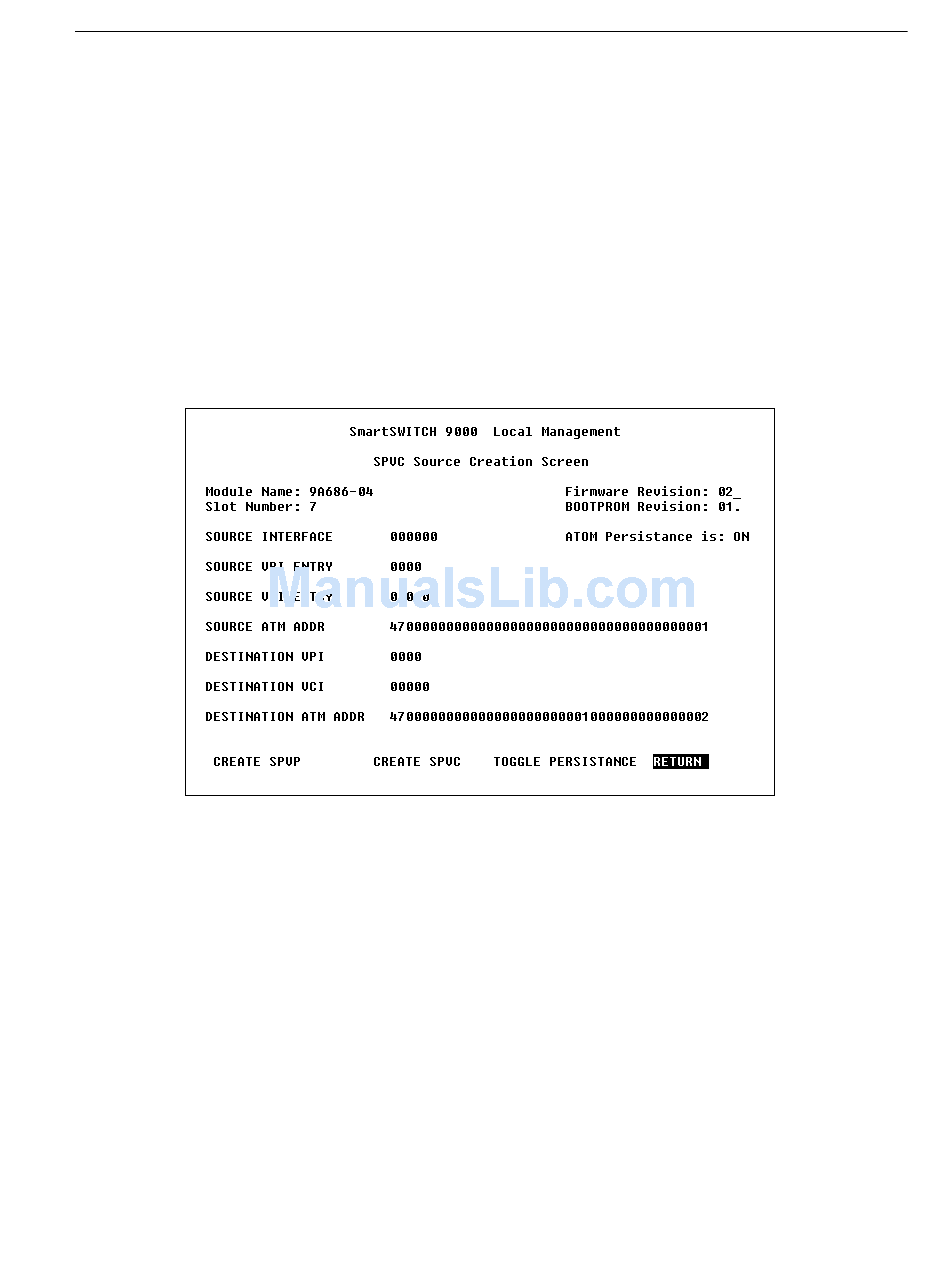

Figure 2-25 SPVC Source Creation Screen
details the interface numbering scheme of the 9A686-04.
SPVC Source Creation Screen
Figure 2-25, displays.
2-47
