The Module Configuration Menu Screen

2.12 THE MODULE CONFIGURATION MENU SCREEN

The Module Configuration Menu screen provides access to Local Management screens that
allow you to configure and monitor operating parameters, and access the Module Specific
Configuration screen.
Access the Module Configuration Menu screen from the Module Menu screen by using the
arrow keys to highlight the MODULE CONFIGURATION field and pressing ENTER. The
Module Configuration screen, Figure 2-10, displays.

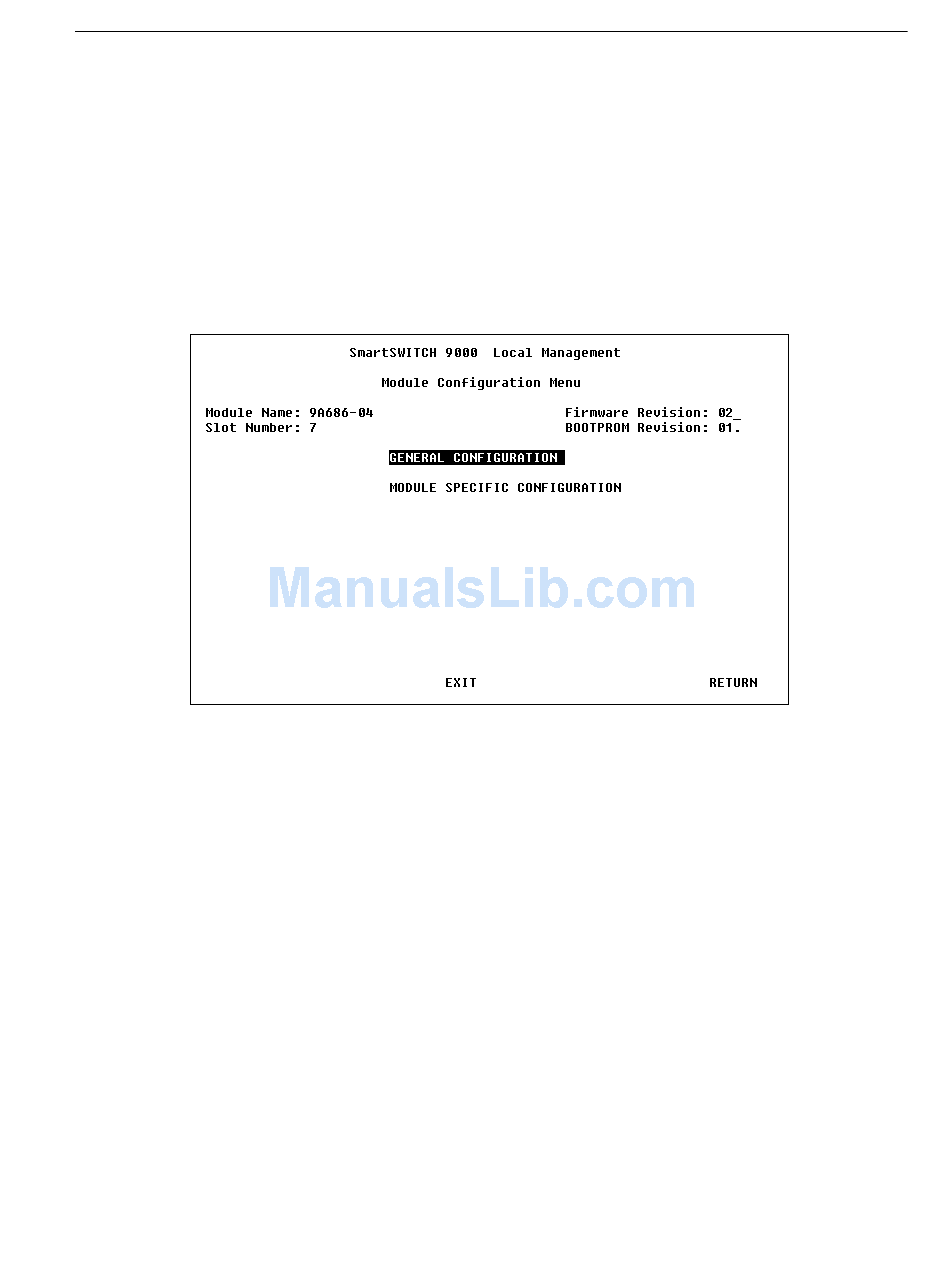

Figure 2-10 The Module Configuration Menu Screen
The following list briefly explains each screen accessible from the Module Configuration
Menu screen:
GENERAL CONFIGURATION
The General Configuration screen allows the user to monitor and configure general operating
parameters for the 9A686-04. For details refer to Section 2.13.
MODULE SPECIFIC CONFIGURATION
The Module Specific Configuration Menu screen allows the user to set specific operating
parameters for the 9A686-04. For details, refer to Section 2.14.
9A656-04/9A686-04 Configuration Guide 2-19
