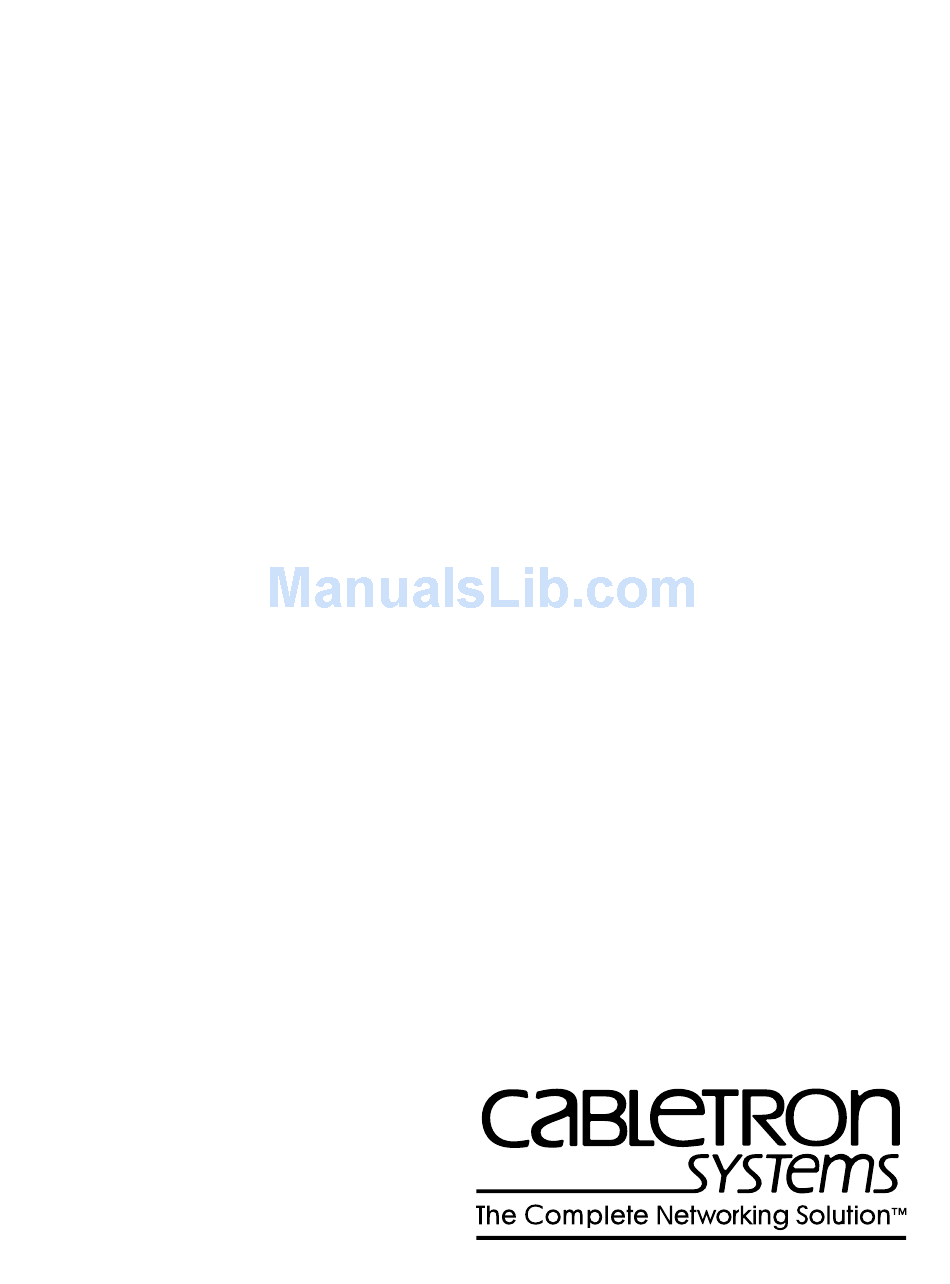

- Page 1 SmartSwitch 9000 9G421-02/9G429-02 Local Management Appendix 9032332-01...
-
Page 3: Modifying Fields And User Privileges
This appendix contains local management information that is specific to the 9G421-02 and 9G429-02 Ethernet Modules. The 9G421-02 and 9G429-02 modules are 3-port Ethernet switching modules with: • 2 front-panel gigabit Ethernet ports • 1 Internal Network Bus (INB) backplane port Modifying Fields and User Privileges To modify fields on this module, you must have read-write or super-user... -
Page 4: Module Interface Codes
9G421-02/9G429-02 Module Specific Information Module Interface Codes The 9G421-02 and 9G429-02 modules have 7 interfaces each. Table 1 lists the identifying number, name, and description of each interface. Table 1. 9G421-02/9G429-02 Module Interface Codes Interface Interface Number Use the numbers listed in Table 1 to configure the module’s default interface (see the Figure 1, the General Configuration Screen). -
Page 5: General Configuration Screen
• TFTP Gateway IP Address Module Name: 9G421-02 Slot Number: 8 Module Serial #: Module Board Revision: FLASH Memory: SAVE 9G421-02/9G429-02 Module Specific Information SmartSwitch 9000 Local Management General Configuration Module Date: Module Time: Screen Refresh Time: Screen Lockout Time:... -
Page 6: General Configuration Screen Fields
9G421-02/9G429-02 Module Specific Information General Configuration Screen Fields The following information briefly explains each General Configuration Screen field. Module Serial # Displays the serial number of the selected module. Module Board Revision Displays the version number of the selected module. - Page 7 9G421-02/9G429-02 Module Specific Information Screen Lockout Time Contains the maximum number of minutes that the Local Management application will display a module’s screen while pending input or action from a user. For example, if you enter 5 in this field, users will have up to five minutes to respond in some fashion to each of the specified module’s Local Management...
- Page 8 9G421-02/9G429-02 Module Specific Information Default Interface Contains the number that represents the interface that is connected to the module’s Default Gateway. In some instances, dissimilar modules have different corresponding interface numbers. For example, if you are assigning a default interface to a 9E133-36 module and you enter a 3, then the default interface is the Flexible Network Bus.
-
Page 9: Port Statistics Screen
PACKETS: TOTAL ERRORS: COLLISIONS: CRC/ALIGNMENT ERRORS: UNDERSIZE PACKETS: OVERSIZE PACKETS: FRAGMENTS: JABBERS: BROADCASTS: MULTICASTS: PORT #:[ 1] 9G421-02/9G429-02 Module Specific Information SmartSwitch 9000 Local Management Port Statistics PORT #: 1 OCTETS: 471908210 LINK STATUS: 1047459244 PORT TYPE: PORT STATUS: APPLICATION:... -
Page 10: Port Statistics Screen Fields
9G421-02/9G429-02 Module Specific Information Port Statistics Screen Fields The following information briefly explains each Port Statistics Screen field. PORT # Indicates the current port for which statistics are displayed. OCTETS Displays the number of octets transmitted and received on the port. - Page 11 Displays the value FULL DUPLEX . The port can transmit and receive data at the same time, therefore, the port is running at 1000 Mbps. PORT # (Modifiable) Selects the port for which statistics are to be displayed. 9G421-02/9G429-02 Module Specific Information...
- Page 12 9G421-02/9G429-02 Module Specific Information Displaying Statistics for Another Port To display statistics for another port: 1. Use the arrow keys to highlight the Port # field at the bottom of the screen. 2. Press the Space Bar to increment (or press the Backspace key to decrement) the port number.
