LOCAL MANAGEMENT SCREEN ELEMENTS

This section describes the conventions that are used when describing the Local Management
screens used to configure the SmartSwitch 9500 chassis and the 9A686-04 in later chapters of
this guide.
There are five types of screens used in Local Management: password, menu, configuration,
status, and warning screens. Each type of screen can consist of one to five basic elements, or
fields. Figure 1-2 shows an example of the fields in a screen. A description of each field
follows the figure.
The following definitions apply to most Cabletron Systems Local Management
NOTE
screens. Exceptions to these definitions may occur in the Local Management
screens of some Cabletron Systems devices.
The following list explains each of the Local Management fields:
Event Message Field
This field briefly displays messages that indicate if a Local Management procedure was
executed correctly or incorrectly, that changes were saved or not saved to Non-Volatile
Random Access Memory (NVRAM), or that a user did not have access privileges to an
application.
Page 1-12

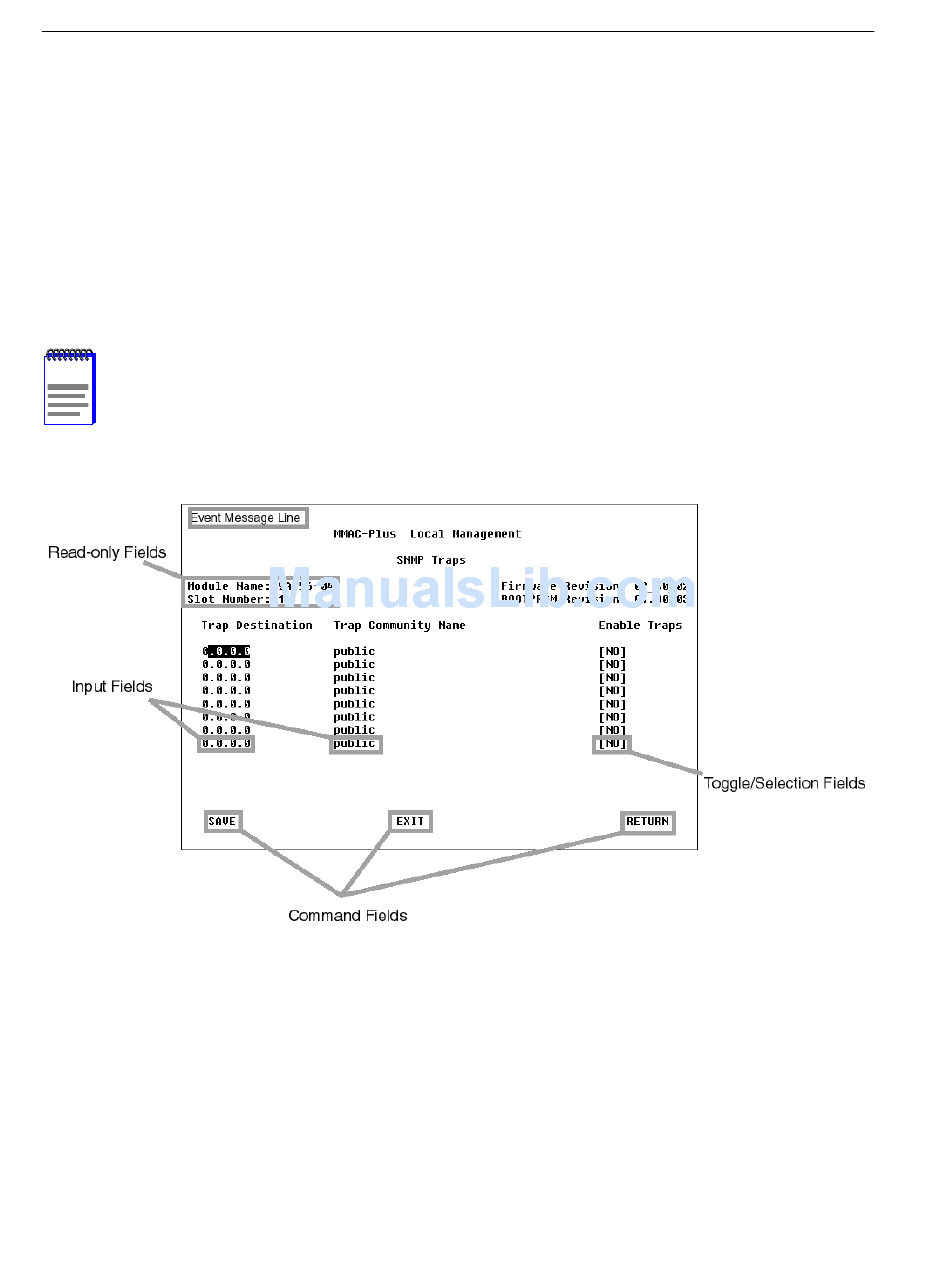

Figure 1-2 Example of a Local Management Screen
