Cabletron Systems SmartSwitch 9500 Hardware And Installation Manual

Atm module
Hide thumbs Also See for SmartSwitch 9500:
Table of Contents

Advertisement

Quick Links

Download this manual
SmartSwitch 9500
9A656-04 ATM Module
Hardware and Installation Guide
9032031-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SmartSwitch 9500 and is the answer not in the manual?

Questions and answers

Related Manuals for Cabletron Systems SmartSwitch 9500

Summary of Contents for Cabletron Systems SmartSwitch 9500

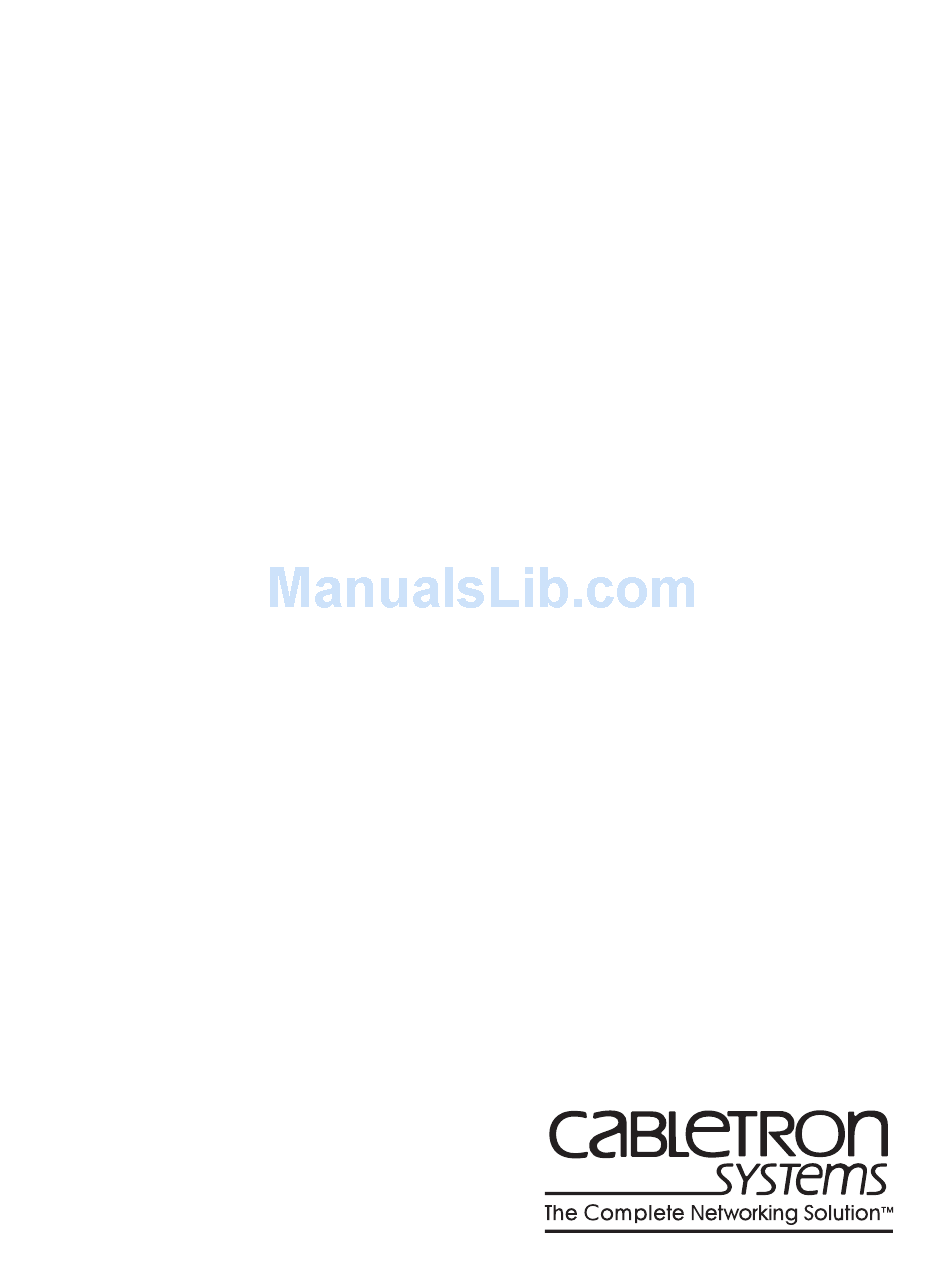

  • Page 1 SmartSwitch 9500 9A656-04 ATM Module Hardware and Installation Guide 9032031-01...
  • Page 3 Notice Notice Cabletron Systems reserves the right to make changes in speciÞcations and other information contained in this document without prior notice. The reader should in all cases consult Cabletron Systems to determine whether any such changes have been made. The hardware, Þrmware, or software described in this manual is subject to change without notice.

  • Page 4: Fcc Notice

    Notice FCC Notice This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules.

  • Page 5: Declaration Of Conformity

    Declaration of Conformity Application of Council Directive(s): ManufacturerÕs Name: ManufacturerÕs Address: European Representative Name: European Representative Address: Conformance to Directive(s)/Product Standards: Equipment Type/Environment: We the undersigned, hereby declare, under our sole responsibility, that the equipment packaged with this notice conforms to the above directives. Manufacturer Mr.
  • Page 6 Notice...

  • Page 7: Table Of Contents

    Related Manuals... 1-5 Getting Help ... 1-6 Chapter 2 Installing the 9A656-04 Module The Reset Switch ... 2-3 The Module Card DIP Switch ... 2-4 Installing an ANIM ... 2-5 Chapter 3 Operation ATM Cell TrafÞc Flow in the 9A656-04... 3-2 Cell Transfer Matrix (CTM) ...
  • Page 8 Contents Chapter 4 LANVIEW LEDs ANIM LEDs ... 4-3 Chapter 5 General Specifications Operating SpeciÞcations ... 5-1 Environmental Requirements ... 5-1 Regulatory Compliance... 5-1 Service ... 5-1 Physical ... 5-2 Device SpeciÞcations ... 5-2 ANIM SpeciÞcations ... 5-2 ANIM-21/3 ... 5-3 ANIM-29/3 ...

  • Page 9: Chapter 1 Introduction

    Prior to installing the 9A656-04, you should have a working knowledge of ATM networking principles. In this document, the Cabletron Systems SmartSwitch 9000 chassis is referred to as the “SmartSwitch 9500 chassis” which indicates a SmartSwitch 9000 chassis NOTE with one or more 9A656-04 modules installed.

  • Page 10: Overview

    ATM address. The individual i960 processors and the CTM backplane interfaces are transparent to the network manager and management applications. A fully loaded SmartSwitch 9500 chassis appears as a single switch, with one IP address, and one ATM address.
  • Page 11 Overview 2031_01 Figure 1-1. The 9A656-04...

  • Page 12: Features

    SmartSwitch 9500 chassis IP address assignment ¥ Ability to conÞgure the in-band management LAN Emulation Client ¥ SmartSwitch 9500 chassis and 9A656-04 SNMP community names and trap IP address assignment ¥ Ability to access Local Management screens of any module installed in the...

  • Page 13: Lanview Leds

    LANVIEW LEDs The 9A656-04 uses LANVIEW, The Cabletron Systems built-in visual diagnostic and status monitoring system. With LANVIEW LEDs, you can quickly identify the device, port, and physical layer status at a glance. Related Manuals The manuals listed below should be used to supplement the procedures and technical data contained in this manual.

  • Page 14: Getting Help

    Introduction Getting Help For additional support related to this device or document, contact the Cabletron Systems Global Call Center: Phone Internet mail Login Password Modem setting For additional information about Cabletron Systems or its products, visit the World Wide Web site: http://www.cabletron.com/ For technical support, select Service and Support .

  • Page 15: Installing The 9A656-04 Module

    Installing the 9A656-04 Module SmartSwitch 9500 modules can be installed in any of the slots that are available. To install a module, proceed as follows: Observe all antistatic precautions when handling sensitive electronic equipment. CAUTION Remove the blank plate covering the slot in which the 9A656-04 will be installed.
  • Page 16 Installing the 9A656-04 Module Metal Back-Panel Plastic Locking Tab Circuit Card Card Guides Figure 2-1. Installing the 9A656-04 Plastic Locking Tab 2031_02...

  • Page 17: The Reset Switch

    CAUTION module that performs specific management functions. The Reset switch is located on the front panel, under the top plastic tab as shown in Figure 2-2. It serves two functions: ¥...

  • Page 18: The Module Card Dip Switch

    CAUTION Do not toggle Switch 7 unless you intend to reset the user parameters to the factory default settings. Refer to the 9A656-04 Configuration Guide for instructions on the parameters that may be configured by the user via Local/Remote Management.

  • Page 19: Installing An Anim

    ATM Network Interface Modules (ANIMs). Figure 2-3 also shows the location of the Module Card DIP Switch. i960 Processor ANIM Connectors (4) Standoff Screws (16) 2031_04 DIP Switch Figure 2-3. ANIM Connector Locations and Module DIP Switch Location...
  • Page 20 The 9A656-04 module is shipped without ANIMs. To install the ANIMs proceed as follows: Remove the module if it is installed in the SmartSwitch 9500 chassis. To remove a module, release (rotate outward) the top and bottom plastic locking tabs, then slide the module out of the chassis.
  • Page 21 When installing or removing an ANIM make sure to always use the cutouts on the board to handle the ANIM. See Figure 2-6 for the location of the cutouts. CAUTION When connecting the ANIM pins to the motherboard connector take extra precaution that the pins do not enter the connector at an angle as this will damage both the ANIM and the motherboard connector.
  • Page 22 Installing the 9A656-04 Module...

  • Page 23: Chapter 3 Operation

    Operation The 9A656-04 provides switching between the front panel interfaces (ANIMs) and the Cell Transfer Matrix backplane located inside the SmartSwitch 9500 chassis. Figure 3-1 shows the trafÞc ßow of ATM cells in the 9A656-04. The following sections brießy describe the functions of the i960 Processor, the ASICs, the CTM and how they relate to ATM cell trafÞc ßow.

  • Page 24: Atm Cell Trafþc Flow In The 9A656-04

    Each 9A656-04 has 14 physical CTM interfaces; one connection to every other 9A656-04 along with a local loopback interface. A SmartSwitch 9500 chassis with 14 9A656- 04 modules installed would have 182 point-to-point links between all the interface modules.

  • Page 25: I960Hd Processor

    The 9A656-04 has seven CTM ASICs that provide two interfaces each between the TDM Bus and the CTM Backplane located in the SmartSwitch 9500 chassis. Each interface is a full-duplex connection with a raw throughput capacity of 2 Gbps. In addition, the CTM ASICs perform all trafÞc management between the 9A656-04...

  • Page 26: System Management Buses

    These buses provide out-of-band management and inter-module management communication. SMB-1 Bus The SMB-1 is a 1 Mbps management bus located within the SmartSwitch 9500 chassis. This bus is used by all diagnostic controllers in the system, including the following: ¥...

  • Page 27: System Diagnostic Controller

    System Diagnostic Controller This diagnostic controller is composed of a Z-80 microprocessor and its supporting logic. The diagnostic controller performs the following: ¥ Controls the power-up sequencing of modules ¥ Monitors the 9A656-04 input and output power parameters ¥ Keeps watch over the main host processor ¥...
  • Page 28 Operation...

  • Page 29: Lanview Leds

    Chapter 4 LANVIEW LEDs The front panel LANVIEW LEDs indicate the status of the module and may be used as an aid in troubleshooting. Shown in Figure 4-1 are the LANVIEW LEDs of the 9A656-04 module. Refer to Table 4-1 for the full deÞnitions of 9A656-04 LED states.
  • Page 30 LANVIEW LEDs LED Color Green Amber Amber/Green Red (Flashing) Table 4-1. SMB and CPU LEDs State Functional Fully operational Not fully operational Crippled (i.e., one bad port) Power off Module powered off Booting LED blinks amber and green while booting Failed Fatal error has occurred Power off...

  • Page 31: Anim Leds

    ANIM LEDs The front panel LANVIEW LEDs indicate the status of the ANIM and may be used as an aid in troubleshooting. Shown in Figure 4-2 are the LANVIEW LEDs of all ANIMs. Although there are several types of ANIMs, all share the same LANVIEW LEDs.
  • Page 32 LANVIEW LEDs...

  • Page 33: General Specifications

    General Specifications The speciÞcations for the 9A656-04 are detailed in the sections that follow. Operating Specifications Environmental Requirements Operating Temperature Storage Temperature: Operating Relative Humidity: Regulatory Compliance Safety This equipment meets the safety requirements of UL 1950, CSA C22.2 No. 950, EN 60950, IEC 950 and 73/23/EEC.

  • Page 34: Physical

    General Specifications Physical Dimensions 35.0 D x 44.0 H x 3.0 W centimeters (13.8 D x 17.4 H x 1.2 W inches) Weight Unit: 1.36 kg. (3lb) Shipping: 1.81 kg. (4lb) Device Specifications Processor Intel i960HD RISC processor control Dynamic Random Access Memory (DRAM) 96 MB FLASH Memory 8 MB...

  • Page 35: Anim-21/3

    ANIM-21/3 The ANIM-21/3 provides a multimode Þber connection using a Duplex SC connector and a line rate of 155.52 Mbps. The speciÞcations for the ANIM-21/3 are listed in Table 5-1. Table 5-1. ANIM-21/3 Specifications Parameter SpeciÞcation Number of Interfaces Line Rate 155.52 Mbps Interface Type Duplex SC...

  • Page 36: Anim-29/3

    General Specifications ANIM-29/3 The ANIM-29/3 provides a single mode Þber connection using a Duplex SC connector with a line rate of 155.52 Mbps. The speciÞcations for the ANIM-29/3 are listed in Table 5-2. Table 5-2. ANIM-29/3 Specifications Parameter SpeciÞcation Number of Interfaces Line Rate 155.52 Mbps Interface Type...

  • Page 37: Anim-29/3Lr

    ANIM-29/3LR The ANIM-29/3LR provides a single mode Þber connection using a Duplex SC connector with a line rate of 155.52 Mbps. The speciÞcations for the ANIM-29/3LR are listed in Table 5-3. Table 5-3. ANIM-29/3LR Specifications Parameter SpeciÞcation Number of Interfaces Line Rate 155.52 Mbps Interface Type...

  • Page 38: Anim-31/2

    General Specifications ANIM-31/2 The ANIM-31/2 provides a multimode Þber connection using a Duplex SC connector with a line rate of 622 Mbps. The speciÞcations for the ANIM-31/2 are listed in Table 5-4. Table 5-4. ANIM-31/2 Specifications Parameter SpeciÞcation Number of Interfaces Line Rate 622 Mbps Interface Type...

  • Page 39: Anim-39/2

    ANIM-39/2 The ANIM-39/2 provides a single mode Þber connection using a Duplex SC connector with a line rate of 622 Mbps. The speciÞcations for the ANIM-39/2 are listed in Table 5-5. Table 5-5. ANIM-39/2 Specifications Parameter SpeciÞcation Number of Interfaces Line Rate 622 Mbps Interface Type...

  • Page 40: Anim-39/2Lr

    General Specifications ANIM-39/2LR The ANIM-39/2LR provides a single mode Þber connection using a Duplex SC connector with a line rate of 622 Mbps. The speciÞcations for the ANIM-39/2LR are listed in Table 5-6. Table 5-6. ANIM-39/2LR Specifications Parameter SpeciÞcation Number of Interfaces Line Rate 622 Mbps Interface Type...

  • Page 41: Anim-67/2

    ANIM-67/2 The ANIM-67/2 provides a coaxial cable connection using BNC connectors with a line rate of 45 Mbps. The speciÞcations for the ANIM-67/2 are listed in Table 5-7. Table 5-7. ANIM-67/2 Specifications Parameter SpeciÞcation Number of Interfaces Line Rate 45 Mbps Interface Type Media Type Coaxial Cable...

  • Page 42: Anim-77/2

    General Specifications ANIM-77/2 The ANIM-77/2 provides a coaxial cable connection using BNC connectors with a line rate of 34 Mbps. The speciÞcations for the ANIM-77/2 are listed in Table 5-8. 5-10 Table 5-8. ANIM-77/2 Specifications Parameter SpeciÞcation Number of Interfaces Line Rate 34 Mbps Interface Type...

  • Page 43: Anim-22/4

    ANIM-22/4 The ANIM-22/3 provides a Category 5 UTP connection using four RJ45 connectors with a line rate of 155.52 Mbps. The speciÞcations for the ANIM-22/4 are listed in Table 5-9. Table 5-9. ANIM-22/4 Specifications Parameter SpeciÞcation Number of Interfaces Line Rate 155.52 Mbps Interface Type RJ45...
  • Page 44 General Specifications 5-12...
