2.10 THE MODULE SELECTION SCREEN

The Module Selection screen is the access point to Local Management for all modules
installed in the SmartSwitch 9500 chassis. By selecting a module, the user is taken to the first
Module Menu screen for the selected device.
Access the Module Selection screen by using the arrow keys to highlight the MODULES
field from the Main Menu screen and pressing ENTER. The Module Selection screen,
Figure 2-8, displays.
The following explains each of the Module Selection screen fields:
SLOT #
The SLOT # field displays the slot in which the module is installed. The module number
enclosed in <> characters indicates the module to has been elected the chassis agent.
MODULE Name
The Module Name field displays the type of interface module that is installed in each slot.

2.10.1 Selecting a Module

To select an individual module to perform Local Management functions, proceed as follows:
1. Use the arrow keys to highlight the desired module in the Module Name field.
2. Press ENTER. The applicable Module Menu screen displays.
9A656-04/9A686-04 Configuration Guide

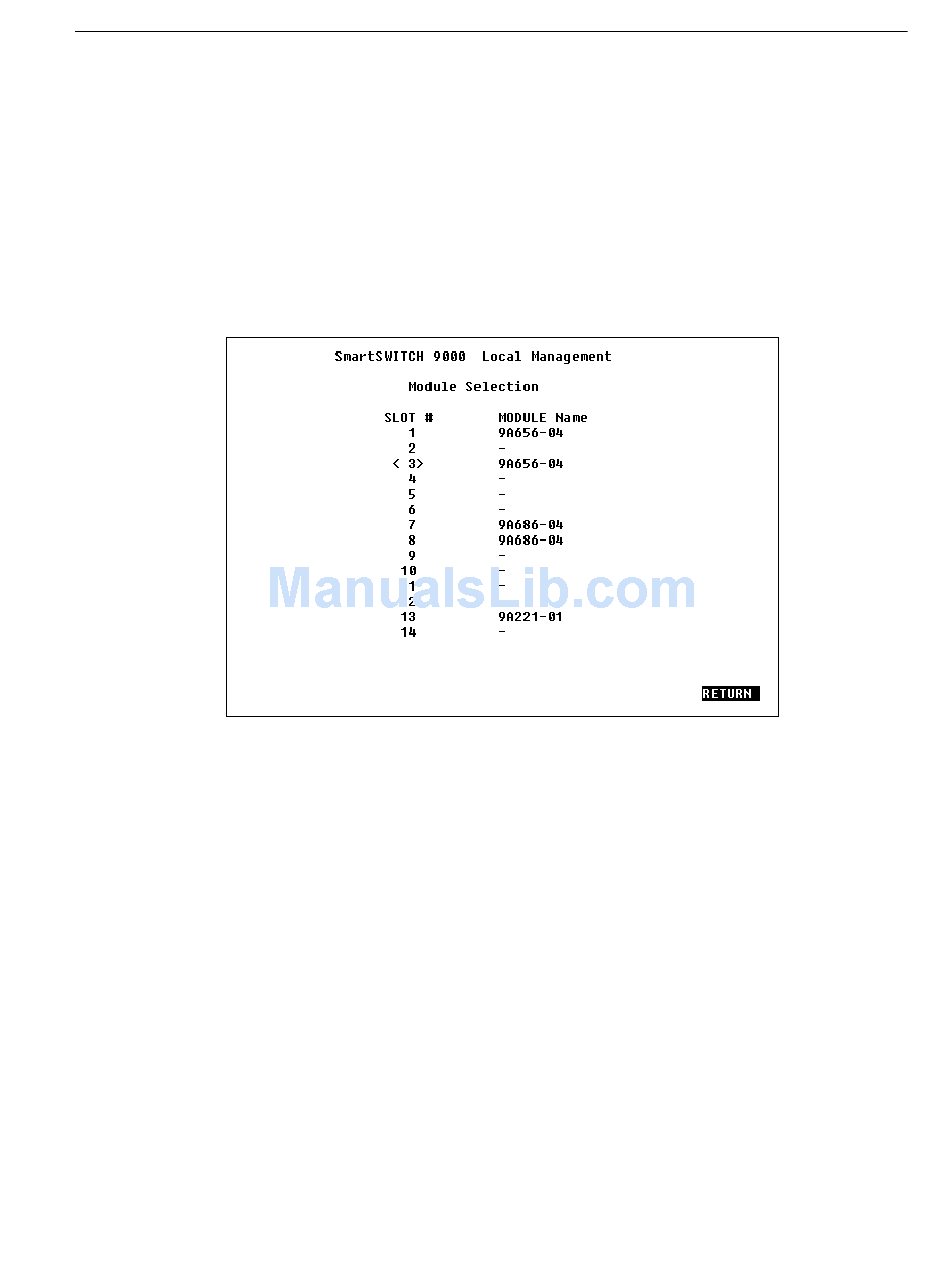

Figure 2-8 The Module Selection Screen
The Module Selection Screen
2-17
