Chapter 2: System Configuration
To proceed to the Main Menu screen enter the community name "public" or press ENTER, the
Main Menu screen, Figure 2-2, displays.

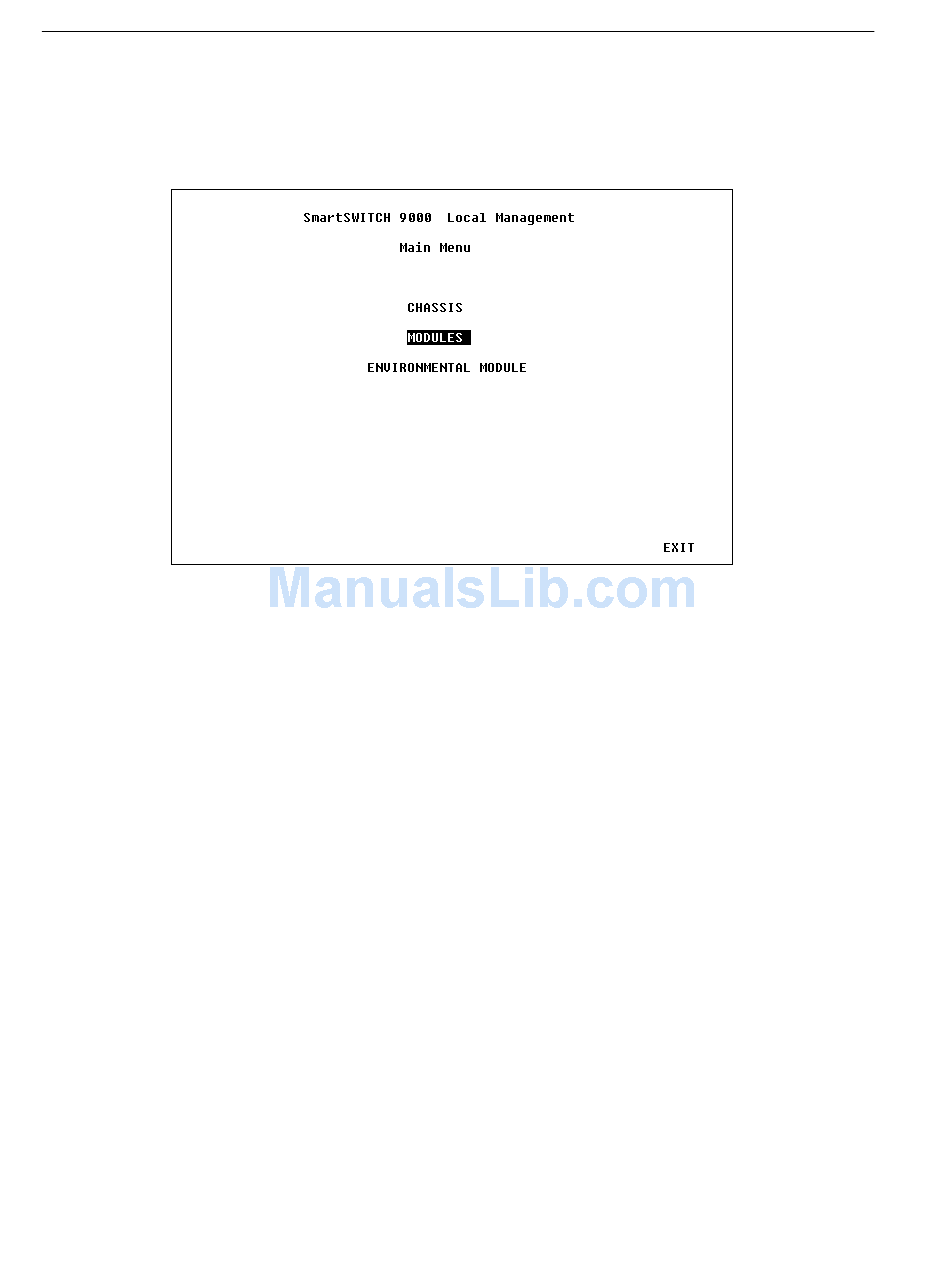

Figure 2-2 The Main Menu Screen
2.4

THE MAIN MENU SCREEN

The Main Menu screen is the access point for all Local Management screens for all modules,
the Environmental Module and the SmartSwitch 9500 chassis.
The following explains each of the Main Menu screen fields:
CHASSIS
The Chassis menu item provides access to the Chassis menu screen, which is used to
configure the SmartSwitch 9500 chassis and to view current chassis power supply status.
MODULES
The Modules menu item provides access to the Module Selection screen that is used to select
individual modules in the chassis for management purposes.
ENVIRONMENTAL MODULE
The Environmental Module menu item provides access to the Environmental Module screen.
This screen allows you to set the COM port applications, view chassis fan tray status,
download a new image to Flash memory, and to check the chassis temperature and the
external temperature.
2-4 9A656-04/9A686-04 Configuration Guide
