Chapter 2: System Configuration
3. Use the arrow keys to highlight the SAVE command at the bottom of the screen.
4. Press ENTER. The changes are saved, and the system resets.

2.17 THE ILMI CONFIGURATION MENU SCREEN

The ILMI Configuration menu item opens the ILMI Configuration Menu screen. This screen
is used to specify minimum and maximum values for VCI and VPIs for all SVCs and SPVCs
that the SmartSwitch 9500 will use while switching traffic. By default, the SmartSwitch 9500
is a SVC only switch.
VPI/VCI values for PVC assignment.
To access the ILMI Configuration screen, perform the following steps:
1. Use the arrow keys to highlight the ILMI CONFIGURATION menu item from the
System Configuration Menu screen.
2. Press ENTER. The ILMI Configuration screen,
2-32
Section 2.17.2 through
Chapter 3

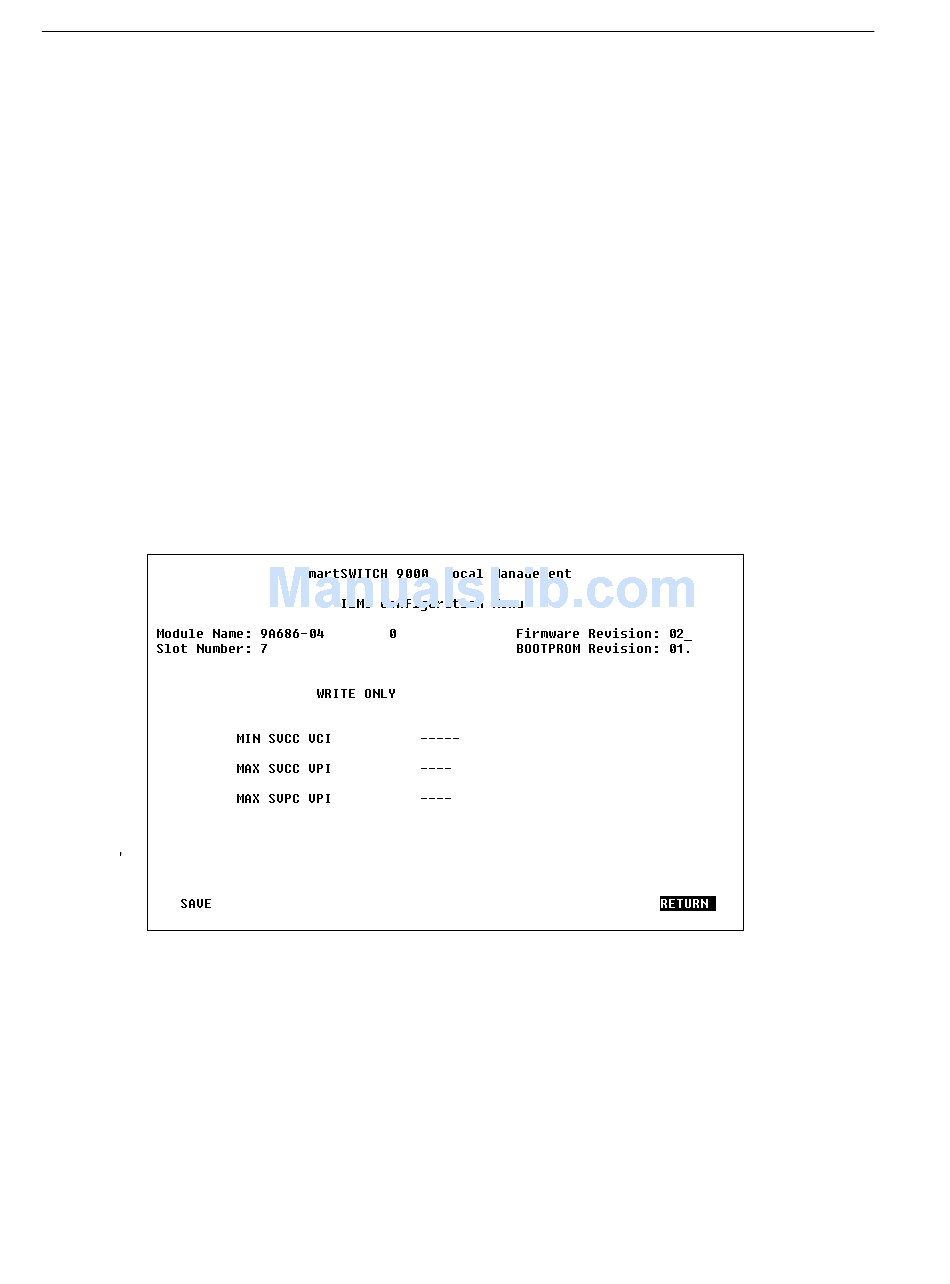

Figure 2-18 ILMI Configuration Menu Screen
Section 2.17.4 provide instructions on reserving
provides more detailed information on ILMI.
Figure 2-14,displays.
9A656-04/9A686-04 Configuration Guide
