19. If a battery and battery carrier are attached to the SAS controller that you
20. Install the interposer card that comes with the option kit on the interposer card
74
System x3650 M3 Types 4255, 7945, and 7949: Installation and User's Guide
removed in step 8, disconnect the battery carrier cable from the battery and
remove the three screws that secure the battery carrier to the SAS controller.
Set the battery and battery carrier aside.
Note: The illustrations in this document might differ slightly from your
hardware.

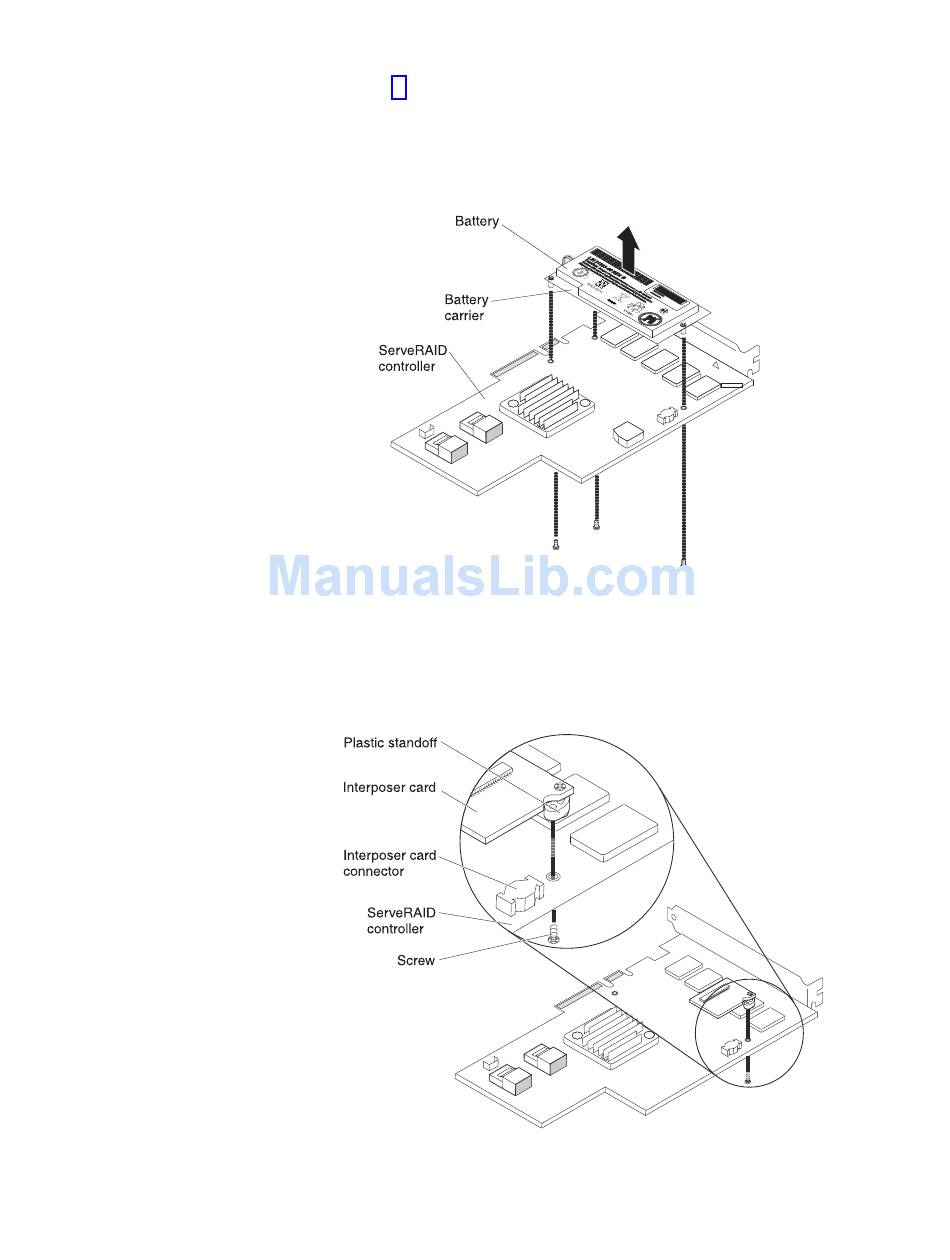

connector on the SAS controller:
a. Remove the interposer card and the loose screw from the bag.
b. Rotate the standoff so that it aligns with the hole in the ServeRAID
controller, and position the interposer card connector over the SAS
controller connector.
c. Press the interposer card down onto the interposer card connector so that
the interposer card is secured.
