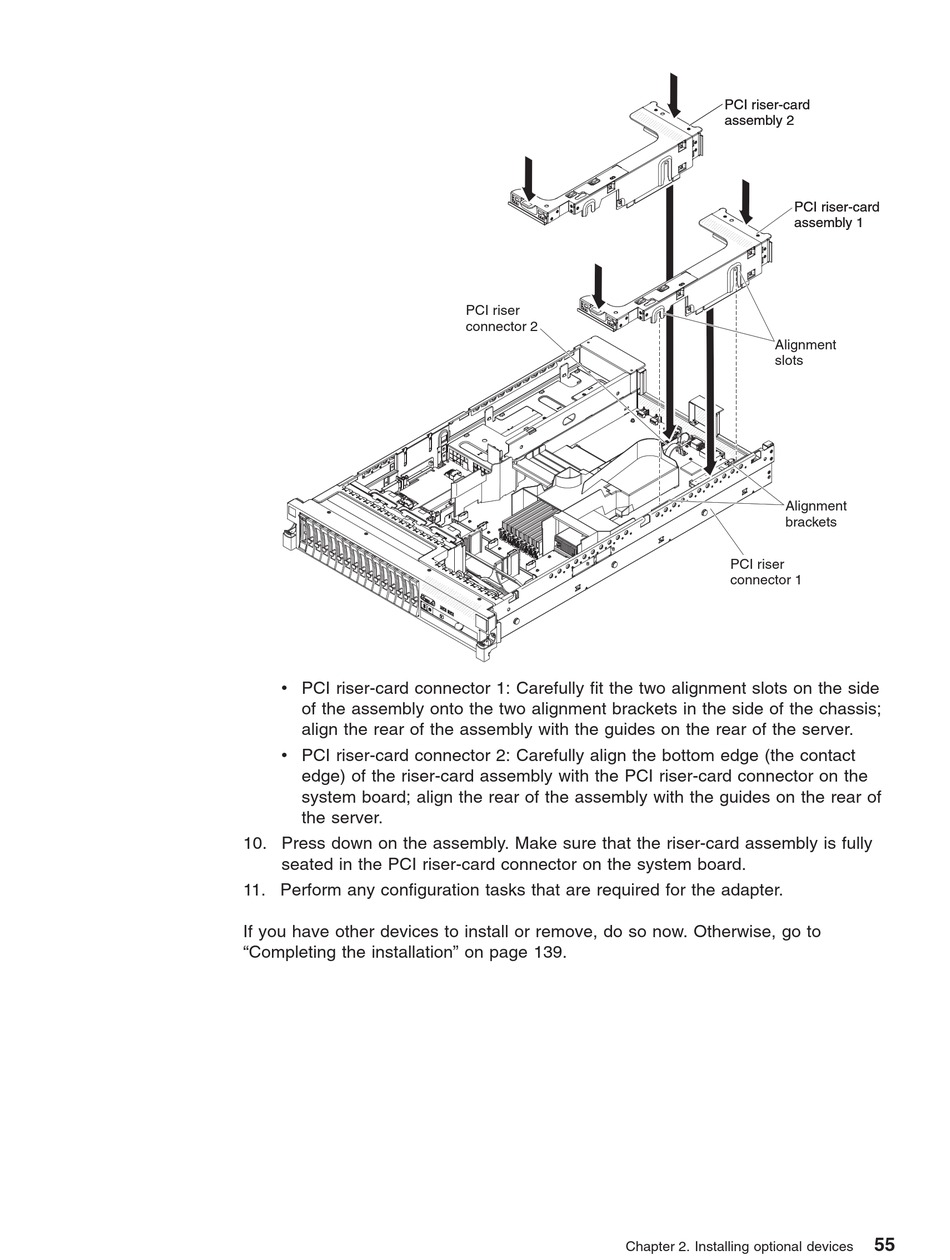

v PCI riser-card connector 1: Carefully fit the two alignment slots on the side
of the assembly onto the two alignment brackets in the side of the chassis;
align the rear of the assembly with the guides on the rear of the server.
v PCI riser-card connector 2: Carefully align the bottom edge (the contact
edge) of the riser-card assembly with the PCI riser-card connector on the
system board; align the rear of the assembly with the guides on the rear of
the server.
10. Press down on the assembly. Make sure that the riser-card assembly is fully
seated in the PCI riser-card connector on the system board.
11. Perform any configuration tasks that are required for the adapter.
If you have other devices to install or remove, do so now. Otherwise, go to
"Completing the installation" on page 139.
PCI riser
connector 2
Chapter 2. Installing optional devices
PCI riser-card
PCI riser-card
assembly 2
assembly 2
PCI riser-card
PCI riser-card
assembly 1
assembly 1
Alignment
slots
Alignment
brackets
PCI riser
connector 1
55
