USB hypervisor
connector
To start using the embedded hypervisor functions, you must add the USB memory
key to the startup sequence in the Setup utility.
To add the USB hypervisor memory key to the boot order, complete the following
steps:
1. Turn on the server.
2. When the prompt <F1> Setup is displayed, press F1.
3. From the Setup utility main menu, select Boot Manager.
4. Select Add Boot Option; then, select Hypervisor. Press Enter, and then press
5. Select Change Boot Order and then select Commit Changes; then, press
6. Select Save Settings and then select Exit Setup.
If the embedded hypervisor image becomes corrupt, you can use the VMware
Recovery CD that comes with the server to recover the image. To recover the flash
device image, complete the following steps:
1. Turn on the server.
2. Insert the VMware Recovery CD into the CD or DVD drive.
3. Follow the instructions on the screen.
For additional information and instructions, see the VMware ESXi Server 3i
Embedded Setup Guide at http://www.vmware.com/pdf/vi3_35/esx_3i_e/r35/
vi3_35_25_3i_setup.pdf/.

Using the remote presence capability and blue-screen capture

The remote presence and blue-screen capture features are integrated functions of
the integrated management module (IMM). When an optional virtual media key is
installed in the server, it activates full systems-management functions. The virtual
media key is required to enable the integrated remote presence and blue-screen
capture features. Without the virtual media key, you cannot remotely mount or
unmount drives or images on the client system. However, you still can access the
Web interface without the key.
After the virtual media key is installed in the server, it is authenticated to determine
whether it is valid. If the key is not valid, you receive a message from the Web
interface (when you attempt to start the remote presence feature) indicating that the
hardware key is required to use the remote presence feature.
154
System x3650 M3 Types 4255, 7945, and 7949: Installation and User's Guide
PCI Express SAS
controller connector
Note: Approximately 3 minutes after the server is connected to ac power, the
power-control button becomes active.
Esc.
Enter.
Note: Approximately 3 minutes after the server is connected to ac power, the
power-control button becomes active.

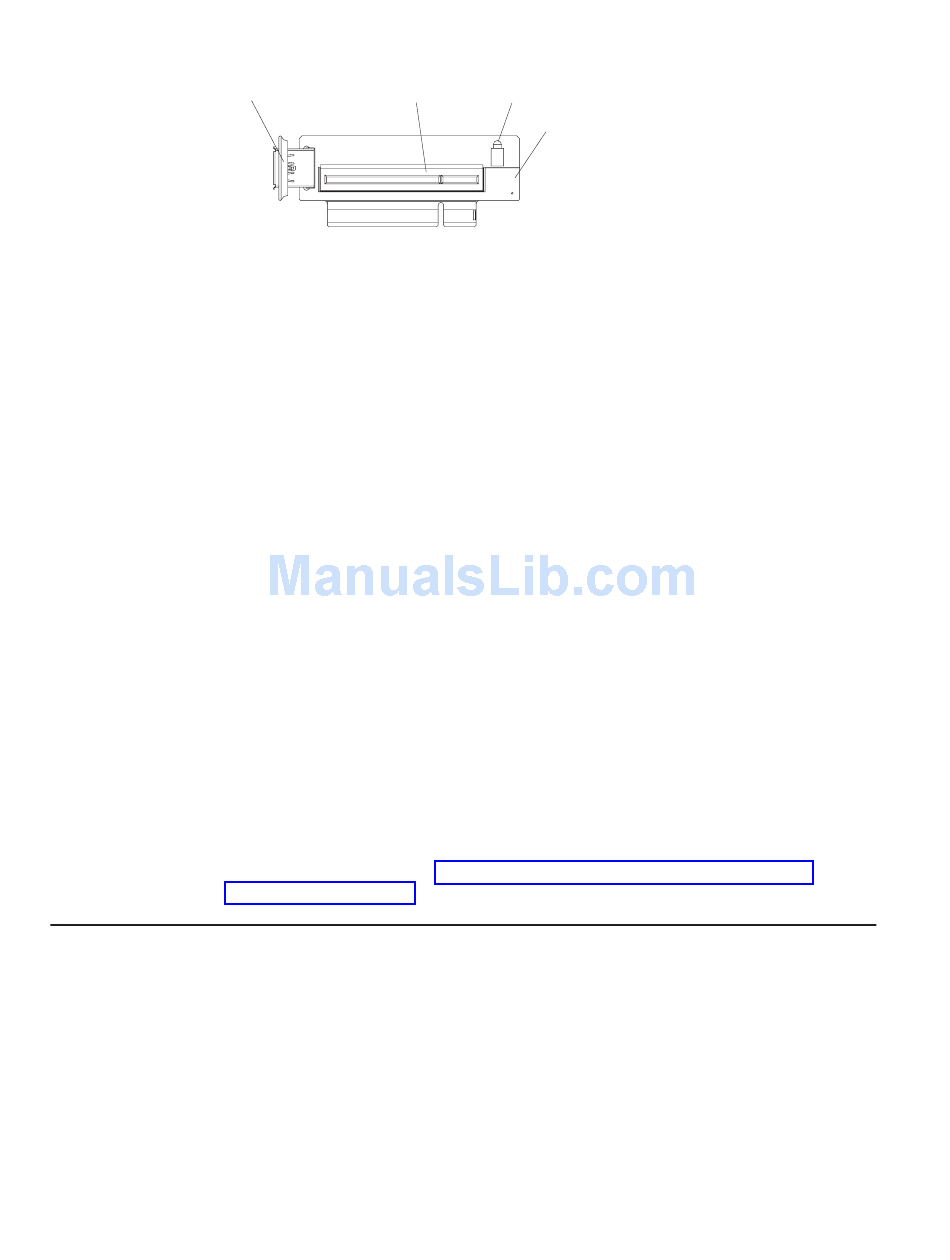

SAS controller
error LED
SAS riser
card
