100
System x3650 M3 Types 4255, 7945, and 7949: Installation and User's Guide

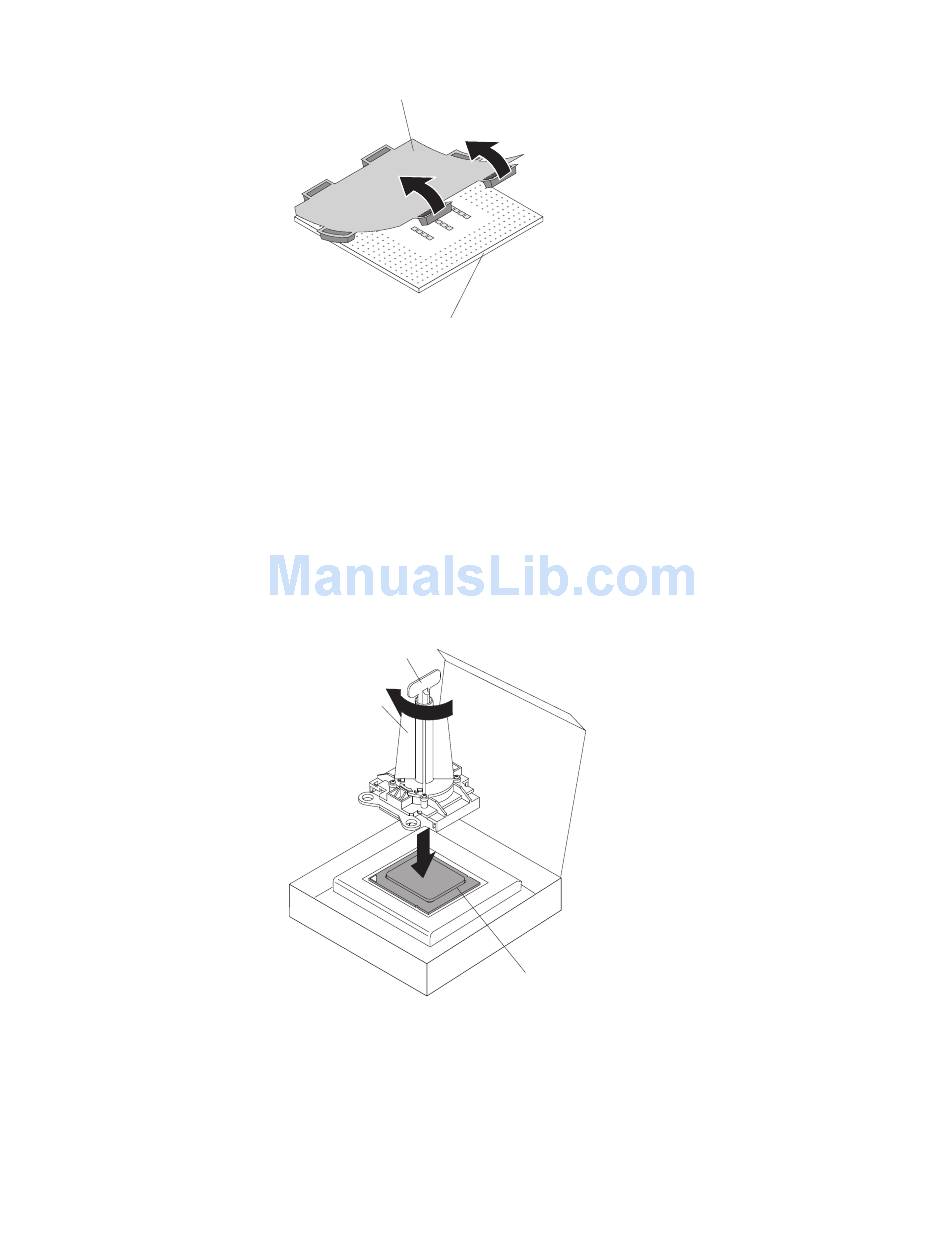

Protective
cover
Microprocessor
f. Locate the microprocessor installation tool that comes with the new
microprocessor.
g. Twist the handle of the installation tool counterclockwise so that it is in the
open position.
h. Align the triangle alignment mark on the microprocessor installation tool
with the triangle alignment mark on the microprocessor, then place the
microprocessor on the underside of the tool so that the tool can grasp the
microprocessor correctly onto the bottom of the installation tool.
i. Twist the handle of the installation tool clockwise to secure the
microprocessor in the tool.
Note: You can pick up or release the microprocessor by twisting the
microprocessor installation tool handle.
Handle
Installation
tool
j. Carefully align the microprocessor installation tool over the microprocessor
socket. Twist the handle of the microprocessor tool counterclockwise to
insert the microprocessor into the socket.
Attention:
The microprocessor fits only one way on the socket. You must
place a microprocessor straight down on the socket to avoid damaging the
pins on the socket. The pins on the socket are fragile. Any damage to the
pins may require replacing the system board.
Microprocessor
