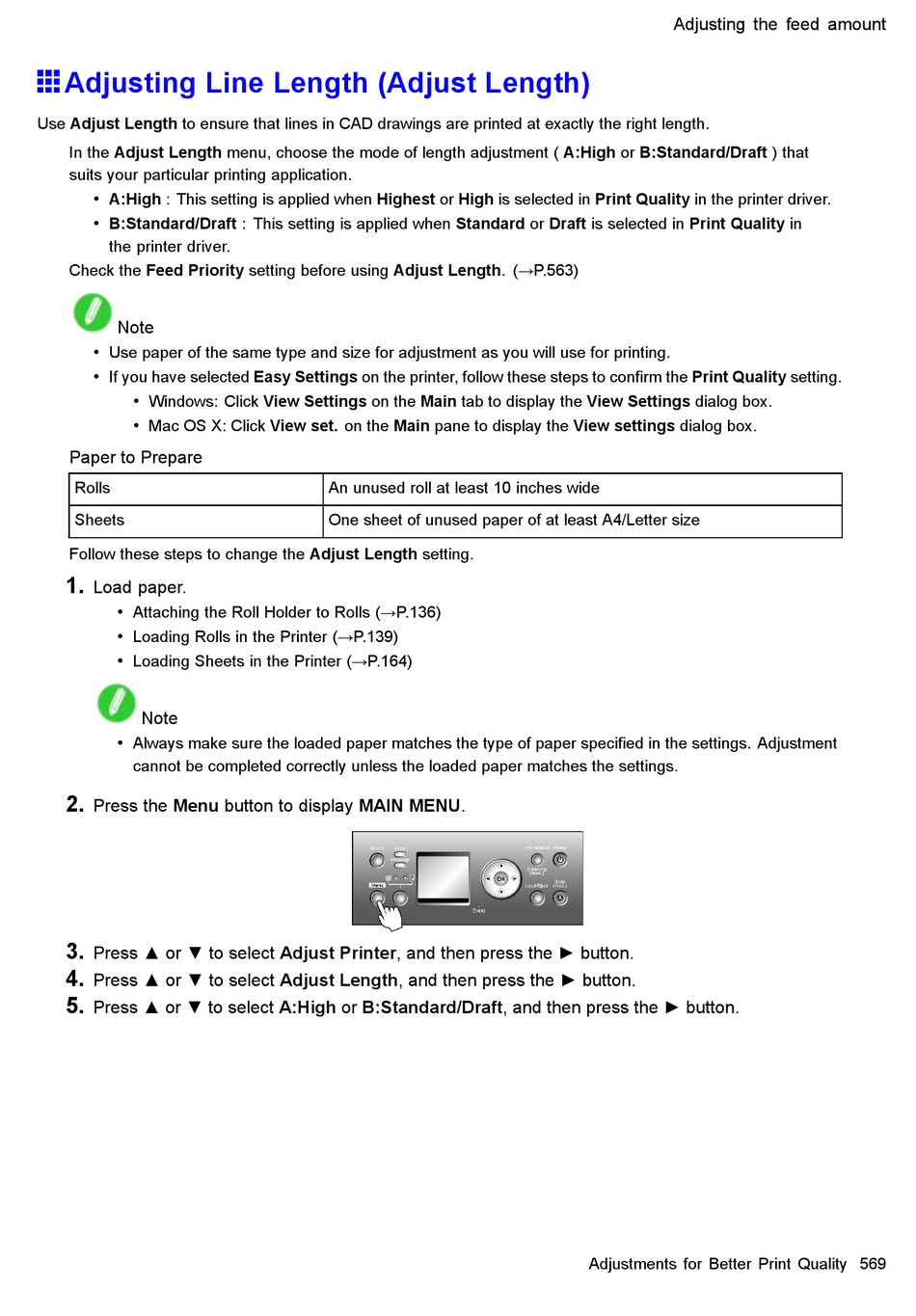

Adjusting Line Length (Adjust Length)

Use Adjust Length to ensure that lines in CAD drawings are printed at exactly the right length.
In the Adjust Length menu, choose the mode of length adjustment ( A:High or B:Standard/Draft ) that
suits your particular printing application.
•
A:High : This setting is applied when Highest or High is selected in Print Quality in the printer driver.
•
B:Standard/Draft : This setting is applied when Standard or Draft is selected in Print Quality in
the printer driver.
Check the Feed Priority setting before using Adjust Length. (→P.563)
Note
•
Use paper of the same type and size for adjustment as you will use for printing.
•
If you have selected Easy Settings on the printer, follow these steps to conrm the Print Quality setting.
•
Windows: Click View Settings on the Main tab to display the View Settings dialog box.
•
Mac OS X: Click View set. on the Main pane to display the View settings dialog box.
Paper to Prepare
Rolls
Sheets
Follow these steps to change the Adjust Length setting.
1.
Load paper.
•
Attaching the Roll Holder to Rolls (→P.136)
•
Loading Rolls in the Printer (→P.139)
•
Loading Sheets in the Printer (→P.164)
Note
•
Always make sure the loaded paper matches the type of paper specied in the settings. Adjustment
cannot be completed correctly unless the loaded paper matches the settings.
2.
Press the Menu button to display MAIN MENU.
3.
Press ▲ or ▼ to select Adjust Printer, and then press the ► button.
4.
Press ▲ or ▼ to select Adjust Length, and then press the ► button.
5.
Press ▲ or ▼ to select A:High or B:Standard/Draft, and then press the ► button.
An unused roll at least 10 inches wide
One sheet of unused paper of at least A4/Letter size
Adjusting the feed amount
