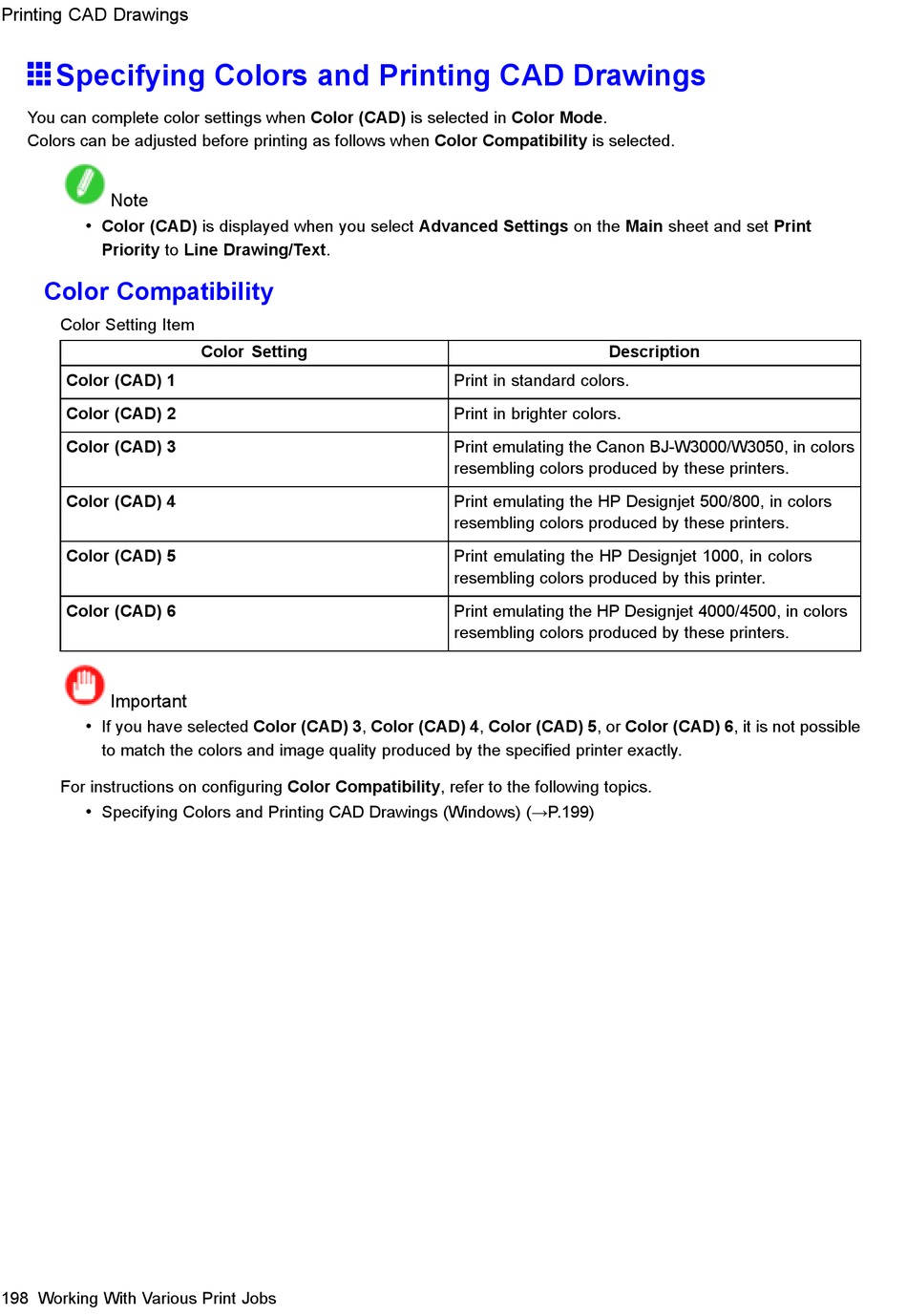

Printing CAD Drawings

Specifying Colors and Printing CAD Drawings

You can complete color settings when Color (CAD) is selected in Color Mode.
Colors can be adjusted before printing as follows when Color Compatibility is selected.
Note
•
Color (CAD) is displayed when you select Advanced Settings on the Main sheet and set Print
Priority to Line Drawing/Text.

Color Compatibility

Color Setting Item
Color (CAD) 1
Color (CAD) 2
Color (CAD) 3
Color (CAD) 4
Color (CAD) 5
Color (CAD) 6
Important
•
If you have selected Color (CAD) 3, Color (CAD) 4, Color (CAD) 5, or Color (CAD) 6, it is not possible
to match the colors and image quality produced by the specied printer exactly.
For instructions on conguring Color Compatibility, refer to the following topics.
•
Specifying Colors and Printing CAD Drawings (Windows) (→P.199)
198 Working With Various Print Jobs
Color Setting Description
Print in standard colors.
Print in brighter colors.
Print emulating the Canon BJ-W3000/W3050, in colors
resembling colors produced by these printers.
Print emulating the HP Designjet 500/800, in colors
resembling colors produced by these printers.
Print emulating the HP Designjet 1000, in colors
resembling colors produced by this printer.
Print emulating the HP Designjet 4000/4500, in colors
resembling colors produced by these printers.
