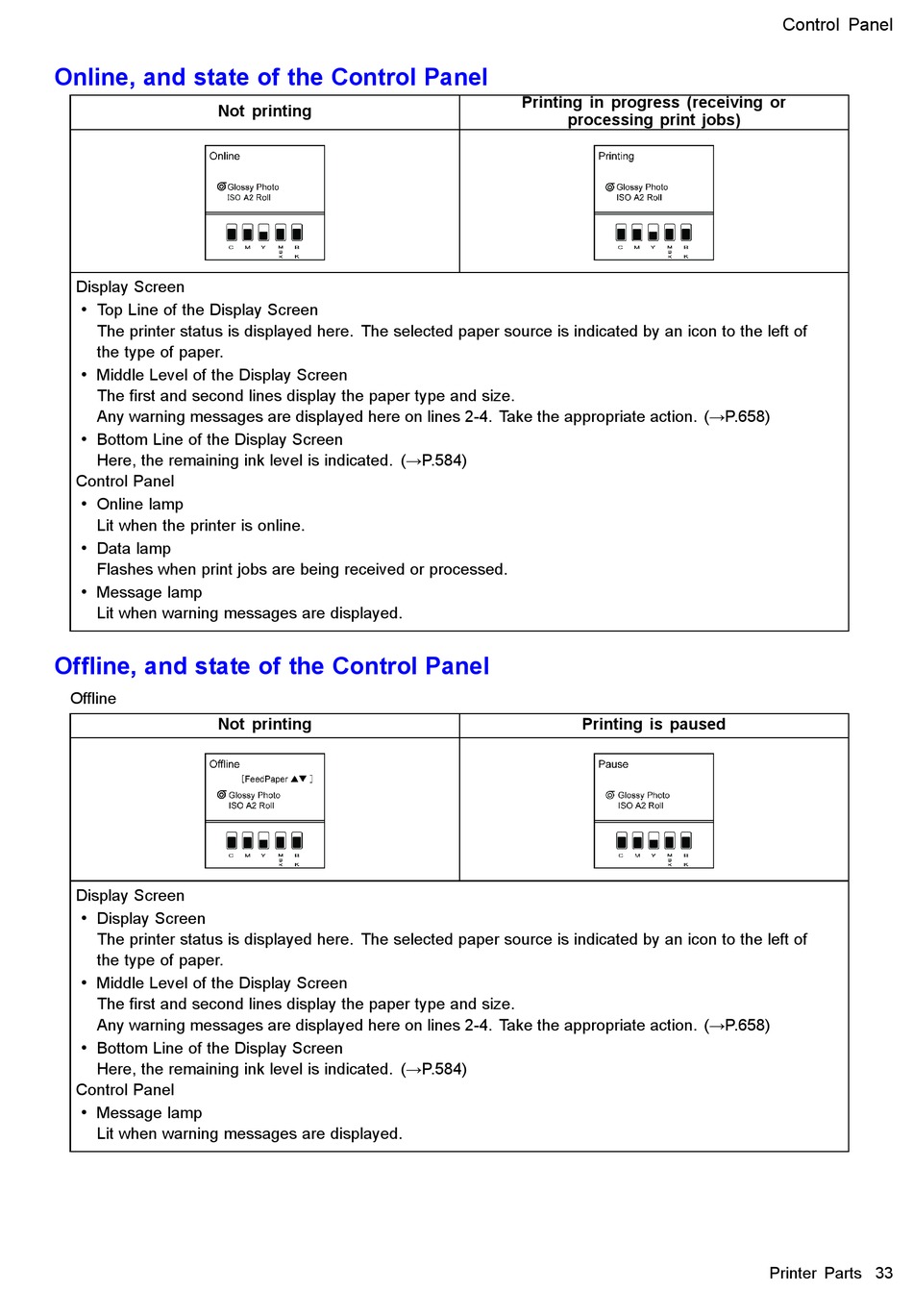

Online, and state of the Control Panel

Not printing
Display Screen
•
Top Line of the Display Screen
The printer status is displayed here. The selected paper source is indicated by an icon to the left of
the type of paper.
•
Middle Level of the Display Screen
The rst and second lines display the paper type and size.
Any warning messages are displayed here on lines 2-4. Take the appropriate action. (→P.658)
•
Bottom Line of the Display Screen
Here, the remaining ink level is indicated. (→P.584)
Control Panel
•
Online lamp
Lit when the printer is online.
•
Data lamp
Flashes when print jobs are being received or processed.
•
Message lamp
Lit when warning messages are displayed.
Ofine, and state of the Control Panel
Ofine
Not printing
Display Screen
•
Display Screen
The printer status is displayed here. The selected paper source is indicated by an icon to the left of
the type of paper.
•
Middle Level of the Display Screen
The rst and second lines display the paper type and size.
Any warning messages are displayed here on lines 2-4. Take the appropriate action. (→P.658)
•
Bottom Line of the Display Screen
Here, the remaining ink level is indicated. (→P.584)
Control Panel
•
Message lamp
Lit when warning messages are displayed.
Printing in progress (receiving or
processing print jobs)
Printing is paused
Control Panel
