6.

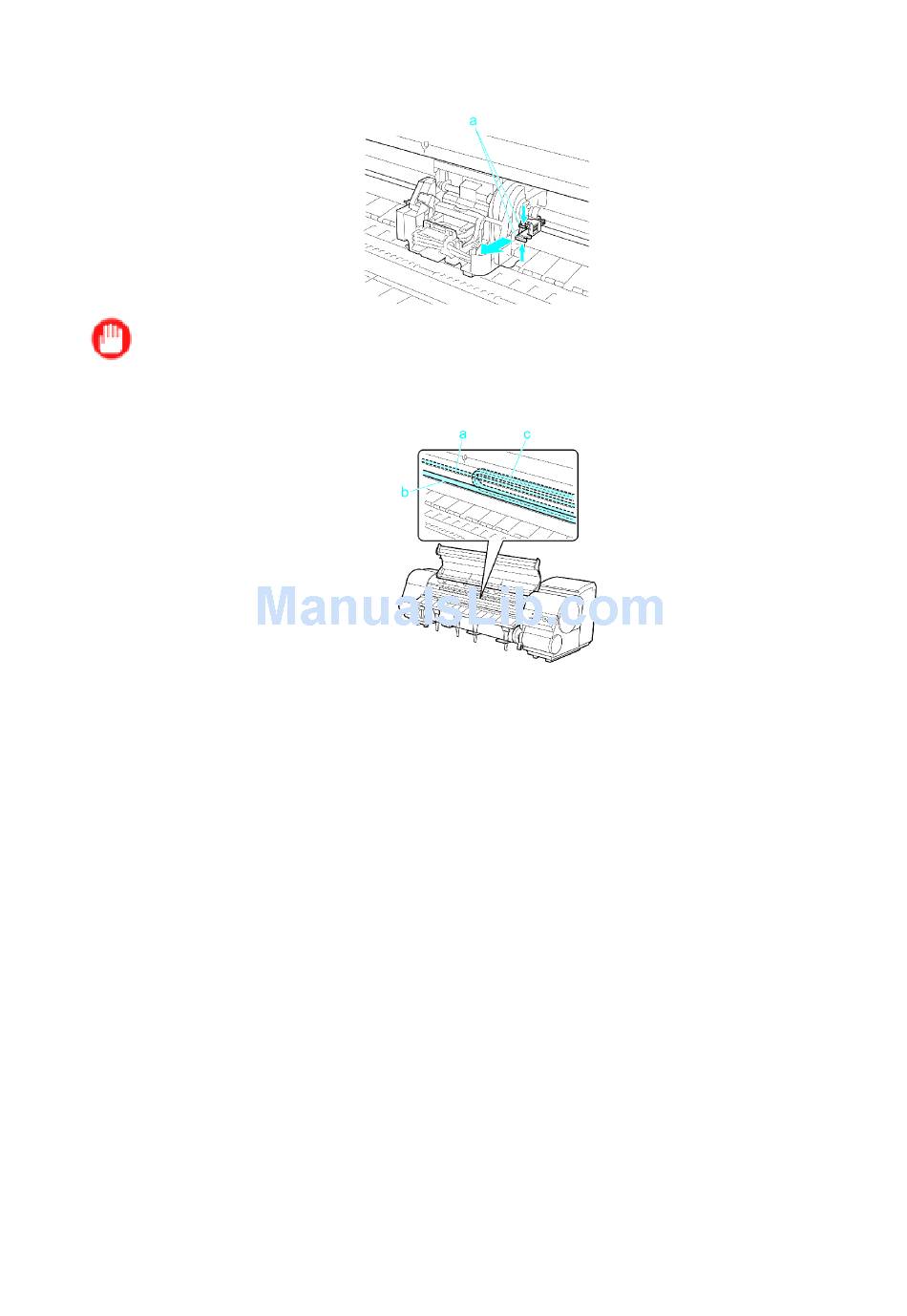

Hold the Shaft Cleaner on the right side of the Carriage by the grips (a) and pull it toward you to
remove it.
Important
•
Do not touch the Linear Scale (a), Carriage Shaft (b), or Ink Tube Stabilizer (c). Touching these
parts may damage them.
Maintenance Cartridge
Maintenance 601
