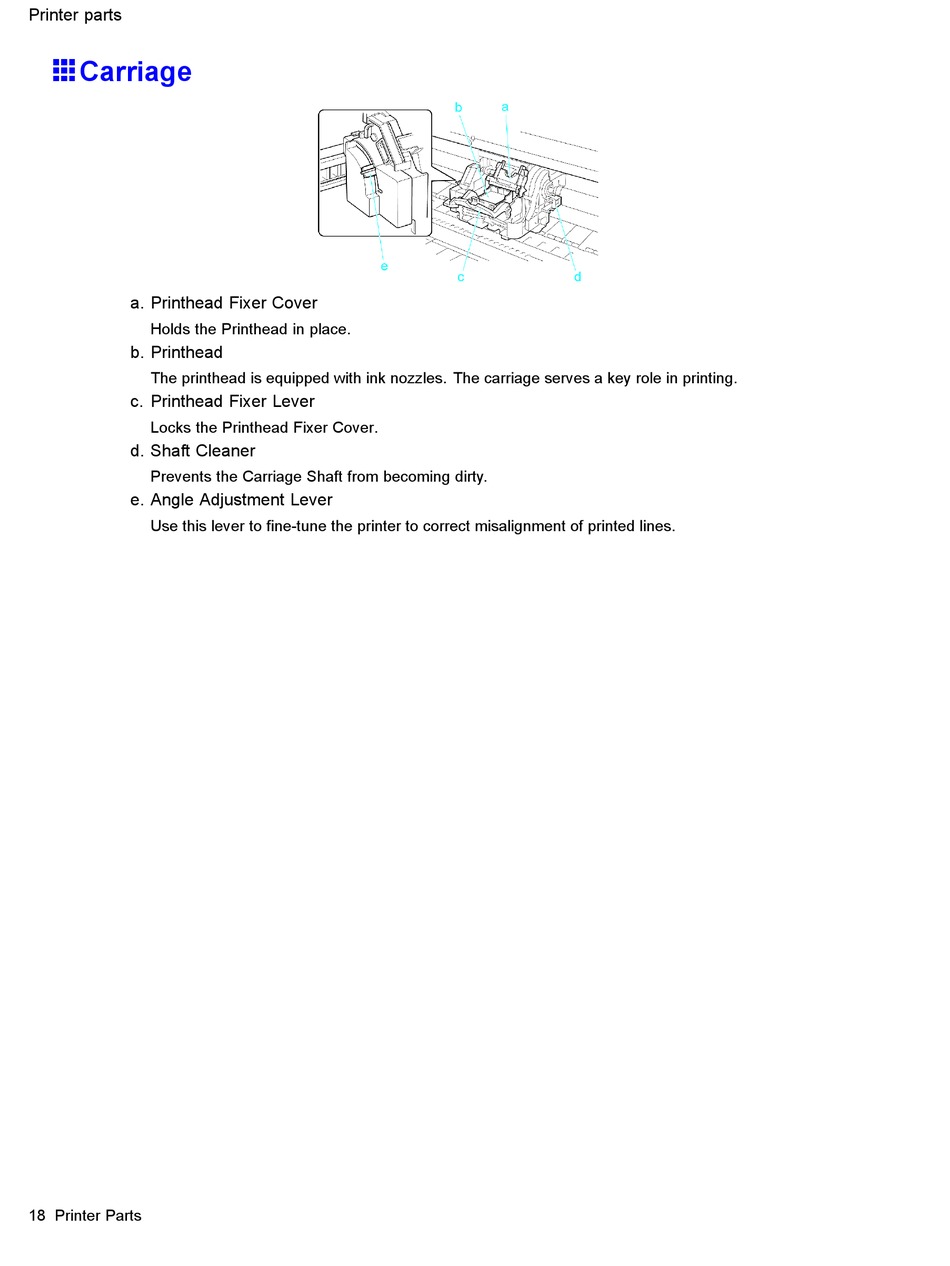

Printer parts
Carriage
a. Printhead Fixer Cover
Holds the Printhead in place.
b. Printhead
The printhead is equipped with ink nozzles. The carriage serves a key role in printing.
c. Printhead Fixer Lever
Locks the Printhead Fixer Cover.
d. Shaft Cleaner
Prevents the Carriage Shaft from becoming dirty.
e. Angle Adjustment Lever
Use this lever to ne-tune the printer to correct misalignment of printed lines.
