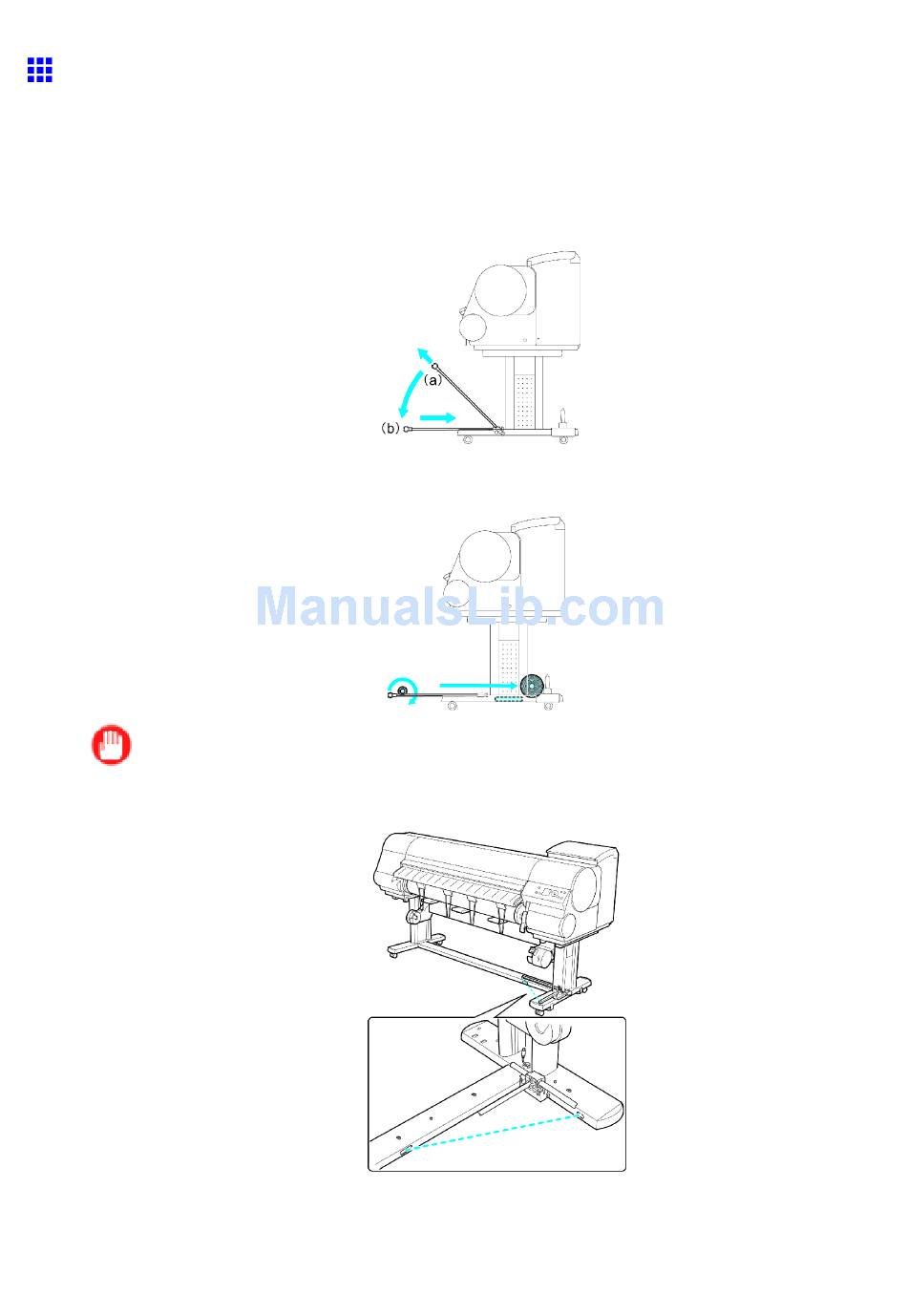

Stowing the Stationary Output Stacker

Stow the Stationary Output Stacker if you will use the Media Take-up Unit or if you will not use the Stationary
Output Stacker for an extended period.
1.
When the Output Stacker is in the position used when storing printed documents (a), lift the front
Basket Rod gently to release the lock, lower the stacker toward the front (b), and push it all
the way back.
2.
Remove the front Basket Rod from the left and right Basket Arms. Roll up the Basket Cloth and
put it at the back of the Bottom Stand Stay.
Important
•
When using the optional Media Take-up Unit, position the Basket Cloth and Basket Rod so they do
not interfere with the Media Take-up Sensor (indicated by the dashed line).
Printer parts
Printer Parts 23
