Printer parts

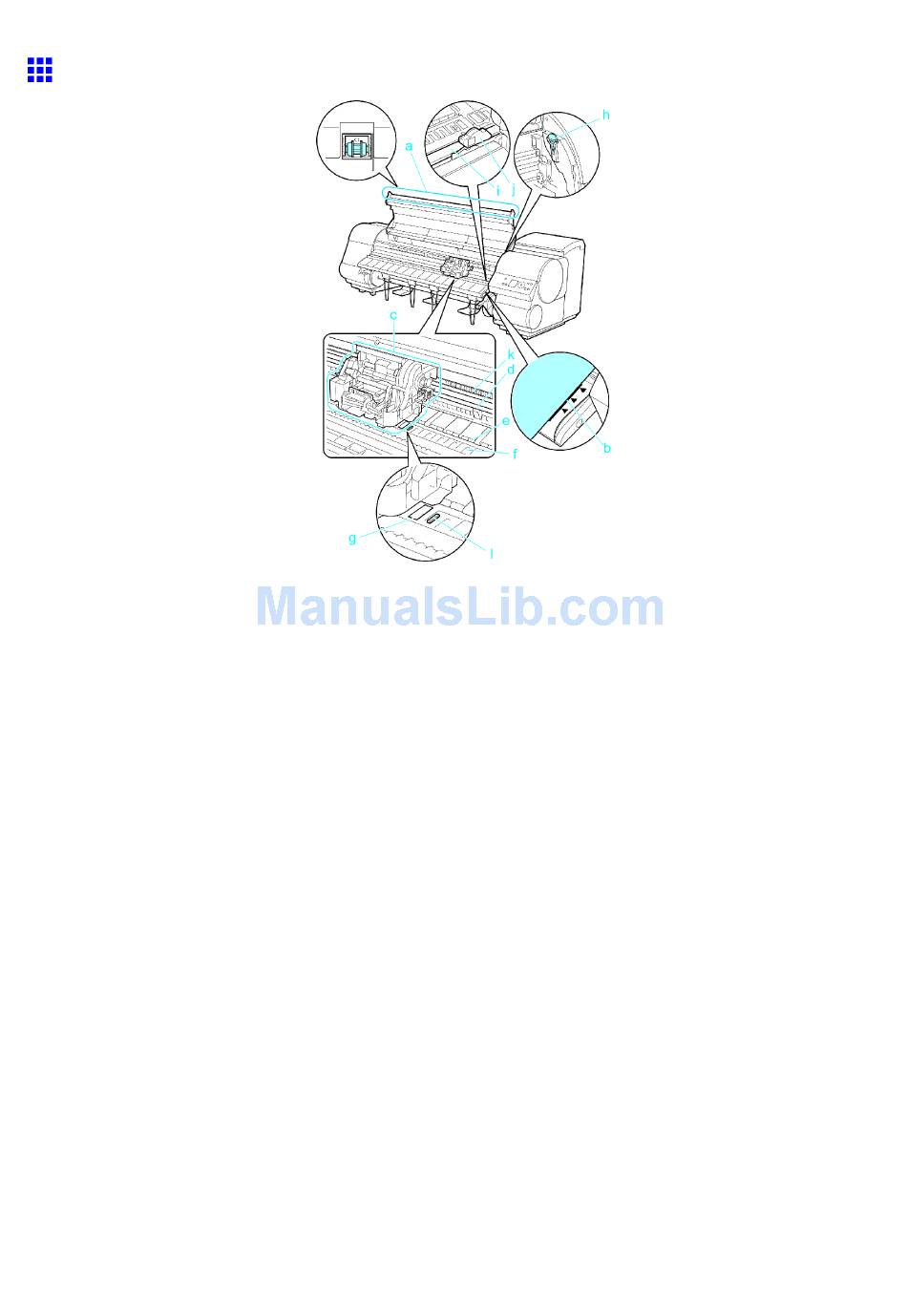

Top Cover (Inside)
a. Top Cover Roller
Prevents paper from rising when ejected.
b. Paper Alignment Line
Align paper with this line when loading it.
c. Carriage
Moves the Printhead. The carriage serves a key role in printing. (→P.18)
d. Carriage Shaft
The Carriage slides along this shaft.
e. Paper Retainer
Important in supplying the paper. This retainer holds paper as it is fed.
f. Platen
The Printhead moves across the platen to print. Vacuum holes on the platen hold paper in place.
g. Borderless Printing Ink Grooves
For catching ink outside the edges of paper during borderless printing.
h. Cleaning Brush
When cleaning inside the printer under the Top Cover, use this brush to sweep away paper dust on
the Platen.
Also use the brush to move the blue Switch on the Platen.
