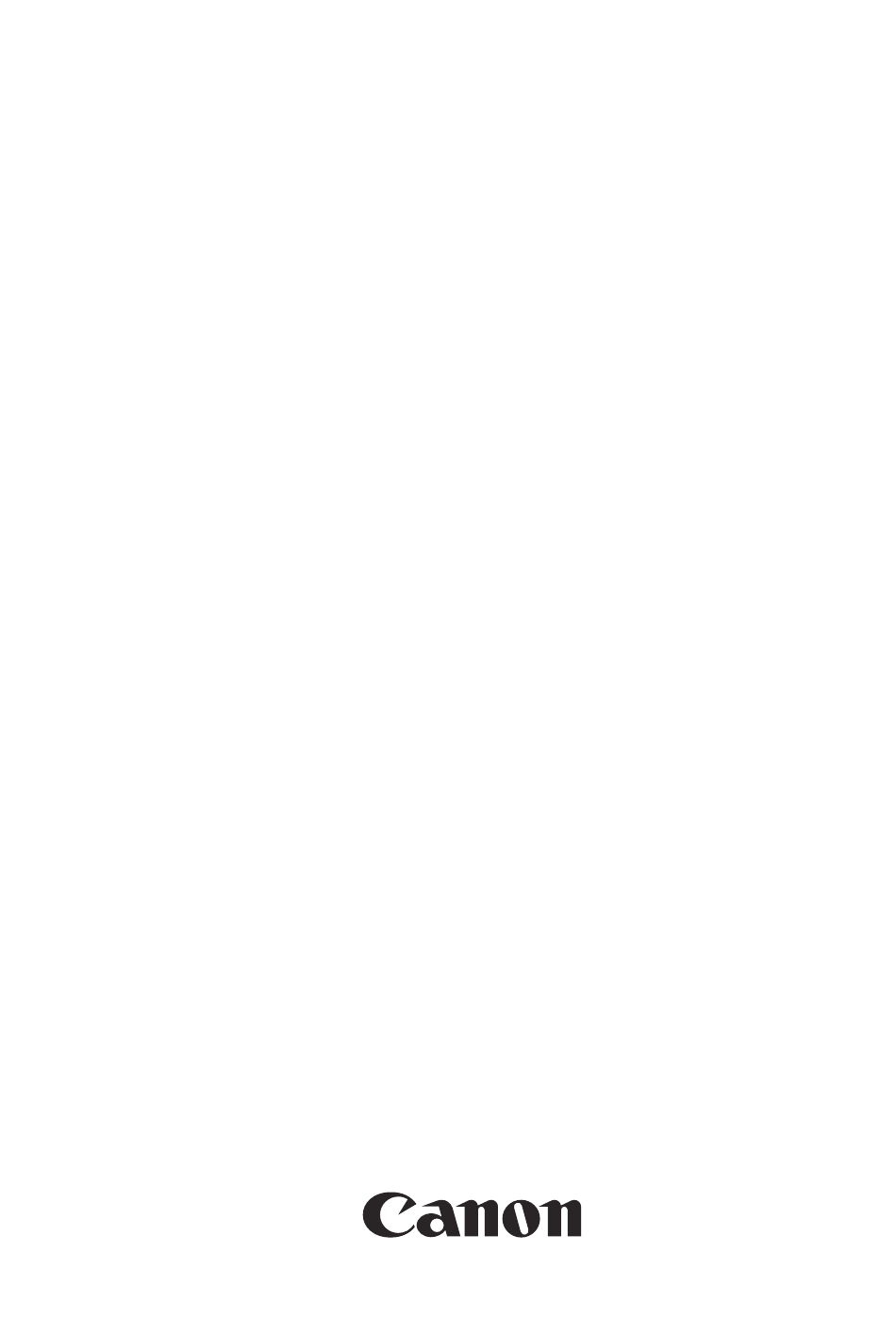

Service Manual
iPF800 series
Oct 14 2010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iPF800 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Canon iPF800 Series

Summary of Contents for Canon iPF800 Series

  • Page 1 Service Manual iPF800 series Oct 14 2010...
  • Page 3 Canon will release technical information as the need arises. In the event of major changes in the contents of this manual over a long or short period, Canon will issue a new edition of this manual.

  • Page 4: Symbols Used

    Introduction Symbols Used This documentation uses the following symbols to indicate special information: Symbol Description Indicates an item of a non-specific nature, possibly classified as Note, Caution, or Warning. Indicates an item requiring care to avoid electric shocks. Indicates an item requiring care to avoid combustion (fire). Indicates an item prohibiting disassembly to avoid electric shocks or problems.
  • Page 5 Introduction The following rules apply throughout this Service Manual: 1. Each chapter contains sections explaining the purpose of specific functions and the relationship between electrical and mechanical systems with refer- ence to the timing of operation. In the diagrams, represents the path of mechanical drive; where a signal name accompanies the symbol , the arrow indicates the direction of the electric signal.

  • Page 7: Table Of Contents

    Contents Contents Chapter 1 PRODUCT DESCRIPTION 1.1 Product Overview ............................1- 1 1.1.1 Product Overview ..............................1- 1 1.1.2 Product Overview ..............................1- 3 1.1.3 Product Overview ..............................1- 5 1.1.4 Product Overview ..............................1- 7 1.2 Features ..............................1- 9 1.2.1 Features .................................. 1- 9 1.2.2 Features ..................................
  • Page 8 Contents 1.7.1 Safety Precautions...............................1- 130 1.7.1.1 Moving Parts ..................................1- 130 1.7.1.2 Adhesion of Ink ..................................1- 131 1.7.1.3 Electric Parts..................................1- 133 1.7.2 Other Precautions ..............................1- 134 1.7.2.1 Printhead....................................1- 134 1.7.2.2 Ink Tank ....................................1- 135 1.7.2.3 Handling the Printer ................................1- 136 1.7.3 Precautions When Servicing Printer ........................1- 138 1.7.3.1 Notes on the Data Stored in the Printer ..........................
  • Page 9 Contents 2.4.3 Carriage Relay PCB .............................. 2- 45 2.4.3.1 Carriage relay PCB components ............................2- 45 2.4.4 Head Relay PCB ..............................2- 45 2.4.4.1 Head relay PCB components..............................2- 45 2.4.5 Motor Driver................................2- 47 2.4.5.1 Media take-up PCB components ............................2- 47 2.4.5.2 Lower roll unit PCB components............................
  • Page 10 Contents 4.5.1 Adjustment Item List ..............................4- 57 4.5.2 Procedure after Replacing the Carriage Unit or Multi Sensor................4- 57 4.5.3 Procedure after Replacing the Feed Roller or Feed Roller Encoder ..............4- 57 4.5.4 Procedure after Replacing the Head Management Sensor ...................4- 57 Chapter 5 MAINTENANCE 5.1 Periodic Replacement Parts ........................

  • Page 11: Chapter 1 Product Description

    Chapter 1 PRODUCT DESCRIPTION...
  • Page 13 Contents Contents 1.1 Product Overview ................................1-1 1.1.1 Product Overview ..................................1-1 1.1.2 Product Overview ..................................1-3 1.1.3 Product Overview ..................................1-5 1.1.4 Product Overview ..................................1-7 1.2 Features ..................................1-9 1.2.1 Features ......................................1-9 1.2.2 Features ......................................1-9 1.2.3 Features ......................................1-9 1.2.4 Features ......................................
  • Page 14 Contents 1.7.1.1 Moving Parts....................................... 1-130 1.7.1.2 Adhesion of Ink ......................................1-131 1.7.1.3 Electric Parts ....................................... 1-133 1.7.2 Other Precautions..................................1-134 1.7.2.1 Printhead ........................................1-134 1.7.2.2 Ink Tank ........................................1-135 1.7.2.3 Handling the Printer....................................1-136 1.7.3 Precautions When Servicing Printer ............................1-138 1.7.3.1 Notes on the Data Stored in the Printer ..............................

  • Page 15: Product Overview

    Chapter 1 1.1 Product Overview 1.1.1 Product Overview 0020-5395 iPF810 This printer is a large-format printer that prints in a maximum width of 44 inches with high-speed photographic picture quality. This printer is a stand-mounted type printer and is capable of output to either roll media or cut sheet. [10] [13] [12]...
  • Page 16 Chapter 1 F-1-2 T-1-2 Expansion Board Slot Madia Take-up Unit Connector Ethernet Connector Power Supply Connector USB Port Carrying Handles Manual Pocket Accessory Handles...

  • Page 17: Product Overview

    Chapter 1 1.1.2 Product Overview 0020-5396 iPF820 This printer is a large-format printer that prints in a maximum width of 44 inches with high-speed photographic picture quality. This printer is a stand-mounted type printer and is capable of output to either roll media or cut sheet. [12] [11] [12]...
  • Page 18 Chapter 1 F-1-4 T-1-4 Expansion Board Slot Power Supply Connector Ethernet Connector Lower Roll Unit Connector USB Port Carrying Handles Manual Pocket Accessory Box...
  • Page 19 Chapter 1 1.1.3 Product Overview 0025-9201 iPF815 This printer is a large-format printer that prints in a maximum width of 44 inches with high-speed photographic picture quality. This printer is a stand-mounted type printer and is capable of output to either roll media or cut sheet. [10] [13] [12]...
  • Page 20 Chapter 1 F-1-6 T-1-6 Ethernet Connector Power Supply Connector USB Port Carrying Handles Manual Pocket Accessory Handles Madia Take-up Unit Connector...
  • Page 21 Chapter 1 1.1.4 Product Overview 0025-9205 iPF825 This printer is a large-format printer that prints in a maximum width of 44 inches with high-speed photographic picture quality. This printer is a stand-mounted type printer and is capable of output to either roll media or cut sheet. [12] [11] [12]...
  • Page 22 Chapter 1 F-1-8 T-1-8 Ethernet Connector Lower Roll Unit Connector USB Port Carrying Handles Manual Pocket Accessory Box Power Supply Connector...

  • Page 23: Features

    Chapter 1 1.2 Features 1.2.1 Features 0020-5397 iPF820 - Media pass in widths up to 44 inches (1117.6 mm). - Large ink tanks save the need for their replacement. - Uninterrupted printing from subtanks. - BK and MBK inks are loaded concurrently to eliminate the need for their replacement. - Durability will be added by maintenance kit.

  • Page 24: Printhead

    Chapter 1 - Media take-up unit (option) is supported. - Media take-up unit (option) can be mounted concurrently with a basket. - Durability will be added by maintenance kit. - Large LCD panel displays more information and makes operations easier. - High resolutions of 2400 x 1200 dpi maximum, coupled with the exceptionally light-fast, water-proof and ozone-proof five-color inks of MBK, BK, C, M, and Y, deliver high-quality photographic picture quality.

  • Page 25: Cutter

    Chapter 1 1.2.7 Cutter 0020-5420 iPF810 / iPF820 / iPF815 / iPF825 The cutter attached to the cutter unit is a round cutter. F-1-11 1.2.8 Roll Holder 0020-5421 iPF810 / iPF820 / iPF815 / iPF825 The roller holder accepts paper tubes having inside diameters of both 2 and 3 inches. It is furnished with attachments for 2- and 3-inch diameter paper tubes. The roll holder clamps the paper tube of a roll not exceeding 150 mm in outside diameter from the inside.

  • Page 26: Stand

    Chapter 1 1.2.9 Stand 0020-6040 iPF820 / iPF825 It is a stand that puts the printer. Equipped with casters so that the printer can be easily moved. F-1-16 1.2.10 Stand 0020-6038 iPF810 / iPF815 It is a stand that puts the printer. Equipped with casters so that the printer can be easily moved. F-1-17 1.2.11 Wheeled Output Stacker 0020-5422...

  • Page 27: Media Take-Up Unit

    Chapter 1 This is a output stacker on wheels that is attached to the front of the printer. F-1-18 T-1-9 Basket Basket foot stand Basket eject guide Stopper 1.2.12 Media Take-up Unit 0020-5423 iPF810 / iPF815 Media take-up unit The media take-up unit takes up roll media, ranging in width from 17 to 44 inches, on a 2 or 3-inch paper tube in roll form after they are printed by the host computer. Taking up begins automatically when a sensor attached to the bottom of the stand detects a roll delivered after printing falling down due to the weight of a weight roller.
  • Page 28 Chapter 1 Weight This weight consists of weight roll(7 pcs.)[1], weight flange(2 sets)[2] and weight joint[3]. F-1-20 1-14...

  • Page 29: Hard Disk Drive

    Chapter 1 1.2.13 Hard Disk Drive 0017-8472 iPF810 / iPF820 Each print job received from the host computer is saved to the 80GB hard disk drive(serial ATA connection) attached to the printer, so the printer can print the job repeatedly as needed, without having to wait for its retransmission from the host computer. Saving print jobs will offer the following benefits: - Eased computer workload A print job may be automatically preserved to the hard disk when printing or may be preserved to the hard disk without printing.

  • Page 30: Consumables

    Chapter 1 1.2.16 Consumables 0020-5424 iPF810 / iPF820 / iPF815 / iPF825 Printhead The expendable printhead is the same as the one that comes with the printer. F-1-22 Ink tanks Expendable ink tanks are available in five colors: mat black, black, cyan, magenta and yellow. Each is further available in two capacities: 300ml and 700ml. All ink tanks are usable for six months after unpacking.

  • Page 31: Product Specifications

    Chapter 1 1.3 Product Specifications 1.3.1 Product Specifications 0020-5426 iPF820 Type Bubble jet large-sized paper printer (stand model) Feeding system Roll media: Upper roll/Lower roll (front loading) Cut sheet: Paper tray (front loading) Feeding capacity - Roll media 2 roll madia Outer diameter of roll: 150 mm or less - Cut sheet 1 sheet...

  • Page 32: Product Specifications

    Chapter 1 Detection functions (Ink passage Ink tank presence/absence detection: Yes system) Remaining ink level detection: Yes Maintenance cartridge presence/absence detection: Yes Used ink tank full detection: Yes Valve open/closed detection: Yes Detection functions (Carriage Printhead presence/absence detection: Yes system) Carriage position detection: Yes Carriage home position detection: Yes Printhead fixer lever open/closed detection: Yes...
  • Page 33 Chapter 1 Printing recommendation area Internal area, excluding a 20-mm top margin, a 23-mm bottom margin (Cut sheet) and 5-mm left and right margins. Borderless printing * Roll media only width: 254mm(10"), 355.6mm(14"), 431.8mm(17"), 515mm, 594mm, 609.6mm(24"), 841mm, 914.4mm(36"), 1030mm, 1066.8mm(42") Memory 384MB Increase of memory: none...
  • Page 34 Chapter 1 Feeding capacity - Roll media 2 roll madia Outer diameter of roll: 150 mm or less - Cut sheet 1 sheet Delivery method Forward delivery, face up Sheet delivery capability 1 sheet (using the wheeled outout stacker of the stand) However, 20 sheets can be stacked according to the condition (A0/B0 size plain paper).
  • Page 35 Chapter 1 Detection functions (Paper path Paper presence/absence detection: Yes system) Paper width detection: Yes Skew detection: Yes Paper release lever position detection: Yes Remaining roll media detection: Yes Feed roller rotation detection: Yes Cutter positin detection: Yes Operating noise Operating: Approx.

  • Page 36: Detailed Specifications

    Chapter 1 Interface USB 2.0 Hi-Speed Network (10BASE-T/100BASE-TX) Operation panel LCD (160 X 128 dots), 12 keys, 5 LEDs - Panel language English - Message language English, German, French, Italian, Spanish, Chinese, Korean, Russianand and Japanese Printhead/Ink Tank type Printhead and separate ink tanks Printhead PF-03 Structure: Integrated six-color assembly...
  • Page 37 Chapter 1 T-1-11 Print Print Print- Used BK Media Type Print Priority Printing Direction Resolution Quality Pass (dpi) Plain Paper/ Plain Paper/Recycled Paper Office Document Standard Bi-directional 1200x1200 Recycled Paper Line Document/ Draft Bi-directional 1200x1200 Text Standard Bi-directional 1200x1200 Image Draft Bi-directional 1200x1200...
  • Page 38 Chapter 1 Print Print Print- Used BK Media Type Print Priority Printing Direction Resolution Quality Pass (dpi) Coated Paper Coated Paper Image Standard Bi-directional 1200x1200 High Bi-directional 2400x1200 Highest Bi-directional 2400x1200 Heavyweight Coated Paper Image Standard Bi-directional 1200x1200 High Bi-directional 2400x1200 Highest Bi-directional...
  • Page 39 Chapter 1 Print Print Print- Used BK Media Type Print Priority Printing Direction Resolution Quality Pass (dpi) Photo Paper Glossy Photo Paper Image Standard Bi-directional 1200x1200 High Bi-directional 2400x1200 Highest Bi-directional 2400x1200 Semi-Glossy Photo Paper Image Standard Bi-directional 1200x1200 High Bi-directional 2400x1200 Highest...
  • Page 40 Chapter 1 Print Print Print- Used BK Media Type Print Priority Printing Direction Resolution Quality Pass (dpi) Art Paper Fine Art Photo Image Standard Bi-directional 1200x1200 High Bi-directional 2400x1200 Highest Bi-directional 2400x1200 Fine Art Heavyweight Photo Image Standard Bi-directional 1200x1200 High Bi-directional 2400x1200...
  • Page 41 Chapter 1 Print Print Print- Used BK Media Type Print Priority Printing Direction Resolution Quality Pass (dpi) Matt Film Scrim Banner 370g Image Standard Bi-directional 1200x1200 Paper High Bi-directional 2400x1200 Highest Bi-directional 2400x1200 Adhesive Matt Stretch Vinyl Image Standard Bi-directional 1200x1200 High Bi-directional...
  • Page 42 Chapter 1 Print Print Print- Used BK Media Type Print Priority Printing Direction Resolution Quality Pass (dpi) SPECIAL SPECIAL 1 Image Standard Bi-directional 1200x1200 High Bi-directional 2400x1200 Highest Bi-directional 2400x1200 SPECIAL 2 Image Standard Bi-directional 1200x1200 High Bi-directional 2400x1200 Highest Bi-directional 2400x1200 SPECIAL 3...

  • Page 43: Interface Specifications

    Chapter 1 1.4.2 Interface Specifications 0023-2577 iPF815 / iPF825 a. USB (standard) (1) Interface type USB 2.0 Hi-Speed (Full speed (12 Mbits/sec), High speed (480 Mbits/sec)) (2) Data transfer system Control transfer Bulk transfer (3) Signal level Compliant with the USB standard. (4) Interface cable Twisted-pair shielded cable, 5.0 m max.
  • Page 44 Chapter 1 1.4.3 Interface Specifications 0013-8837 iPF810 / iPF820 a. USB (standard) (1) Interface type USB 2.0, Full speed (12 Mbits/sec), Hi-speed (480 Mbits/sec) (2) Data transfer system Control transfer Bulk transfer (3) Signal level Compliant with the USB standard. (4) Interface cable Twisted-pair shielded cable, 5.0 m max.

  • Page 45: Names And Functions Of Components

    Chapter 1 1.5 Names and Functions of Components 1.5.1 Front 0020-5443 iPF820 / iPF825 [12] [11] [12] [17] [10] [13] [14] [15] [16] F-1-25 [1] Upper cover Open this cover to mount a printhead, load paper or remove per jammed jams inside the printer. [2] Ejection guides Allow printed material to be ejected.

  • Page 46: Front

    Chapter 1 1.5.2 Front 0020-5447 iPF810 / iPF815 [10] [13] [12] [13] [14] [11] [15] [16] F-1-26 [1] Upper cover Open this cover to mount a printhead, load paper or remove per jammed jams inside the printer. [2] Ejection guides Allow printed material to be ejected.

  • Page 47: Rear

    Chapter 1 1.5.3 Rear 0020-5448 iPF820 F-1-27 [1] Expansion board slot Mount an IEEE1394 (FireWire) Expansion board (option) into this slot. [2] Ethernet connector Insert an Ethernet cable into this connector. A lamp will turn on if the Ethernet cable is connected properly and the printer is ready to communicate. [3] USB port Insert a USB cable into this port.
  • Page 48 Chapter 1 1.5.4 Rear 0025-9282 iPF825 F-1-28 [1] Ethernet connector Insert an Ethernet cable into this connector. A lamp will turn on if the Ethernet cable is connected properly and the printer is ready to communicate. [2] USB port Insert a USB cable into this port. Hi-Speed USB-ready. [3] Manual pocket Have the printer manual stowed in this pocket.

  • Page 49: Rear

    Chapter 1 1.5.5 Rear 0020-5451 iPF810 F-1-29 [1] Expansion board slot Mount an IEEE1394 (FireWire) Expansion board (option) into this slot. [2] Ethernet connector Insert an Ethernet cable into this connector. A lamp will turn on if the Ethernet cable is connected properly and the printer is ready to communicate. [3] USB port Insert a USB cable into this port.

  • Page 50: Rear

    Chapter 1 1.5.6 Rear 0025-9284 iPF815 F-1-30 [1] Ethernet connector Insert an Ethernet cable into this connector. A lamp will turn on if the Ethernet cable is connected properly and the printer is ready to communicate. [2] USB port Insert a USB cable into this port. Hi-Speed USB-ready. [3] Manual pocket Have the printer manual stowed in this pocket.

  • Page 51: Top Cover (Inside)

    Chapter 1 1.5.7 Top Cover (Inside) 0020-5454 iPF810 / iPF820 / iPF815 / iPF825 [10] [13] [11] [12] F-1-31 [1] Spur Allows paper to be ejected by suppressing its loosing. [2] Registration line Load paper to fit to this line. [3] Carriage Drives the printhead.

  • Page 52: Carriage

    Chapter 1 1.5.8 Carriage 0020-5456 iPF810 / iPF820 / iPF815 / iPF825 F-1-32 [1] Printhead fixer cover Clamps the printhead. [2] Printhead A principal part that houses nozzles. [3] Printhead fixer lever Locks the printhead fixer cover. [4] Shaft cleaner Keeps the carriage shaft clean.

  • Page 53: Basic Operation

    Chapter 1 1.6 Basic Operation 1.6.1 Operation Panel 0012-6277 iPF810 / iPF820 / iPF815 / iPF825 This section explains the functions of the buttons and the meanings of the LEDs on the operation panel. [19] [18] [17] [16] [15] [14] [10] [11] [12] [13] F-1-34...

  • Page 54: Main Menu

    Chapter 1 1.6.2 Main Menu 0020-5459 iPF810 The printer has a Main menu which includes a menu related to maintenance such as adjustment of ink ejection position of each nozzle and head cleaning, a menu related to printing settings such as auto cutting and ink drying time, and a menu related to parameters such as a message language. 1.
  • Page 55 Chapter 1 2. Main Menu The structure of the main menu is as follows. T-1-12 First Level Second Level Third Level Fourth Level Fifth Level [Paper Cut](*1) [No]* [Yes] [Rep. Ink Tank] [No]* [Yes] [Head Cleaning] [Head Cleaning A]* [Head Cleaning B] [Auto Feed](*13) [No]* [Yes]...
  • Page 56 Chapter 1 T-1-13 First Level Second Level Third Level Fourth Level Fifth Level [Media Menu] [Cas Paper Type] [FineArt Txtr](*5) [FineArt Wtrclr](*5) [FineArtBlockP](*5) [Canvas Matte2](*5) [JPN Paper Washi](*5) [Colored Coated](*5) [CAD Trace Paper](*5) [CAD Matte Film](*5) [CAD Clear Film](*5) [Special #] # Here, the number is 1 to 10 (*5) [Roll Media Type] [Plain Paper](*5)
  • Page 57 Chapter 1 T-1-14 First Level Second Level Third Level Fourth Level Fifth Level [Media Menu] [Roll Media Type] [Proofing Paper](*5) [News Proof 1](*5) [News Proof 2](*5) [FineArt Photo](*5) [FneArt HW Photo](*5) [FineArt Txtr](*5) [FineArt Wtrclr](*5) [FineArtBlockP](*5) [Canvas Matte2](*5) [JPN Paper Washi](*5) [Colored Coated](*5) [CAD Trace Paper](*5) [CAD Matte Film](*5)
  • Page 58 Chapter 1 T-1-15 First Level Second Level Third Level Fourth Level Fifth Level Sixth Level [Paper Details] (The paper type is [Skew Check Lv.] [Standard] displayed here.) (*5) [Loose] [Off] [VacuumStrngth] [Automatic]* [Strongest] [Strong] [Standard] [Weak] [Weakest] [Width Detection] [Off] [On] [NearEnd RollMrgn] [3mm]...
  • Page 59 Chapter 1 T-1-16 First Level Second Level Third Level Fourth Level Fifth Level [GL2 Settings] [Color Mode] [Monochrome] [Color(CAD)1] [Color(CAD)2] [Color(CAD)3] [Color(CAD)4] [Color(CAD)5] [Color(CAD)6] [Print Quality] [Draft] [Standard]* [High] [Print (Economy)] [Off]* [On] [Input Resolution] [600dpi]* [300dpi] [Paper Source] [Automatic]* [Roll Paper] [Cut Sheet] [Conserve Paper]...
  • Page 60 Chapter 1 T-1-17 First Level Second Level Third Level Fourth Level Fifth Level [Adjust Printer] [Auto Head Adj.] [Standard Adj.] [No] [Yes] [Advanced Adj.] [No] [Yes] [Auto Print] [Off] [On]* [Manual Head Adj](*12) [No] [Yes] [Auto Band Adj.] [Standard Adj.] [No] [Yes] [Advanced Adj.]...
  • Page 61 Chapter 1 T-1-18 First Level Second Level Third Level Fourth Level Fifth Level [Interface Setup] [TCP/IP] [Protocol](*4) [BOOTP] [On] [Off]* [RARP] [On] [Off]* [IP Setting](*14) [IP Address] 0.0.0.0 to 255.255.255.255 [Subnet Mask] 0.0.0.0 to 255.255.255.255 [Default G/W] 0.0.0.0 to 255.255.255.255 [NetWare] [NetWare] [On]...
  • Page 62 Chapter 1 T-1-19 First Level Second Level Third Level Fourth Level Fifth Level [Maintenance] [Replace P.head] [No] [Yes] [Repl. S. Cleaner] [No] [Yes] [Move Printer] [Level 1]* [Level 2] [Level 3] [System Setup] [Warning] [Buzzer] [Off] [On]* [Detect Mismatch] [Pause] [Warning] [None]* [Skip Take-Up Err(*10)
  • Page 63 Chapter 1 T-1-20 First Level Second Level Third Level Fourth Level Fifth Level [System Setup] [Length Unit] [meter]* [feet/inch] [Time Zone] [0: London (GMT)] [+1: Paris, Rome] [+2: Athens, Cairo] [+3: Moscow] [+4: Eerevan, Baku] [+5: Islamabad] [+6: Dacca] [+7: Bangkok] [+8: Hong Kong] [+9: Tokyo, Seoul] [+10: Canberra]...
  • Page 64 Chapter 1 T-1-21 First Level Second Level Third Level Fourth Level Fifth Level [System Setup] [Language] [Japanese]* [English] [Francais] [Italiano] [Deutsch] [Espanol] [Pyccknn] [Chinese] [Korea] [Contrast Adj.] -4 to 4 [Reset PaprSetngs] [No] [Yes] [Erase HDD Data] [High Speed] [No] [Yes] [Secure High Spd.] [No]...
  • Page 65 Chapter 1 3. Main menu during printing The structure of the main menu during printing is as follows. T-1-22 First Level Second Level Third Level Fourth Level Fifth Level [Menu Durng Prtng] [Head Cleaning] [Head Cleaning A] [Head Cleaning B] [Fine Band Adj.] -5 to 5 [Information]...

  • Page 66: Main Menu Settings

    Chapter 1 4. Main Menu Settings Main menu items are described in the following tables. T-1-23 Setting Item Description/Instructions [Paper Cut] Displayed if a roll is loaded. Choose Yes to cut the roll at the current position. The paper will be fed, if necessary, so that the sheet is at least 10 cm (39.4 in.)long after the cut.
  • Page 67 Chapter 1 [Paper Details] T-1-25 Setting Item Description/Instructions (The paper type is displayed [Roll DryingTime] Specify the time to wait for the ink to dry for each sheet. here.) [Scan Wait Time] Specify the time to wait for the ink to dry between each scan in bidirectional printing, in consideration of how quickly the ink dries.
  • Page 68 Chapter 1 [Job Management] T-1-26 Setting Item Description/Instructions [Print Job] [Job List] (Choose a print [Delete] Delete the current job or queued jobs. job) [Preempt Jobs] Print the job first after the current print job is finished printing. [Stored Job] [Mailbox List] (Enter a password [Job List]-[Print]...
  • Page 69 Print by the standard color. [Color(CAD)2] Print by the bright color. [Color(CAD)3] Print by the color emulated the Canon BJ-W3000/W3050. [Color(CAD)4] Print by the color emulated the HP Designjet 500/800. [Color(CAD)5] Print by the color emulated the HP Designjet 1000.
  • Page 70 [Advanced Adj.] Choose this option when using paper other than genuine Canon paper, or paper for purposes other than checking output. Choose Yes to have the printer print and read a band adjustment test pattern for automatic adjustment of the feed amount.
  • Page 71 Chapter 1 [Interface Setup] T-1-29 Setting Item Description/Instructions [EOP Timer] Specify the timeout period before cancellation of print jobs that cannot be received by the printer. [TCP/IP] [TCP/IP] Specify the TCP/IP protocol settings. To apply your changes, choose Register Setting. [IP Mode] Choose whether the printer IP address is configured automatically or a static IP address is entered manually.
  • Page 72 Chapter 1 [System Setup] T-1-31 Setting Item Description/Instructions [Warning] [Buzzer] Set the buzzer. Choose On for the buzzer to sound once for warnings and three times for errors. [Detect Mismatch] Choose Warning for notification (display of a warning message) during printing if the paper type specified in the printer menu does not match the paper type in the printer driver.
  • Page 73 Chapter 1 [Information] T-1-32 Setting Item Description/Instructions [System Info] [Version] [Firmware] Displays the version of the printer and firmware. [Boot] Displays the version of the boot ROM. [MIT] Displays the version of the MIT database format. [s/n] Displays the printer's serial number. [MAC] Displays the MAC address of the printer.

  • Page 74: Main Menu

    Chapter 1 1.6.3 Main Menu 0020-5468 iPF820 The printer has a Main menu which includes a menu related to maintenance such as adjustment of ink ejection position of each nozzle and head cleaning, a menu related to printing settings such as auto cutting and ink drying time, and a menu related to parameters such as a message language. 1.

  • Page 75: Main Menu

    Chapter 1 2. Main Menu The structure of the main menu is as follows. T-1-33 First Level Second Level Third Level Fourth Level Fifth Level [Paper Cut](*1) [No]* [Yes] [Rep. Ink Tank] [No]* [Yes] [Head Cleaning] [Head Cleaning A]* [Head Cleaning B] [Media Menu] [Cut Sheet Type] [Plain Paper](*5)
  • Page 76 Chapter 1 T-1-34 First Level Second Level Third Level Fourth Level Fifth Level [Media Menu] [Cas Paper Type] [FineArt Txtr](*5) [FineArt Wtrclr](*5) [FineArtBlockP](*5) [Canvas Matte2](*5) [JPN Paper Washi](*5) [Colored Coated](*5) [CAD Trace Paper](*5) [CAD Matte Film](*5) [CAD Clear Film](*5) [Special #] # Here, the number is 1 to 10 (*5) [Roll1(Uppr) Type]/[Roll2 [Plain Paper](*5)
  • Page 77 Chapter 1 T-1-35 First Level Second Level Third Level Fourth Level Fifth Level [Media Menu] [Roll1(Uppr) Type]/[Roll2 [Proofing Paper](*5) (Lwr) Type](*1, *2) [News Proof 1](*5) [News Proof 2](*5) [FineArt Photo](*5) [FneArt HW Photo](*5) [FineArt Txtr](*5) [FineArt Wtrclr](*5) [FineArtBlockP](*5) [Canvas Matte2](*5) [JPN Paper Washi](*5) [Colored Coated](*5) [CAD Trace Paper](*5)
  • Page 78 Chapter 1 T-1-36 First Level Second Level Third Level Fourth Level Fifth Level Sixth Level [Paper Details] (The paper type is [Skew Check Lv.] [Standard] displayed here.) (*5) [Loose] [Off] [VacuumStrngth] [Automatic]* [Strongest] [Strong] [Standard] [Weak] [Weakest] [Width Detection] [Off] [On] [NearEnd RollMrgn] [3mm]...
  • Page 79 Chapter 1 T-1-37 First Level Second Level Third Level Fourth Level Fifth Level [GL2 Settings] [Color Mode] [Monochrome] [Color(CAD)1] [Color(CAD)2] [Color(CAD)3] [Color(CAD)4] [Color(CAD)5] [Color(CAD)6] [Print Quality] [Draft] [Standard]* [High] [Print (Economy)] [Off]* [On] [Input Resolution] [600dpi]* [300dpi] [Paper Source] [Automatic]* [Roll Paper] [Cut Sheet] [Conserve Paper]...
  • Page 80 Chapter 1 T-1-38 First Level Second Level Third Level Fourth Level Fifth Level [Adjust Printer] [Auto Head Adj.] [Standard Adj.] [No] [Yes] [Advanced Adj.] [No] [Yes] [Auto Print] [Off] [On]* [Manual Head Adj](*12) [No] [Yes] [Auto Band Adj.] [Standard Adj.] [No] [Yes] [Advanced Adj.]...
  • Page 81 Chapter 1 T-1-39 First Level Second Level Third Level Fourth Level Fifth Level [Interface Setup] [TCP/IP] [Protocol](*4) [BOOTP] [On] [Off]* [RARP] [On] [Off]* [IP Setting](*14) [IP Address] 0.0.0.0 to 255.255.255.255 [Subnet Mask] 0.0.0.0 to 255.255.255.255 [Default G/W] 0.0.0.0 to 255.255.255.255 [NetWare] [NetWare] [On]...
  • Page 82 Chapter 1 T-1-40 First Level Second Level Third Level Fourth Level Fifth Level [Maintenance] [Replace P.head] [No] [Yes] [Repl. S. Cleaner] [No] [Yes] [Move Printer] [Level 1]* [Level 2] [Level 3] [System Setup] [Warning] [Buzzer] [Off] [On]* [Detect Mismatch] [Pause] [Warning] [None]* [Keep Media Size]...
  • Page 83 Chapter 1 T-1-41 First Level Second Level Third Level Fourth Level Fifth Level [System Setup] [Length Unit] [meter]* [feet/inch] [Time Zone] [0: London (GMT)] [+1: Paris, Rome] [+2: Athens, Cairo] [+3: Moscow] [+4: Eerevan, Baku] [+5: Islamabad] [+6: Dacca] [+7: Bangkok] [+8: Hong Kong] [+9: Tokyo, Seoul] [+10: Canberra]...
  • Page 84 Chapter 1 T-1-42 First Level Second Level Third Level Fourth Level Fifth Level [System Setup] [Language] [Japanese]* [English] [Francais] [Italiano] [Deutsch] [Espanol] [Pyccknn] [Chinese] [Korea] [Contrast Adj.] -4 to 4 [Reset PaprSetngs] [No] [Yes] [Erase HDD Data] [High Speed] [No] [Yes] [Secure High Spd.] [No]...
  • Page 85 Chapter 1 3. Main menu during printing The structure of the main menu during printing is as follows. T-1-43 First Level Second Level Third Level Fourth Level Fifth Level [Menu Durng Prtng] [Head Cleaning] [Head Cleaning A] [Head Cleaning B] [Fine Band Adj.] -5 to 5 [Information]...

  • Page 86: Main Menu Settings

    Chapter 1 4. Main Menu Settings Main menu items are described in the following tables. T-1-44 Setting Item Description/Instructions [Paper Cut] Displayed if a roll is loaded. Choose Yes to cut the roll at the current position. The paper will be fed, if necessary, so that the sheet is at least 10 cm (39.4 in.)long after the cut.
  • Page 87 Chapter 1 [Paper Details] T-1-46 Setting Item Description/Instructions (The paper type is displayed [Roll DryingTime] Specify the time to wait for the ink to dry for each sheet. here.) [Scan Wait Time] Specify the time to wait for the ink to dry between each scan in bidirectional printing, in consideration of how quickly the ink dries.
  • Page 88 Chapter 1 [Job Management] T-1-47 Setting Item Description/Instructions [Print Job] [Job List] (Choose a print [Delete] Delete the current job or queued jobs. job) [Preempt Jobs] Print the job first after the current print job is finished printing. [Stored Job] [Mailbox List] (Enter a password [Job List]-[Print]...
  • Page 89 Print by the standard color. [Color(CAD)2] Print by the bright color. [Color(CAD)3] Print by the color emulated the Canon BJ-W3000/W3050. [Color(CAD)4] Print by the color emulated the HP Designjet 500/800. [Color(CAD)5] Print by the color emulated the HP Designjet 1000.
  • Page 90 [Advanced Adj.] Choose this option when using paper other than genuine Canon paper, or paper for purposes other than checking output. Choose Yes to have the printer print and read a band adjustment test pattern for automatic adjustment of the feed amount.
  • Page 91 Chapter 1 [Interface Setup] T-1-50 Setting Item Description/Instructions [EOP Timer] Specify the timeout period before cancellation of print jobs that cannot be received by the printer. [TCP/IP] [TCP/IP] Specify the TCP/IP protocol settings. To apply your changes, choose Register Setting. [IP Mode] Choose whether the printer IP address is configured automatically or a static IP address is entered manually.
  • Page 92 Chapter 1 [System Setup] T-1-52 Setting Item Description/Instructions [Warning] [Buzzer] Set the buzzer. Choose On for the buzzer to sound once for warnings and three times for errors. [Detect Mismatch] Choose Warning for notification (display of a warning message) during printing if the paper type specified in the printer menu does not match the paper type in the printer driver.
  • Page 93 Chapter 1 [Information] T-1-53 Setting Item Description/Instructions [System Info] [Version] [Firmware] Displays the version of the printer and firmware. [Boot] Displays the version of the boot ROM. [MIT] Displays the version of the MIT database format. [s/n] Displays the printer's serial number. [MAC] Displays the MAC address of the printer.
  • Page 94 Chapter 1 1.6.4 Main Menu 0025-9413 iPF815 The printer has a Main menu which includes a menu related to maintenance such as adjustment of ink ejection position of each nozzle and head cleaning, a menu related to printing settings such as auto cutting and ink drying time, and a menu related to parameters such as a message language. 1.
  • Page 95 Chapter 1 2. Main Menu The structure of the main menu is as follows. T-1-54 First Level Second Level Third Level Fourth Level Fifth Level [Paper Cut](*1) [No]* [Yes] [Rep. Ink Tank] [No]* [Yes] [Head Cleaning] [Head Cleaning A]* [Head Cleaning B] [Auto Feed](*13) [No]* [Yes]...
  • Page 96 Chapter 1 T-1-55 First Level Second Level Third Level Fourth Level Fifth Level [Media Menu] [Cas Paper Type] [FineArt Txtr](*5) [FineArt Wtrclr](*5) [FineArtBlockP](*5) [Canvas Matte2](*5) [JPN Paper Washi](*5) [Colored Coated](*5) [CAD Trace Paper](*5) [CAD Matte Film](*5) [CAD Clear Film](*5) [Special #] # Here, the number is 1 to 10 (*5) [Roll Media Type] [Plain Paper](*5)
  • Page 97 Chapter 1 T-1-56 First Level Second Level Third Level Fourth Level Fifth Level [Media Menu] [Roll Media Type] [Proofing Paper](*5) [News Proof 1](*5) [News Proof 2](*5) [FineArt Photo](*5) [FneArt HW Photo](*5) [FineArt Txtr](*5) [FineArt Wtrclr](*5) [FineArtBlockP](*5) [Canvas Matte2](*5) [JPN Paper Washi](*5) [Colored Coated](*5) [CAD Trace Paper](*5) [CAD Matte Film](*5)
  • Page 98 Chapter 1 T-1-57 First Level Second Level Third Level Fourth Level Fifth Level Sixth Level [Paper Details] (The paper type is [Skew Check Lv.] [Standard] displayed here.) (*5) [Loose] [Off] [VacuumStrngth] [Automatic]* [Strongest] [Strong] [Standard] [Weak] [Weakest] [Width Detection] [Off] [On] [NearEnd RollMrgn] [3mm]...
  • Page 99 Chapter 1 T-1-58 First Level Second Level Third Level Fourth Level Fifth Level Sixth Level [GL2 Settings] [Quality Manager] [Color Mode] [Monochrome] [Color (CAD) 1]* [Color (CAD) 2] [Color (CAD) 3] [Color (CAD) 4] [Color (CAD) 5] [Color (CAD) 6] [Print Quality] [Fast] [Standard]*...
  • Page 100 Chapter 1 T-1-59 First Level Second Level Third Level Fourth Level Fifth Level Sixth Level [GL2 Settings] [Line & Pen Manager] [Enable merge] [Off]* [On] [Pen Setup] [Select Palette] [Software]* [Palette A] [Palette B] [Factory] [Define Palette] [Palette A] [Width] (Choose a pen number.) (Indicates the Width value.)
  • Page 101 Chapter 1 T-1-60 First Level Second Level Third Level Fourth Level Fifth Level [Adjust Printer] [Auto Head Adj.] [Standard Adj.] [No] [Yes] [Advanced Adj.] [No] [Yes] [Auto Print] [Off] [On]* [Manual Head Adj](*12) [No] [Yes] [Auto Band Adj.] [Standard Adj.] [No] [Yes] [Advanced Adj.]...
  • Page 102 Chapter 1 T-1-61 First Level Second Level Third Level Fourth Level Fifth Level [Interface Setup] [TCP/IP](*18) [Protocol](*4) [BOOTP] [On] [Off]* [RARP] [On] [Off]* [IP Setting](*14) [IP Address] 0.0.0.0 to 255.255.255.255 [Subnet Mask] 0.0.0.0 to 255.255.255.255 [Default G/W] 0.0.0.0 to 255.255.255.255 [NetWare](*18) [NetWare] [On]...
  • Page 103 Chapter 1 T-1-62 First Level Second Level Third Level Fourth Level Fifth Level [Maintenance] [Replace P.head] [No] [Yes] [Repl. S. Cleaner] [No] [Yes] [Move Printer] [Level 1]* [Level 2] [Level 3] [System Setup] [Warning] [Buzzer] [Off] [On]* [Detect Mismatch] [Pause] [Warning] [None]* [Skip Take-Up Err(*10)
  • Page 104 Chapter 1 T-1-63 First Level Second Level Third Level Fourth Level Fifth Level [System Setup] [Length Unit] [meter]* [feet/inch] [Time Zone](*18) [0: London (GMT)] [+1: Paris, Rome] [+2: Athens, Cairo] [+3: Moscow] [+4: Eerevan, Baku] [+5: Islamabad] [+6: Dacca] [+7: Bangkok] [+8: Hong Kong] [+9: Tokyo, Seoul] [+10: Canberra]...
  • Page 105 Chapter 1 T-1-64 First Level Second Level Third Level Fourth Level Fifth Level [System Setup] [Language] [Japanese] [English] [Francais] [Italiano] [Deutsch] [Espanol] [Pyccknn] [Chinese] [Korea] [Contrast Adj.] -4 to 4 [Reset PaprSetngs](*18) [No] [Yes] [Erase HDD Data] [High Speed](*18) [No] [Yes] [Secure High Spd.](*18) [No]...
  • Page 106 Chapter 1 3. Main menu during printing The structure of the main menu during printing is as follows. T-1-65 First Level Second Level Third Level Fourth Level Fifth Level [Menu Durng Prtng] [Head Cleaning] [Head Cleaning A] [Head Cleaning B] [Fine Band Adj.] -5 to 5 [Information]...

  • Page 107: Main Menu Settings

    Chapter 1 4. Main Menu Settings Main menu items are described in the following tables. T-1-66 Setting Item Description/Instructions [Paper Cut] Displayed if a roll is loaded. Choose Yes to cut the roll at the current position. The paper will be fed, if necessary, so that the sheet is at least 10 cm (39.4 in.)long after the cut.
  • Page 108 Chapter 1 [Paper Details] T-1-68 Setting Item Description/Instructions (The paper type is displayed [Roll DryingTime] Specify the time to wait for the ink to dry for each sheet. here.) [Scan Wait Time] Specify the time to wait for the ink to dry between each scan in bidirectional printing, in consideration of how quickly the ink dries.
  • Page 109 Chapter 1 [Job Management] T-1-69 Setting Item Description/Instructions [Print Job] [Job List] (Choose a print [Delete] Delete the current job or queued jobs. job) [Preempt Jobs] Print the job first after the current print job is finished printing. [Stored Job] [Mailbox List] (Enter a password [Job List]-[Print]...
  • Page 110 Print by the standard color. [Color (CAD) 2] Print by the bright color. [Color (CAD) 3] Print by the color emulated the Canon iPF500/iPF600/iPF700/ iPF510/iPF610/iPF710/iPF605/iPF720/iPF810/iPF820. [Color (CAD) 4] Print by the color emulated the HP Designjet 500/800. [Color (CAD) 5] Print by the color emulated the HP Designjet 1000.
  • Page 111 [Advanced Adj.] Choose this option when using paper other than genuine Canon paper, or paper for purposes other than checking output. Choose Yes to have the printer print and read a band adjustment test pattern for automatic adjustment of the feed amount.
  • Page 112 Chapter 1 [Interface Setup] T-1-72 Setting Item Description/Instructions [EOP Timer] Specify the timeout period before cancellation of print jobs that cannot be received by the printer. [TCP/IP] [TCP/IP] Specify the TCP/IP protocol settings. To apply your changes, choose Register Setting. [IP Mode] Choose whether the printer IP address is configured automatically or a static IP address is entered manually.
  • Page 113 Chapter 1 [System Setup] T-1-74 Setting Item Description/Instructions [Warning] [Buzzer] Set the buzzer. Choose On for the buzzer to sound once for warnings and three times for errors. [Detect Mismatch] Choose Warning for notification (display of a warning message) during printing if the paper type specified in the printer menu does not match the paper type in the printer driver.
  • Page 114 Chapter 1 [Admin. Menu] T-1-75 Setting Item Description/Instructions [Change Password] By setting a password, you can restrict menu display and configuration as follows. You can input between 0 and 9999999. - Viewing and configuration by administrators only IPv4 Settings Change Password Init.Admin.Pswd - Viewing and configuration by administrators, and only viewing by other users Interface Setup settings (except IPv4 Settings )
  • Page 115 Chapter 1 [Information] T-1-76 Setting Item Description/Instructions [System Info] [Version] [Firmware] Displays the version of the printer and firmware. [Boot] Displays the version of the boot ROM. [MIT] Displays the version of the MIT database format. [s/n] Displays the printer's serial number. [MAC] Displays the MAC address of the printer.
  • Page 116 Chapter 1 1.6.5 Main Menu 0025-9293 iPF825 The printer has a Main menu which includes a menu related to maintenance such as adjustment of ink ejection position of each nozzle and head cleaning, a menu related to printing settings such as auto cutting and ink drying time, and a menu related to parameters such as a message language. 1.
  • Page 117 Chapter 1 2. Main Menu The structure of the main menu is as follows. T-1-77 First Level Second Level Third Level Fourth Level Fifth Level [Paper Cut](*1) [No]* [Yes] [Rep. Ink Tank] [No]* [Yes] [Head Cleaning] [Head Cleaning A]* [Head Cleaning B] [Media Menu] [Cut Sheet Type] [Plain Paper](*5)
  • Page 118 Chapter 1 T-1-78 First Level Second Level Third Level Fourth Level Fifth Level [Media Menu] [Cas Paper Type] [FineArt Txtr](*5) [FineArt Wtrclr](*5) [FineArtBlockP](*5) [Canvas Matte2](*5) [JPN Paper Washi](*5) [Colored Coated](*5) [CAD Trace Paper](*5) [CAD Matte Film](*5) [CAD Clear Film](*5) [Special #] # Here, the number is 1 to 10 (*5) [Roll1(Uppr) Type]/[Roll2 [Plain Paper](*5)
  • Page 119 Chapter 1 T-1-79 First Level Second Level Third Level Fourth Level Fifth Level [Media Menu] [Roll1(Uppr) Type]/[Roll2 [Proofing Paper](*5) (Lwr) Type](*1, *2) [News Proof 1](*5) [News Proof 2](*5) [FineArt Photo](*5) [FneArt HW Photo](*5) [FineArt Txtr](*5) [FineArt Wtrclr](*5) [FineArtBlockP](*5) [Canvas Matte2](*5) [JPN Paper Washi](*5) [Colored Coated](*5) [CAD Trace Paper](*5)
  • Page 120 Chapter 1 T-1-80 First Level Second Level Third Level Fourth Level Fifth Level Sixth Level [Paper Details] (The paper type is [Skew Check Lv.] [Standard] displayed here.) (*5) [Loose] [Off] [VacuumStrngth] [Automatic]* [Strongest] [Strong] [Standard] [Weak] [Weakest] [Width Detection] [Off] [On] [NearEnd RollMrgn] [3mm]...
  • Page 121 Chapter 1 T-1-81 First Level Second Level Third Level Fourth Level Fifth Level Sixth Level [GL2 Settings] [Quality Manager] [Color Mode] [Monochrome] [Color (CAD) 1]* [Color (CAD) 2] [Color (CAD) 3] [Color (CAD) 4] [Color (CAD) 5] [Color (CAD) 6] [Print Quality] [Fast] [Standard]*...
  • Page 122 Chapter 1 T-1-82 First Level Second Level Third Level Fourth Level Fifth Level Sixth Level [GL2 Settings] [Line & Pen Manager] [Enable merge] [Off]* [On] [Pen Setup] [Select Palette] [Software]* [Palette A] [Palette B] [Factory] [Define Palette] [Palette A] [Width] (Choose a pen number.) (Indicates the Width value.)
  • Page 123 Chapter 1 T-1-83 First Level Second Level Third Level Fourth Level Fifth Level [Adjust Printer] [Auto Head Adj.] [Standard Adj.] [No] [Yes] [Advanced Adj.] [No] [Yes] [Auto Print] [Off] [On]* [Manual Head Adj](*12) [No] [Yes] [Auto Band Adj.] [Standard Adj.] [No] [Yes] [Advanced Adj.]...
  • Page 124 Chapter 1 T-1-84 First Level Second Level Third Level Fourth Level Fifth Level [Interface Setup] [TCP/IP](*18) [Protocol](*4) [BOOTP] [On] [Off]* [RARP] [On] [Off]* [IP Setting](*14) [IP Address] 0.0.0.0 to 255.255.255.255 [Subnet Mask] 0.0.0.0 to 255.255.255.255 [Default G/W] 0.0.0.0 to 255.255.255.255 [NetWare](*18) [NetWare] [On]...
  • Page 125 Chapter 1 T-1-85 First Level Second Level Third Level Fourth Level Fifth Level [Maintenance] [Replace P.head] [No] [Yes] [Repl. S. Cleaner] [No] [Yes] [Move Printer] [Level 1]* [Level 2] [Level 3] [System Setup] [Warning] [Buzzer] [Off] [On]* [Detect Mismatch] [Pause] [Warning] [None]* [Keep Media Size]...
  • Page 126 Chapter 1 T-1-86 First Level Second Level Third Level Fourth Level Fifth Level [System Setup] [Length Unit] [meter]* [feet/inch] [Time Zone](*18) [0: London (GMT)] [+1: Paris, Rome] [+2: Athens, Cairo] [+3: Moscow] [+4: Eerevan, Baku] [+5: Islamabad] [+6: Dacca] [+7: Bangkok] [+8: Hong Kong] [+9: Tokyo, Seoul] [+10: Canberra]...
  • Page 127 Chapter 1 T-1-87 First Level Second Level Third Level Fourth Level Fifth Level [System Setup] [Language] [Japanese] [English] [Francais] [Italiano] [Deutsch] [Espanol] [Pyccknn] [Chinese] [Korea] [Contrast Adj.] -4 to 4 [Reset PaprSetngs](*18) [No] [Yes] [Erase HDD Data] [High Speed](*18) [No] [Yes] [Secure High Spd.](*18) [No]...
  • Page 128 Chapter 1 3. Main menu during printing The structure of the main menu during printing is as follows. T-1-88 First Level Second Level Third Level Fourth Level Fifth Level [Menu Durng Prtng] [Head Cleaning] [Head Cleaning A] [Head Cleaning B] [Fine Band Adj.] -5 to 5 [Information]...
  • Page 129 Chapter 1 4. Main Menu Settings Main menu items are described in the following tables. T-1-89 Setting Item Description/Instructions [Paper Cut] Displayed if a roll is loaded. Choose Yes to cut the roll at the current position. The paper will be fed, if necessary, so that the sheet is at least 10 cm (39.4 in.)long after the cut.
  • Page 130 Chapter 1 [Paper Details] T-1-91 Setting Item Description/Instructions (The paper type is displayed [Roll DryingTime] Specify the time to wait for the ink to dry for each sheet. here.) [Scan Wait Time] Specify the time to wait for the ink to dry between each scan in bidirectional printing, in consideration of how quickly the ink dries.
  • Page 131 Chapter 1 [Job Management] T-1-92 Setting Item Description/Instructions [Print Job] [Job List] (Choose a print [Delete] Delete the current job or queued jobs. job) [Preempt Jobs] Print the job first after the current print job is finished printing. [Stored Job] [Mailbox List] (Enter a password [Job List]-[Print]...
  • Page 132 Print by the standard color. [Color (CAD) 2] Print by the bright color. [Color (CAD) 3] Print by the color emulated the Canon iPF500/iPF600/iPF700/iPF510/iPF610/iPF710/ iPF605/iPF720/iPF810/iPF820. [Color (CAD) 4] Print by the color emulated the HP Designjet 500/800. [Color (CAD) 5] Print by the color emulated the HP Designjet 1000.
  • Page 133 [Advanced Adj.] Choose this option when using paper other than genuine Canon paper, or paper for purposes other than checking output. Choose Yes to have the printer print and read a band adjustment test pattern for automatic adjustment of the feed amount.
  • Page 134 Chapter 1 [Interface Setup] T-1-95 Setting Item Description/Instructions [EOP Timer] Specify the timeout period before cancellation of print jobs that cannot be received by the printer. [TCP/IP] [IP Mode] Choose whether the printer IP address is configured automatically or a static IP address is entered manually. [Protocol] [DHCP] Specify the protocol used to configure the IP address...
  • Page 135 Chapter 1 [System Setup] T-1-97 Setting Item Description/Instructions [Warning] [Buzzer] Set the buzzer. Choose On for the buzzer to sound once for warnings and three times for errors. [Detect Mismatch] Choose Warning for notification (display of a warning message) during printing if the paper type specified in the printer menu does not match the paper type in the printer driver.
  • Page 136 Chapter 1 [Admin Menu] T-1-98 Setting Item Description/Instructions [Change Password] By setting a password, you can restrict menu display and configuration as follows. You can input between 0 and 9999999. - Viewing and configuration by administrators only IPv4 Settings Change Password Init.Admin.Pswd - Viewing and configuration by administrators, and only viewing by other users Interface Setup settings (except IPv4 Settings )
  • Page 137 Chapter 1 [Information] T-1-99 Setting Item Description/Instructions [System Info] [Version] [Firmware] Displays the version of the printer and firmware. [Boot] Displays the version of the boot ROM. [MIT] Displays the version of the MIT database format. [s/n] Displays the printer's serial number. [MAC] Displays the MAC address of the printer.

  • Page 138: Basket Unit

    Chapter 1 1.6.6 Basket Unit 0017-9389 iPF810 / iPF815 The Basket Unit(output stacker) can be installed at four positions, as shown. F-1-35 F-1-36 [1] When storing printed documents on the Output Stacker, set it to this position. [2] When the Output Stacker is not used, set it to this position. [3] When printing on large and stiff sheets, or when the Media Take-up Unit is used, or when the Output Stacker is stored for long periods, lower it to this position for storage.
  • Page 139 Chapter 1 1) Lift the Basket Rod gently to release the lock, lower the stacker toward the front, and push it all the way back. F-1-37 2) Remove the front Basket Rod from the left and right Basket Rods, and remove the back Basket Rod and the black cord from the Rod Holder. F-1-38 1-125...
  • Page 140 Chapter 1 3) Store the left and right Basket Rods. Next, remove the Rod Holder Adapter, leaving the Rod Holder attached, and put it in front of the printer. F-1-39 4) Pull out the Basket Hooks from the left and right side of the Ejection Guide. F-1-40 5) Attach the Basket Rod to the Basket Hooks so that the white tag of the Basket Cloth is on the left side.
  • Page 141 Chapter 1 6) Form the Basket Cloth into a sloping shape to make it taut, and attach the middle Basket Rod to the Rod Holder. F-1-42 b. Stowing the Output Stacker Stow the Output Stacker if you will use the Media Take-up Unit or if you will not use the Output Stacker for an extended period. 1) Lift the front Basket Rod gently to release the lock, lower the stacker toward the front, and push it all the way back.
  • Page 142 Chapter 1 2) Remove the front Basket Rod from the left and right Basket Rods. Roll up the Basket Cloth and put it at the back of the Bottom Stand Stay. F-1-44 F-1-45 Arrange the Basket Cloth and Basket Rod so they do not interfere with the Media Take-up Sensor. F-1-46 1-128...
  • Page 143 Chapter 1 3) Push in the left and right Basket Rods toward the back all the way, until they stop. F-1-47 1-129...

  • Page 144: Safety And Precautions

    Chapter 1 1.7 Safety and Precautions 1.7.1 Safety Precautions 1.7.1.1 Moving Parts 0020-5470 iPF810 / iPF820 / iPF815 / iPF825 Be careful not to get your hair, clothes, or accessories caught in the moving parts of the printer. These include the carriage unit activated by the carriage motor, carriage belt, ink tube and flexible cable; feed motor-driven feed roller and pinch roller; and purge motor-driven purge unit.

  • Page 145: Adhesion Of Ink

    Chapter 1 1.7.1.2 Adhesion of Ink 0020-5471 iPF810 / iPF820 / iPF815 / iPF825 1. Ink passages Be careful not to touch the ink passages of the printer or to allow ink to stain the workbench, hands, clothes or the printer under repair. The ink flows through the ink tank unit, carriage unit, purge unit, maintenance jet tray, borderless print ink groove, maintenance cartridge and the ink tubes that relay ink to each unit.
  • Page 146 Chapter 1 2. Ink mist Since the printhead prints by squirting ink onto the media, a minute amount of ink mist is generated in the printing unit during printing. The ink mist is collected in the printer by the airflow. However, uncollected ink mist may stain the platen unit, carriage unit, main rail unit, external unit, or purge unit. These stains may soil the print media or hands and clothes when servicing the printer, wipe them off carefully with a soft, well-wrung damp cloth.

  • Page 147: Electric Parts

    Chapter 1 1.7.1.3 Electric Parts 0020-5474 iPF810 / iPF820 / iPF815 / iPF825 The electrical unit of the printer is activated when connected to the AC power supply. At the rear of the printer are the main controller, power supply, interface connector, and optional media take-up unit connector. The head relay PCB and carriage relay PCB are incorporated in the carriage unit, and the operation panel is located on the upper right cover.

  • Page 148: Other Precautions

    Chapter 1 1.7.2 Other Precautions 1.7.2.1 Printhead 0020-1924 iPF810 / iPF820 / iPF815 / iPF825 1. How to Handle the Printhead Do not open the printhead package until you are ready to install the head. When installing the printhead in the printer, hold the knob[1] and then remove the protective cap 1[2] and protective cap 2[3] in that order. Do not reattach the protective cap 2[3] to the printhead because the cap may damage the nozzles[4].

  • Page 149: Ink Tank

    Chapter 1 If electrical units are powered with ink leaked onto them, the units may damage. Never connect the power cord when ink has leaded onto the electrical units. 1.7.2.2 Ink Tank 0012-6292 iPF810 / iPF820 / iPF815 / iPF825 1.

  • Page 150: Handling The Printer

    Chapter 1 1.7.2.3 Handling the Printer 0020-5475 iPF810 / iPF820 / iPF815 / iPF825 1. Precautions against Static Electricity Certain clothing may generate static electricity, causing an electrical charge to build up on your body. Such a charge can damage electrical devices or change their electrical characteristics.
  • Page 151 Chapter 1 3. Contact of Linear Scale/Carriage Shaft Please do not touch a linear scale and the carriage shaft when the inside of the top cover is opened, and execute maintenance. When touching a linear scale and the carriage shaft, it might cause defective movement of the carriage and a defective print. F-1-56 [1] Linear Scale [2] Carriage Shaft...

  • Page 152: Precautions When Servicing Printer

    Chapter 1 1.7.3 Precautions When Servicing Printer 1.7.3.1 Notes on the Data Stored in the Printer 0013-5942 iPF810 / iPF820 / iPF815 / iPF825 This printer counts the print length, number of ink tank replacements, carriage driving time, number of cleaning operations, number of cutter operations, and so on and stores them in the main controller's EEPROM as a COUNTER in Service mode.
  • Page 153 Chapter 1 1-139...
  • Page 154 Chapter 1 1-140...

  • Page 155: Chapter 2 Technical Reference

    Chapter 2 TECHNICAL REFERENCE...
  • Page 157 Contents Contents 2.1 Basic Operation Outline..............................2-1 2.1.1 Printer Diagram.................................... 2-1 2.1.2 Printer Diagram.................................... 2-2 2.1.3 Printer Diagram.................................... 2-3 2.1.4 Printer Diagram.................................... 2-4 2.1.5 Print Signal Sequence .................................. 2-5 2.1.6 Print Signal Sequence .................................. 2-6 2.1.7 Print Driving ....................................2-7 2.2 Firmware ..................................2-9 2.2.1 Operation Sequence at Power-on..............................
  • Page 158 Contents 2.4.3 Carriage Relay PCB................................... 2-45 2.4.3.1 Carriage relay PCB components................................... 2-45 2.4.4 Head Relay PCB ..................................2-45 2.4.4.1 Head relay PCB components ..................................2-45 2.4.5 Motor Driver ....................................2-47 2.4.5.1 Media take-up PCB components .................................. 2-47 2.4.5.2 Lower roll unit PCB components ................................. 2-47 2.4.6 Maintenance Cartridge Relay PCB............................

  • Page 159: Basic Operation Outline

    Chapter 2 2.1 Basic Operation Outline 2.1.1 Printer Diagram 0020-5476 iPF810 A printer diagram is shown below. Operation panel PCB Main controller PCB IC601-IC604 SO-DIMM SDRAM Maintenance cartridge relay PCB IC701/IC703 IC802 CN201 J1801 Maintenance cartridge EEPROM FLASH ROM Power supply PCB ROM PCB Ink tank IC803...
  • Page 160 Chapter 2 2.1.2 Printer Diagram 0020-5477 iPF820 A printer diagram is shown below. Operation panel PCB Maintenance cartridge relay PCB Main controller PCB IC601-IC604 Maintenance cartridge SO-DIMM SDRAM ROM PCB Ink tank IC802 IC701/IC703 CN201 J1801 EEPROM FLASH ROM Power supply PCB Ink tank ROM PCB Ink detection sensor Sensors/Switches...

  • Page 161: Printer Diagram

    Chapter 2 2.1.3 Printer Diagram 0025-9728 iPF815 A printer diagram is shown below. Operation panel PCB Main controller PCB IC601-IC604 SO-DIMM SDRAM Maintenance cartridge relay PCB IC802 IC701/IC703 CN201 J1801 Maintenance cartridge FLASH ROM EEPROM Power supply PCB ROM PCB Ink tank IC803 ASIC...

  • Page 162: Printer Diagram

    Chapter 2 2.1.4 Printer Diagram 0025-9729 iPF825 A printer diagram is shown below. Operation panel PCB Maintenance cartridge relay PCB Main controller PCB IC601-IC604 Maintenance cartridge SO-DIMM SDRAM ROM PCB Ink tank IC802 IC701/IC703 CN201 J1801 EEPROM FLASH ROM Power supply PCB Ink tank ROM PCB Ink detection sensor Sensors/Switches...

  • Page 163: Print Signal Sequence

    Chapter 2 2.1.5 Print Signal Sequence 0017-4696 iPF810 / iPF820 The signal sequence from when the printer receives the print signals until printing starts is shown in Figure. Image data Host computer Mask pattern data Heat pulse Printer driver Command data PCI bus Data bus Universal sirial bus...
  • Page 164 Chapter 2 2.1.6 Print Signal Sequence 0025-9730 iPF815 / iPF825 The signal sequence from when the printer receives the print signals until printing starts is shown in Figure. Image data Host computer Mask pattern data Heat pulse Printer driver Command data PCI bus Data bus Universal sirial bus...

  • Page 165: Print Driving

    Chapter 2 2.1.7 Print Driving 0013-5398 iPF810 / iPF820 / iPF815 / iPF825 Print and control signals are transferred via the carriage relay PCB and head relay PCB to the printheads to discharge inks from the nozzle assembly at printing. Each printhead has 12 trains of nozzles arranged in a zigzag pattern.
  • Page 166 Chapter 2 2. Print drive timing Each printhead houses 12 trains of nozzles, which share the same data transfer clock (Hx-CLK) and data latch pulses (Hx-LT). Even-numbered nozzle data (Hx-x-DATA-x-EV), odd-numbered nozzle data (Hx-x-DATA-x-OD) and the Heat Enable (Hx-x-HE-x) signal are generated for each nozzle train and controlled individually.

  • Page 167: Firmware

    Chapter 2 2.2 Firmware 2.2.1 Operation Sequence at Power-on 0012-6310 iPF810 / iPF820 / iPF815 / iPF825 The sequence of printer operations, from power-on to transition to online mode, is flowcharted below. The printer takes less than 1 minute to initialize itself(*). * Excluding the times spent supplying inks and cleaning the printhead after leaving the printer for extended periods of time.

  • Page 168: Operation Sequence At Power-Off

    Chapter 2 2.2.2 Operation Sequence at Power-off 0012-6311 iPF810 / iPF820 / iPF815 / iPF825 Turning off the power switch cuts off the drive voltage supply, launching a firmware power-off sequence as shown below. If the power cord is disconnected from the wall outlet or the upper cover or any other cover is opend, the printer cancels the ongoing operation and shuts down immediately.

  • Page 169: Print Control

    Chapter 2 2.2.3 Print Control 0020-5482 iPF810 / iPF820 / iPF815 / iPF825 1. Print mode This printer is capable of fast, high-quality printing without blur and non-uniform density by changing the carriage operation, media feeding, other printing methods according to the selected media type, print quality, print data and so on. Printing is performed for each color using a maximum of 16 paths in each print mode according to the selected print quality.
  • Page 170 Chapter 2 T-2-2 Print Print Print- Used BK Media Type Print Priority Printing Direction Resolution Quality Pass (dpi) Plain Paper/ Plain Paper/Recycled Paper Office Document Standard Bi-directional 1200x1200 Recycled Paper Line Document/ Draft Bi-directional 1200x1200 Text Standard Bi-directional 1200x1200 Image Draft Bi-directional 1200x1200...
  • Page 171 Chapter 2 Print Print Print- Used BK Media Type Print Priority Printing Direction Resolution Quality Pass (dpi) Coated Paper Coated Paper Image Standard Bi-directional 1200x1200 High Bi-directional 2400x1200 Highest Bi-directional 2400x1200 Heavyweight Coated Paper Image Standard Bi-directional 1200x1200 High Bi-directional 2400x1200 Highest Bi-directional...
  • Page 172 Chapter 2 Print Print Print- Used BK Media Type Print Priority Printing Direction Resolution Quality Pass (dpi) Photo Paper Glossy Photo Paper Image Standard Bi-directional 1200x1200 High Bi-directional 2400x1200 Highest Bi-directional 2400x1200 Semi-Glossy Photo Paper Image Standard Bi-directional 1200x1200 High Bi-directional 2400x1200 Highest...
  • Page 173 Chapter 2 Print Print Print- Used BK Media Type Print Priority Printing Direction Resolution Quality Pass (dpi) Art Paper Fine Art Photo Image Standard Bi-directional 1200x1200 High Bi-directional 2400x1200 Highest Bi-directional 2400x1200 Fine Art Heavyweight Photo Image Standard Bi-directional 1200x1200 High Bi-directional 2400x1200...
  • Page 174 Chapter 2 Print Print Print- Used BK Media Type Print Priority Printing Direction Resolution Quality Pass (dpi) Matt Film Scrim Banner 370g Image Standard Bi-directional 1200x1200 Paper High Bi-directional 2400x1200 Highest Bi-directional 2400x1200 Adhesive Matt Stretch Vinyl Image Standard Bi-directional 1200x1200 High Bi-directional...
  • Page 175 Chapter 2 Print Print Print- Used BK Media Type Print Priority Printing Direction Resolution Quality Pass (dpi) SPECIAL SPECIAL 1 Image Standard Bi-directional 1200x1200 High Bi-directional 2400x1200 Highest Bi-directional 2400x1200 SPECIAL 2 Image Standard Bi-directional 1200x1200 High Bi-directional 2400x1200 Highest Bi-directional 2400x1200 SPECIAL 3...

  • Page 176: Print Position Adjustment Function

    Chapter 2 2.2.4 Print Position Adjustment Function 0012-6313 iPF810 / iPF820 / iPF815 / iPF825 This printer supports a print position adjust the vertical and horizontal print position and the bidirectional print position of the printhead mounted on the carriage and the feedrate.
  • Page 177 Chapter 2 3) Job preservation Print jobs are in the common box, a place of temporary data storage, and in the personal box, a place of permanent data storage. Normal print jobs are stored in the common box as they are received. Due to the limited hard disk space available, jobs stored in the common box are deleted from the oldest one in sequence.

  • Page 178: Printer Mechanical System

    Chapter 2 2.3 Printer Mechanical System 2.3.1 Outline 2.3.1.1 Outline 0020-5485 iPF810 / iPF820 / iPF815 / iPF825 The mechanical components of the printer can be broadly divided into an ink passage and a paper pass. The ink passage consists mainly of ink tank assembly [1] and a printhead mounted on carriage unit [2], purge assembly [3] and maintenance cartridge [4]. Its func- tions are to supply, circulate and suck inks and more.

  • Page 179: Ink Passage

    Chapter 2 2.3.2 Ink Passage 2.3.2.1 Ink Passage 2.3.2.1.1 Overview of Ink Passage 0020-5486 iPF810 / iPF820 / iPF815 / iPF825 The ink passage houses the ink tank, printhead, caps, maintenance jet tray, maintenance cartridge, waste ink collector, ink tubes interconnecting the mechanical units, suction pump driven mainly for sucking inks and so on.

  • Page 180: Ink Tank Unit

    Chapter 2 2.3.2.2 Ink Tank Unit 2.3.2.2.1 Structure of Ink Tank Unit 0020-5487 iPF810 / iPF820 / iPF815 / iPF825 a) Ink tanks The ink level in each ink tank is memorized in EEPROM attached to the tank and is detected as a dot count on the basis of the EEPROM information. When an electrode attached to a hollow needle detects no continuity, it displays a message reporting that the ink tank is nearly empty.
  • Page 181 Chapter 2 e) Subtank The subtank installed under each ink tank complements the work of the ink tank, agitating the ink in the tank. If the ink tank runs out of the ink while printing, the ink stored in the subtank is available, allowing the ink tank to be replaced without having to stop printing. f) Ink supply valves Located halfway between each subtank and the ink tube, the ink supply valve prevents ink leaks that may occur when the ink tube on the ink tank is released during replacement of the ink tank.

  • Page 182: Carriage Unit

    Chapter 2 2.3.2.3 Carriage Unit 2.3.2.3.1 Functions of Carriage Unit 0020-5488 iPF810 / iPF820 / iPF815 / iPF825 a) Printhead mounting function The carriage, which fixes the printhead in position mechanically, is connected to the contact of the head relay PCB. b) Control function The carriage carries a carriage relay PCB, which relays drive signals from the main controller PCB, a head relay PCB,which relay printhead drive signals to print- head, a linear encoder, which generates print timing signals, and a multi sensor, which detects the width of paper and skews in it, adjusts is registration and head...

  • Page 183: Structure Of Carriage Unit

    Chapter 2 2.3.2.3.2 Structure of Carriage Unit 0020-5492 iPF810 / iPF820 / iPF815 / iPF825 a) Printhead mount The printhead is secured to the carriage by the printhead fixer cover and the printhead fixer lever. When the printhead is secured to the carriage, the signal contact of the head relay PCB is pressed against that of the printhead to convey print signals. Further, the ink passage from the ink tanks is connected to the printhead via the ink tubes.
  • Page 184 Chapter 2 thereby varying the separation between the face of the printhead and the paper. The printhead height is detected from the lift cam sensor within the carriage and the distance of rotation of the lift motor. g) Multi sensor The multi sensor attached to the lower left part of the carriage consists of four LEDs (red, blue, green, infrared) and two light-receiving sensors to detect the leading edges and width of paper and skews in it, and to adjust its registration and head height.

  • Page 185: Printhead

    Chapter 2 2.3.2.4 Printhead 2.3.2.4.1 Structure of Printhead 0013-8015 iPF810 / iPF820 / iPF815 / iPF825 Each printhead is an integrated assembly of six trains of nozzles. Capable of controlling each nozzle individually, each printhead implements discharge control for six colors by itself. a) Nozzle arrangement The nozzle assembly is formed of 1,280 nozzles arranged at 600-dpi intervals in a zigzag pattern, offering a total of 2,560 nozzles 1,200-dpi intervals.

  • Page 186: Purge Unit

    Chapter 2 2.3.2.5 Purge Unit 2.3.2.5.1 Functions of Purge Unit 0020-5700 iPF810 / iPF820 / iPF815 / iPF825 To maintain high print quality, the purge unit performs maintenance of the nozzles o the printhead. The purge unit supports a capping function, cleaning function, and ink supply function. a) Capping function The capping function presses the cap of the purge unit against the face plate on the nozzle section of the printhead to prevent nozzle drying and dust adhesion.
  • Page 187 Chapter 2 Cleaning operation timings are as follows. Consumption Printer status Cleaning operation (typ.)*1 Standby 168 hours elapsed capped Cleaning 1 (Normal Cleaning) At least 720 to 960 hours elapsed since the last session of Cleaning 2, 3, 6 or 10 (480 hours after Cleaning 6 (Normal initial installation) (strong) Cleaning)

  • Page 188: Structure Of Purge Unit

    Chapter 2 2.3.2.5.2 Structure of Purge Unit 0020-5494 iPF810 / iPF820 / iPF815 / iPF825 a) Caps The caps cap the nozzle assembly in the left printhead during capping and cleaning. The part of the caps that comes into contact with the face plate of the nozzle assembly is made of rubber.
  • Page 189 Chapter 2 d) Pump The pump is a tube pump that pressurizes the ink tubes with rotating rollers to produce a negative pressure for sucking inks. Each individual tube is sequentially pressurized by two rotating rollers to control the rate of ink suction by a wide margin. The rate of rotation of the rotating pumps is controlled by driving the purge motor or the HP maintenance jet pump motor as the timing at which the rotating pumps rotate is detected by a pump cam sensor.

  • Page 190: Maintenance Cartridge

    Chapter 2 2.3.2.6 Maintenance Cartridge 2.3.2.6.1 Maintenance Cartridge 0020-5497 iPF810 / iPF820 / iPF815 / iPF825 a) Maintenance cartridge The maintenance cartridge holds as much about 1000 mL of used inks. b) Used maintenance cartridge ink detection Used maintenance cartridge ink detection is monitored with regard to a dot count. When the quantity of the used ink reaches about 800 mL (80% of the cartridge capacity), the warning message "Check maint cartridge capacity"...

  • Page 191: Air Flow

    Chapter 2 2.3.2.7 Air Flow 2.3.2.7.1 Air Flow 0020-5500 iPF810 / iPF820 / iPF815 / iPF825 This printer is provided with four fans: two mist fans for collecting ink mist, a suction fan for allowing paper to be sucked onto the platen and a BP maintenance jet suction fan for collecting idle discharges.

  • Page 192: Paper Path

    Chapter 2 2.3.3 Paper Path 2.3.3.1 Outline 2.3.3.1.1 Overview of Paper Path 0020-5503 iPF810 / iPF820 / iPF815 / iPF825 The paper pass comprises an upper roll media pick-up drive unit, a lower roll media pick-up drive unit, a feed roller, a pinch roller pressure drive unit that pressurizes and depressurizes the pinch roller, a roll holder drive unit that drives the roll holder and sensors that detect the transport status of paper to feed paper in three different ways, and transport and eject the paper.

  • Page 193: Paper Path

    Chapter 2 2.3.3.2 Paper Path 2.3.3.2.1 Structure of Pick-up/Feed Unit 0020-5505 iPF810 / iPF820 / iPF815 / iPF825 a) Roll media pick-up The components of the roll media pick-up consists include a pick-up roller driven by a roll media pick-up motor, a roller that follows the motion of the pick-up roller, a roll media pick-up roller clutch that controls the driving of the pick-up roller and a roll media pick-up cam clutch that controls the rise and fall of the roller.
  • Page 194 Chapter 2 Pinch roller pressure release shaft Pinch roller pressure detection sensor Pinch roller release detection sensor Sensor flag Down Pinch roller unit Pinch roller pressure clutch Pinch roller pressure motor Flapper solenoid:ON (During roll media loaded) Flapper solenoid:OFF (During cut sheet loaded) Route of roll media Route of cut sheet Flapper solenoid...
  • Page 195 Chapter 2 f) Paper feed assembly The paper feed assembly consists of paper feeding mechanisms, such as a feed roller that is driven by the feed motor and a pinch roller unit that follows up the motion of the feed roller. Paper feeds horizontally under the printheads on the carriage as it is kept level on the platen to prevent cockling.

  • Page 196: Cutter Unit

    Chapter 2 2.3.3.3 Cutter Unit 2.3.3.3.1 Structure of Cutter Unit 0020-5538 iPF810 / iPF820 / iPF815 / iPF825 When a roll media is used, the cutter unit cuts the leading end of the roll on loading and also cuts the roller on paper ejection. Whether cutting takes place or not depends on the relevant printer driver setting in the main menu.

  • Page 197: Printer Electrical System

    Chapter 2 2.4 Printer Electrical System 2.4.1 Outline 2.4.1.1 Overview 0020-5539 iPF820 / iPF825 The printer electrical system consists of the main controller PCB and lower roll unit PCB and power supply PCB and hard disk drive which are mounted on the back side of the printer, the carriage relay PCB, the head relay PCB, and printhead which are mounted in the carriage, the operation panel on the right upper cover and other electrical components such as sensors, and motors.
  • Page 198 Chapter 2 Power supply PCB Main controller PCB +26V generation function IC1501/IC1701 AC inlet IC1601-IC1603 +21.5V generation function Power supply control function BAT801 IC601-IC604 SO-DIMM Lithium battery SDRAM IC802 IC803 EEPROM Host computer Interface control function Network Board IC1201 Hard disk drive control function HDD controller Linear encoder Linear encoder detection function...

  • Page 199: Overview

    Chapter 2 2.4.1.2 Overview 0020-5544 iPF810 / iPF815 The printer electrical system consists of the main controller PCB and media take-up relay PCB and power supply PCB and hard disk drive which are mounted on the back side of the printer, the carriage relay PCB, the head relay PCB, and printhead which are mounted in the carriage, the operation panel on the right upper cover and other electrical components such as sensors, and motors.
  • Page 200 Chapter 2 Power supply PCB Main controller PCB +26V generation function IC1501/IC1701 AC inlet IC1601-IC1603 +21.5V generation function Power supply control function BAT801 IC601-IC604 SO-DIMM Lithium battery SDRAM IC803 IC802 EEPROM Host computer Interface control function Network Board IC1201 Hard disk drive control function HDD controller Linear encoder Linear encoder detection function...

  • Page 201: Main Controller

    Chapter 2 2.4.2 Main Controller 2.4.2.1 Main controller PCB components 0020-5546 iPF810 / iPF820 / iPF815 / iPF825 IC802 IC802 IC601 IC601 IC2802 IC2802 IC3100 IC3100 IC602 IC602 IC4101 IC4101 IC2700 IC2700 IC701 IC701 BAT801 BAT801 IC603 IC603 IC4501 IC4501 IC4601 IC4601 IC703...
  • Page 202 Chapter 2 Clutch/Solenoid control function This function controls the clutches and solenoids based on the control signal from the ASIC. Motor control function This function controls the carriage motor, feed motor, valve motor, purge motor and lift motor based on the input signals from sensors. b) Driver IC (IC2700) This IC generates a HP maintenance jet pump motor control signal based on the control signal from the ASIC.

  • Page 203: Carriage Relay Pcb

    Chapter 2 2.4.3 Carriage Relay PCB 2.4.3.1 Carriage relay PCB components 0020-5553 iPF810 / iPF820 / iPF815 / iPF825 F-2-34 a) Image data relay function This function relays the image data from the main controller PCB to the printhead. The function for processing image data is not supported. b) Sensor relay function This function relays the input signals from the multi sensor, printhead fixer lever sensor, and linear encoder to the main controller PCB.
  • Page 204 Chapter 2 This function relays the image data from the main controller PCB to the printhead. 2-46...

  • Page 205: Motor Driver

    Chapter 2 2.4.5 Motor Driver 2.4.5.1 Media take-up PCB components 0014-2480 iPF810 / iPF815 IC104 F-2-36 a) Driver IC (IC104) Media take-up motor drive function This function controls the Media take-up motor based on the control signals from the main controller. Sensor relay function This function relays the input signals from the Media take-up paper detection sensor and Media take-up on/off sensor to the main controller PCB.

  • Page 206: Power Supply

    Chapter 2 2.4.7 Power Supply 2.4.7.1 Power supply block diagram 0012-6414 iPF810 / iPF820 / iPF815 / iPF825 AC inlet 100V to 240V Operation panel Main controller PCB Power supply DC power supply +32V Noize filter circuit POWER ON control circuit generation circuit Transformer +5V/+3.3V...

  • Page 207: Detection Functions With Sensors

    Chapter 2 2.5 Detection Functions with Sensors 2.5.1 Sensors for covers 0020-5557 iPF810 / iPF820 / iPF815 / iPF825 Upper cover lock switch Pinch roller pressure release switch Ink tank cover switch Lower roll unit release detection switch F-2-40 Upper cover lock switch (L) / (R) The microswitch-based upper cover lock switches detect the open/closed states of the upper cover.

  • Page 208: Ink Passage System

    Chapter 2 2.5.2 Ink passage system 0020-5560 iPF810 / iPF820 / iPF815 / iPF825 Agitation cam sensor Valve open/closed detection sensor Pump cam sensor HP maintenance jet Pump encoder sensor pump encoder sensor Head management sensor F-2-41 Pump cam sensor As the cam rotates, it shields the sensor light of the photointerrupter-based pump cam sensor or allows it to be transmitted.
  • Page 209 Chapter 2 Pump encoder sensor/HP maintenance jet pump encoder sensor The photointerrupter-based sensor reads slits in the encoder film of the Purge motor/HP maintenance jet pump motor and controls the amount of its rotaion accord- ingly. Slits Sensor F-2-43 Valve open/closed detection sensor The photointerrupter-based valve open/closed detection sensor detects the status of the valve.

  • Page 210: Carriage System

    Chapter 2 2.5.3 Carriage system 0020-5567 iPF810 / iPF820 / iPF815 / iPF825 Linear encoder sensor Printhead fixer lever sensor Multi sensor Linear scale Carriage HP sensor Lift cam sensor F-2-46 Printhead fixer lever sensor The photointerrupter-type printhead fixer lever sensor detects the opening and closing of the printhead fixer lever. When the printhead fixer lever is closed, the sensor arm shields the sensor light, causing the sensor to detect the closed state of the printhead fixer lever.
  • Page 211 Chapter 2 The head temperature sensor detects the temperature of the printhead. The printhead temperature is transmitted to the main controller via the carriage relay PCB. The printhead temperature is used to help control the head drive and detect abnormal printhead temperatures. Printhead contact detection The printhead contact detects the status of printhead installation by electrical means.

  • Page 212: Paper Path System

    Chapter 2 2.5.4 Paper path system 0020-5570 iPF810 / iPF820 / iPF815 / iPF825 Pinch roller release Feed roller detection sensor encoder sensor Feed roller HP sensor Media sensor Pinch roller pressure detection sensor Cutter HP sensor Cutter left position sensor Roll media width detection sensor (Lower roll media width detection sensor) Roll media pick-up roller paper...
  • Page 213 Chapter 2 Feed roller encoder sensor The feed roller encoder sensor detects the rate of paper transport per revolution of the feed roller from slits in the encoder during driving. Pinch roller pressure detection sensor The photointerrupter-type pinch roller pressure detection sensor detects the pressurization of the pinch roller if the pinch roller pressure cam rotates to shield the sensor light.

  • Page 214: Media Take-Up Unit

    Chapter 2 2.5.5 Media take-up Unit 0013-8115 iPF810 / iPF815 Media take-up on/off sensor Media take-up paper detection sensor F-2-49 Media take-up on/off sensor The photointerrupter-based media take-up on/off sensor detects the switch status of the media take-up unit. When the media take-up switch is set to ON, the sensor arm transmits the sensor light, power-on the media take-up unit. When the media take-up switch is set to OFF, the sensor arm shields the sensor light, shutting down the media take-up unit.

  • Page 215: Chapter 3 Installation

    Chapter 3 INSTALLATION...
  • Page 217 Contents Contents 3.1 Transporting the Printer ..............................3-1 3.1.1 Transporting the Printer ................................3-1 3.1.1.1 Transporting the Printer ....................................3-1 3.1.2 Reinstalling the Printer ................................3-13 3.1.2.1 Reinstalling the Printer....................................3-13...

  • Page 219: Transporting The Printer

    Chapter 3 3.1 Transporting the Printer 3.1.1 Transporting the Printer 3.1.1.1 Transporting the Printer 0020-5610 iPF810 / iPF820 / iPF815 / iPF825 When transporting the printer, the printhead must be capped and stay in the carriage. In spite of this precaution, shocks incurred during transportation can damage the printhead. Print the nozzle check pattern before making preparations for transporting the printer, pint the nozzle check pattern again after installing the printer at the new lo- cation, and then compare the two printouts.
  • Page 220 Chapter 3 The printer main unit weights approximately 110 kg. When moving the printer, have at least six people hold it from both sides taking care not to hurt their back. F-3-3 Do not place or transport the printer with load placed only at the center of the printer. Otherwise the printer can be deformed or damaged. F-3-4 When tilting the printer, place a cardboard or blanket on the floor to prevent damage to the printer.
  • Page 221 Chapter 3 When tilting the printer, support the printer at bottom left and right side of the printer. If the printer is supported at any other location, the printer may be damaged or deformed. F-3-6...
  • Page 222 Chapter 3 a. LEVEL 0 Moving the printer on the same floor without difference in grade T-3-1 Item Description [MOVE PRINTER] on the Main menu This need not be performed. Allowed tilting angle Do not tilt. Ink consumption No ink is consumed. Ink tank It may be installed or removed.

  • Page 223: Transportation Procedure

    Chapter 3 b. LEVEL 1 Moving the printer on a floor with difference in grade or by truck T-3-2 Item Description [MOVE PRINTER] on the Main menu Perform [LEVEL 1]. Allowed tilting angle Lengthwise: -30 to +30 degrees Rotation: -10 to +10 degrees Ink consumption No ink is consumed.
  • Page 224 Chapter 3 8) Remove the ejection support and lower the ejection guide. F-3-9 9) Install the belt stopper. F-3-10 When mounting the belt stopper, be careful not to move the carriage by applying too much pressure. If the carriage moves when the heads are capped, the rubber part of the cap may touch the nozzles on the heads and damage the print head.
  • Page 225 Chapter 3 c-1. LEVEL 2 Transporting by plane or ship Transporting in low temperature environment such as sub zero T-3-3 Item Description [MOVE PRINTER] on the Main menu Perform [LEVEL 2]. Allowed tilting angle Lengthwise: -30 to +30 degrees Rotation: -30 to +30 degrees Ink consumption Approximately 200ml of ink is consumed.
  • Page 226 Chapter 3 c-2. LEVEL 3 Moving the printer on its end T-3-4 Item Description [MOVE PRINTER] on the Main menu Perform [LEVEL 3]. Allowed tilting angle Lengthwise: -90 to +90 degrees Rotation: -30 to +30 degrees Ink consumption Approximately 700ml of ink is consumed. Ink tank Remove all ink tanks.
  • Page 227 Chapter 3 7) Lift stopper [1] in the ink tank lock lever and raise ink tank lock lever [2] until it won't go farther and then push it to the front. F-3-12 8) Remove all ink tanks. F-3-13 Put the removed ink tanks in the plastic bag with the ink supply part [1] upward and close the opening. F-3-14...
  • Page 228 Chapter 3 9) Depressing unlock lever [1], replace all ink tank lock levers softly in original position. F-3-15 10) Close the ink tank cover. Ink drainage is performed automatically. Replace the maintenance cartridge when the cartridge replacement message appears. 11) When MOVE PRINTER completed message appears, turn off the power, and remove the power cord and interface cable. F-3-16 12) Open the upper cover and raise the ejection guide.
  • Page 229 Chapter 3 13) Remove the ejection support and lower the ejection guide. F-3-18 14) Install the belt stopper. F-3-19 When mounting the belt stopper, be careful not to move the carriage by applying too much pressure. If the carriage moves when the heads are capped, the rubber part of the cap may touch the nozzles on the heads and damage the print head.
  • Page 230 Chapter 3 d. Replacing consumable parts during transportation During [MOVE PRINTER], if a message to replace consumable parts appear, check the consumable parts counter from service mode and replace the necessary consumable parts. See "Service mode." The consumable parts to be replaced and counter to be reset depends on the [LEVEL]. F-3-20 T-3-5 Service Mode...

  • Page 231: Reinstalling The Printer

    Chapter 3 3.1.2 Reinstalling the Printer 3.1.2.1 Reinstalling the Printer 0020-5722 iPF810 / iPF820 / iPF815 / iPF825 1. Installing after transporting by LEVEL 0 or LEVEL 1. If ink drainage was not performed when transporting by LEVEL 0 or 1, remove the belt stopper and attach the power cord and interface cable after moving the printer to the installation location, and then check the operation of the printer (with test pattern).
  • Page 232 Chapter 3 3-14...

  • Page 233: Chapter 4 Disassembly/Reassembly

    Chapter 4 DISASSEMBLY/REASSEMBLY...
  • Page 235 Contents Contents 4.1 Service Parts...................................4-1 4.1.1 Service Parts....................................4-1 4.2 Disassembly/Reassembly...............................4-2 4.2.1 Disassembly/Reassembly................................4-2 4.3 Points to Note on Disassembly and Reassembly ......................4-2 4.3.1 Note on locations prohibited from disassembly........................... 4-2 4.3.2 Moving the carriage manually ..............................4-2 4.3.3 Units requiring draining of ink ..............................4-2 4.3.4 External Covers....................................

  • Page 237: Service Parts

    Chapter 4 4.1 Service Parts 4.1.1 Service Parts 0012-6508 iPF810 / iPF820 / iPF815 / iPF825 The service parts indicated below require careful handling. 1. Keep all packages with the warning not to turn over. Pay careful attention to all individually packaged service part (carriage unit, purge unit, ink tank unit, and other parts) boxes marked "This side up" and handle appropriately.

  • Page 238: Disassembly/Reassembly

    Chapter 4 4.2 Disassembly/Reassembly 4.2.1 Disassembly/Reassembly 0016-9451 iPF810 / iPF820 / iPF815 / iPF825 For the procedure for disassembly/reassembly of the components excluding the major components, refer to the parts catalog. Illustrations in the parts catalog are assigned illustration numbers according to the order in which parts are disassembled. 4.3 Points to Note on Disassembly and Reassembly 4.3.1 Note on locations prohibited from disassembly 0012-6514...
  • Page 239 Chapter 4 [3] Ink tank unit Refer to DISASSEMBLY/REASSEMBLY > Points to Notes on Disassembly and Reassembly >Ink tank unit.

  • Page 240: External Covers

    Chapter 4 4.3.4 External Covers 0020-5646 iPF810 / iPF820 / iPF815 / iPF825 a) Left circle cover (L)/Right circle cover (L) Removing left circle cover (L)/right circle cover (L) 1) To remove circle cover (L) [1], insert flathead screwdriver [2] at the position indicated to remove claw [3] and turn the cover forward to remove. F-4-4 Installing left circle cover (L)/right circle cover (L) 1) Install circle cover (L) [1] with its part [2] inserted in arrow mark [3] of the right side cover and turn the cover backward to install.
  • Page 241 Chapter 4 Installing left circle cover (S)/right circle cover (S) 1) Install circle cover (S) [1] with its part [2] inserted in part [3] of the right side cover and turn the cover rearward to install. F-4-7 c) Left/ right side covers Removing the left/ right side covers 1) To remove left/ right side covers [1], remove left/ right circle cover (L) and left/ right circle cover (S).
  • Page 242 Chapter 4 d) Operation panel Removing the operation panel 1) To remove operation panel [1], open the upper cover and raise the ejection guides. Remove two claws [2] using a flat head screwdriver and release connector [3] and ground wire [4]. F-4-9 e) Upper left cover/upper right cover Removing the upper left cover/upper right cover...
  • Page 243 Chapter 4 g) Left front cover Removing the left front cover 1) Raise the ejection guides. 2) Remove screw [1] and hook [2] to detach left front lower cover [3]. F-4-12 3) Remove two screws [1] to detach left front cover [2]. F-4-13 h) Rear cover right/Rear cover left Removing the rear cover right/rear cover left...
  • Page 244 Chapter 4 2) To remove rear cover right [1], remove four screws [2]. 3) To remove rear cover, left [3], remove the rear cover right and two screws [4]. F-4-15 i) Lower rear cover, right/ left, filter cover Removing the lower rear cover, right/ left, filter cover 1) To remove lower rear cover, right [1] , remove four screws [2].
  • Page 245 Chapter 4 1) To open the ink tank units, remove right circle cover (L), right circle cover (S), right side covers, upper right cover and right ink tank cover unit. 2) Remove two screws [1]. 3) Remove two screws [4] from the support plate [3], and then loosen four screws [5] and slide the support plate to open the ink tank unit. F-4-18 l) Left rear cover Removing the left rear cover...
  • Page 246 Chapter 4 m) Ejection guides Removing ejection guides 1) Raise the ejection guides. 2) Loosen screw [1] and slide it to left to tighten. 3) Remove ejection guide [2]. F-4-20 n) Upper rear cover Removing the upper rear cover 1) To remove the upper rear cover, remove left/ right circle cover (L), left/ right circle cover (S), left/ right side covers , upper left/upper right cover, rear cover, right/ left , and ink tank cover units and then open the ink tanks.
  • Page 247 Chapter 4 Note on installing the upper rear cover 1) Fit three rear-panel screws [1] into screw holes on the right side. F-4-22 o) Upper cover Removing the upper cover 1) To remove the upper cover, remove left/ right circle covers (L), left/ right circle covers (S), left/ right side covers , upper left/upper right covers, rear cover left/ right , right cover unit and upper rear cover.
  • Page 248 Chapter 4 p) Cover stay unit (R) Removing the cover stay unit (R) 1) Remove three connectors [1] to release the harness from the harness guide. F-4-24 2) Remove there screws [1] to remove spool holder (R) [2]. F-4-25 3) Remove two hooks [1] to remove spool holder from cover [2]. F-4-26 4-12...
  • Page 249 Chapter 4 4) Remove three screws [1] to remove cover stay unit (R) [2]. F-4-27 q) Cover stay unit (L) Removing the cover stay unit (L) 1) Remove five screws [1] to remove left rear support plate [2]. F-4-28 4-13...
  • Page 250 Chapter 4 2) Remove two connectors [1] from the back of the printer to release the harness from the harness guide. F-4-29 3) Remove screw [1] to remove left front inner cover [2]. 4) Remove screw [3] to remove spool holder [4]. F-4-30 5) Remove screw [1] to remove cover stay unit [2].
  • Page 251 Chapter 4 r) Release lever Removing the release lever 1) To remove release lever [1], remove the purge unit and then remove the release lever. To do so, keep pinch roller [2] pressurized to ease to work of phase align- ment during gear installation.

  • Page 252: Drive Unit

    Chapter 4 4.3.5 Drive Unit 0020-5659 iPF810 / iPF820 / iPF815 / iPF825 a) Feed motor Removing the feed motor 1) To remove feed motor [1], loosen four screws [2] and remove timing belt [3] and spring [4]. 2) Remove four loosened screws [2] to release feed motor [1] and remove the connector. Reinstalling the feed motor To reassemble the feed roller drive timing belt [3] into position, set the tension of timing belt [3] by adjusting the pressure of spring [4].
  • Page 253 Chapter 4 3) Twist off belt fixer knob [1] to loosen the carriage belt. Remove spring [2], guide [3] and pulley [4]. F-4-35 4) Release the carriage belt from the carriage motor pulley. 5) Remove connector [1] and four screws [2] to remove carriage motor [3]. F-4-36 4-17...

  • Page 254: Cutter

    Chapter 4 4.3.6 Cutter 0020-5669 iPF810 / iPF820 / iPF815 / iPF825 a) Removing the cutter 1) Remove the ejection guides. 2) Remove screw [1] to remove gear cover [2]. Then, remove two screws [3] and connector [4] to remove cutter motor unit [5]. F-4-37 3) Remove four screws [4] to remove four guides [2].
  • Page 255 Chapter 4 4) Remove six screws [1] to remove cutter unit [2]. F-4-39 5) Remove two screws [1] to remove cutter [2]. F-4-40 4-19...

  • Page 256: Carriage Unit

    Chapter 4 4.3.7 Carriage Unit 0020-5661 iPF810 / iPF820 / iPF815 / iPF825 a) Removing the carriage unit 1) Perform ink drainage. "See Disassembly/Reassembly > Disassembly/Reassembly Precautions > Ink Drainage." 2) Turn off the power to move the carriage onto the platen. "See Disassembly/Reassembly > Disassembly/Reassembly Precautions > Opening the Cap and Moving the Wiper Unit."...
  • Page 257 Chapter 4 5) Remove two screws [1] to remove carriage upper cover [2]. F-4-43 6) Remove three connectors [1]. F-4-44 7) Remove two screws [1] and connector [2] to remove carriage HP sensor assembly [3]. F-4-45 4-21...
  • Page 258 Chapter 4 8) Twist off belt fixer knob [1] to loosen the carriage belt. Remove spring [2], guide [3] and pulley [4]. F-4-46 9) Release the carriage belt from the carriage motor pulley. 10) Remove two screws [1] to remove pulley base [2]. 11) Remove two screws [3] and two connectors [4] to remove lift drive unit [5].
  • Page 259 Chapter 4 b) Precaution in mounting the carriage unit Make sure that linear scale [1] is seated in linear encoder sensor [2]. F-4-49 c) Mounting the carriage belt To install the carriage belt, put in the point of the belt to the interior of the groove [1], and have all the cogs of carriage belt [3] engaged with belt stopper [2]. F-4-50 d) Note on replacing the carriage unit and the multi sensor When either carriage unit or multi sensor has been replaced, be sure to replace the multi sensor reference plate(QL2-2840-000:MOUNT, MULTI SENSOR REF-...

  • Page 260: Ink Tube Unit

    Chapter 4 4.3.8 Ink Tube Unit 0020-5666 iPF810 / iPF820 / iPF815 / iPF825 a) Removing the ink tube unit 1) Perform ink drainage. "See Disassembly/Reassembly > Disassembly/Reassembly Precautions > Ink Drainage." 2) Turn off the power to move the carriage onto the platen. "See Disassembly/Reassembly > Disassembly/Reassembly Precautions > Opening the Cap and Moving the Wiper Unit."...
  • Page 261 Chapter 4 5) Remove two screws [1] to remove carriage upper cover [2]. F-4-53 6) Remove three connectors [1]. F-4-54 7) Remove the PCB cover. 8) Remove three connectors [3] from the main controller PCB. F-4-55 4-25...
  • Page 262 Chapter 4 9) Remove two screws [1] to remove ink tube mount [2]. Then, remove four hooks [3] to remove two ink tube guides [4]. F-4-56 10) Remove joint [1] of the ink tube unit to remove ink tube unit [2]. F-4-57 b) Reassembling ink tube units When the ink tube unit has been replaced, turn on the power without mounting the printhead and the ink tanks.

  • Page 263: Pick-Up/Feed Unit

    Chapter 4 4.3.9 Pick-up/Feed Unit 0020-5705 iPF810 / iPF815 a) Removing the pick-up unit 1) Open the upper cover. 2) Raise the ejection guides. 3) Remove screw [1] to remove left front inner cover [2]. F-4-59 4) Remove eight screws [1] and connector [2] and remove slide pick-up unit [4] by sliding it to the left to release the groove from two pins [3]. F-4-60 The pick-up unit weighs about 27kg.
  • Page 264 Chapter 4 b) Removing the pick-up roller 1) Remove the pick-up unit. 2) Remove screw [1], guide [2], two E-rings [3], gear [4], parallel pin [5], two bushings [6] and connector [7] to release harness from the harness guide. 3) Remove four screws [8] to remove upper unit [9] of the pick-up unit. F-4-61 4) Remove E-ring [1] and slide three upper pick-up guides [2] to the left to release from five hooks [3] each, removing them from the leftmost one in sequence.
  • Page 265 Chapter 4 4.3.10 Pick-up/Feed Unit 0020-5681 iPF820 / iPF825 a) Changing the pullout length of the lower roll unit In servicing the printer, remove two screws [1] (both left and right) to increase the pullout length of the lower roll unit as needed. F-4-64 b) Removing the pick-up unit 1) Open the upper cover.
  • Page 266 Chapter 4 5) Remove eight screws [1] and connector [2] and remove slide pick-up unit [4] by sliding it to the left to release the groove from two pins [3]. F-4-66 The pick-up unit weighs about 27kg. Use maximum care not to drop it or let it hit other objects. c) Precaution in removing the lower roll unit In removing the lower roll unit from the printer body, hold the middle parts (front/rear) of the unit firmly.
  • Page 267 Chapter 4 d) Removing the pick-up roller 1) Remove the pick-up unit. 2) Remove screw [1], guide [2], two E-rings [3], gear [4], parallel pin [5], two bushings [6] and connector [7] to release harness from the harness guide. 3) Remove four screws [8] to remove upper unit [9] of the pick-up unit. F-4-68 4) Remove E-ring [1] and slide three upper pick-up guides [2] to the left to release from five hooks [3] each, removing them from the leftmost one in sequence.

  • Page 268: Purge Unit

    Chapter 4 4.3.11 Purge Unit 0020-5671 iPF810 / iPF820 / iPF815 / iPF825 a) Removing the purge unit 1) Turn off the power to move the carriage onto the platen. "See Disassembly/Reassembly > Disassembly/Reassembly Precautions > Opening the Cap and Moving the Wiper Unit."...

  • Page 269: Waste Ink Collection Unit

    Chapter 4 4.3.12 Waste Ink Collection Unit 0020-5682 iPF810 / iPF820 / iPF815 / iPF825 In disassembling the waste ink collector, watch for ink leaks from the parts removed. When components are removed, put them in a PVC bag or the like to prevent ink leaks from part [A] enclosed.
  • Page 270 Chapter 4 [2] BP maintenace jet duct F-4-76 [3] Platen ink BOX unit F-4-77 [4] Platen suction duct F-4-78 [5] Platen sunction ink BOX unit F-4-79 4-34...
  • Page 271 Chapter 4 [6] Head management sensor unit F-4-80 [7] HP maintenace jet tray unit F-4-81 [9] Platen suction fan unit F-4-82 [10]/[11] Mist fan unit F-4-83 4-35...
  • Page 272 Chapter 4 a) Removing the HP maintenance jet tray unit 1) Move the carriage onto the platen. 2) Remove two screws [1] to remove HP maintenance jet tray unit [2]. F-4-84 b) Removing the mist fan unit 1) Open the ink tank unit wide until it stops. 2) Remove three screws [1], connector [2] and two hooks [3] to remove, mist fan unit [4].
  • Page 273 Chapter 4 3) Remove three screws [1] and connector [2] to remove platen suction fan unit [3]. F-4-87 d) Removing the platen suction duct 1) Removed the cover stay unit (R). 2) Remove two screws [1] to remove platen suction duct [2]. F-4-88 e) Precaution in mounting the platen suction duct Check that platen suction duct [1] is firmly seated in hole [2] in the rear side plate.
  • Page 274 Chapter 4 f) Removing the platen ink BOX unit 1) Open the upper cover. 2) Raise the ejection guides. 3) Pull out the lower roll unit as far as possible. 4) Remove screw [1] to remove left front inner cover [2]. F-4-90 5) Remove eight screws [1] and connector [2] and remove slide pick-up unit [4] by sliding it to the left to release the groove from two pins [3].
  • Page 275 Chapter 4 g) Removing the platen suction ink BOX unit 1) Remove the purge unit. 2) Remove the maintenance cartridge. 3) Remove the HP maintenance jet tray unit. 4) Remove the head management sensor. 5) Remove five screws [1] and two hooks [2] and then release harness from the harness guide to remove support plate [3]. F-4-93 6) Remove two screws [1] and connector [2], and remove maintenance cartridge base unit [3] and place it at another position temporarily.
  • Page 276 Chapter 4 7) Remove two screws [2] to remove duct [2]. 8) Remove screw [3] and hook [4] to remove platen suction ink BOX unit [5] from the front. F-4-96 h) Precaution in mounting the platen suction ink BOX unit - Mount the maintenance cartridge base unit to ensure that two bosses [1] are inserted in hole [2] in the side plate.
  • Page 277 Chapter 4 i) Removing the BP maintenance jet ink BOX unit 1) Remove three screw [1] to remove support plate [2]. F-4-99 2) Remove screw [1] to remove duct [2]. F-4-100 3) Remove two screws [1] and connector [2] to remove BP maintenance jet ink BOX unit [3]. F-4-101 4-41...
  • Page 278 Chapter 4 j) Precaution in mounting the BP maintenance jet ink BOX unit - Check that bosses [1] on the BP maintenance jet ink BOX unit are inserted in hole [2] in the side plate. F-4-102 - Check that boss [1] on the duct is inserted in the groove [2] in the BP maintenance jet ink BOX unit. F-4-103 4-42...

  • Page 279: Ink Tank Unit

    Chapter 4 4.3.13 Ink Tank Unit 0020-5673 iPF810 / iPF820 / iPF815 / iPF825 a) Removing ink tank unit 1) Perform ink drainage. "See Disassembly/Reassembly > Disassembly/Reassembly Precautions > Ink Drainage." 2) Remove the joint [1] interconnecting the ink tube unit and the ink tank unit to each other. 3) Remove four screws [2] to remove two ground plates [3].
  • Page 280 Chapter 4 b) Precaution in mounting the ink tank unit Check that two hooks [1] on the ink tank unit are inserted into notches [2] in the ink tank unit waste ink tray. F-4-106 c) Removing the valve motor unit 1) To remove the valve motor unit, remove the ink tank cover unit.

  • Page 281: Multi Sensor

    Chapter 4 4.3.14 Multi Sensor 0020-5680 iPF810 / iPF820 / iPF815 / iPF825 a) Removing the multi sensor 1) Turn off the power to move the carriage onto the platen. "See Disassembly/Reassembly > Disassembly/Reassembly Precautions > Opening the Cap and Moving the Wiper Unit."...
  • Page 282 Chapter 4 5) Remove screw [1] and connector [2] to remove multi sensor [3]. F-4-110 b) Precaution in mounting the multi sensor To attach the carriage left inner cover, mount the multi sensor to allow leaf spring [1] in the carriage into notch [2] in the lever with the slant adjustment lever being set at the bottom position.
  • Page 283 Chapter 4 Media type: Gloss photo paper 2) Paper gap adjustment - Service mode: SERVICE MODE > ADJUST > GAP CALIB. 4-47...

  • Page 284: Linear Encoder Sensor

    Chapter 4 4.3.15 Linear Encoder Sensor 0020-5676 iPF810 / iPF820 / iPF815 / iPF825 a) Removing the linear encoder sensor 1) Remove the carriage unit. 2) Remove screw [1] and connector [2] and remove linear encoder sensor [4] by moving it slantwise upward to release from two bosses [3]. F-4-113 b) Removing the linear scale 1) Open the ink tank unit wide until it stops.

  • Page 285: Head Management Sensor

    Chapter 4 4.3.16 Head Management Sensor 0020-5674 iPF810 / iPF820 / iPF815 / iPF825 a) Removing the head management sensor 1) Remove the HP maintenance jet tray unit. 2) Remove the screw [1] and connector [2] to remove head management sensor [3]. F-4-116 b) Action to take after replacing the head management sensor Because the distance between the head management sensor and the carriage unit is varied from one unit to another, the printer has its optical axis corrected to adjust...

  • Page 286: Pcbs

    Chapter 4 4.3.17 PCBs 0014-8989 iPF810 / iPF820 / iPF815 / iPF825 Do not replace the main controller PCB and the maintenance cartridge relay PCB (ROM board) at the same time. Both PCBs hold vital information, such as settings and a carriage drive time. Before either PCB is replaced, such information is temporarily saved through internal communication with the other PCB and is automatically written to the new PCB when it is installed.

  • Page 287: Opening The Cap/Moving The Wiper Unit

    Chapter 4 4.3.18 Opening the Cap/Moving the Wiper Unit 0020-5706 iPF810 / iPF820 / iPF815 / iPF825 This section explains how to move the cap, carriage lock pin and wiper unit manually. Moving carriage when the power of the printer is off, releasing carriage lock pin and uncapping must be done manually. 1.

  • Page 288: Opening And Closing Ink Supply Valves

    Chapter 4 4.3.19 Opening and closing ink supply valves 0020-5708 iPF810 / iPF820 / iPF815 / iPF825 a) Opening and closing ink supply valves 1) Remove the ink tank cover unit. 2) Press valve lever [1] with a finger to open the ink supply valve. F-4-119 - If the printhead fixer lever is released with the ink supply valve to an ink tube open while the tube is filled with an ink, the ink in the tube could flow backward to the ink tank unit, leaking through the hollow needle in the ink tank.

  • Page 289: Draining The Ink

    Chapter 4 4.3.20 Draining the ink 0020-5710 iPF810 / iPF820 / iPF815 / iPF825 There are two ways to drain the ink passage of inks: automatic and manual. Be sure to drain the ink from the ink passage to prevent ink leakage before disassembling any component of the ink passage or reshipping the printer. 1.

  • Page 290: Applying The Grease

    Chapter 4 4.4 Applying the Grease 4.4.1 Applying the Grease 0020-5711 iPF810 / iPF820 / iPF815 / iPF825 Apply the grease at the location shown below. Smear the grease lightly and evenly with a flat brush. Don't apply the grease to locations other than those designated. Unwanted grease may cause poor print quality, take particular care that grease does not get onto the wiper, cap, or the linear scale.
  • Page 291 Chapter 4 2. Feed roller backup [1](2 parts)/Feed roller bearing [2] F-4-121 3. Pinch roller release bushing [1](5 parts)/Pinch roller pressure release gear [2]/The concave of the pinch roller arm [3](28 parts) F-4-122 4-55...
  • Page 292 Chapter 4 4. Upper cover stay shaft hole [1]/The gear shaft of the upper cover stay gear [2]/Upper cover stay shaft end [3]/The gear tooth face of upper cover stay [4] F-4-123 4-56...

  • Page 293: Adjustment And Setup Items

    Chapter 4 4.5 Adjustment and Setup Items 4.5.1 Adjustment Item List 0017-8323 iPF810 / iPF820 / iPF815 / iPF825 The following adjustment procedures need to be performed when parts have been replaced or remove and then reinstalled: T-4-3 Adjustment item Adjustment timing Multi sensor recalibration Multi sensor replacement/removal...
  • Page 294 Chapter 4 4-58...

  • Page 295: Chapter 5 Maintenance

    Chapter 5 MAINTENANCE...
  • Page 297 Contents Contents 5.1 Periodic Replacement Parts ............................5-1 5.1.1 Periodic Replacement Parts ................................. 5-1 5.2 Consumable Parts................................5-1 5.2.1 Consumable Parts..................................5-1 5.3 Periodic Maintenance..............................5-2 5.3.1 Periodic Maintenance................................... 5-2...

  • Page 299: Periodic Replacement Parts

    Chapter 5 5.1 Periodic Replacement Parts 5.1.1 Periodic Replacement Parts 0012-6595 iPF810 / iPF820 / iPF815 / iPF825 T-5-1 Level Periodic Replacement part User None Service None Personnel 5.2 Consumable Parts 5.2.1 Consumable Parts 0020-5716 iPF810 / iPF820 / iPF815 / iPF825 T-5-2 Consumables Service Mode...

  • Page 300: Periodic Maintenance

    Chapter 5 5.3 Periodic Maintenance 5.3.1 Periodic Maintenance 0020-5718 iPF810 / iPF820 / iPF815 / iPF825 T-5-3 Level Periodic maintenance User Cleaning of ink mist and other substances(about once each month Service personnel None a) Printer cleaning To keep up with print quality and prevent troubles, clean the printer about once each month. 1) Using a damp cloth that you have wrung out completely, wipe away any dirt or paper dust from the Paper Feed Slot [1], power cord plug, and so on.
  • Page 301 Chapter 5 MEMO: If the Cleaning Brush is dirty, rinse it in water. 4) Using a damp cloth that you have wrung out completely, wipe inside the Top Cover to clean it. Wipe away any ink residue on the Top Cover Roller [1], all over the Platen [2], the Pinch Roller Unit [3], the Borderless Printing Ink Grooves [4], the Ejection Guide [5], the switch [6], the Borderless Printing Ink Groove of the right side [7], and so on.
  • Page 302 Chapter 5 5) Close upper cover [1]. F-5-6...
  • Page 303 Chapter 5...

  • Page 305: Chapter 6 Troubleshooting

    Chapter 6 TROUBLESHOOTING...
  • Page 307 Contents Contents 6.1 Troubleshooting ................................6-1 6.1.1 Outline......................................6-1 6.1.1.1 Outline of Troubleshooting .....................................6-1 6.2 Location of Connectors and Pin Arrangement.......................6-1 6.2.1 Main controller PCB ..................................6-1 6.2.2 Carriage relay PCB ..................................6-11 6.2.3 Head relay PCB..................................6-16 6.3 Version Up ...................................6-20 6.3.1 Firmware Update Tool ................................

  • Page 309: Outline

    Chapter 6 6.1 Troubleshooting 6.1.1 Outline 6.1.1.1 Outline of Troubleshooting 0013-1940 iPF810 / iPF820 / iPF815 / iPF825 1. Outline Troubles subject to troubleshooting are classified into those shown on the display (warning, error, and service call) and those not shown on the display. The code of warning and error is shown by combining alphanumeric characters of eight digits and four digits.
  • Page 310 Chapter 6 J1101/J1102 Pin Number Signal name IN/OUT Function /REQ Request signal AD31 IN/OUT Address and data signal AD30 IN/OUT Address and data signal AD29 IN/OUT Address and data signal AD28 IN/OUT Address and data signal AD27 IN/OUT Address and data signal AD26 IN/OUT Address and data signal...
  • Page 311 Chapter 6 J1101/J1102 Pin Number Signal name IN/OUT Function +3.3V Power supply(+3.3V) +3.3V Power supply(+3.3V) T-6-2 J1201 Pin Number Signal name IN/OUT Function AGND2 Transmission Data Transmission Data AGND2 Receive Data Receive Data AGND2 T-6-3 J1202 Pin Number Signal name IN/OUT Function HDD_LED...
  • Page 312 Chapter 6 J2501 Pin Number Signal name IN/OUT Function /LIFT_CAM Lift cam sensor output signal RGV8(SNS3V) Power supply(+3.3V) /CR_HP Carriage HP sensor output signal OUT_LIFTM_VM Power supply OUT_LIFTM0_A Lift motor drive signal A OUT_LIFTM2_AX_N0 Lift motor drive signal AX OUT_LIFTM1_B Lift motor drive signal B OUT_LIFTM3_BX_N1 Lift motor drive signal BX...
  • Page 313 Chapter 6 T-6-10 J2401 Pin Number Signal name IN/OUT Function INKBENM1_AM Valve motor drive signal AM INKBENM1_AP Valve motor drive signal AP RGV8(SNS3V) Power supply(+3V) /INKBEN_OPEN_R Valve open/close detection sensor output signal /TANK_COVER_R Ink tank cover switch output signal RGV8(SNS3V) Power supply(+3V) /INKBEN_CAM_R Agitation cam sensor output signal...
  • Page 314 Chapter 6 J2702 Pin Number Signal name IN/OUT Function /FUTO_CMP Head management sensor ink detection signal T-6-15 J3002 Pin Number Signal name IN/OUT Function TH2_OUT Thermister output signal RH2_OUT Temperature/humidity sensor output signal RGV29(UMF5V) Power supply(+5v) T-6-16 J3801 Pin Number Signal name IN/OUT Function...
  • Page 315 Chapter 6 J3902 Pin Number Signal name IN/OUT Function OUT_LENIP_A Roll media pick-up motor drive signal A T-6-20 J3151 Pin Number Signal name IN/OUT Function RGV16(VM32V) Power supply(+32V) RGV16(VM32V) Upper cover lock switch output signal T-6-21 J4001 Pin Number Signal name IN/OUT Function LF_FNCA...
  • Page 316 Chapter 6 T-6-23 J2801 Pin Number Signal name IN/OUT Function OUT_LFSP_A Feed motor drive signal A OUT_LFSP_VM Power supply(+32V) OUT_LFSP_AB Feed motor drive signal AB OUT_LFSP_BB Feed motor drive signal BB OUT_LFSP_VM Power supply(+32V) OUT_LFSP_B Feed motor drive signal B T-6-24 J4101 Pin Number...
  • Page 317 Chapter 6 J3601 Pin Number Signal name IN/OUT Function H1-E-DATA-9-OD_B Odd head(R) data signal 9(E) H1-F-HE-10_B Head(R) heat enable signal 10(F) H1-F-DATA-11-OD_B Odd head(R) data signal 11(F) H1-F-HE-11_B Head(R) heat enable signal 11(F) H1-F-DATA-11-EV_B Even head(R) data signal 11(F) H1-F-DATA-10-EV_B Even head(R) data signal 10(F) H1-E-HE-9_B Head(R) heat enable signal 9(E)
  • Page 318 Chapter 6 J3602 Pin Number Signal name IN/OUT Function H1_LT_B Head(L) latch signal H1-C-DATA-5-EV_B Even head(L) data signal 5(C) H1-B-HE-3_B Head(L) heat enable signal 3(B) H1-C-DATA-4-EV_B Even head(L) data signal 4(C) H1-B-DATA-3-EV_B Even head(L) data signal 3(B) H1-B-DATA-2-EV_B Even head(L) data signal 2(B) H1-A-DATA-1-EV_B Even head(L) data signal 1(A) H1-A-HE-1_B...

  • Page 319: Carriage Relay Pcb

    Chapter 6 6.2.2 Carriage relay PCB 0020-5730 iPF810 / iPF820 / iPF815 / iPF825 J205 J205 J201 J201 J202 J202 J101 J101 J102 J102 J203 J203 J206 J206 J204 J204 F-6-2 T-6-28 J101 Pin Number Signal name IN/OUT Function VMGND VMGND VMGND VMGND...
  • Page 320 Chapter 6 J201 Pin Number Signal name IN/OUT Function PWLED1_ON Multi sensor LED1 drive control PWLED2_ON Multi sensor LED2 drive control H1-DATA_LICC2 Head(L) analogue switch data signal H1-DLD_LICC2 Head(L) analogue switch latch signal H1-DASLK_LICC2 Head(L) analogue switch clock signal VH_DIS VH selection single H1-E-DATA-9-EV_B Even head(L) data signal 9(E)
  • Page 321 Chapter 6 J202 Pin Number Signal name IN/OUT Function /H1_LT_B Head(L) latch signal LV_H1_CLKP Head(L) clock signal P LV_H1_CLKN Head(L) clock signal N H1-DSOUT1 Head(L) temperature output signal 1 H1-DSOUT2 Head(L) temperature output signal 2 H1-C-DATA-5-OD_B Odd head(L) data signal 5(C) /H1-C-HE-5_B Head(L) heat enable signal 5(C) /H1-D-HE-6_B...
  • Page 322 Chapter 6 J204 Pin Number Signal name IN/OUT Function H1-A-DATA-0-OD Odd head(L) data signal 0(A) /H1-A-HE-0 Head(L) heat enable signal 0(A) H1-A-DATA-0-EV Even head(L) data signal 0(A) H1-A-DATA-1-EV Even head(L) data signal 1(A) /H1-A-HE-1 Head(L) heat enable signal 1(A) H1-B-DATA-2-EV Even head(L) data signal 2(B) IO_ASIC_SDA IN/OUT...
  • Page 323 Chapter 6 J203 Pin Number Signal name IN/OUT Function /H1-E-HE-9 Head(L) heat enable signal 9(E) H1-F-DATA-10-EV Even head(L) data signal 10(F) H1-F-DATA-11-EV Even head(L) data signal 11(F) /H1-F-HE-11 Head(L) heat enable signal 11(F) H1-F-DATA-11-OD Odd head(L) data signal 11(F) H1-F-DATA-10-OD Odd head(L) data signal 10(F) /H1-F-HE-10 Head(L) heat enable signal 10(F)

  • Page 324: Head Relay Pcb

    Chapter 6 6.2.3 Head relay PCB 0020-5732 iPF810 / iPF820 / iPF815 / iPF825 J101 J102 J103 J501 J104 F-6-3 T-6-36 J103 Pin Number Signal name IN/OUT Function H-DASH_LICC2 Head analogue switch A/D trigger signal H1-DASLK_LICC2 Head(L) analogue switch clock signal H1-DATA_LICC2 Head(L) analogue switch data signal H1-DLD_LICC2...
  • Page 325 Chapter 6 J103 Pin Number Signal name IN/OUT Function /H1-C-HE-4 Head(L) heat enable signal 4(C) H1-C-DATA-4-OD Odd head(L) data signal 4(C) MLT_SENS_1IN Multi sensor signal 1 MLT_SENS_2IN Multi sensor signal 2 SNS5V Power supply(+5V) T-6-37 J102 Pin Number Signal name IN/OUT Function /H1-E-HE-8...
  • Page 326 Chapter 6 T-6-38 J101 Pin Number Signal name IN/OUT Function PWLED1 Multi sensor LED1 drive signal PWLED2 Multi sensor LED2 drive signal PWLED3 Multi sensor LED3 drive signal PWLED4 Multi sensor LED4 drive signal H3V 1 Power supply VH1 (Feedback) VH2 feed back voltage Power supply Power supply...
  • Page 327 Chapter 6 J104 Pin Number Signal name IN/OUT Function H0-F-DIA2 Head(R) DI sensor signal 2(E) H0-E-HE-9 Head(R) heat enable signal 9(E) H0-D-DATA-7-EV Even head(R) data signal 7(D) H0-D-HE-6 Head(R) heat enable signal 6(D) H0-C-DATA-5-OD Odd head(R) data signal 5(C) H0-C-DATA-4-EV Even head(R) data signal 4(C) H0-A-DATA-1-EV Even head(R) data signal 1(A)

  • Page 328: Version Up

    Chapter 6 6.3 Version Up 6.3.1 Firmware Update Tool 0013-9809 iPF810 / iPF820 Use of the following tools allows you to update the firmware of the main controller incorporated in the printer. - imagePROGRAF Firmware Update Tool - L Printer Service Tool 1.
  • Page 329 Chapter 6 6.3.2 Firmware Update Tool 0023-5295 iPF815 / iPF825 Use of the following tools allows you to update the firmware of the main controller incorporated in the printer. - imagePROGRAF Firmware Update Tool - L Printer Service Tool 1. imagePROGRAF Firmware Update Tool imagePROGRAF Firmware Update Tool is the same as that for user.

  • Page 330: Service Tools

    Chapter 6 6.4 Service Tools 6.4.1 Tool List 0012-6675 iPF810 / iPF820 / iPF815 / iPF825 T-6-41 General-purpose tools Application Long phillips scerewdriver Inserting and removing screw Phillips scerewdriver Inserting and removing screw Flat-head screwdriver Removing the E-ring Needle-nose pliers Inserting and removing the spring parts Hex key wrench Inserting and removing hexagonal screws...

  • Page 331: Chapter 7 Service Mode

    Chapter 7 SERVICE MODE...
  • Page 333 Contents Contents 7.1 Service Mode .................................7-1 7.1.1 Service Mode Operation ................................7-1 7.1.2 Map of the Service Mode................................7-2 7.1.3 Details of Service Mode................................7-8 7.1.4 Sample Printout..................................7-17 7.2 Special Mode................................7-21 7.2.1 Special Modes for Servicing ..............................7-21...

  • Page 335: Service Mode Operation

    Chapter 7 7.1 Service Mode 7.1.1 Service Mode Operation 0013-9799 iPF810 / iPF820 / iPF815 / iPF825 a. How to enter the Service mode Enter the Service mode following the procedure below. 1) Turn off the printer. 2) Turn on the printer while holding down the [Paper Source]key and [Information]key. 3) "S"...

  • Page 336: Map Of The Service Mode

    Chapter 7 7.1.2 Map of the Service Mode 0020-5734 iPF810 / iPF820 / iPF815 / iPF825 The hierarchy of menus and parameters in the Service Mode is as shown below. T-7-1 First Level Second Level Third Level Fourth Level Fifth Level Sixth Level DISPLAY PRINTINF...
  • Page 337 Chapter 7 T-7-2 First Level Second Level Third Level Fourth Level Fifth Level COUNTER PRINTER LIFE TTL LIFE ROLL UPPER LIFE ROLL LOWER LIFE CUTSHEET LIFE A LIFE F POWER ON W-INK CUTTER WIPE CARRIAGE PRINT DRIVE CR COUNT CR DIST. PRINT COUNT PURGE CLN-A-1...
  • Page 338 Chapter 7 T-7-3 First Level Second Level Third Level Fourth Level Fifth Level COUNTER EXCHANGE MTC EXC. HEAD EXC. BOARD EXC.(M/B) UNIT A EXC. A-1 EXC. A-5 EXC. UNIT D EXC. D-1 EXC. D-5 EXC. UNIT H EXC. H-1 EXC. H-2 EXC.
  • Page 339 Chapter 7 T-7-4 First Level Second Level Third Level Fourth Level Fifth Level COUNTER MEDIA 1 NAME ROLL UPPER ROLL UPPER ROLL LOWER ROLL LOWER CUTSHEET CUTSHEET MEDIA 7 NAME ROLL UPPER ROLL UPPER ROLL LOWER ROLL LOWER CUTSHEET CUTSHEET MEDIA OTHER NAME ROLL UPPER...
  • Page 340 Chapter 7 T-7-5 First Level Second Level Third Level Fourth Level Fifth Level COUNTER MEDIASIZE2 ROLL D-SQ 44-60 D-SQ 44-60 D-SQ 36-44 D-SQ 36-44 D-SQ 24-36 D-SQ 24-36 D-SQ 17-24 D-SQ 17-24 D-SQ -17 D-SQ -17 D-CNT 44-60 D-CNT 36-44 D-CNT 24-36 D-CNT 17-24 D-CNT -17...
  • Page 341 Chapter 7 T-7-6 First Level Second Level Third Level Fourth Level Fifth Level COUNTER HEAD DOT CNT. 1 HEAD DOT CNT. 2 PARTS CNT. COUNTER A OK/W1/W2/E PARTS A1 1:00 2:00 3:00 4:00 COUNTER Y OK/W1/W2/E PARTS Y1 1:00 2:00 3:00 4:00 SETTING...

  • Page 342: Details Of Service Mode

    Chapter 7 7.1.3 Details of Service Mode 0020-5736 iPF810 / iPF820 / iPF815 / iPF825 This section provides details of the Service mode menu. a) DISPLAY Displays and prints the printer information. 1) PRINF INF Prints adjustment values in the User menu, [DISPLAY] and [COUNTER] parameters on A4-size or lager paper. When a roll media is used, the layout is optimized according to the media width.
  • Page 343 Chapter 7 b) I/O DISPLAY The information of each sensor and switch is shown in the display. Sensor and switch status is shown in the display. ON=1 OFF or not used=0 ON = 1 OFF or not used = 0 Screen 1 T-7-10 Upper row...
  • Page 344 Chapter 7 c) ADJUST Performs adjustments and prints the adjustment and check patterns necessary for adjusting the printer parts. 1) PRINT PATTERN T-7-13 Display Description NOZZLE 1 Prints the nozzle check pattern by single direction/ single pass without using the non- discharging back up.
  • Page 345 Chapter 7 d) COUNTER Displays the life (operation frequency and time) of each unit, print counts for each media type, and else. The count values can be printed from [PRINT INF]. 1) PRINTER: Counters related to product life T-7-15 Display Description Unit LIFE TTL...
  • Page 346 Chapter 7 T-7-17 Display Description Unit CLN-A-1 Cumulative number of automatic cleaning 1 (normal suction) operations Times CLN-A-2 Cumulative number of automatic cleaning 2 (ink level adjusting) operations Times CLN-A-3 Cumulative number of automatic cleaning 3 (initial filling) operations Times CLN-A-6 Cumulative number of automatic cleaning 6 (strong normal suction) operations Times...
  • Page 347 Chapter 7 6) DETAIL-CNT: Other counters T-7-20 Display Description Unit MOVE PRINTER A(B,C,D,E) A: Number of times "MOVE PRINTER" on Main menu is executed Times B: Number of times "LEVEL 1" is executed C: Number of times "LEVEL 2" is executed D: Number of times "LEVEL 3"...
  • Page 348 Chapter 7 11) MEDIA OTHER: Counters related to media Displays the total amount of cumulative print area of the other media type than the above-mentioned T-7-25 Display Description Unit NAME Media type Total amount of cumulative print area of roll media and cut sheet (metric) Total amount of cumulative print area of roll media and cut sheet (inch) Sq.f ROLL UPPER...
  • Page 349 Chapter 7 14) MEDIASIZE1 CUT: Counters related to cut sheet printing T-7-28 Display Description Unit P-SQ 44-60 Cumulative print area of paper equal to or larger than 44 inches but less than 60 inches (physical size) m2/Sq.f P-SQ 36-44 Cumulative print area of paper equal to or larger than 36 inches but less than 44 inches (physical size) m2/Sq.f P-SQ 24-36 Cumulative print area of paper equal to or larger than 24 inches but less than 36 inches (physical size)
  • Page 350 Chapter 7 18) PARTS CNT. : Counter related to consumable parts T-7-32 Display Description Unit COUNTER x x: Unit number of consumable parts Day(s) (For detail, refer to "Maintenance and Inspection" > "Consumable Parts") Display the status and the days passed since the counter resetting. - Status OK: Use rate (until part replacement) of all consumable parts included in each unit are below 90%.
  • Page 351 Chapter 7 f) SETTING Make various settings. 1) Pth Turn on or off the head pulse rank control function. Default: OFF 2) RTC Set RTC (real time clock) after replacing the lithium battery on the main controller PCB. T-7-33 Display Description DATE yyyy/mm/dd...

  • Page 352: Sample Printout

    Chapter 7 7.1.4 Sample Printout 0020-5737 iPF810 / iPF820 / iPF815 / iPF825 a) PRINTINF A sample printout that is produced by executing [SERVICE MODE] > [DISPLAY] > [PRINTINF] is shown below, along with instructions about how to interpret it. xxxx PRINT INF Firm:00.49 Boot:00.31 MIT(DBF):9303 MIT(DB):1.02 S/N:DF029090 SYSTEM...
  • Page 353 Chapter 7 b) NOZZLE 1 A sample printout that is produced by executing [SERVICE MODE]> [ADJUST]> [PRINT PATTERN]> [NOZZLE 1] is shown below. Nozzle Check Pattern SERVICE F-7-2 c) OPTICAL AXIS A sample printout that is produced by executing [SERVICE MODE]> [ADJUST]> [PRINT PATTERN]> [OPTICAL AXIS] is shown below. F-7-3 7-19...
  • Page 354 DETAIL A sample printout that is produced by executing [SERVICE MODE]> [ADJUST]> [HEAD ADJ.] > [MANUAL HEAD ADJ]> [DETAIL] is shown below. Printhead Adjustment Pattern A-11 A-10 A-12 Canon imagePROGRAF iPF600 Printhead Adjustment Pattern D-10 D-11 D-12 F-7-4 7-20...
  • Page 355 Chapter 7 e) BASIC A sample printout that is produced by executing [SERVICE MODE]> [ADJUST]> [HEAD ADJ.] > [MANUAL HEAD ADJ]> [BASIC] is shown below. Printhead Adjustment Pattern D-10 D-11 D-12 F-7-5 7-21...

  • Page 356: Special Mode

    Chapter 7 7.2 Special Mode 7.2.1 Special Modes for Servicing 0013-9804 iPF810 / iPF820 / iPF815 / iPF825 This printer supports the following special modes in addition to the service mode: - PCB replacement mode - Download mode - Counter display mode 1.

  • Page 359: Chapter 8 Error Code

    Chapter 8 ERROR CODE...
  • Page 361 Contents Contents 8.1 Outline....................................8-1 8.1.1 Outline......................................8-1 8.2 Warning Table................................8-2 8.2.1 Warnings ...................................... 8-2 8.3 Error Table ..................................8-4 8.3.1 Errors......................................8-4 8.4 Sevice Call Table .................................8-11 8.4.1 Service Call Errors ..................................8-11...

  • Page 363: Outline

    Chapter 8 8.1 Outline 8.1.1 Outline 0020-5742 iPF810 / iPF820 / iPF815 / iPF825 The printer indicates errors using the display and LEDs. If an error occurs during printing, the printer status is also displayed on the status monitor of the printer driver. The following three types of errors are displayed on the display: - Warning Status where the print operation can be continued without remedying the cause of the problem.

  • Page 364: Warning Table

    Chapter 8 8.2 Warning Table 8.2.1 Warnings 0020-5741 iPF810 / iPF820 / iPF815 / iPF825 * Codes represent the numbers that are displayed in DISPLAY in service mode and that are recorded in PRINTINF. Messages that are not accompanied by a code indication are not logged.
  • Page 365 Chapter 8 Display massage Code* Condition detected Action Ink tank is empty. 01810303-1403 C ink tank empty Renew the C ink tank. Replace the ink tank. Ink tank is empty. 01810302-1402 M ink tank empty Renew the M ink tank. Replace the ink tank.

  • Page 366: Error Table

    Chapter 8 8.3 Error Table 8.3.1 Errors 0020-5740 iPF810 / iPF820 / iPF815 / iPF825 * Codes represent the numbers that are displayed in DISPLAY in service mode. If the same message is displayed when the printer is turned off, then back on, take action as recommended in the Action column. T-8-3 Display massage Code*...
  • Page 367 Chapter 8 Display massage Code* Condition detected Action Hardware error. 03130000-2E21 IEEE1394 interface error Check that the optionalIEEE1394 board is mounted. 03130000-2E21 Check the cable connection. Turn off printer,wait, then turn on again. Paper size not detected. 03010000-200A Unable to detect the paper width (Paper loaded at an Reload the paper Reload paper.
  • Page 368 Chapter 8 Display massage Code* Condition detected Action Hardware error. 03130031-2F22 Pump travel timeout Check the purge unit. 03130031-2E22 Turn off printer, wait, then turn on again. Hardware error. 03130031-2F23 Purge motor error Check the purge unit. 03130031-2E23 Pump inoperable Turn off printer, wait, then turn on again.
  • Page 369 Chapter 8 Display massage Code* Condition detected Action Roll feed unit err 03060B00-2E24 Roll feed unit failure Replace the roll feed unit. Turn off printer and check roll feed unit Unknown file. 03900001-4049 ROM data for another model has been transferred. Transmit valid ROM data.
  • Page 370 Chapter 8 Display massage Code* Condition detected Action Ink insufficient. 03810201-2591 Low on the Y ink tank (during pre-printing checks) Replace with a fully replenished Y ink tank Press OK and replace ink tank. Ink insufficient. 03810202-2592 Low on the M ink tank (during pre-printing checks) Replace with a fully replenished M ink tank Press OK and replace ink tank.
  • Page 371 Chapter 8 Display massage Code* Condition detected Action Maintenance cartridge 03841201-2817 Maintenance cartridge ID error Renew the maintenance cartridge. problem. Replace the maintenance cartridge. Borderless printng not 03861001-2405 Paper loaded at a position inaccessible for borderless Check to see if a borderless printing spacer is installed. possible.
  • Page 372 Chapter 8 Display massage Code* Condition detected Action Hardware error. 03130031-2F3D HP maintenance jet pump motor overload error Check the purge unit. 03130031-2F3D Turn off printer, wait, then turn on again. Hardware error. 03130031-2F3E HP maintenance jet pump motor move timeout error Check the purge unit. 03130031-2F3E Turn off printer, wait, then turn on again.

  • Page 373: Sevice Call Table

    Chapter 8 8.4 Sevice Call Table 8.4.1 Service Call Errors 0020-5739 iPF810 / iPF820 / iPF815 / iPF825 *Codes correspond to the numbers shown on the DISPLAY in the service mode. T-8-4 Code Description Action E141-4046 Number of recovery rotations reaching Replace the purge kit, and then clear the parts counter in the service mode.
  • Page 374 Chapter 8 8-12...
  • Page 375 Oct 14 2010...
