Optional accessories
6.

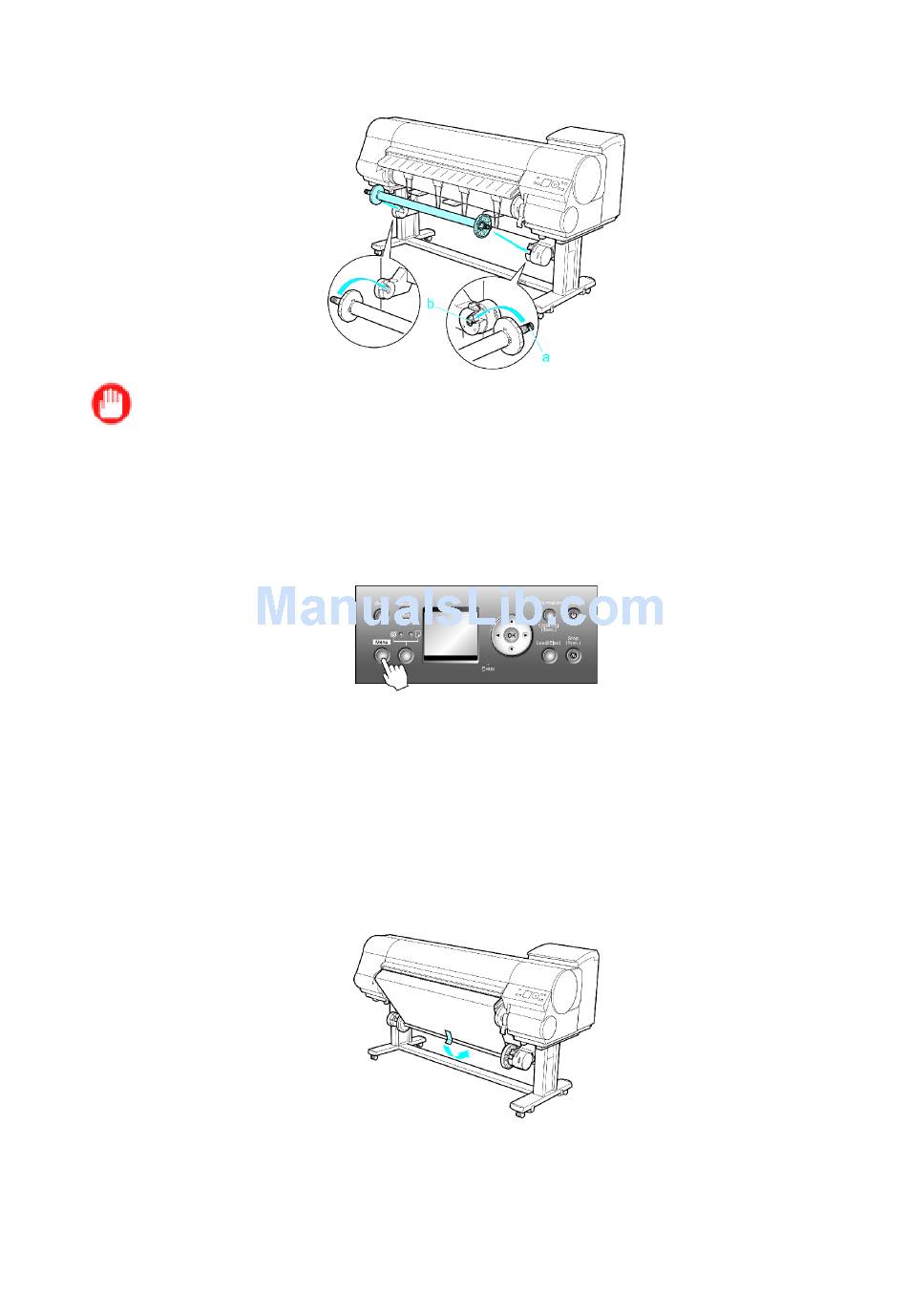

Load the Rewind Spool on the Media Take-up Unit so that the gear of the Rewind Spool (a)
meshes with the gear of the Right Media Take-up Unit (b).
Important
•
If you attempt to load the Rewind Spool with the left and right ends inverted by mistake, the Media
Take-up Unit cannot be turned on.
•
If the gear of the Rewind Spool (a) does not mesh with the gear of the Right Media Take-up Unit (b),
the Media Take-up Unit cannot be turned on.
7.
Press the Menu button to display MAIN MENU.
8.
Press ▲ or ▼ to select Take-up Reel, and then press the ► button.
9.
Press ▲ or ▼ to select Enable, and then press the OK button.
10.
Press ▲ or ▼ to select Auto Feed, and then press the ► button.
11.
Press ▲ or ▼ to select Yes, and then press the OK button.
The roll is now advanced to the Media Take-up Unit.
12.
Hold the roll paper by the middle of the leading edge and align the right edge with the right edge
of the paper core of the Rewind Spool. With the left and right edges of the roll paper evenly taut,
tape the middle to the paper core to fasten it.
88 Printer Parts
