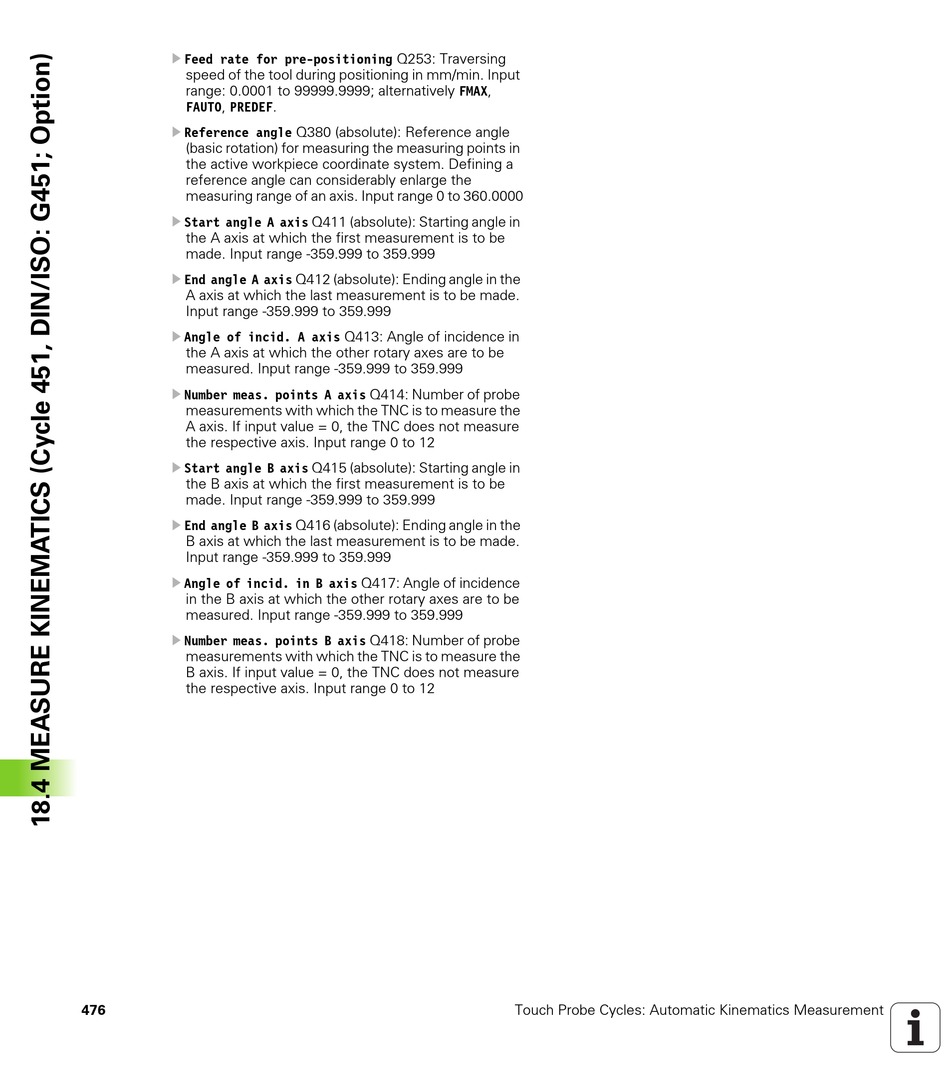

U
Feed rate for pre-positioning Q253: Traversing
speed of the tool during positioning in mm/min. Input
range: 0.0001 to 99999.9999; alternatively FMAX,
FAUTO, PREDEF.
U
Reference angle Q380 (absolute): Reference angle
(basic rotation) for measuring the measuring points in
the active workpiece coordinate system. Defining a
reference angle can considerably enlarge the
measuring range of an axis. Input range 0 to 360.0000
U
Start angle A axis Q411 (absolute): Starting angle in
the A axis at which the first measurement is to be
made. Input range -359.999 to 359.999
U
End angle A axis Q412 (absolute): Ending angle in the
A axis at which the last measurement is to be made.
Input range -359.999 to 359.999
U
Angle of incid. A axis Q413: Angle of incidence in
the A axis at which the other rotary axes are to be
measured. Input range -359.999 to 359.999
U
Number meas. points A axis Q414: Number of probe
measurements with which the TNC is to measure the
A axis. If input value = 0, the TNC does not measure
the respective axis. Input range 0 to 12
U
Start angle B axis Q415 (absolute): Starting angle in
the B axis at which the first measurement is to be
made. Input range -359.999 to 359.999
U
End angle B axis Q416 (absolute): Ending angle in the
B axis at which the last measurement is to be made.
Input range -359.999 to 359.999
U
Angle of incid. in B axis Q417: Angle of incidence
in the B axis at which the other rotary axes are to be
measured. Input range -359.999 to 359.999
U
Number meas. points B axis Q418: Number of probe
measurements with which the TNC is to measure the
B axis. If input value = 0, the TNC does not measure
the respective axis. Input range 0 to 12
476
Touch Probe Cycles: Automatic Kinematics Measurement
