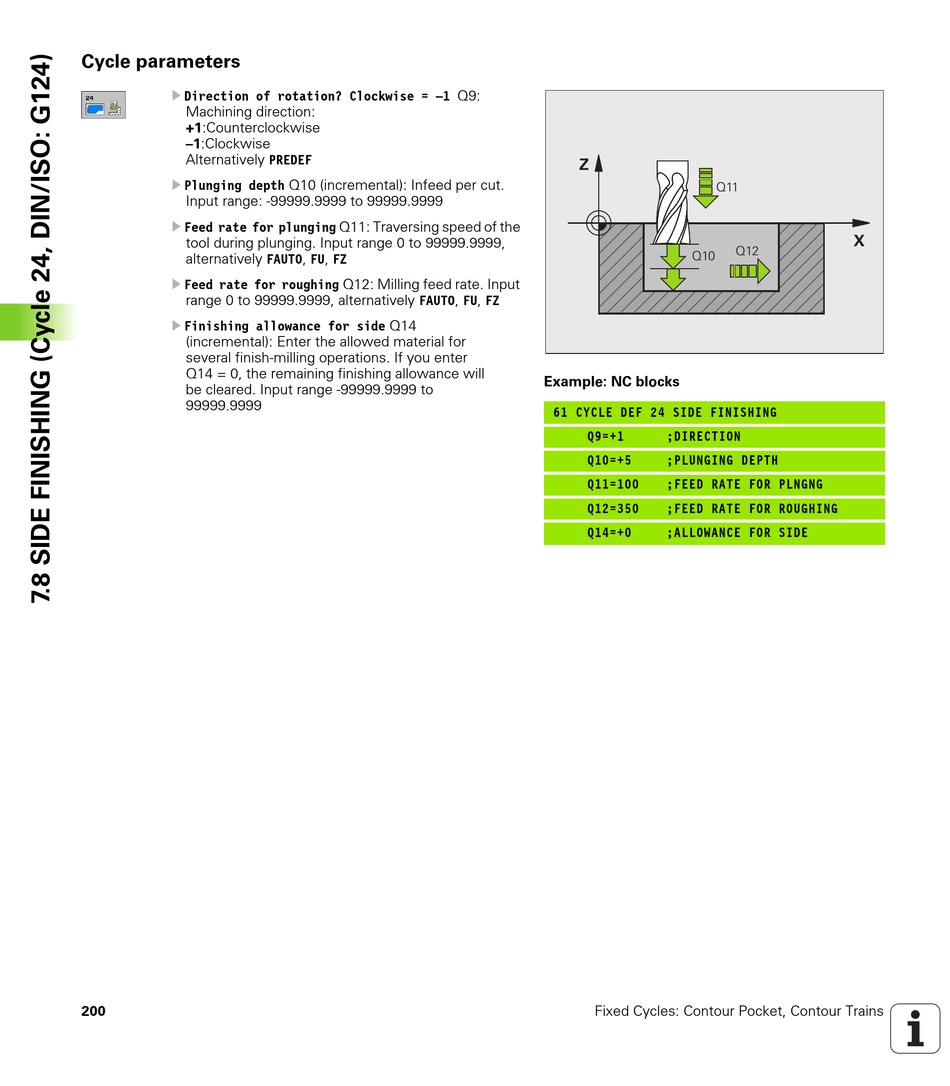

Cycle parameters
U
Direction of rotation? Clockwise = –1 Q9:
Machining direction:
+1:Counterclockwise
–1:Clockwise
Alternatively PREDEF
U
Plunging depth Q10 (incremental): Infeed per cut.
Input range: -99999.9999 to 99999.9999
U
Feed rate for plunging Q11: Traversing speed of the
tool during plunging. Input range 0 to 99999.9999,
alternatively FAUTO, FU, FZ
U
Feed rate for roughing Q12: Milling feed rate. Input
range 0 to 99999.9999, alternatively FAUTO, FU, FZ
U
Finishing allowance for side Q14
(incremental): Enter the allowed material for
several finish-milling operations. If you enter
Q14 = 0, the remaining finishing allowance will
be cleared. Input range -99999.9999 to
99999.9999
200
Example: NC blocks
61 CYCLE DEF 24 SIDE FINISHING
Q9=+1
;DIRECTION
Q10=+5
;PLUNGING DEPTH
Q11=100
;FEED RATE FOR PLNGNG
Q12=350
;FEED RATE FOR ROUGHING
Q14=+0
;ALLOWANCE FOR SIDE
Fixed Cycles: Contour Pocket, Contour Trains
