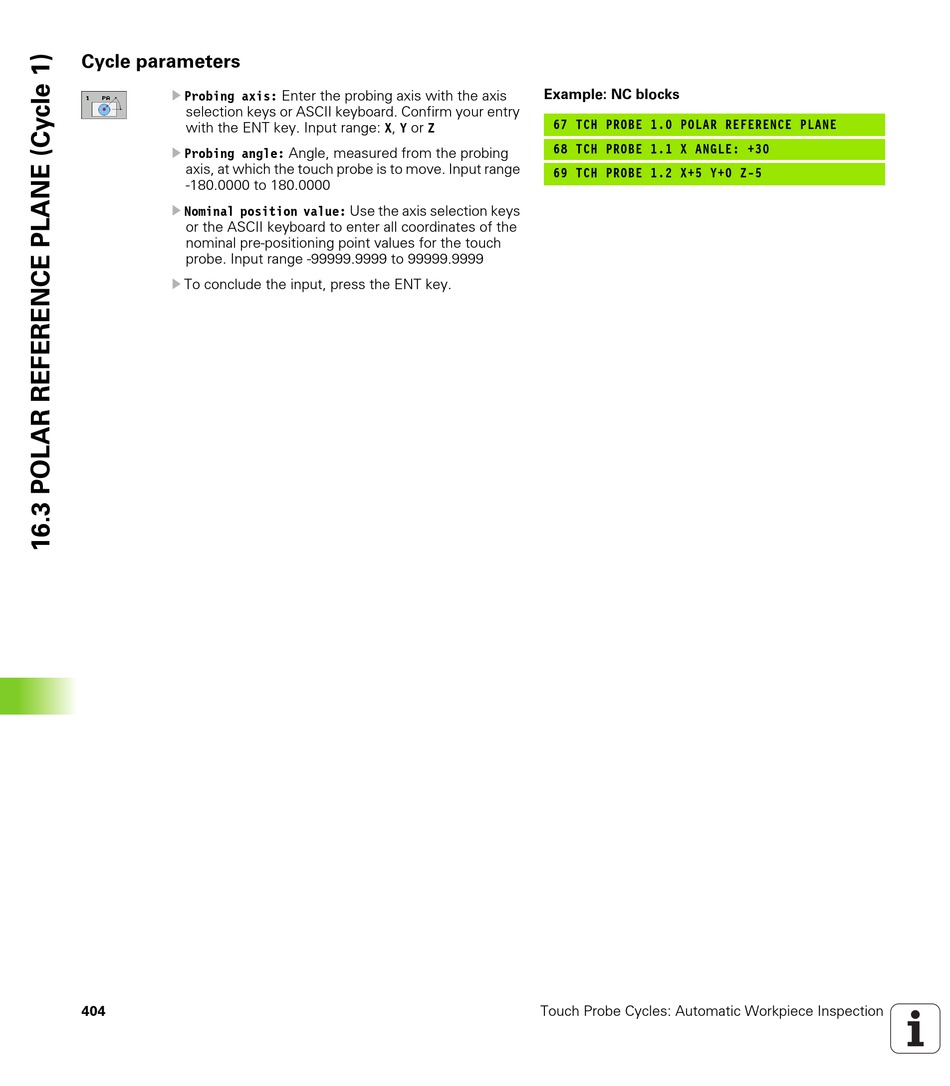

Cycle parameters
U
Probing axis: Enter the probing axis with the axis
selection keys or ASCII keyboard. Confirm your entry
with the ENT key. Input range: X, Y or Z
U
Probing angle: Angle, measured from the probing
axis, at which the touch probe is to move. Input range
-180.0000 to 180.0000
U
Nominal position value: Use the axis selection keys
or the ASCII keyboard to enter all coordinates of the
nominal pre-positioning point values for the touch
probe. Input range -99999.9999 to 99999.9999
U
To conclude the input, press the ENT key.
404
Example: NC blocks
67 TCH PROBE 1.0 POLAR REFERENCE PLANE
68 TCH PROBE 1.1 X ANGLE: +30
69 TCH PROBE 1.2 X+5 Y+0 Z-5
Touch Probe Cycles: Automatic Workpiece Inspection
