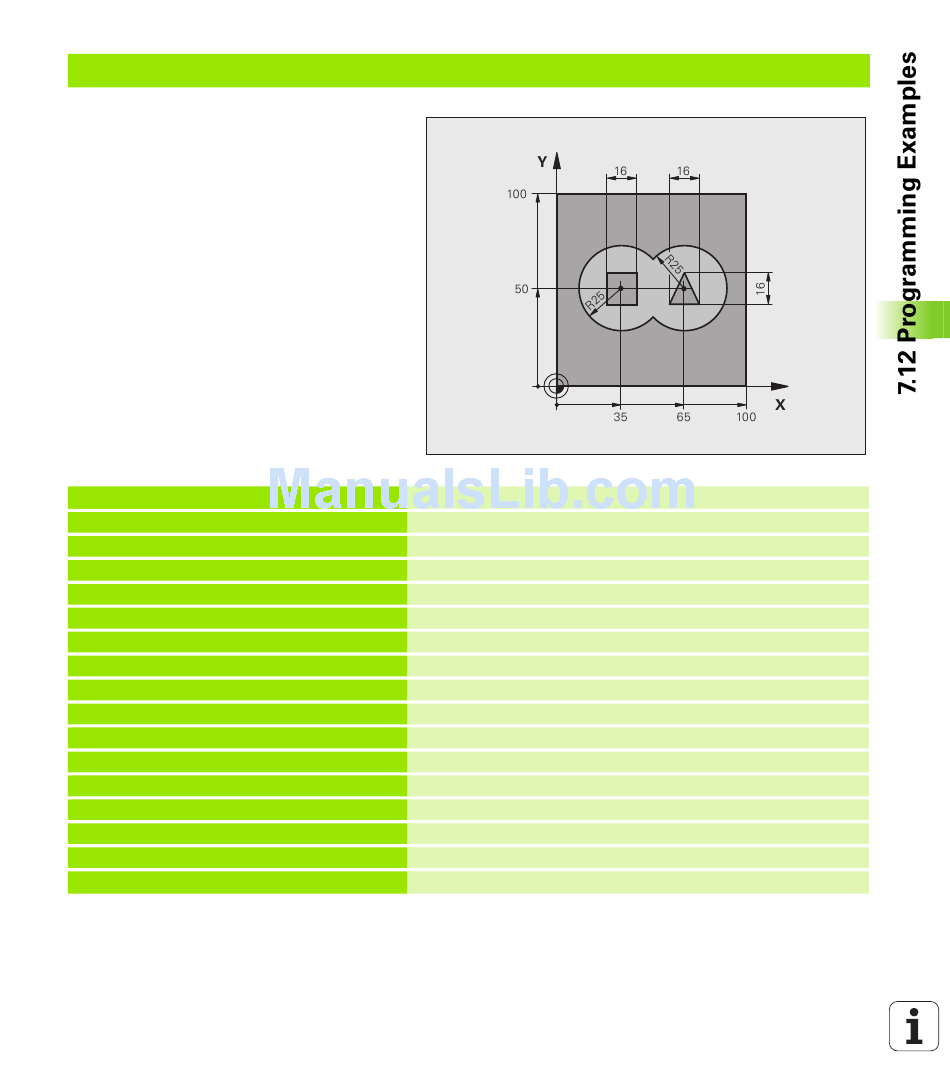

Example: Pilot drilling, roughing-out and finishing overlapping contours
0 BEGIN PGM C21 MM
1 BLK FORM 0.1 Z X+0 Y+0 Z-40
2 BLK FORM 0.2 X+100 Y+100 Z+0
3 TOOL CALL 1 Z S2500
4 L Z+250 R0 FMAX
5 CYCL DEF 14.0 CONTOUR GEOMETRY
6 CYCL DEF 14.1 CONTOUR LABEL1/2/3/4
7 CYCL DEF 20 CONTOUR DATA
Q1=-20
;MILLING DEPTH
Q2=1
;TOOL PATH OVERLAP
Q3=+0.5
;ALLOWANCE FOR SIDE
Q4=+0.5
;ALLOWANCE FOR FLOOR
Q5=+0
;SURFACE COORDINATE
Q6=2
;SETUP CLEARANCE
Q7=+100
;CLEARANCE HEIGHT
Q8=0.1
;ROUNDING RADIUS
Q9=-1
;DIRECTION
HEIDENHAIN iTNC 530
Definition of workpiece blank
Tool call: Drill, diameter 12
Retract the tool
Define contour subprogram
Define general machining parameters
213
