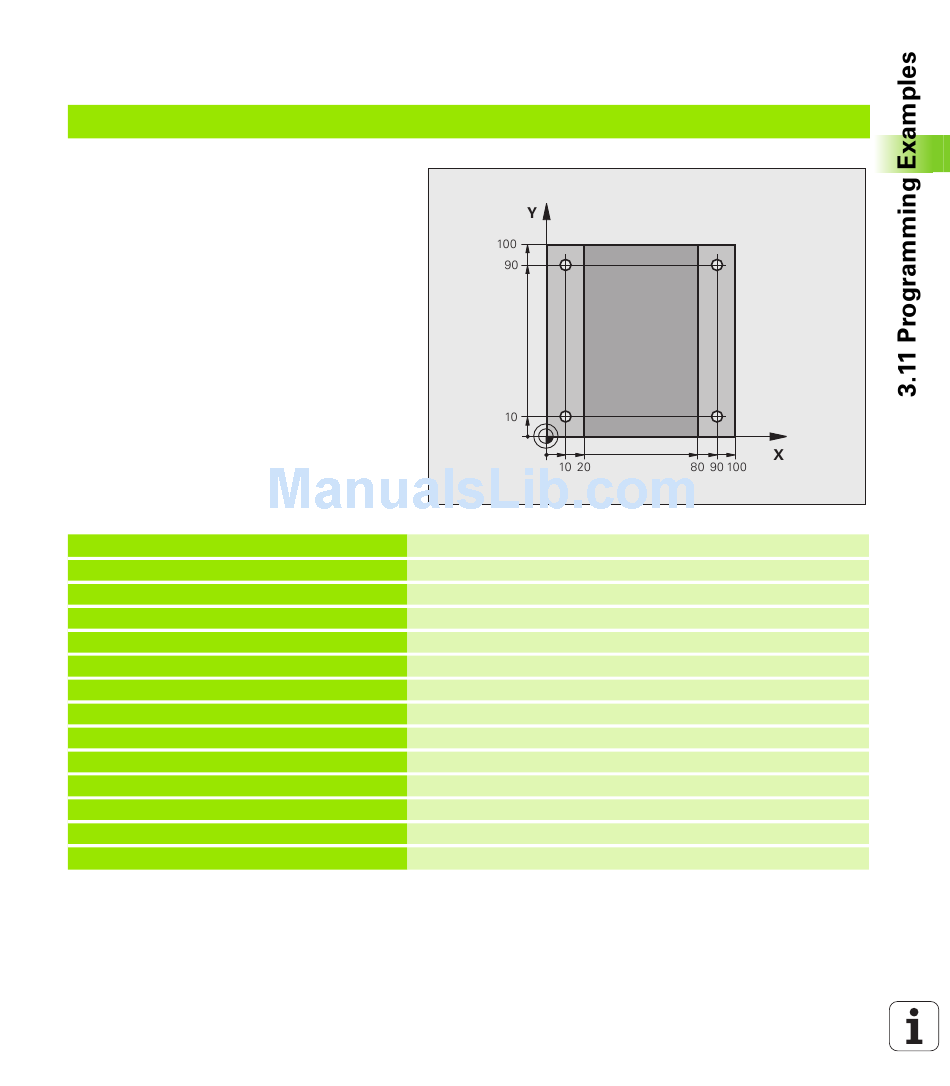

3.11 Programming Examples
Example: Drilling cycles
0 BEGIN PGM C200 MM
1 BLK FORM 0.1 Z X+0 Y+0 Z-20
2 BLK FORM 0.2 X+100 Y+100 Z+0
3 TOOL CALL 1 Z S4500
4 L Z+250 R0 FMAX
5 CYCL DEF 200 DRILLING
Q200=2
;SETUP CLEARANCE
Q201=-15 ;DEPTH
Q206=250 ;FEED RATE FOR PLNGN
Q202=5
;PLUNGING DEPTH
Q210=0
;DWELL TIME AT TOP
Q203=-10 ;SURFACE COORDINATE
Q204=20
;2ND SET-UP CLEARANCE
Q211=0.2 ;DWELL TIME AT DEPTH
