16.14 Programming Examples

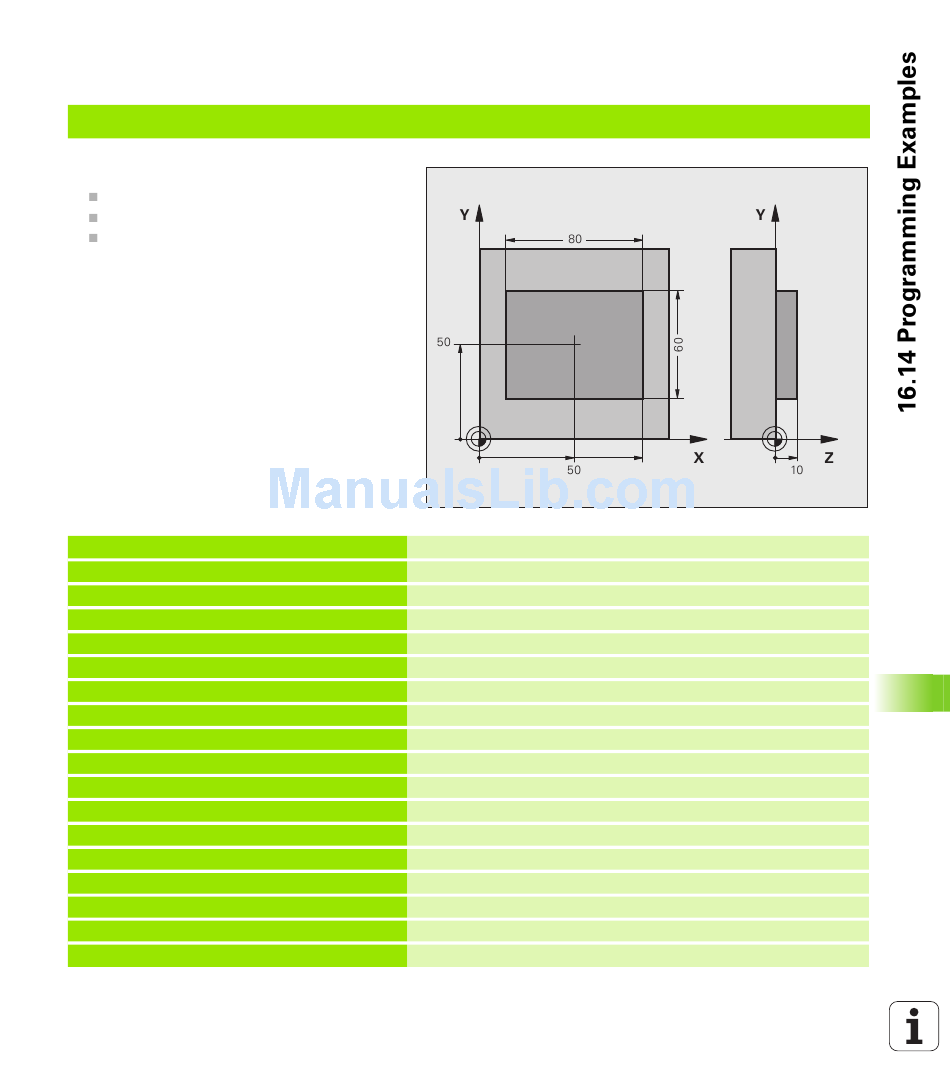

Example: Measuring and reworking a rectangular stud
Program sequence:
Roughing with 0.5 mm finishing allowance
Measuring
Rectangular stud finishing in accordance with
the measured values
0 BEGIN PGM BEAMS MM
1 TOOL CALL 69 Z
2 L Z+100 R0 FMAX
3 FN 0: Q1 = +81
4 FN 0: Q2 = +61
5 CALL LBL 1
6 L Z+100 R0 FMAX
7 TOOL CALL 99 Z
8 TCH PROBE 424 MEAS. RECTAN. OUTS.
Q273=+50 ;CENTER IN 1ST AXIS
Q274=+50 ;CENTER IN 2ND AXIS
Q282=80
;FIRST SIDE LENGTH
Q283=60
;2ND SIDE LENGTH
Q261=-5
;MEASURING HEIGHT
Q320=0
;SETUP CLEARANCE
Q260=+30 ;CLEARANCE HEIGHT
Q301=0
;MOVE TO CLEARANCE
Q284=0
;MAX. LIMIT 1ST SIDE
HEIDENHAIN iTNC 530
Prepare tool call
Retract the tool
Pocket length in X (roughing dimension)
Pocket length in Y (roughing dimension)
Call subprogram for machining
Retract the tool, change the tool
Call the touch probe
Measure the rough-milled rectangle
Nominal length in X (final dimension)
Nominal length in Y (final dimension)
Input values for tolerance checking not required
441
