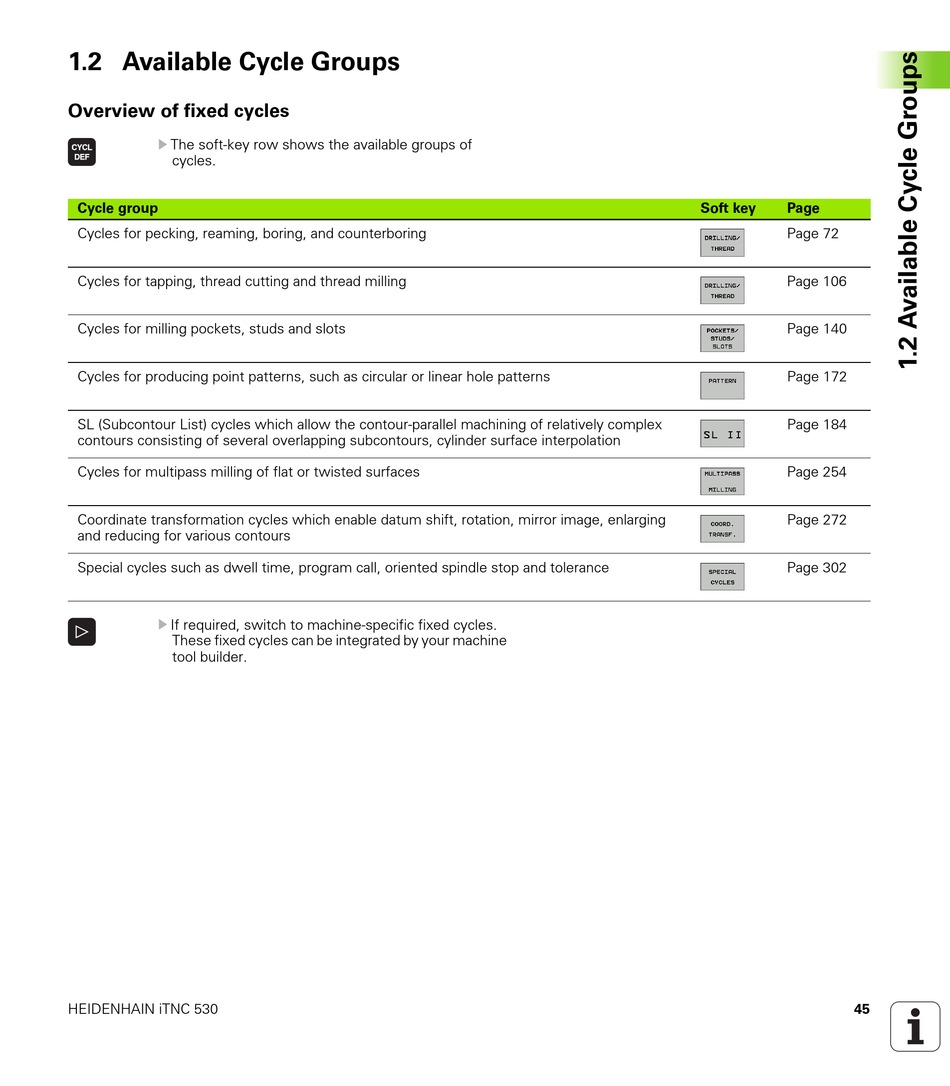

1.2 Available Cycle Groups

Overview of fixed cycles

U
The soft-key row shows the available groups of
cycles.
Cycle group
Cycles for pecking, reaming, boring, and counterboring
Cycles for tapping, thread cutting and thread milling
Cycles for milling pockets, studs and slots
Cycles for producing point patterns, such as circular or linear hole patterns
SL (Subcontour List) cycles which allow the contour-parallel machining of relatively complex
contours consisting of several overlapping subcontours, cylinder surface interpolation
Cycles for multipass milling of flat or twisted surfaces
Coordinate transformation cycles which enable datum shift, rotation, mirror image, enlarging
and reducing for various contours
Special cycles such as dwell time, program call, oriented spindle stop and tolerance
U If required, switch to machine-specific fixed cycles.
These fixed cycles can be integrated by your machine
tool builder.
HEIDENHAIN iTNC 530
Soft key Page
Page 72
Page 106
Page 140
Page 172
Page 184
Page 254
Page 272
Page 302
45
