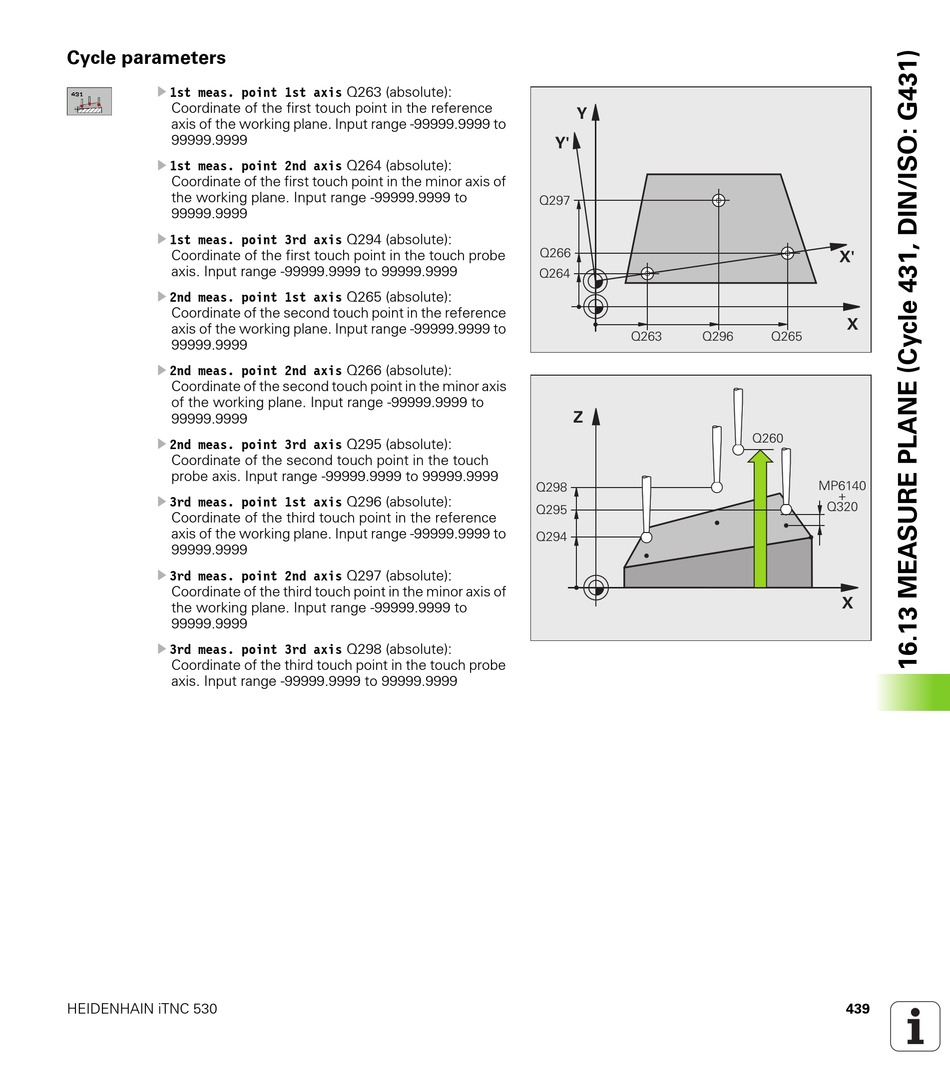

Cycle parameters
U
1st meas. point 1st axis Q263 (absolute):
Coordinate of the first touch point in the reference
axis of the working plane. Input range -99999.9999 to
99999.9999
U
1st meas. point 2nd axis Q264 (absolute):
Coordinate of the first touch point in the minor axis of
the working plane. Input range -99999.9999 to
99999.9999
U
1st meas. point 3rd axis Q294 (absolute):
Coordinate of the first touch point in the touch probe
axis. Input range -99999.9999 to 99999.9999
U
2nd meas. point 1st axis Q265 (absolute):
Coordinate of the second touch point in the reference
axis of the working plane. Input range -99999.9999 to
99999.9999
U
2nd meas. point 2nd axis Q266 (absolute):
Coordinate of the second touch point in the minor axis
of the working plane. Input range -99999.9999 to
99999.9999
U
2nd meas. point 3rd axis Q295 (absolute):
Coordinate of the second touch point in the touch
probe axis. Input range -99999.9999 to 99999.9999
U
3rd meas. point 1st axis Q296 (absolute):
Coordinate of the third touch point in the reference
axis of the working plane. Input range -99999.9999 to
99999.9999
U
3rd meas. point 2nd axis Q297 (absolute):
Coordinate of the third touch point in the minor axis of
the working plane. Input range -99999.9999 to
99999.9999
U
3rd meas. point 3rd axis Q298 (absolute):
Coordinate of the third touch point in the touch probe
axis. Input range -99999.9999 to 99999.9999
HEIDENHAIN iTNC 530
439
