10.6 Programming Examples

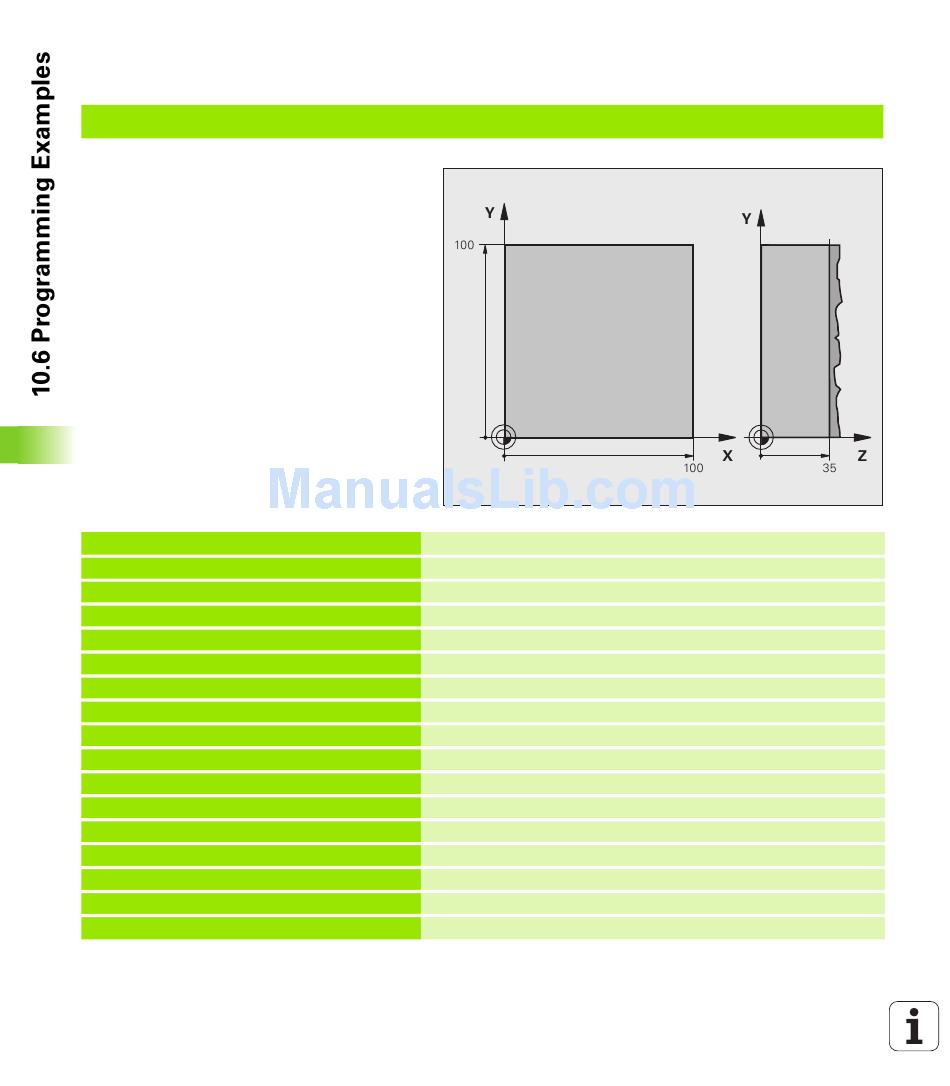

Example: Multipass milling
0 BEGIN PGM C230 MM
1 BLK FORM 0.1 Z X+0 Y+0 Z+0
2 BLK FORM 0.2 X+100 Y+100 Z+40
3 TOOL DEF 1 L+0 R+5
4 TOOL CALL 1 Z S3500
5 L Z+250 R0 FMAX
6 CYCL DEF 230 MULTIPASS MILLING
Q225=+0
;STARTNG PNT 1ST AXIS
Q226=+0
;STARTNG PNT 2ND AXIS
Q227=+35 ;STARTNG PNT 3RD AXIS
Q218=100 ;FIRST SIDE LENGTH
Q219=100 ;2ND SIDE LENGTH
Q240=25
;NUMBER OF CUTS
Q206=250 ;FEED RATE FOR PLNGN
Q207=400 ;FEED RATE FOR MILLING
Q209=150 ;STEPOVER FEED RATE
Q200=2
;SET-UP CLEARANCE
268
Definition of workpiece blank
Tool definition
Tool call
Retract the tool
Cycle definition: MULTIPASS MILLING
Fixed Cycles: Multipass Milling
