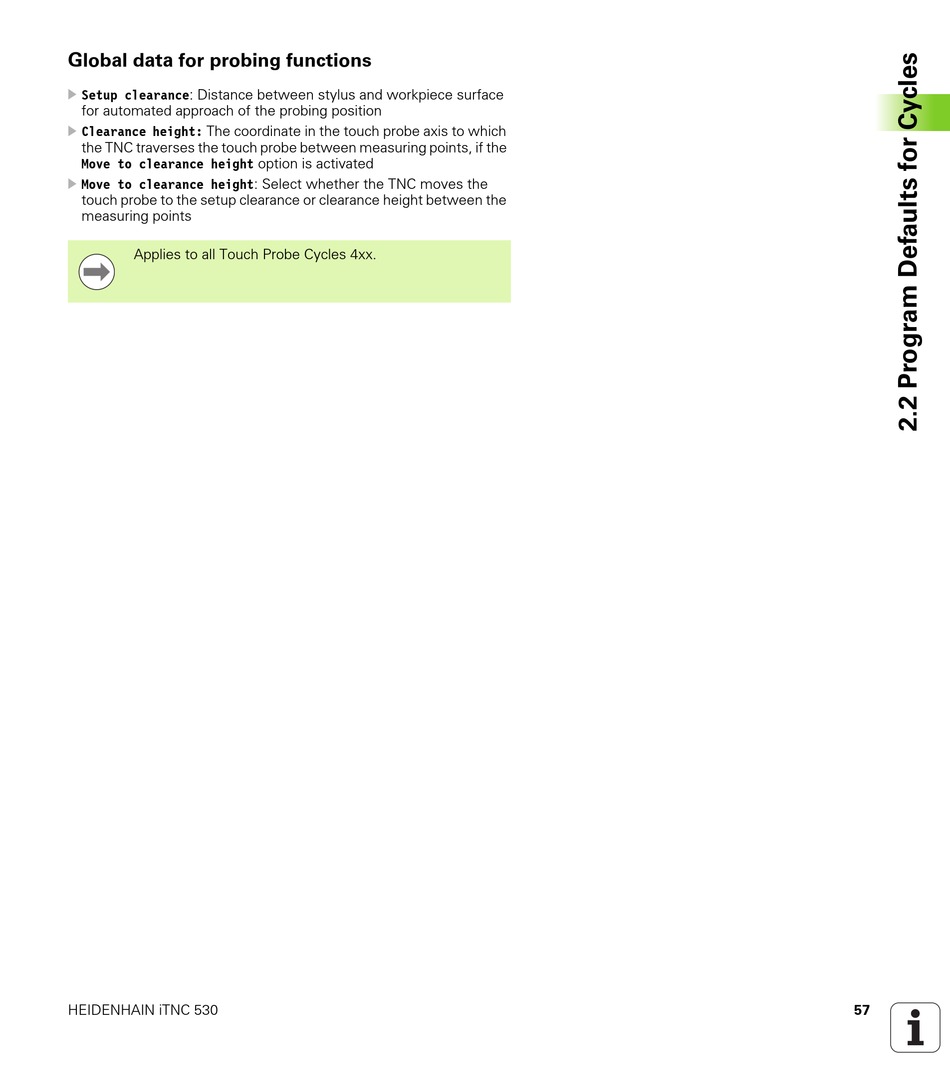

Global data for probing functions
U
Setup clearance: Distance between stylus and workpiece surface
for automated approach of the probing position
U
Clearance height: The coordinate in the touch probe axis to which
the TNC traverses the touch probe between measuring points, if the
Move to clearance height option is activated
U
Move to clearance height: Select whether the TNC moves the
touch probe to the setup clearance or clearance height between the
measuring points
Applies to all Touch Probe Cycles 4xx.
HEIDENHAIN iTNC 530
57
