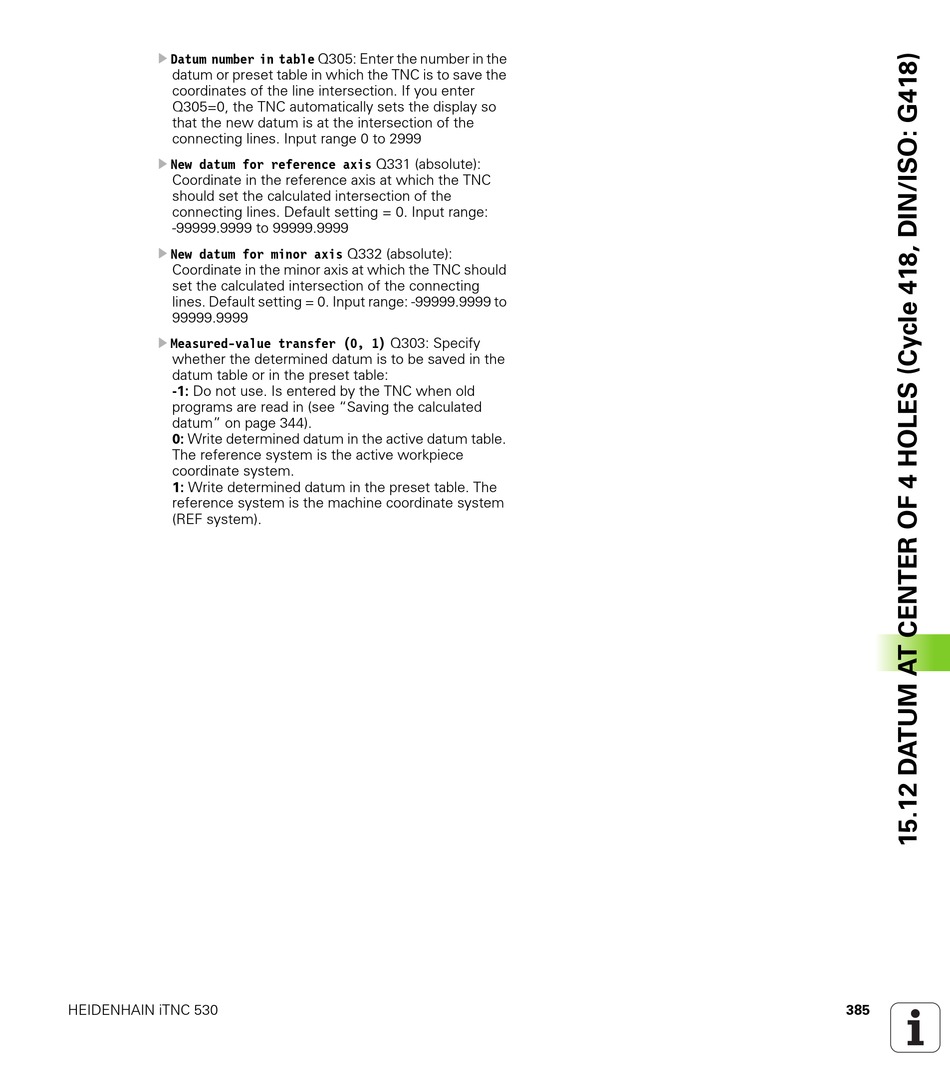

Datum number in table Q305: Enter the number in the
datum or preset table in which the TNC is to save the
coordinates of the line intersection. If you enter
Q305=0, the TNC automatically sets the display so
that the new datum is at the intersection of the
connecting lines. Input range 0 to 2999
U
New datum for reference axis Q331 (absolute):
Coordinate in the reference axis at which the TNC
should set the calculated intersection of the
connecting lines. Default setting = 0. Input range:
-99999.9999 to 99999.9999
U
New datum for minor axis Q332 (absolute):
Coordinate in the minor axis at which the TNC should
set the calculated intersection of the connecting
lines. Default setting = 0. Input range: -99999.9999 to
99999.9999
U
Measured-value transfer (0, 1) Q303: Specify
whether the determined datum is to be saved in the
datum table or in the preset table:
-1: Do not use. Is entered by the TNC when old
programs are read in (see "Saving the calculated
datum" on page 344).
0: Write determined datum in the active datum table.
The reference system is the active workpiece
coordinate system.
1: Write determined datum in the preset table. The
reference system is the machine coordinate system
(REF system).
HEIDENHAIN iTNC 530
385
