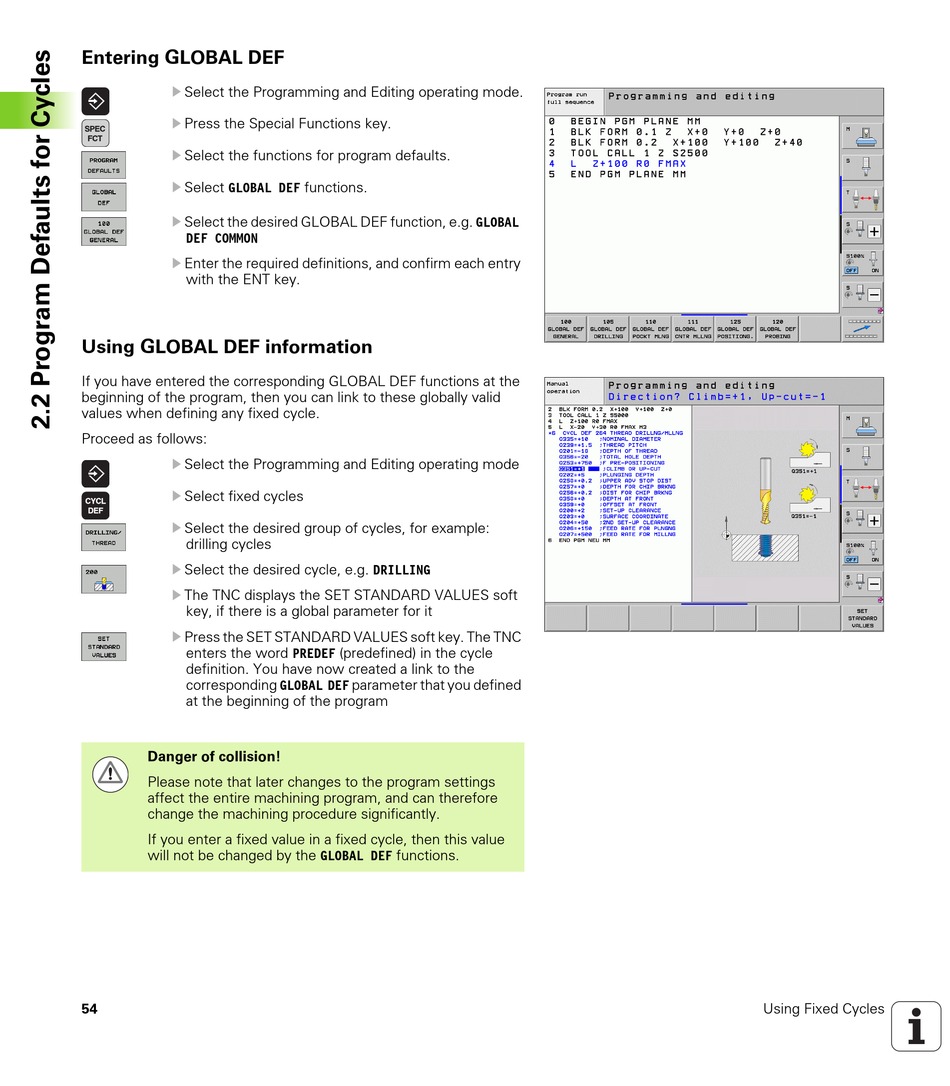

Entering GLOBAL DEF

U Select the Programming and Editing operating mode.
U Press the Special Functions key.
U Select the functions for program defaults.
U
Select GLOBAL DEF functions.
U Select the desired GLOBAL DEF function, e.g. GLOBAL
DEF COMMON
U
Enter the required definitions, and confirm each entry
with the ENT key.

Using GLOBAL DEF information

If you have entered the corresponding GLOBAL DEF functions at the
beginning of the program, then you can link to these globally valid
values when defining any fixed cycle.
Proceed as follows:
U Select the Programming and Editing operating mode
U
Select fixed cycles
U Select the desired group of cycles, for example:
drilling cycles
U Select the desired cycle, e.g. DRILLING
U
The TNC displays the SET STANDARD VALUES soft
key, if there is a global parameter for it
U Press the SET STANDARD VALUES soft key. The TNC
enters the word PREDEF (predefined) in the cycle
definition. You have now created a link to the
corresponding GLOBAL DEF parameter that you defined
at the beginning of the program
Danger of collision!
Please note that later changes to the program settings
affect the entire machining program, and can therefore
change the machining procedure significantly.
If you enter a fixed value in a fixed cycle, then this value
will not be changed by the GLOBAL DEF functions.
54 Using Fixed Cycles
