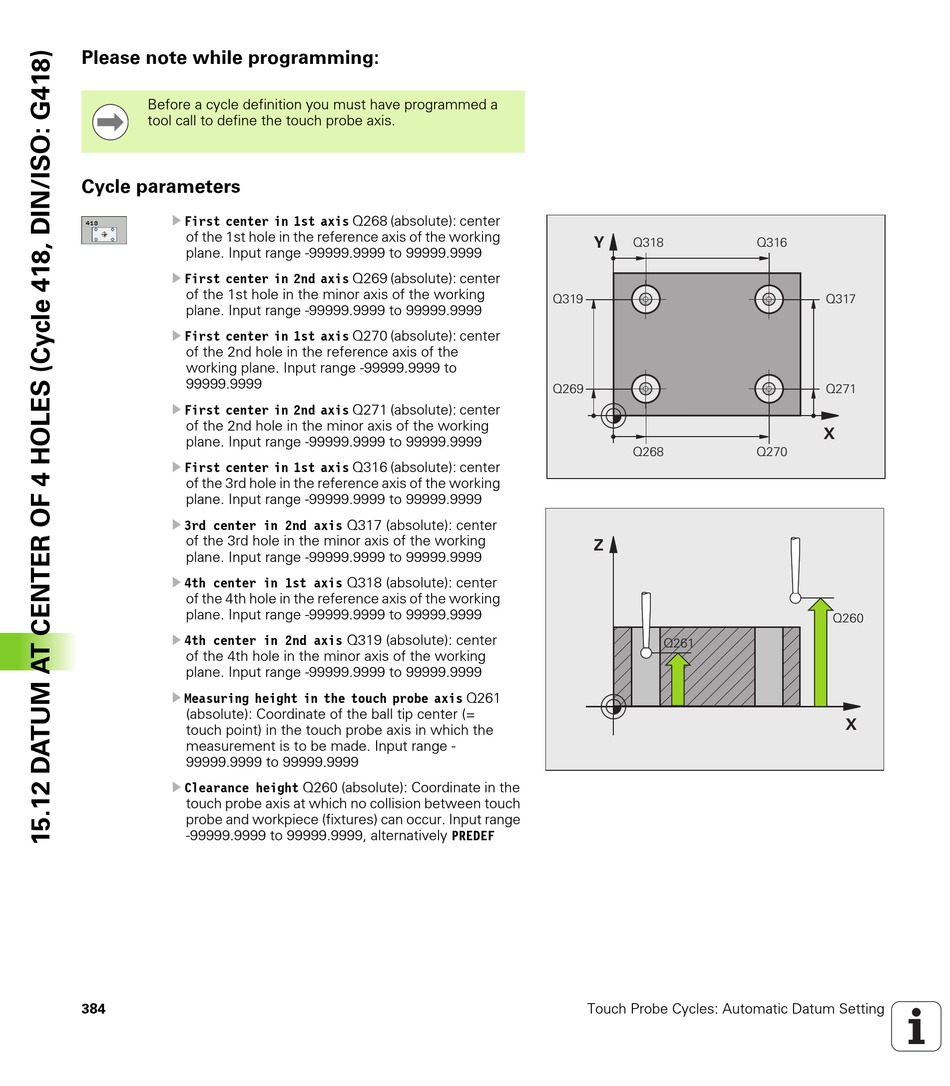

Please note while programming:
Before a cycle definition you must have programmed a
tool call to define the touch probe axis.
Cycle parameters
U
First center in 1st axis Q268 (absolute): center
of the 1st hole in the reference axis of the working
plane. Input range -99999.9999 to 99999.9999
U
First center in 2nd axis Q269 (absolute): center
of the 1st hole in the minor axis of the working
plane. Input range -99999.9999 to 99999.9999
U
First center in 1st axis Q270 (absolute): center
of the 2nd hole in the reference axis of the
working plane. Input range -99999.9999 to
99999.9999
U
First center in 2nd axis Q271 (absolute): center
of the 2nd hole in the minor axis of the working
plane. Input range -99999.9999 to 99999.9999
U
First center in 1st axis Q316 (absolute): center
of the 3rd hole in the reference axis of the working
plane. Input range -99999.9999 to 99999.9999
U
3rd center in 2nd axis Q317 (absolute): center
of the 3rd hole in the minor axis of the working
plane. Input range -99999.9999 to 99999.9999
U
4th center in 1st axis Q318 (absolute): center
of the 4th hole in the reference axis of the working
plane. Input range -99999.9999 to 99999.9999
U
4th center in 2nd axis Q319 (absolute): center
of the 4th hole in the minor axis of the working
plane. Input range -99999.9999 to 99999.9999
U
Measuring height in the touch probe axis Q261
(absolute): Coordinate of the ball tip center (=
touch point) in the touch probe axis in which the
measurement is to be made. Input range -
99999.9999 to 99999.9999
U
Clearance height Q260 (absolute): Coordinate in the
touch probe axis at which no collision between touch
probe and workpiece (fixtures) can occur. Input range
-99999.9999 to 99999.9999, alternatively PREDEF
384
Touch Probe Cycles: Automatic Datum Setting
