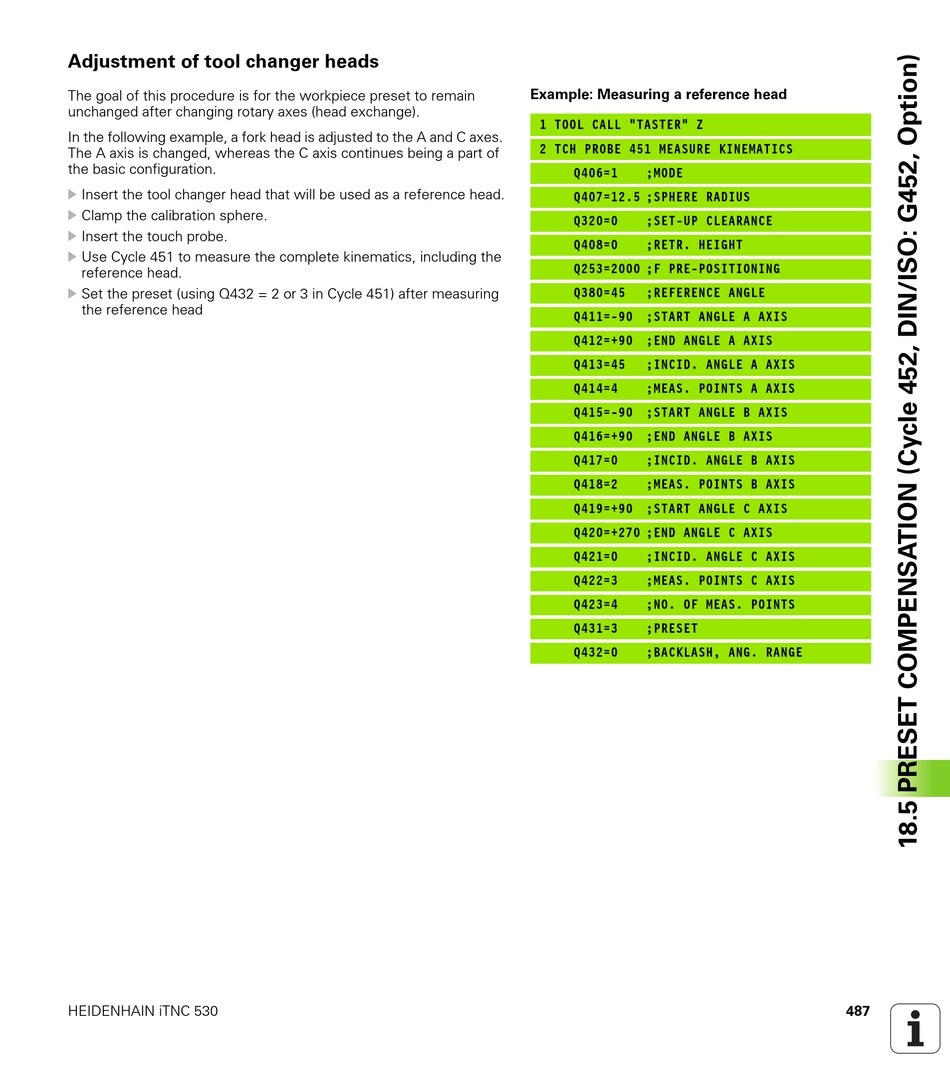

Adjustment of tool changer heads
The goal of this procedure is for the workpiece preset to remain
unchanged after changing rotary axes (head exchange).
In the following example, a fork head is adjusted to the A and C axes.
The A axis is changed, whereas the C axis continues being a part of
the basic configuration.
U
Insert the tool changer head that will be used as a reference head.
U
Clamp the calibration sphere.
U
Insert the touch probe.
U
Use Cycle 451 to measure the complete kinematics, including the
reference head.
U
Set the preset (using Q432 = 2 or 3 in Cycle 451) after measuring
the reference head
HEIDENHAIN iTNC 530
Example: Measuring a reference head
1 TOOL CALL "TASTER" Z
2 TCH PROBE 451 MEASURE KINEMATICS
Q406=1
;MODE
Q407=12.5 ;SPHERE RADIUS
Q320=0
;SET-UP CLEARANCE
Q408=0
;RETR. HEIGHT
Q253=2000 ;F PRE-POSITIONING
Q380=45
;REFERENCE ANGLE
Q411=-90 ;START ANGLE A AXIS
Q412=+90 ;END ANGLE A AXIS
Q413=45
;INCID. ANGLE A AXIS
Q414=4
;MEAS. POINTS A AXIS
Q415=-90 ;START ANGLE B AXIS
Q416=+90 ;END ANGLE B AXIS
Q417=0
;INCID. ANGLE B AXIS
Q418=2
;MEAS. POINTS B AXIS
Q419=+90 ;START ANGLE C AXIS
Q420=+270 ;END ANGLE C AXIS
Q421=0
;INCID. ANGLE C AXIS
Q422=3
;MEAS. POINTS C AXIS
Q423=4
;NO. OF MEAS. POINTS
Q431=3
;PRESET
Q432=0
;BACKLASH, ANG. RANGE
