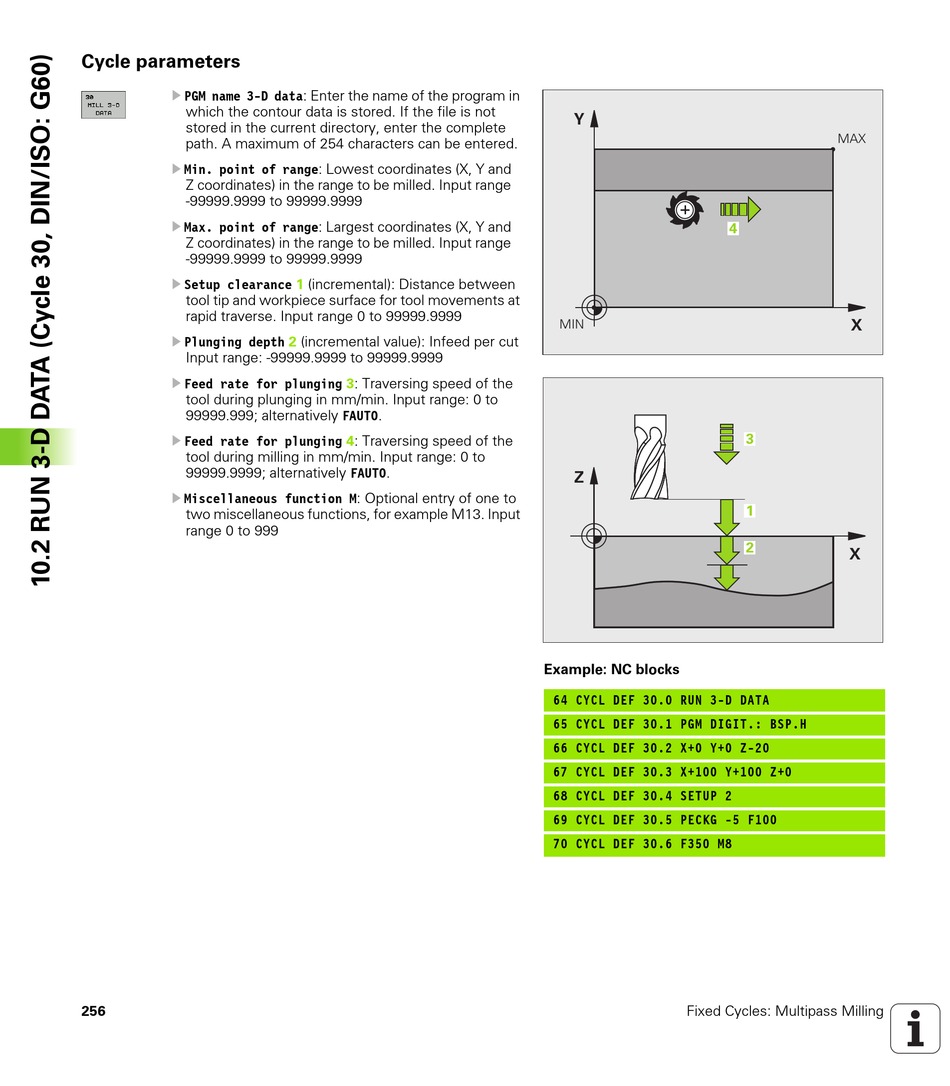

Cycle parameters
U PGM name 3-D data: Enter the name of the program in
which the contour data is stored. If the file is not
stored in the current directory, enter the complete
path. A maximum of 254 characters can be entered.
U Min. point of range: Lowest coordinates (X, Y and
Z coordinates) in the range to be milled. Input range
-99999.9999 to 99999.9999
U Max. point of range: Largest coordinates (X, Y and
Z coordinates) in the range to be milled. Input range
-99999.9999 to 99999.9999
U Setup clearance
tool tip and workpiece surface for tool movements at
rapid traverse. Input range 0 to 99999.9999
U
Plunging depth
Input range: -99999.9999 to 99999.9999
U Feed rate for plunging 3: Traversing speed of the
tool during plunging in mm/min. Input range: 0 to
99999.999; alternatively FAUTO.
U Feed rate for plunging 4: Traversing speed of the
tool during milling in mm/min. Input range: 0 to
99999.9999; alternatively FAUTO.
U Miscellaneous function M: Optional entry of one to
two miscellaneous functions, for example M13. Input
range 0 to 999
256
1 (incremental): Distance between
2 (incremental value): Infeed per cut
Example: NC blocks
64 CYCL DEF 30.0 RUN 3-D DATA
65 CYCL DEF 30.1 PGM DIGIT.: BSP.H
66 CYCL DEF 30.2 X+0 Y+0 Z-20
67 CYCL DEF 30.3 X+100 Y+100 Z+0
68 CYCL DEF 30.4 SETUP 2
69 CYCL DEF 30.5 PECKG -5 F100
70 CYCL DEF 30.6 F350 M8
Fixed Cycles: Multipass Milling
