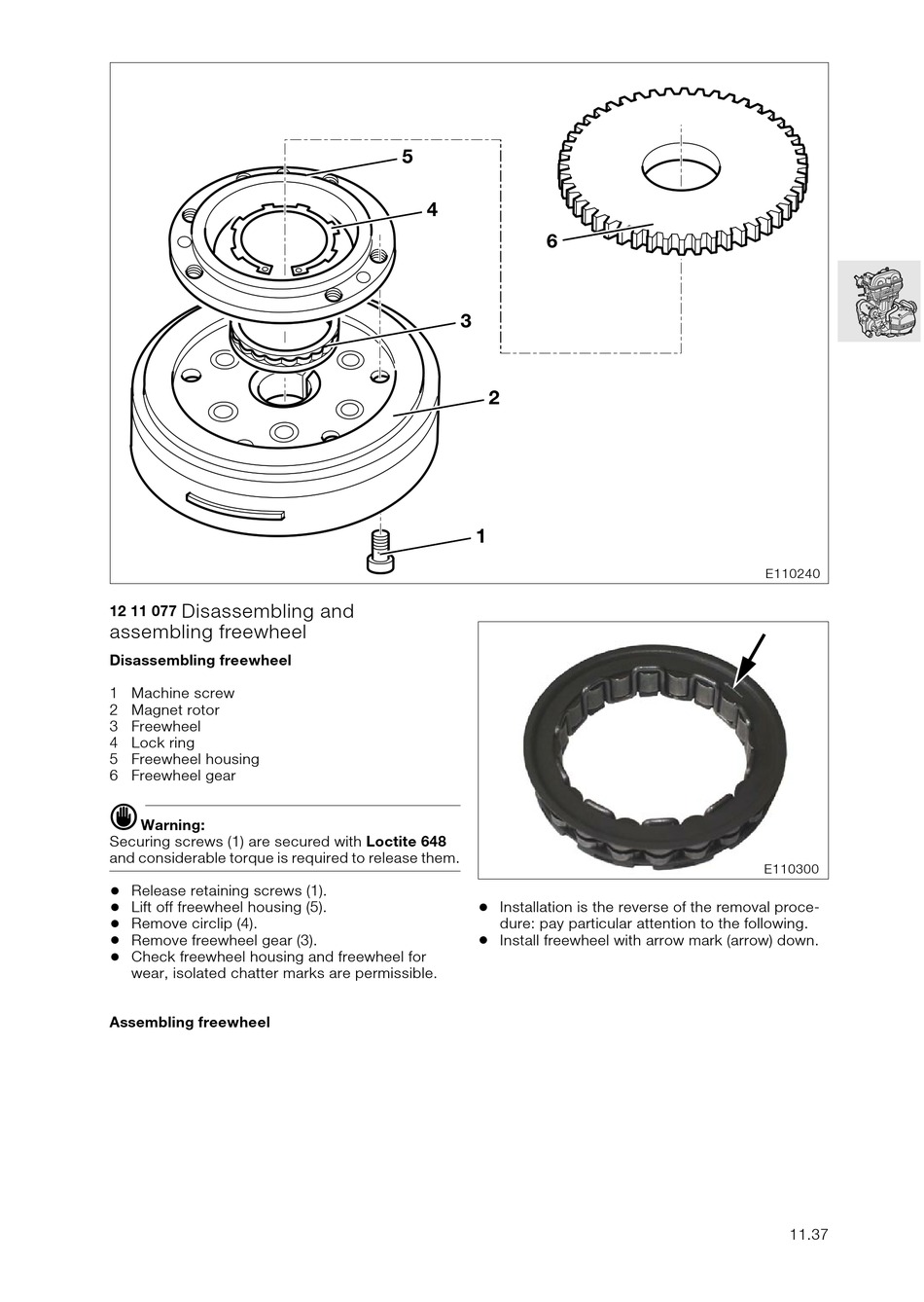

Disassembling and
12 11 077

assembling freewheel

Disassembling freewheel

1 Machine screw
2 Magnet rotor
3 Freewheel
4 Lock ring
5 Freewheel housing
6 Freewheel gear
d
Warning:
Securing screws (1) are secured with Loctite 648
and considerable torque is required to release them.
•
Release retaining screws (1).
•
Lift off freewheel housing (5).
•
Remove circlip (4).
•
Remove freewheel gear (3).
•
Check freewheel housing and freewheel for
wear, isolated chatter marks are permissible.
Assembling freewheel
5
4
6
3
2
1
•
Installation is the reverse of the removal proce-
dure: pay particular attention to the following.
•
Install freewheel with arrow mark (arrow) down.
E110240
