Checking clutch play,
21 00 004
adjusting if necessary

(Inspections I, II and III)

A
1
•

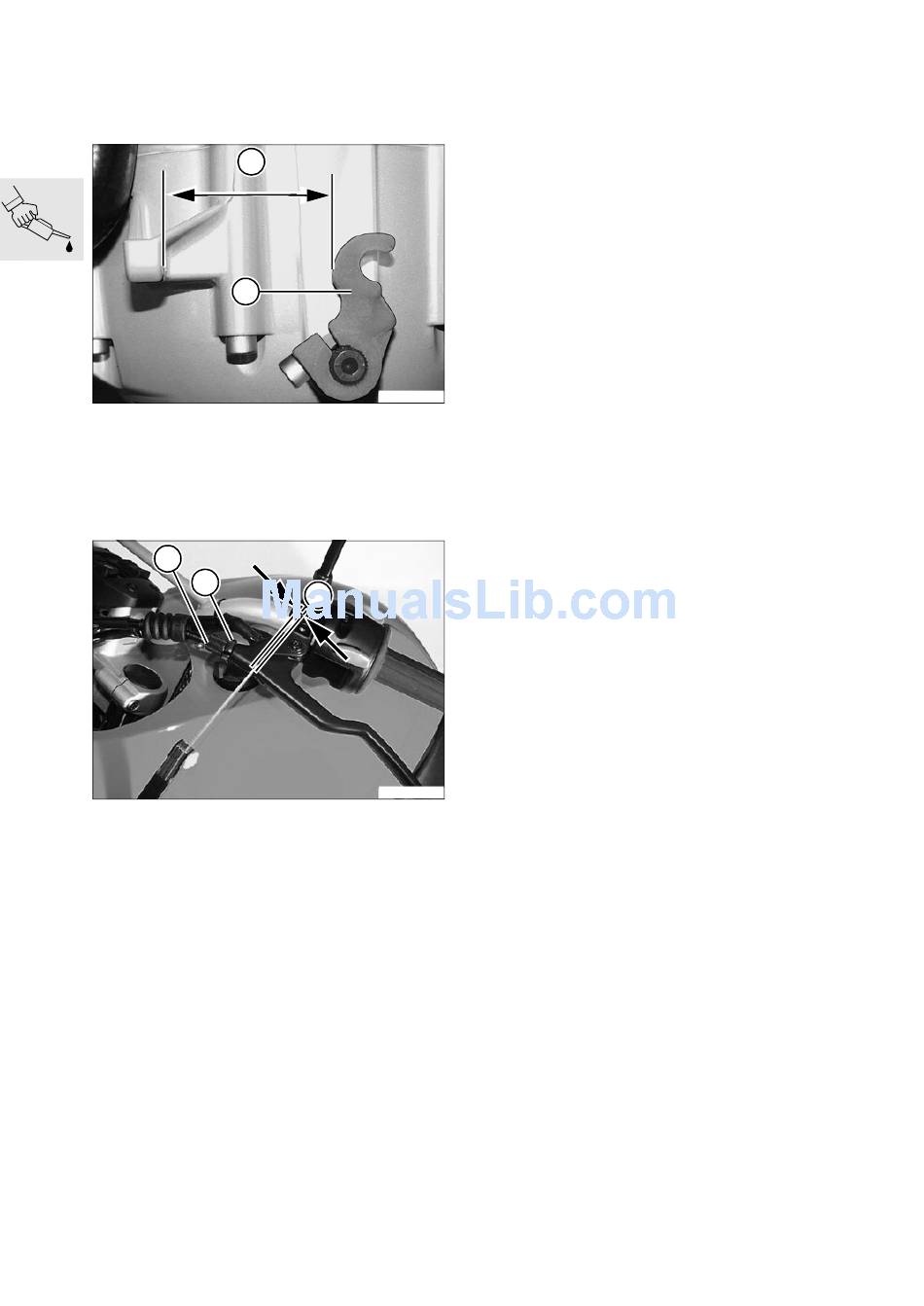

Release lever (1) on the gearbox must be located
on the splines such that when it is pressed for-
ward as far as the release point, distance "A" is
as specified.
Distance "A" ................. 47...52 mm (1.85...2.05 in)
2
3
•
Adjust dimension "B" by turning adjusting
screw (2) on the clutch handlebar lever.
•
Lock adjusting screw (2) with knurled nut (3).
Dimension "B" ............. 1.0...2.0 mm (0.04...0.08 in)
00.26
Checking wheel spoke tension,
adjusting if necessary

(Inspection II)

•
Strike the spokes and listen for differences in the
pitch of the sound.
•
If spokes are loose, tighten them with spoke nip-
ple wrench, BMW No. 36 3 800.
Vertical runout.......................... max. 2 mm (0.08 in)
Lateral runout........................... max. 2 mm (0.08 in)
