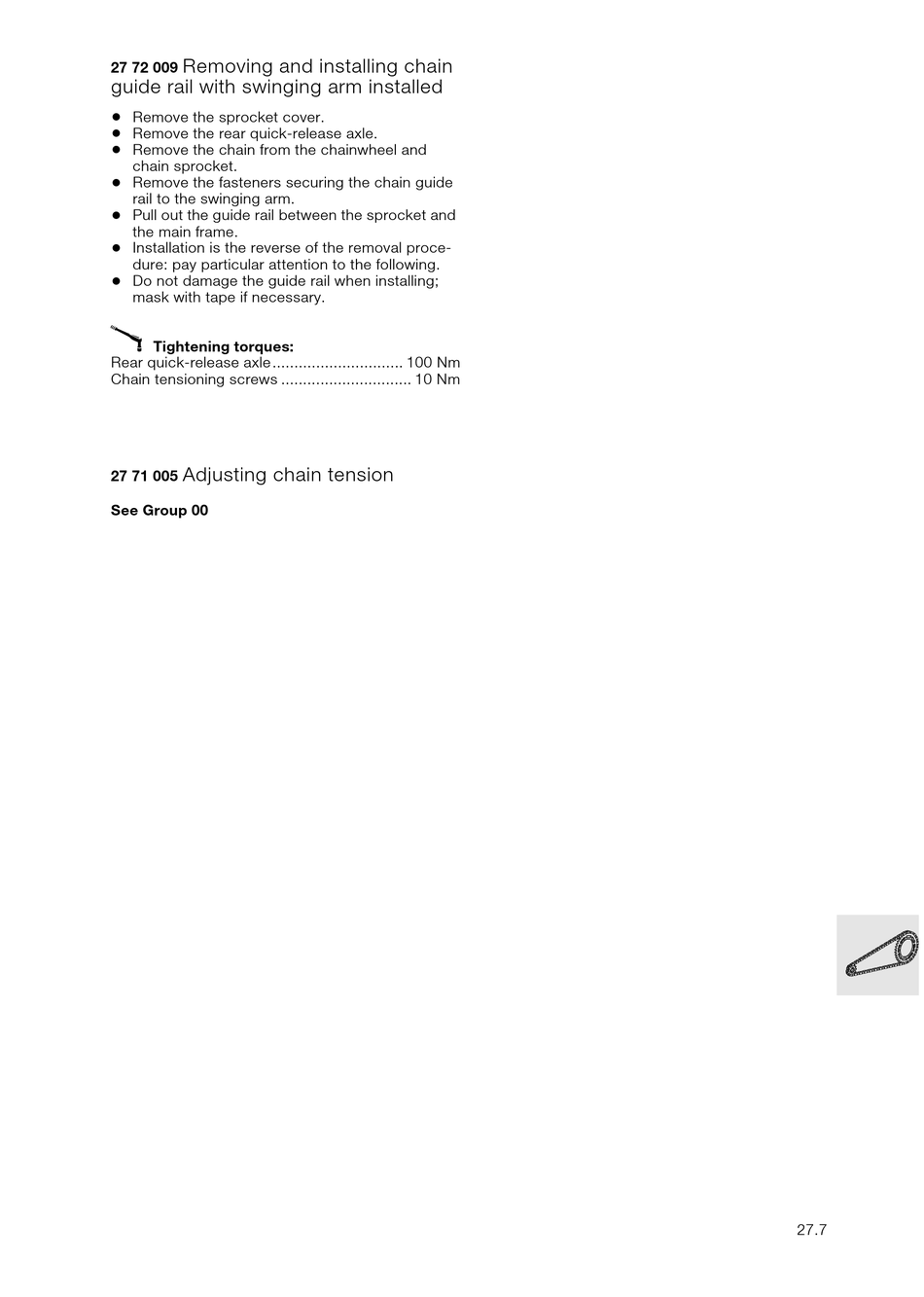

Removing and installing chain
27 72 009
guide rail with swinging arm installed
•
Remove the sprocket cover.
•
Remove the rear quick-release axle.
•
Remove the chain from the chainwheel and
chain sprocket.
•
Remove the fasteners securing the chain guide
rail to the swinging arm.
•
Pull out the guide rail between the sprocket and
the main frame.
•
Installation is the reverse of the removal proce-
dure: pay particular attention to the following.
•
Do not damage the guide rail when installing;
mask with tape if necessary.
X
Tightening torques:
Rear quick-release axle.............................. 100 Nm
Chain tensioning screws .............................. 10 Nm

Adjusting chain tension

27 71 005

See Group 00

27.7
