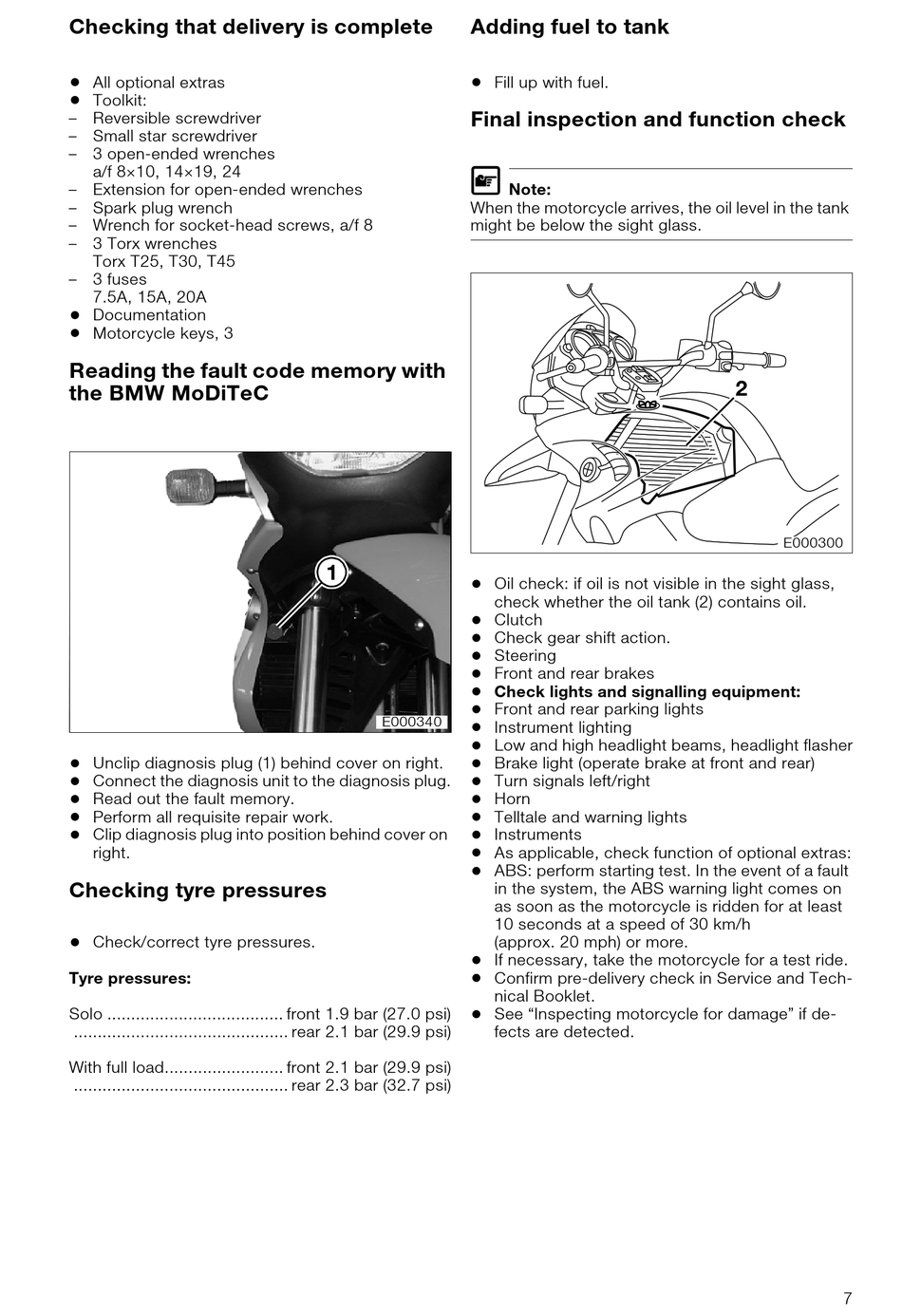

Checking that delivery is complete

•
All optional extras
•
Toolkit:
– Reversible screwdriver
– Small star screwdriver
– 3 open-ended wrenches
a/f 8×10, 14×19, 24
– Extension for open-ended wrenches
– Spark plug wrench
– Wrench for socket-head screws, a/f 8
– 3 Torx wrenches
Torx T25, T30, T45
– 3 fuses
7.5A, 15A, 20A
•
Documentation
•
Motorcycle keys, 3
Reading the fault code memory with
the BMW MoDiTeC
•
Unclip diagnosis plug (1) behind cover on right.
•
Connect the diagnosis unit to the diagnosis plug.
•
Read out the fault memory.
•
Perform all requisite repair work.
•
Clip diagnosis plug into position behind cover on
right.

Checking tyre pressures

•
Check/correct tyre pressures.
Tyre pressures:
Solo ..................................... front 1.9 bar (27.0 psi)
............................................. rear 2.1 bar (29.9 psi)
With full load......................... front 2.1 bar (29.9 psi)
............................................. rear 2.3 bar (32.7 psi)

Adding fuel to tank

•
Fill up with fuel.

Final inspection and function check

L
When the motorcycle arrives, the oil level in the tank
might be below the sight glass.
1
•
Oil check: if oil is not visible in the sight glass,
check whether the oil tank (2) contains oil.
•
Clutch
•
Check gear shift action.
•
Steering
•
Front and rear brakes
•
Check lights and signalling equipment:
•
Front and rear parking lights
E000340
•
Instrument lighting
•
Low and high headlight beams, headlight flasher
•
Brake light (operate brake at front and rear)
•
Turn signals left/right
•
Horn
•
Telltale and warning lights
•
Instruments
•
As applicable, check function of optional extras:
•
ABS: perform starting test. In the event of a fault
in the system, the ABS warning light comes on
as soon as the motorcycle is ridden for at least
10 seconds at a speed of 30 km/h
(approx. 20 mph) or more.
•
If necessary, take the motorcycle for a test ride.
•
Confirm pre-delivery check in Service and Tech-
nical Booklet.
•
See "Inspecting motorcycle for damage" if de-
fects are detected.
Note:
2
E000300
7
