Installation Guide
Caution
The plane deviation of the wall in a specific area should be within 2 mm, and the recommended torque for
installation is 4 kgf.cm. In case of uneven installation site, please mount the AP on a protruding wall.
(3) Connect cables according to the actual networking. The following describes how to connect cables on the
AP side.


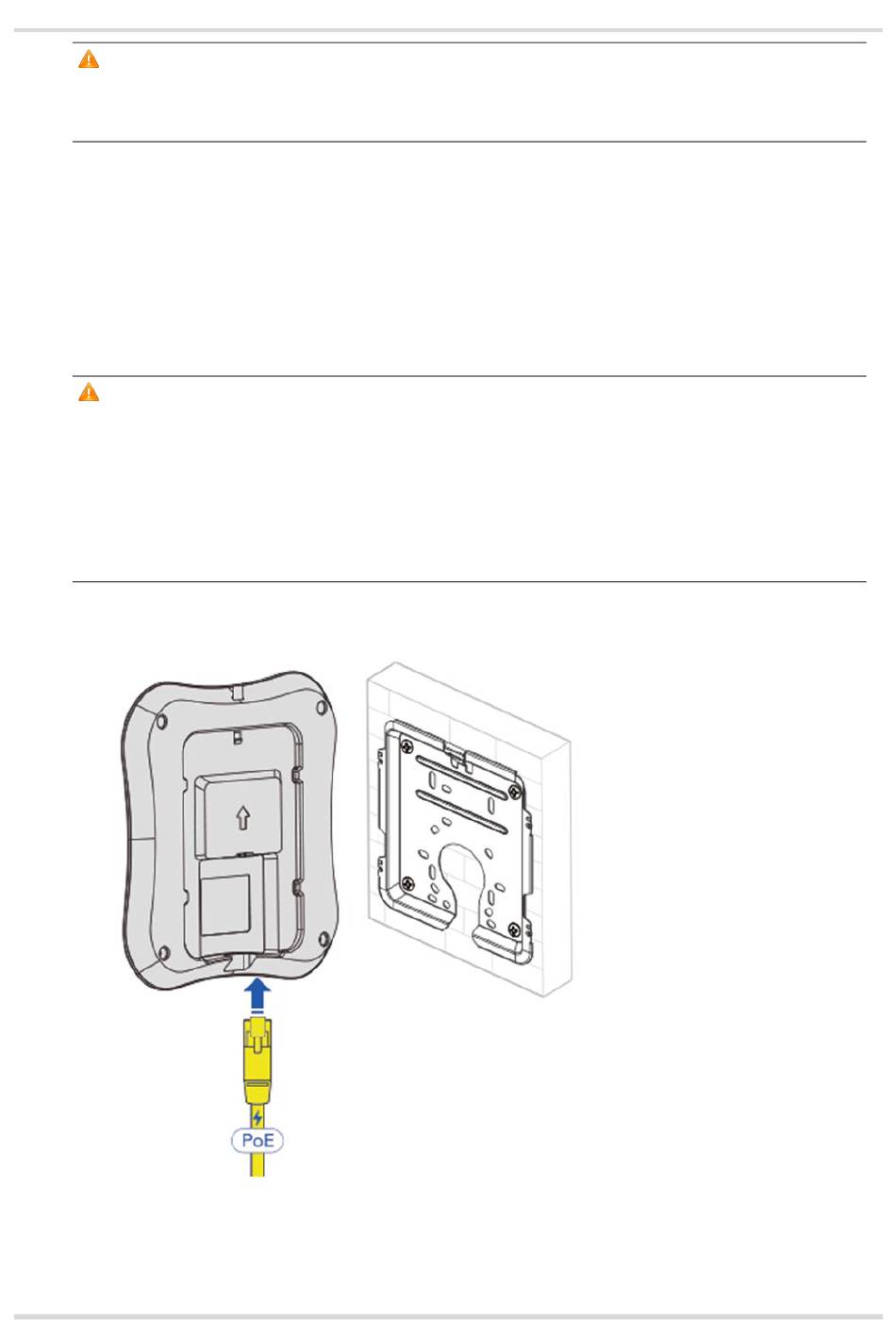

Ethernet cable: Connect one end of the Ethernet cable to the LAN/2.5G/PoE port on the back of the AP.

Optical cable: Connect one end of the optical cable to the SFP+ port on the back of the AP.

DC power cord: When DC power supply is used, connect one end of the power cord to the DC 54 V connector
on the back of the AP.
Caution

Avoid a small bend radius at the connector.

It is not recommended to use Ethernet cables with a protective sheath as it can hinder the assembly of
Ethernet cables.

When using an optical cable for data transmission, insert and remove the optical cable gently. If you pull
the optical cable too hard, the fiber core may be displaced, affecting the optical communication quality.
Do not bend or coil the optical cable excessively, as this will increase the attenuation of light during
transmission.
