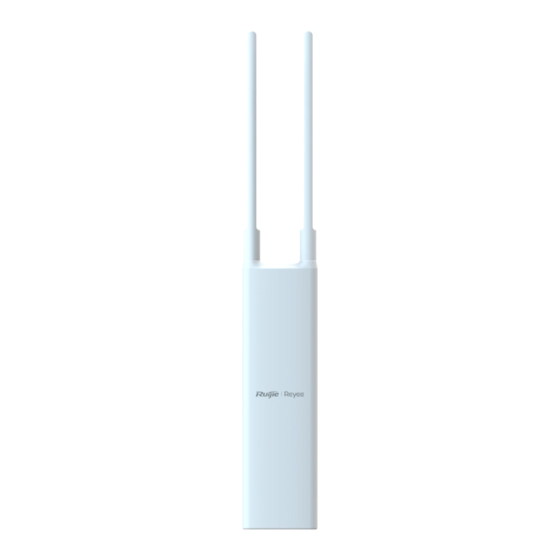

Ruijie Reyee RG-RAP52-OD Configuration Manual
  1. Manuals
  2. Brands
  3. Ruijie Manuals
  4. Wireless Access Point
  5. Reyee RG-RAP52-OD
  6. Configuration manual

Ruijie Reyee RG-RAP52-OD Configuration Manual

Hide thumbs Also See for Reyee RG-RAP52-OD:
Table of Contents

Advertisement

Quick Links

Ruijie Reyee RG-RAP Series Access Points
ReyeeOS 1.247
Web-based Configuration Guide
Document Version: V1.2
Date: 2023-10-31
Copyright © 2023 Ruijie Networks

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Reyee RG-RAP52-OD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ruijie Reyee RG-RAP52-OD

Summary of Contents for Ruijie Reyee RG-RAP52-OD

  • Page 1 Ruijie Reyee RG-RAP Series Access Points ReyeeOS 1.247 Web-based Configuration Guide Document Version: V1.2 Date: 2023-10-31 Copyright © 2023 Ruijie Networks...
  • Page 2 All rights are reserved in this document and this statement. Any reproduction, excerption, backup, modification, transmission, translation or commercial use of this document or any portion of this document, in any form or by any means, without the prior written consent of Ruijie Networks is prohibited.

  • Page 3: Preface

    Intended Audience This document is intended for:  Network engineers  Technical support and servicing engineers  Network administrators Technical Support  Official website of Ruijie Reyee: https://www.ruijienetworks.com/products/reyee  Technical support website: https://ruijienetworks.com/support  Case portal: https://caseportal.ruijienetworks.com  Community: https://community.ruijienetworks.com ...
  • Page 4 Specification An alert that contains a description of product or version support. Note This manual introduces the features of the RG-RAP series access points and instructs users to configure the device.

  • Page 5: Table Of Contents

    Contents Preface ..............................I 1 Fast Internet Access .......................... 1 1.1 Configuration Environment Requirements ................1 1.1.1 PC ..........................1 1.2 Default Configuration ......................... 1 1.3 Login to eWeb ..........................1 1.3.1 Connecting to the Access Point ..................1 1.3.2 Configuring the IP Address of the Management Client ..........2 1.3.3 Logging in to the Web Page ..................
  • Page 6 1.8.1 Single Management Webpage ..................10 1.8.2 Dual Management Webpages ..................12 2 Network Monitoring ......................... 15 2.1 Viewing the Network Information ..................... 15 2.2 Adding Network Devices ......................17 2.2.1 Wired Connection ......................17 2.2.2 AP Mesh ........................19 2.3 Managing Network Devices .....................
  • Page 7 3.8 Configuring Layer-3 Roaming ....................45 3.9 Configuring AP Isolation ......................46 3.10 Adding a Wi-Fi Network ......................47 3.11 Configuring a Guest Wi-Fi ..................... 48 3.11.1 Overview ........................48 3.11.2 Configuration Steps ....................48 3.12 Configuring Wireless Rate Limiting ..................49 3.12.1 Overview ........................
  • Page 8 3.19.3 Configuring Traffic Load Balancing ................70 3.20 Wireless Authentication ......................72 3.20.1 Overview ........................72 3.20.2 Configuring One-click Login on Ruijie Cloud ............. 72 3.20.3 Configuring Voucher Authentication on Ruijie Cloud ..........76 3.20.4 Configuring Account Authentication on Ruijie Cloud ..........83 3.20.5 Configuring SMS Authentication on Ruijie Cloud ............
  • Page 9 4.1.4 Viewing Device Role ....................102 4.2 Configuring Internet Connection Type (IPv4) ................ 102 4.3 Configuring Internet Connection Type (IPv6) ................ 103 4.4 Configuring LAN Port ......................103 4.5 Configuring Repeater Mode....................104 4.5.1 Wired Repeater ......................104 4.5.2 Wireless Repeater ..................... 105 4.6 Creating a VLAN ........................
  • Page 10 4.16.3 IPv6 Address Assignment Methods ................. 118 4.16.4 Enabling IPv6 ......................118 4.16.5 Configuring the IPv6 Address for the WAN Port ............119 4.16.6 Configuring the IPv6 Address for the LAN Port ............121 4.16.7 Viewing DHCPv6 Clients ..................123 4.16.8 Configuring the Static DHCPv6 Address ..............
  • Page 11 5.9.2 Local Upgrade ......................135 5.10 Switching System Language ....................135 5.11 Configuring LED Status Control ..................136 6 Network Diagnosis Tools ....................... 137 6.1 Network Check ........................137 6.2 Network Tools ........................138 6.3 Alarms ............................ 139 6.4 Fault Collection ........................140 7 FAQs ..............................

  • Page 12: Fast Internet Access

    Wireless Connection On a mobile phone or laptop, search for wireless network @Ruijie-SXXXX (XXXX is the last four digits of the MAC address of each device). In this mode, you do not need to set the IP address of the management Client,...

  • Page 13: Configuring The Ip Address Of The Management Client

    Web-based Configuration Guide Fast Internet Access 1.3.2 Configuring the IP Address of the Management Client Configure an IP address for the management client in the same network segment as the default IP address of the device (The default device IP address is 10.44.77.254, and the subnet mask is 255.255.255.0.) so that the management client can access the device.

  • Page 14: Work Mode

    Web-based Configuration Guide Fast Internet Access Caution Restoring factory settings will delete the existing configuration and you are required to configure the device again at your next login. Therefore, exercise caution when performing this operation. Work Mode The device can work in the router mode, AP mode or wireless repeater mode. The displayed system menu page and function ranges vary with the work mode.

  • Page 15: Getting Started

    Web-based Configuration Guide Fast Internet Access 1.5.1 Getting Started (1) Connect the device to a power supply and connect the port of the device to an upstream device with an Ethernet cable. Or you can connect an Ethernet cable to the device. (1) Configure the Internet connection type according to requirements of the local Internet Service Provider (ISP).
  • Page 16 Web-based Configuration Guide Fast Internet Access Note New devices will join in a network automatically after being powered on. You only need to verify the device count. If a new device is detected not in the network, click Add to My Network and enter its management password to add the device manually.

  • Page 17: Configuration Wizard (Ap Mode)

    Click Create Network & Connect. The device will deliver the initialization and check the network connectivity. The device can access the Internet now. Bind the device with a Ruijie Cloud account for remote management. Follow the instruction to log in to Ruijie Cloud for further configuration.

  • Page 18: Configuration Steps

    Web-based Configuration Guide Fast Internet Access 1.6.2 Configuration Steps The device obtains the IP address through the DHCP by default. Configure the SSID, Wi-Fi password and management password. The default Internet connection type is DHCP mode. You are advised to use the default value.
  • Page 19 Web-based Configuration Guide Fast Internet Access (2) If you see a dialogue box indicating that the Ethernet cable is not connected to the WAN port, click Wireless Repeater. (3) Select the primary router SSID that requires expanding the Wi-Fi coverage, enter the Wi-Fi password of the primary router, and click Next.
  • Page 20 Web-based Configuration Guide Fast Internet Access (4) Set the SSID and password and click Save. Then, the Wi-Fi network will be restarted.

  • Page 21: Introduction To The Eweb Gui

    Web-based Configuration Guide Fast Internet Access Introduction to the eWeb GUI To facilitate flexible device management, the Web page displays different system configuration menus in different work modes. For details about the work mode, see Switching Work Mode. As to the RG-RAP2266 model, please refer to Dual Management Webpages. As to other RAP models, please refer to Single Management Webpage.
  • Page 22 Web-based Configuration Guide Fast Internet Access  If a device is in standalone mode, you can configure and manage only the currently logged in device. The Web page displays the function configuration menu of a single device on the left side.

  • Page 23: Dual Management Webpages

    Web-based Configuration Guide Fast Internet Access 1.8.2 Dual Management Webpages 1. Introducing the Management Mode If the self-organizing network is disabled (The function is enabled by default. See Switching Work Mode details.), the device works in the local device mode displayed on the Web page. If the self-organizing network is enabled, the device can work in the network mode and the local device mode.
  • Page 24 Web-based Configuration Guide Fast Internet Access Local Device mode webpage 2. Switching the Management Mode Click the current management mode in the navigation bar, and select the mode in the drop-down box to switch the work mode of the device.
  • Page 25 Web-based Configuration Guide Fast Internet Access...

  • Page 26: Network Monitoring

    Web-based Configuration Guide Network Monitoring Network Monitoring Caution The functions mentioned in this chapter are supported by only RG-RAP2266. In Network mode, select Overview. The Overview webpage displays the current network topology, real-time uplink and downlink flow, networking status, and the number of users. The quick access to network and device settings is also provided on the Overview webpage.
  • Page 27 Web-based Configuration Guide Network Monitoring  Click the flow data and view the real-time flow.  Click the device in the topology to view the operating status and configuration of the device and configure the device functions. The hostname is set to the product model by default. You can click to modify the hostname.

  • Page 28: Adding Network Devices

    Web-based Configuration Guide Network Monitoring  The update time of the topology is displayed at the bottom left corner. Click Refresh to update the topology to the latest status. Please wait for a few minutes for the update. Adding Network Devices 2.2.1 Wired Connection (1) If a new device is connected to the device in the network through wired connection, a prompt message will...
  • Page 29 Web-based Configuration Guide Network Monitoring of devices that are not in SON is displayed under the Devices at the top left corner of the page. Click Manage to add the device to the current network. (2) Go to the Network List page, click Other Network to select the target device and click Add to My Network. If the target device is not configured yet, you can add the device directly without a password.

  • Page 30: Ap Mesh

    Web-based Configuration Guide Network Monitoring 2.2.2 AP Mesh Note This function is not supported by RG-RAP2200(F). 1. Overview After being powered on and enabled with Mesh (see 3.18 Enabling Reyee Mesh for details), a Mesh-capable new AP can be paired with other Mesh-capable wireless devices on the target network through multiple ways. Then the AP will be synchronized its Wi-Fi configuration with other devices automatically.
  • Page 31 Web-based Configuration Guide Network Monitoring 2. Configuration Procedure Start Button Wired Connection Pairing Mode? eWeb-based Scanning Wired Pairing Button-based Pairing Search-based Pairing (Uplink Device is (Uplink Device is EGW) (Uplink Device is AP/EGW) AP/EG/EGW) Verify AP Connection Install AP Verify Mesh Networking Finish 3.
  • Page 32 Web-based Configuration Guide Network Monitoring (4) Power off the new AP and install it as planned. (5) Log in to the eWeb of a device on the target network. In Network mode, choose Devices > AP. Make sure that the new AP is online and the corresponding entry contains icon in the Relay Information column.
  • Page 33 Web-based Configuration Guide Network Monitoring 4. Configuration Steps for Search-based Pairing (Uplink Device is an AP or EGW Router) Caution  The new AP must be in factory status.  It can be scanned only when the live network is enabled with Mesh (see 3.18 for details).
  • Page 34 Web-based Configuration Guide Network Monitoring (4) Check the topology on the Overview page to make sure that the new AP has connected to the uplink device in wireless mode. (5) Power off the new AP and install it as planned. (6) Log in to the eWeb of a device on the target network.
  • Page 35 Web-based Configuration Guide Network Monitoring Click View Details following the icon to obtain information about the uplink device and RSSI. 5. Configuration Steps for Wired Pairing (Uplink Device is an AP, EG Router, or EGW Router) Caution  The new AP must be in factory status. ...
  • Page 36 Web-based Configuration Guide Network Monitoring (3) Unplug the Ethernet cable, power off the new AP, and install it as planned. (4) Log in to the Eweb of a device on the target network. In Network mode, choose Devices > AP. Make sure that the new AP is online and the corresponding entry contains icon in the Relay Information column.
  • Page 37 Web-based Configuration Guide Network Monitoring 6. Enabling WAN Port The WAN port works as the wired uplink port of the AP by default. For the AP added to the target network through Mesh pairing, the WAN port is disabled by default. If you want to connect the Mesh AP to other downlink device in wired mode to expand the network, enable this port.
  • Page 38 Web-based Configuration Guide Network Monitoring  Method 2: In Network mode, choose Devices > AP. If an entry contains icon in the Relay Information column, the corresponding AP is a Mesh AP. (3) Query Mesh networking details. In Network mode, choose Devices > AP. Select the target AP, and click View Details in the Relay Information column to obtain the Mesh networking details.

  • Page 39: Managing Network Devices

    Web-based Configuration Guide Network Monitoring Managing Network Devices Click List at the top left corner of the topology or click Devices in the menu bar to switch to the device list view, and view the information of all devices in the self-organizing network (SON). You can perform configurations and management on all devices by logging in to only one device in the network.

  • Page 40: Configuring Network Planning

    Web-based Configuration Guide Network Monitoring  Select the offline device and click Delete Offline Devices to remove the device from the list and the topology. Configuring Network Planning The Overview page displays the configuration of Network Planning at the bottom left corner, including Wi-Fi VLAN and Wired VLAN.

  • Page 41: Configuring Wired Vlan

    Web-based Configuration Guide Network Monitoring  Click manage to go to the Network Planning page for configuration (Network > Network Planning). You can add or edit the Network Planning configuration for the live network.  Click Add to configure Wi-Fi VLAN or Wired VLAN for the live network. ...
  • Page 42 Web-based Configuration Guide Network Monitoring (1) Configure the VLAN ID, address pool server, and DHCP pool. The gateway is configured as the address pool server by default to assign IP addresses to clients. If an access switch exists in the network, you can select the access switch as the address pool server.

  • Page 43: Configuring Wi-Fi Vlan

    Web-based Configuration Guide Network Monitoring (3) Please confirm the delivered configurations and click Save. The configurations will take effect after a few minutes. 2.4.2 Configuring Wi-Fi VLAN (1) Go to the Wired VLAN page for configuration.  Method 1: Click Add beside Wi-Fi VLAN in the Network Planning area on the Overview page to add the Wi-Fi VLANs.
  • Page 44 Web-based Configuration Guide Network Monitoring (1) Configure the SSID, Wi-Fi password and band. Click Expand to expand the advanced settings and set the parameters. Then, click Next. (2) Configure the VLAN ID, address pool server and DHCP pool. The gateway is configured as the address pool server by default to assign IP addresses to clients.

  • Page 45: Troubleshooting Fault Alerts

    Web-based Configuration Guide Network Monitoring (3) Please confirm the delivered configurations and click Save. The configurations will take effect after a few minutes. Troubleshooting Fault Alerts The Overview page displays the fault alerts and handling suggestions if faults occur in the network. Click the fault alert in Alert Center to view the faulty device, fault details and handling suggestions, and troubleshoot device faults by referring to the handling suggestions.
  • Page 46 Web-based Configuration Guide Network Monitoring...

  • Page 47: Wi-Fi Network Settings

    Web-based Configuration Guide Wi-Fi Network Settings Wi-Fi Network Settings Note Wi-Fi network settings covers the Wi-Fi settings of the currently logged in devices and the management of all wireless devices in the network. In Network mode, the Wi-Fi network settings are synchronized to all wireless devices in the network.
  • Page 48 Web-based Configuration Guide Wi-Fi Network Settings (1) Click Expand to view all groups on the left part of the Device List page. Click to create a new group. Up to 8 groups can be added. You can click to edit the group name and click to delete the group.

  • Page 49: Configuring Ssid And Wi-Fi Password

    Web-based Configuration Guide Wi-Fi Network Settings Configuring SSID and Wi-Fi Password (1) Go to the page for configuration.  Method 1: Choose Network ( WLAN) > Wi-Fi > Wi-Fi Settings. Select the target Wi-Fi.  Method 2: Choose Network ( WLAN) >...
  • Page 50 Web-based Configuration Guide Wi-Fi Network Settings Table 3-1 Wireless network configuration Parameter Description SSID The name displayed when a wireless client searches for a wireless network. The frequency band used for wireless data transmission. 2.4GHz and 5GHz frequency bands are supported. The 5GHz frequency band offers a faster transmission rate and less interference compared to the 2.4GHz frequency band, but it has weaker signal coverage Band and wall penetration.

  • Page 51: Hiding The Ssid

    Web-based Configuration Guide Wi-Fi Network Settings Hiding the SSID 3.3.1 Overview Hiding the SSID can prevent unauthorized clients from accessing the Wi-Fi network and enhance network security. After this function is enabled, the mobile phone or PC cannot search out the SSID. Instead, you have to manually enter the correct SSID and Wi-Fi password.

  • Page 52: Checking Wireless Clients

    Web-based Configuration Guide Wi-Fi Network Settings Checking Wireless Clients For RG-RAP2266 model: If the self-organizing network is disabled, choose WLAN > Clients If the self-organizing network is enabled, in Network mode, choose Clients > Online Clients > Wireless For other RAP models: Choose WLAN >...

  • Page 53: Configuring Wi-Fi Band

    Web-based Configuration Guide Wi-Fi Network Settings Table 3-2 Description of Wireless Client Information Item Description Username Name of a client MAC address of the client IPv4 address of the client SN of the device associated with the client Duration Time when the client connects to the Wi-Fi network RSSI RSSI of the Wi-Fi network associated with the client Rate/Negotiation Rate...

  • Page 54: Configuring Band Steering

    Web-based Configuration Guide Wi-Fi Network Settings but is inferior in signal coverage and through-wall penetration. You can select an appropriate signal band based on actual requirements. The default Wi-Fi band is 2.4G+5G, indicating that Wi-Fi signals are emitted in both 2.4 GHz and 5 GHz bands. Configuring Band Steering Caution This function can be enabled only after the dual-band integration (Band is set to 2.4G+5G) is enabled on the...

  • Page 55: Configuring Wi-Fi 6

    Web-based Configuration Guide Wi-Fi Network Settings Configuring Wi-Fi 6 Caution The function takes effect only on APs supporting the IEEE 802.11ax protocol. In addition, access clients must support IEEE 802.11ax so that clients can enjoy high-speed Internet access experience brought by Wi-Fi 6. If clients do not support Wi-Fi 6, you can disable this function.

  • Page 56: Configuring Layer-3 Roaming

    Web-based Configuration Guide Wi-Fi Network Settings Configuring Layer-3 Roaming (1) Go to the page for configuration.  Method 1: Choose Network ( WLAN) > Wi-Fi > Wi-Fi Settings. Select the target Wi-Fi.  Method 2: Choose Network ( WLAN) > Wi-Fi > Wi-Fi List. Select the target Wi-Fi in the list and click Edit in the action column.

  • Page 57: Configuring Ap Isolation

    Web-based Configuration Guide Wi-Fi Network Settings Configuring AP Isolation (1) Go to the page for configuration.  Method 1: Choose Network ( WLAN) > Wi-Fi > Wi-Fi Settings. Select the target Wi-Fi.  Method 2: Choose Network ( WLAN) > Wi-Fi > Wi-Fi List. Select the target Wi-Fi in the list and click Edit in the action column.

  • Page 58: Adding A Wi-Fi Network

    Web-based Configuration Guide Wi-Fi Network Settings 3.10 Adding a Wi-Fi Network (1) Go to the page for configuration.  Method 1: Choose Network ( WLAN) > Wi-Fi > Wi-Fi Settings.  Method 2: Choose Network ( WLAN) > Wi-Fi > Wi-Fi List. (2) Click Add, enter the SSID and Wi-Fi password and click OK to add a Wi-Fi network.

  • Page 59: Configuring A Guest Wi-Fi

    Web-based Configuration Guide Wi-Fi Network Settings 3.11 Configuring a Guest Wi-Fi 3.11.1 Overview This Wi-Fi network is provided for guests and is disabled by default. It supports client isolation, that is, access clients are isolated from each other. They can only access the Internet via Wi-Fi, but cannot access each other, improving security.

  • Page 60: Configuring Wireless Rate Limiting

    Web-based Configuration Guide Wi-Fi Network Settings 3.12 Configuring Wireless Rate Limiting Caution This function is supported by only RG-RAP2266. 3.12.1 Overview The device supports four rate limiting modes: client-based rate limiting, SSID-based rate limiting, AP-based rate limiting, and packet-based rate limiting. For the same client, if multiple rate limiting modes are configured, the priority order is as follows: client-based rate limiting >...
  • Page 61 Web-based Configuration Guide Wi-Fi Network Settings (1) Enable Wireless Rate Limiting. (2) Click Add. In the dialog box that appears, set the MAC address and uplink and downlink rate limit values of the client, and click OK. Configuring SSID-based Rate Limiting Choose Network ( WLAN) >...
  • Page 62 Web-based Configuration Guide Wi-Fi Network Settings Configuring AP-based Rate Limiting Choose Network ( WLAN) > LimitSpeed > AP-based Rate Limiting. (1) Enable Wireless Rate Limiting. (2) Set the uplink and downlink rate limit modes to Rate Limit Per User, configure the rate limit values, and click...

  • Page 63: Configuring Wi-Fi Blocklist Or Allowlist

    Web-based Configuration Guide Wi-Fi Network Settings Configuring Packet-based Rate Limiting Choose Network ( WLAN) > LimitSpeed > Packet-based Rate Limiting. (1) Enable Wireless Rate Limiting. (2) Select the specific type of packets for rate limiting, configure the rate limit value, and click Save. 3.13 Configuring Wi-Fi Blocklist or Allowlist 3.13.1...

  • Page 64: Configuration Steps

    Web-based Configuration Guide Wi-Fi Network Settings Wi-Fi blocklist: Clients in the Wi-Fi blocklist are prevented from accessing the Internet. Clients that are not added to the Wi-Fi blocklist are free to access the Internet. Wi-Fi allowlist: Only clients in the Wi-Fi allowlist can access the Internet. Clients that are not added to the Wi-Fi allowlist are prevented from accessing the Internet.
  • Page 65 Web-based Configuration Guide Wi-Fi Network Settings 2. Configuring an SSID-based Blocklist/Allowlist Choose Clients ( WLAN) > Blocklist/Allowlist > SSID-Based Blocklist/Allowlist. Select a target Wi-Fi network from the left column, select the blocklist or allowlist mode and click Add to configure a blocklist or allowlist client.

  • Page 66: Optimizing Wi-Fi Network

    Web-based Configuration Guide Wi-Fi Network Settings 3.14 Optimizing Wi-Fi Network 3.14.1 Overview The device detects the surrounding wireless environment and selects the appropriate configuration upon power- on. However, network stalling caused by wireless environment changes cannot be avoided. You can optimize the network with one single click, analyze the wireless environment around the access point and select appropriate parameters.

  • Page 67: Optimizing The Channel Width

    Web-based Configuration Guide Wi-Fi Network Settings  Configure the slave device. Choose Devices > Select the target device in the device list and click SN > Radio Frequency For other RAP models:  Configure the master device. Choose WLAN > Radio Frequency ...

  • Page 68: Optimizing The Transmit Power

    Web-based Configuration Guide Wi-Fi Network Settings Caution In the self-organizing network mode, the channel width settings will be synchronized to all devices in the network. 3.14.5 Optimizing the Transmit Power For RG-RAP2266 model:  Configure the master device. Choose Network ( WLAN) >...

  • Page 69: Configuring The Multicast Rate

    Web-based Configuration Guide Wi-Fi Network Settings 3.14.6 Configuring the Multicast Rate Caution This function is supported by only RG-RAP2266. Choose Network ( WLAN) > Radio Frequency. If the multicast rate is too high, the packet loss rate of multicast packets may increase. If the multicast rate is too low, the radio interface may become busy.

  • Page 70: Configuring The Client Limit

    Web-based Configuration Guide Wi-Fi Network Settings 3.14.7 Configuring the Client Limit Choose Network WLAN) > Radio Frequency. If the access point is associated with too many clients, it will have a lower performance, affecting user experience. After you configure the threshold, new clients over the threshold will not be allowed to access the Wi-Fi network. You can lower the threshold if there is requirement for bandwidth per client.

  • Page 71: Configuring The Kick-Off Threshold

    Web-based Configuration Guide Wi-Fi Network Settings Note The Client Count Limit refers to the maximum number of clients that can be connected to a single access point. 3.14.8 Configuring the Kick-off Threshold Choose Network WLAN) > Radio Frequency. In the case of multiple Wi-Fi signals, setting the kick-off threshold can improve the wireless signal quality to a certain extent.

  • Page 72: Configuring Access Threshold

    Web-based Configuration Guide Wi-Fi Network Settings  Configure the slave device. Choose Devices > Select the target device in the device list and click SN > Radio Frequency For other RAP models:  Configure the master device. Choose WLAN > Radio Frequency ...

  • Page 73: Configuring Response Rssi Threshold

    Web-based Configuration Guide Wi-Fi Network Settings Configure the slave device. Choose WLAN > APs > Select the target device in the device list and click Manage > WLAN > Radio Frequency When the wireless signal of the end user is lower than the access threshold set on the device, the client cannot detect the wireless signal of the device.

  • Page 74: Configuring Wio

    Web-based Configuration Guide Wi-Fi Network Settings 3.14.12 Configuring WIO For RG-RAP2266 model: In Network mode, choose Network >WIO For the other RAP models: Choose WLAN > WIO Check I have read the notes. And click Network Optimization to optimize the wireless network. You are advised to set a scheduled task to optimize the wireless network in the early hours of the morning or when the network is idle.

  • Page 75: Configuring Wi-Fi Roaming Optimization (802.11K/V)

    Web-based Configuration Guide Wi-Fi Network Settings 3.14.13 Configuring Wi-Fi Roaming Optimization (802.11k/v) Caution This function is not supported by RG-RAP2200(F). For RG-RAP2266 model: In Network mode, choose Network > WIO > Wi-Fi Roaming Optimization (802.11k/v). For the other RAP models: Choose WLAN >...

  • Page 76: Configuring Healthy Mode

    Web-based Configuration Guide Wi-Fi Network Settings 3.15 Configuring Healthy Mode Choose Network WLAN) > Wi-Fi > Healthy Mode. Select Device Group from the drop-down list box. Click Enable to enable the healthy mode. You are allowed to set the effective time period for the healthy mode. After the healthy mode is enabled, the transmit power and the Wi-Fi coverage area will decrease.

  • Page 77: Configuring Xpress

    Web-based Configuration Guide Wi-Fi Network Settings 3.16 Configuring XPress (1) Go to the page for configuration.  Method 1: Choose Network ( WLAN) > Wi-Fi > Wi-Fi Settings. Select the target Wi-Fi.  Method 2: Choose Network ( WLAN) > Wi-Fi > Wi-Fi List. Select the target Wi-Fi in the list and click Edit in the action column.

  • Page 78: Configuring Wireless Schedule

    Web-based Configuration Guide Wi-Fi Network Settings 3.17 Configuring Wireless Schedule (1) Go to the page for configuration.  Method 1: Choose Network ( WLAN) > Wi-Fi > Wi-Fi Settings. Select the target Wi-Fi.  Method 2: Choose Network ( WLAN) > Wi-Fi > Wi-Fi List. Select the target Wi-Fi in the list and click Edit in the action column.

  • Page 79: Configuring Ap Load Balancing

    Web-based Configuration Guide Wi-Fi Network Settings 3.19 Configuring AP Load Balancing Caution This function is supported by only RG-RAP2266. 3.19.1 Overview The AP load balancing function is used to balance the load of APs in the wireless network. When APs are added to a load balancing group, clients will automatically associate with the APs with light load when the APs in the group are not load balanced.
  • Page 80 Web-based Configuration Guide Wi-Fi Network Settings Table 3-3 Client load balancing configuration Parameter Description Group Name Enter the name of the AP load balancing group. Select Client Load Balancing. Type...

  • Page 81: Configuring Traffic Load Balancing

    Web-based Configuration Guide Wi-Fi Network Settings Parameter Description Configure a detailed load balancing rule, including the maximum number of clients allowed to associate with an AP, the difference between the currently associated client count and client count on the AP with the lightest load, and the number of attempts to the AP with full load.
  • Page 82 Web-based Configuration Guide Wi-Fi Network Settings Table 3-4 Traffic load balancing configuration Parameter Description Group Name Enter the name of the AP load balancing group. Type Select Traffic Load Balancing. Configure a detailed load balancing rule, including the maximum traffic allowed on an AP, the difference between the current traffic and the traffic on the AP with the lightest load, and the number of attempts to the AP with full load.

  • Page 83: Wireless Authentication

    To use the wireless authentication function, ensure that the AP is added to Ruijie Cloud and is online. Then, configure a portal template on Ruijie Cloud and apply it to a specific SSID. When STAs connect to this SSID and...
  • Page 84 Web-based Configuration Guide Wi-Fi Network Settings Table 3-5 Basic Information of the Portal Template Parameter Description Name Indicates the name of a captive portal template. Description Indicates the description of a captive portal template. Select One-click Login, which indicates login without the username and Login Options password.
  • Page 85 Web-based Configuration Guide Wi-Fi Network Settings Table 3-6 Basic Information of the Portal Page Parameter Description Logo Select whether to display the logo image. When Logo is set to Image, upload the logo picture or select the default logo. Logo Image Background Select the background with the image or the solid color.
  • Page 86 (6) After the configuration, click OK to save the portal template configurations. 2. Enabling One-click Login for an SSID (1) Log in to Ruijie Cloud, choose Project > Configuration > Devices > Wireless > SSID, and select a network that needs to configure wireless authentication.

  • Page 87: Configuring Voucher Authentication On Ruijie Cloud

    Configuring Voucher Authentication on Ruijie Cloud 1. Configuring a Portal Template with the Authentication Mode Set to Voucher (1) Log in to Ruijie Cloud, choose Project > Configuration > Authentication > Captive Portal, and select a network that needs to configure wireless authentication.
  • Page 88 Web-based Configuration Guide Wi-Fi Network Settings Table 3-8 Basic Information of the Portal Template Parameter Description Name Indicates the name of a captive portal template. Description Indicates the description of a captive portal template. Login Options Select Voucher, which indicates login with a random eight-digit password. Show Balance Page Indicates the available duration, time, or data after portal authentication.
  • Page 89 Web-based Configuration Guide Wi-Fi Network Settings Parameter Description Logo Image When Logo is set to Image, upload the logo picture or select the default logo. Background Select the background with the image or the solid color. When Background is set to Image, upload the background image or select Background Image the default image.
  • Page 90 (6) After the configuration, click OK to save the portal template configurations. 2. Enabling Voucher Authentication for an SSID (1) Log in to Ruijie Cloud, choose Project > Configuration > Devices > Wireless > SSID, and select a network that needs to configure wireless authentication.
  • Page 91 Wi-Fi Network Settings Action column. The following content only describes configurations related to wireless authentication. For details about other SSID configuration parameters, see the Ruijie Cloud Cookbook. (3) Enable Auth (disabled by default) and configure authentication-related parameters. After the configuration, click OK to save the configurations.
  • Page 92 Web-based Configuration Guide Wi-Fi Network Settings 3. Adding a Voucher (1) Log in to Ruijie Cloud, choose Project > Authentication > User Management, and select a network in this account. (2) Configure a user group. On the User Group tab, click Add.
  • Page 93 Web-based Configuration Guide Wi-Fi Network Settings Price: indicates the price of the user group. Mark user groups by numeral. The current version has no impact on network usage. Concurrent Devices: indicates the number of concurrent devices for one account. Period: indicates the maximum validity time of an account. The maximum value is counted after the client passes authentication and successfully accesses the Internet.

  • Page 94: Configuring Account Authentication On Ruijie Cloud

    Configuring Account Authentication on Ruijie Cloud 1. Configuring a Portal Template with the Authentication Mode Set to Account (1) Log in to Ruijie Cloud, choose Project > Configuration > Authentication > Captive Portal, and select a network that needs to configure wireless authentication.
  • Page 95 Web-based Configuration Guide Wi-Fi Network Settings Table 3-11 Basic Information of the Portal Template Parameter Description Name Indicates the name of a captive portal template. Description Indicates the description of a captive portal template. Login Options Select Account, which indicates login with the account and password. Show Balance Page Indicates the available duration, time, or data after portal authentication.
  • Page 96 Web-based Configuration Guide Wi-Fi Network Settings Table 3-12 Basic Information of the Portal Page Parameter Description Logo Select whether to display the logo image. When Logo is set to Image, upload the logo picture or select the default logo. Logo Image Background Select the background with the image or the solid color.
  • Page 97 (6) After the configuration, click OK to save the portal template configurations. 2. Enabling Account Authentication for an SSID (1) Log in to Ruijie Cloud, choose Project > Configuration > Devices > Wireless > SSID, and select a network that needs to configure wireless authentication.
  • Page 98 Wi-Fi Network Settings Action column. The following content only describes configurations related to wireless authentication. For details about other SSID configuration parameters, see the Ruijie Cloud Cookbook. (3) Enable Auth (disabled by default) and configure authentication-related parameters. After the configuration, click OK to save the configurations.
  • Page 99 Web-based Configuration Guide Wi-Fi Network Settings 3. Adding an Account (1) Log in to Ruijie Cloud, choose Project > Authentication > User Management, and select a network in this account. (2) Configure a user group. On the User Group tab, click Add.
  • Page 100 Web-based Configuration Guide Wi-Fi Network Settings Price: indicates the price of the user group. Mark user groups by numeral. The current version has no impact on network usage. Concurrent Devices: indicates the number of concurrent devices for one account. Period: indicates the maximum validity time of an account. The maximum value is counted after the client passes authentication and successfully accesses the Internet.

  • Page 101: Configuring Sms Authentication On Ruijie Cloud

    Click Please select an .xls or .xlsx file to upload the file. After uploading, users are automatically created. 3.20.5 Configuring SMS Authentication on Ruijie Cloud 1. Adding a Twilio Account Prerequisites A Twilio account has been applied for from the Twilio official website (https://www.twilio.com/login).
  • Page 102 (2) Add Twilio account information and click Save. 2. Configuring a Portal Template with the Authentication Mode Set to SMS (1) Log in to Ruijie Cloud, choose Project > Configuration > Authentication > Captive Portal, and select a network that needs to configure wireless authentication.
  • Page 103 Web-based Configuration Guide Wi-Fi Network Settings Table 3-14 Basic Information of the Portal Template Parameter Description Name Indicates the name of a captive portal template. Description Indicates the description of a captive portal template. Select SMS, which indicates login with the phone number and code. Login Options Show Balance Page Indicates the available duration, time, or data after portal authentication.
  • Page 104 Web-based Configuration Guide Wi-Fi Network Settings Parameter Description When Background is set to Solid Color, configure the background color. The Background Color default value is #ffffff. Select the language of the portal page and configure the content displayed on the portal page as required. You can click to add portal pages in other languages.
  • Page 105 (6) After the configuration, click OK to save the portal template configurations. 3. Enabling SMS Authentication for an SSID (1) Log in to Ruijie Cloud, choose Project > Configuration > Devices > Wireless > SSID, and select a network that needs to configure wireless authentication.
  • Page 106 Action column. The following content only describes configurations related to wireless authentication. For details about other SSID configuration parameters, see the Ruijie Cloud Cookbook. (3) Enable Auth (disabled by default) and configure authentication-related parameters. After the configuration, click OK to save the configurations.

  • Page 107: Configuring An Authentication-Free User List On Eweb Management System

    Web-based Configuration Guide Wi-Fi Network Settings 3.20.6 Configuring an Authentication-Free User List on Eweb Management System You can configure authentication-free for wireless STAs (IP address/MAC address), public IP addresses, and domain names. Users can directly use network services or access specific websites without entering the username, password, or other information.
  • Page 108 Web-based Configuration Guide Wi-Fi Network Settings (3) Configure a public IP address or public IP address range. After the configuration, click OK to save the configurations. 3. Configuring a Domain Name Allowlist (1) Choose Network WLAN) > Wireless Auth > Allowlist > Domain Allowlist. (2) Click Add to open the configuration page.
  • Page 109 Web-based Configuration Guide Wi-Fi Network Settings 4. Configuring a MAC Address Allowlist and Blocklist STAs whose MAC addresses are added to the MAC address allowlist can access the network without authentication, and STAs whose MAC addresses are added to the MAC address blocklist are forbidden to access the network.

  • Page 110: Displaying Authenticated Users On Eweb Management System

    The client going offline will not disappear immediately. Instead, the client will stay on the list for three more minutes. 3.20.8 Displaying Authenticated Users on Ruijie Cloud Log in to Ruijie Cloud, choose Project > Monitoring > Clients > Auth Client, and select a network that needs to display authenticated users.

  • Page 111: Network Settings

    Web-based Configuration Guide Network Settings Network Settings Note This chapter takes the currently logged in device as an example to describe the entry of each function setting page. If you need to configure other devices in the network, please refer to the following path to enter the configuration page of the corresponding device, and then configure the function: ...
  • Page 112 Web-based Configuration Guide Network Settings AC function switch: If a device works in the router mode and the self-organizing network discovery function is enabled, you can enable or disable the AC function. After the AC function is enabled, the device in the router mode supports the virtual AC function and can manage downlink devices.

  • Page 113: Viewing Device Role

    Web-based Configuration Guide Network Settings Caution After the self-organizing network discovery is enabled, you can check the role of the device in self-organizing network mode. 4.1.4 Viewing Device Role For RG-RAP2266 model: In Local Device mode, choose Overview > Device Details For other RAP models: Choose ( WLAN >...

  • Page 114: Configuring Internet Connection Type (Ipv6)

    Web-based Configuration Guide Network Settings The device supports the following Internet connection types:  PPPoE: This Internet connection type is supported only when the device works in routing mode. You need to manually configure the PPPoE username and password.  DHCP: The current device will act as a DHCP client and apply for the IPv4 address/prefix from the upstream network device.

  • Page 115: Configuring Repeater Mode

    Web-based Configuration Guide Network Settings For RG-RAP2266 model: In Local Device mode, choose Network > LAN > LAN Settings For other RAP models: Choose ( WLAN > APs > Manage >) Network > LAN > LAN Settings Click Edit. In the displayed dialog box, enter the IP address and subnet mask, and click OK. Change the IP address of the LAN port.

  • Page 116: Wireless Repeater

    Web-based Configuration Guide Network Settings Select Access Point, click Check, confirm the Wi-Fi settings of the AP, and then click Save to expand the network coverage. Caution After the configuration is saved, connected clients will be disconnected from the network for a short period of time.
  • Page 117 Web-based Configuration Guide Network Settings (1) Select the Wi-Fi signal of the upper-layer device that you want to extend. The configuration items of the local device are displayed. If the signal of the upper-layer device is encrypted, enter the Wi-Fi password of the upper-layer device.

  • Page 118: Creating A Vlan

    Web-based Configuration Guide Network Settings Wi-Fi signals. Caution  After the configuration is saved, the AP will be disconnected from the Wi-Fi network and needs to connect to the new Wi-Fi network. Exercise caution when performing this operation. Record the new Wi- Fi name and password.
  • Page 119 Web-based Configuration Guide Network Settings Table 4-1 VLAN Configuration Parameter Description IP address of the VLAN interface. The default gateway of devices that access the Internet through the current LAN should be set to this IP address. Subnet Mask Subnet mask of the IP address of the VLAN interface. VLAN ID VLAN ID.

  • Page 120: Configuring Port Vlan

    Web-based Configuration Guide Network Settings Parameter Description Enable the DHCP server function. After it is enabled, devices on the LAN can automatically obtain IP addresses. After the DHCP service is enabled, you need to configure the start IP DHCP Server address to be assigned, number of IP addresses to be assigned, and address lease term for the DHCP server, and other DHCP server options.

  • Page 121: Changing Mac Address

    Web-based Configuration Guide Network Settings (2) Switch to the Port VLAN tab page and configure VLANs for the port. Click the option box below the port, select the mapping between a VLAN and the port from the drop-down list box, and click Save. ○...

  • Page 122: Changing Mtu

    Web-based Configuration Guide Network Settings For other RAP models: Choose ( WLAN > APs > Manage >) Network > WAN > WAN ISPs may restrict the access of devices with unknown MAC addresses to the Internet for the sake of security. In this case, you can change the MAC address of the WAN port.

  • Page 123: Configuring Dhcp Server

    Web-based Configuration Guide Network Settings 4.10 Configuring DHCP Server Caution This function is not supported when the device works in AP mode. 4.10.1 DHCP Server In the router mode, the DHCP server function can be enabled on the device to automatically assign IP addresses to clients so that clients connected to the LAN ports or Wi-Fi network of the device obtain IP addresses for Internet access.

  • Page 124: Displaying Online Dhcp Clients

    Web-based Configuration Guide Network Settings 4.10.3 Displaying Online DHCP Clients For RG-RAP2266 model: In Local Device mode, choose Network > LAN >DHCP Clients For other RAP models: Choose ( WLAN > APs > Manage >) Network > LAN > DHCP Clients Check information about an online client.

  • Page 125: Displaying The Dhcp Static Ip Address List

    Web-based Configuration Guide Network Settings 4.10.4 Displaying the DHCP Static IP Address List For RG-RAP2266 model: In Local Device mode, choose Network > LAN > Static IP Addresses For other RAP models: Choose ( WLAN > APs > Manage >) Network >...

  • Page 126: Configuring Port Flow Control

    Web-based Configuration Guide Network Settings In Local Device mode, choose Advanced > Hardware Acceleration. After Hardware acceleration is enabled, the Internet access speed will be improved. 4.13 Configuring Port Flow Control For RG-RAP2266 model: In Local Device mode, choose Advanced > Port Settings For other RAP models: Choose ( WLAN >...

  • Page 127: Configuring Lan Ports

    Web-based Configuration Guide Network Settings (1) Select a dynamic ARP entry in the ARP list and click Bind. You can select multiple entries to be bound at one time and click Bind Selected to bind them. To remove the binding between a static IP address and a MAC address, click Delete in the Action column.

  • Page 128: Ipv6 Settings

    Web-based Configuration Guide Network Settings to add the AP wired port configuration. For APs, to which no configuration is applied in LAN Port Settings, the default configuration of the AP wired ports will take effect on them. 4.16 IPv6 Settings Caution This function is supported only by RG-RAP2266 in the router mode.

  • Page 129: Ipv6 Address Assignment Methods

    Web-based Configuration Guide Network Settings as 2001:CD:34:78:A:B:1200:2100.  Consecutive 0s can be replaced by two colons (::). For example, 800:0:0:0:0:0:0:1 can be written as 800::1. Consecutive 0s can be replaced by two colons only when the 16-bit section contains all 0s, and the two colons can only appear once in the address.

  • Page 130: Configuring The Ipv6 Address For The Wan Port

    Web-based Configuration Guide Network Settings Click Enable, and then click OK in the dialog box that appears to enable IPv6. After IPv6 is enabled, you can configure the IPv6 addresses of WAN and LAN ports, view the DHCPv6 client, and configure a static DHCPv6 address for the client. 4.16.5 Configuring the IPv6 Address for the WAN Port In Local Device mode, choose...
  • Page 131 Web-based Configuration Guide Network Settings Table 4-2 IPv6 Address Configuration Parameters of the WAN Port Parameter Description Specify the method for obtaining an IPv6 address for the WAN port. DHCP: The current device will act as a DHCPv6 client and apply for the IPv6 address/prefix from the upstream network device.

  • Page 132: Configuring The Ipv6 Address For The Lan Port

    Web-based Configuration Guide Network Settings Parameter Description If Internet is set to Static IP, you need to manually configure this parameter. If the current device cannot access the Internet in DHCP mode or NAT66 cannot obtain the IPv6 address prefix, you must enable NAT66 to assign the IPv6 address to an intranet client.
  • Page 133 Web-based Configuration Guide Network Settings You can click Advanced Settings to configure more address attributes. Table 4-3 IPv6 Address Configuration Parameters of the LAN Port Parameter Description Subnet Prefix Name Configure the interface from which the prefix is obtained, for example,...

  • Page 134: Viewing Dhcpv6 Clients

    Web-based Configuration Guide Network Settings Parameter Description WAN_V6. The default value is all interfaces. Configure the length of the subnet prefix. The value ranges from 48 to Subnet Prefix Length Configure the subnet ID in hexadecimal notation. 0 indicates that the Subnet ID subnet ID automatically increments.

  • Page 135: Configuring The Ipv6 Neighbor List

    Web-based Configuration Guide Network Settings (1) Click Add. (2) Enter the IPv6 address and DUID of the client. (3) Click OK. 4.16.9 Configuring the IPv6 Neighbor List In IPv6, Neighbor Discovery Protocol (NDP) is an important basic protocol. NDP replaces the ARP and ICMP route discovery protocols of IPv4, and supports the following functions: address resolution, neighbor status tracking, duplicate address detection, router discovery, and redirection.
  • Page 136 Web-based Configuration Guide Network Settings (1) Click Add and add the interface, IPv6 address and MAC address of the neighbor. (2) Select the IPv6 neighbor list to be bound, and click Bind in the Action column to bind the IPv6 address and MAC address.

  • Page 137: System Settings

    Web-based Configuration Guide System Settings System Settings PoE Settings Caution This function is supported by only RG-RAP2266. In Local Device mode, choose Advanced > PoE Settings. Set the power mode for the AP to accept power over PoE. In AF mode, the maximum power supported by the device is 15.4 W.

  • Page 138: Setting The Session Timeout Duration

    Web-based Configuration Guide System Settings For other RAP models: In self-organizing network mode: Choose Network > Password In standalone mode: Choose System > Login > Login Password Enter the old password and new password. After saving the configuration, use the new password to log in. Caution In self-organizing network mode, the login password of all devices in the network will be changed synchronously.

  • Page 139: Setting And Displaying System Time

    Web-based Configuration Guide System Settings Setting and Displaying System Time For RG-RAP2266 model: If the device works in self-organizing network mode, and Network mode webpage is displayed, choose System > System Time In standalone mode: Choose System > System Time For other RAP models: In self-organizing network mode: Choose Network >...

  • Page 140: Configuring Reboot

    Web-based Configuration Guide System Settings Configuring Reboot Caution  Do not cut off power during system reboot to avoid device damage.  Do not refresh the page or close the browser during the reboot. After the device is successfully rebooted and the Web service becomes available, the device automatically jumps to the login page.

  • Page 141: Rebooting All Devices In The Network

    Web-based Configuration Guide System Settings 5.5.2 Rebooting All Devices in the Network In self-organizing network mode, you can reboot all devices in the network in batches. For RG-RAP2266 model: In Network mode, choose System > Reboot > Reboot For other RAP models: Choose Network >...

  • Page 142: Configuring Scheduled Reboot

    Web-based Configuration Guide System Settings Configuring Scheduled Reboot 5.6.1 Configuring Scheduled Reboot for the Current Device Confirm that the system time is accurate to avoid network interruption caused by device reboot at wrong time. For details about how to configure the system time, see Setting the Session Timeout Duration.

  • Page 143: Configuring Backup And Import

    Web-based Configuration Guide System Settings For RG-RAP2266 model: Choose System > Reboot > Scheduled Reboot For other RAP models: To configure scheduled reboot for the current device, choose ( WLAN > APs > Manage >) System > Reboot > Scheduled Reboot To configure scheduled reboot for all devices in the network, choose Network>>...

  • Page 144: Restoring Factory Settings

    Web-based Configuration Guide System Settings Restoring Factory Settings 5.8.1 Restoring the Current Device to Factory Settings For RG-RAP2266 model: In Local Device mode, choose System > Management > Reset For other RAP models: Choose ( WLAN > APs > Manage >) System >...

  • Page 145: Performing Upgrade And Checking System Version

    Web-based Configuration Guide System Settings Click All Devices, select whether to enable Unbind Account and Click Reset All Devices. All devices in the network will be restored to factory settings. Caution The operation will clear all configuration of all devices in the network. Therefore, exercise caution when performing this operation.

  • Page 146: Local Upgrade

    Web-based Configuration Guide System Settings 5.9.2 Local Upgrade For RG-RAP2266 model: In Local Device mode, choose System > Upgrade > Local Upgrade For other RAP models: Choose ( WLAN > APs > Manage >) System > Upgrade > Local Upgrade You can view the current software version, hardware version and device model.

  • Page 147: Configuring Led Status Control

    Web-based Configuration Guide System Settings 5.11 Configuring LED Status Control Caution The LED Status Control function is not supported in the standalone mode (self-organizing network is not enabled). For RG-RAP2266 model: Choose Network > LED For other RAP models: Choose WLAN >...

  • Page 148: Network Diagnosis Tools

    Web-based Configuration Guide Network Diagnosis Tools Network Diagnosis Tools Network Check When a network error occurs, perform Network Check to identify the fault and take the suggested action. (1) Click in the navigation bar, or choose Diagnostics > Network Check and go to the Network Check page.

  • Page 149: Network Tools

    Web-based Configuration Guide Network Diagnosis Tools After performing the network check, you will find the check result and suggested action. Network Tools For RG-RAP2266 model: In Local Device mode, choose Diagnostics > Network Tools For other RAP models: Choose ( WLAN >...

  • Page 150: Alarms

    Web-based Configuration Guide Network Diagnosis Tools Alarms For RG-RAP2266 model: In Network mode, choose Network > Alarms For other RAP models: Choose ( WLAN > APs > Manage >) Diagnostics > Alarms The Alarms page displays possible problems on the network environment and device. All types of alarms are followed by default.

  • Page 151: Fault Collection

    Web-based Configuration Guide Network Diagnosis Tools Click View Unfollowed Alarm to view the unfollowed alarm. You can follow the alarm again in the pop-up window. Fault Collection For RG-RAP2266 model: In Local Device mode, choose Diagnostics > Fault Collection For RAP models: Choose ( WLAN >...

  • Page 152: Faqs

    Web-based Configuration Guide FAQs FAQs Login Failure  What can I do when I failed to log in to the Eweb management system? Perform the following steps: (1) Check that the Ethernet cable is properly connected to the LAN port of the device. (1) Before accessing the setup page, you are advised to choose Auto for the device enabled with DHCP service to assign an IP address to the PC.

This manual is also suitable for:

Reyee rg-rap series

Table of Contents

Save PDF
