- Page 1 Ruijie Reyee RG-RAP6262(G) Series Access Points Hardware Installation and Reference Guide V1.0 Document Version: V1.0 Date: 2022-02-18 Copyright © 2022 Ruijie Networks...
- Page 2 Due to product version upgrades or other reasons, the content of this document will be updated from time to time. Ruijie Networks reserves the right to modify the content of the document without any notice or prompt. This manual is for reference only. Ruijie Networks endeavors to ensure content accuracy and will not shoulder...
- Page 3 Network administrators Technical Support The official website of Ruijie Reyee: https://www.ruijienetworks.com/products/reyee Conventions Signs The symbols used in this document are described as follows: Danger An alert that calls attention to safety operation instructions that if not understood or followed when operating the device can result in physical injury.
-
Page 4: Product Overview
1 Product Overview Product Overview The RG-RAP6262(G) is an outdoor wireless access point (AP) designed by Ruijie Networks for high-speed wireless networks. Adhering to the latest 802.11ax standard, the AP delivers an access rate of up to 1200Mbps@5G + 575Mbps@2.4G. RAP6262(G) features security, radio frequency (RF) control, mobile access, Quality of Service (QoS) and seamless roaming. - Page 5 Hardware Installation and Reference Guide 1 Product Overview Power Maximum: 17 W Consumption Operating: -30°C to 65°C (-22°F to 149°F) Temperature Storage: -40°C to 85°C (-40°F to 185°F) Operating: 0% to 100% (non-condensing) Humidity Storage: 0% to 100% (non-condensing) IP Rating IP68 Weight (Without <...
- Page 6 Hardware Installation and Reference Guide 1 Product Overview Solid on The port is up and no data is transmitted. The port is not connected. Blinking The port is up and data is transmitted. LAN 2(Green) Solid on The port is up and no data is transmitted. The port is not connected.
-
Page 7: Power Supply
2. DC power supply port 5. Waterproof cap 3. 10/100/1000BASE-T Ethernet port/PoE port Power Supply The AP supports 802.3at PoE (port LAN 1) or 12 V DC/2 A power supply (If needed, you can buy the adapter from Ruijie Networks). -
Page 8: Preparing For Installation
Hardware Installation and Reference Guide Preparing for Installation Preparing for Installation Note ● To prevent device damage and physical injury, please read carefully the safety recommendations described in this chapter. ● The following safety suggestions do not cover all possible hazardous situations. ●... - Page 9 Hardware Installation and Reference Guide Preparing for Installation The installation site should be selected according to network planning, communications equipment features and considerations such as climate, hydrology, geology, earthquake, electric power, and transportation. Temperature and Humidity Requirements 2.2.1 Temperature and Humidity Requirements Table 2-1 Operating Temperature Operating Humidity:...
-
Page 10: Checking Before Installation
Hardware Installation and Reference Guide Preparing for Installation Checking before Installation Please check your materials carefully against the package contents. If there are any errors, please contact your distributor. -
Page 11: Installing The Access Point
Hardware Installation Guide and Reference Installing the Access Point Installing the Access Point Note ● Before installing the device, make sure you have carefully read the requirements described in Chapter 2. Installation Flowchart Before You Begin Before you install the AP, verify that all the parts in the package contents are there and make sure that: ... -
Page 12: Installing The Device

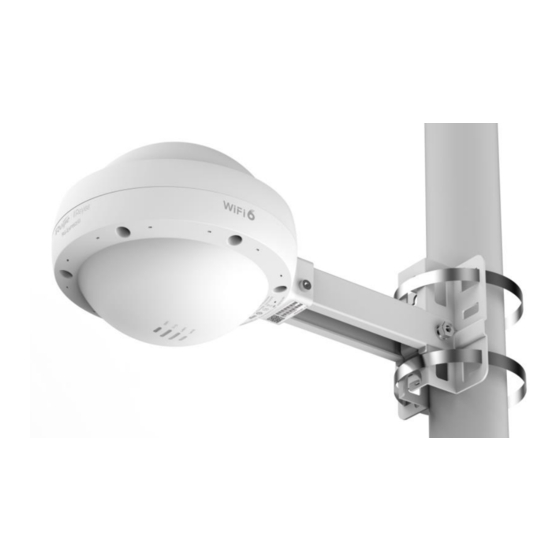

Hardware Installation Guide and Reference Installing the Access Point Please make full preparations as described in Chapter 2 and observe the following precautions before installing the device. Before connecting the power supply, make sure the external power supply matches the power module of the ... - Page 13 Hardware Installation Guide and Reference Installing the Access Point Figure 3-3 Mounting the Plate on a Pole Install the access point and the connecting rod to the mounting plate with M8 x 20 screws. Figure 3-4 Vertical Pole Mounting Horizontal Pole Mounting 3.4.3 Figure 3-5 Mounting the Plate on a Pole...
-
Page 14: Connecting Cables
Hardware Installation Guide and Reference Installing the Access Point Figure 3-6 Horizontal Pole Mounting Note The procedures of horizontal pole mounting are similar to that of vertical pole mounting. Connecting Cables Caution The waterproof materials are customer-supplied. Trim an Ethernet cable according to the distance between the access point and the power supply. Insert the unterminated end of the Ethernet cable through part D, C and B in sequence. - Page 15 Hardware Installation Guide and Reference Installing the Access Point Warning The device should not be installed in the place prone to water accumulation, seepage, dripping, and condensation. It is recommended to install the device horizontally. If any requirement above cannot be fulfilled, please use waterproof duct tape and waterproof plaster.
-
Page 16: Appendix A Connectors And Media
Hardware Installation Guide and Reference Appendix A Connectors and Media Appendix A Connectors and Media 1000BASE-T/100BASE-TX/10BASE-T The 1000BASE-T/100BASE-TX/10BASE-T is a 10/100/1000 Mbps auto-negotiation port that supports auto MDI/MDIX. Compliant with IEEE 802.3ab, 1000BASE-T requires Category 5e 100-ohm UTP or STP (STP is recommended) with a maximum distance of 100 meters (328 feet). - Page 17 Hardware Installation Guide and Reference Appendix A Connectors and Media Figure 4-3 100BASE-TX/10BASE-T Connection...
-
Page 18: Appendix B Package Contents
Hardware Installation Guide and Reference Appendix B Package Contents Appendix B Package Contents Item Quantity Remark RG-RAP6262(G) Access Point Mounting Plate Connecting Rod (Pre-installed on Access Point) M8 x 20 Screws Cable Glands (Pre-installed on Access Point) Pole Clamps Expansion Bolts (M8 x 60) Quick Start Guide Installed on the access Management Software...
