Ruijie RG-RAP73Pro Cookbook page 165

Web-based Configuration Guide

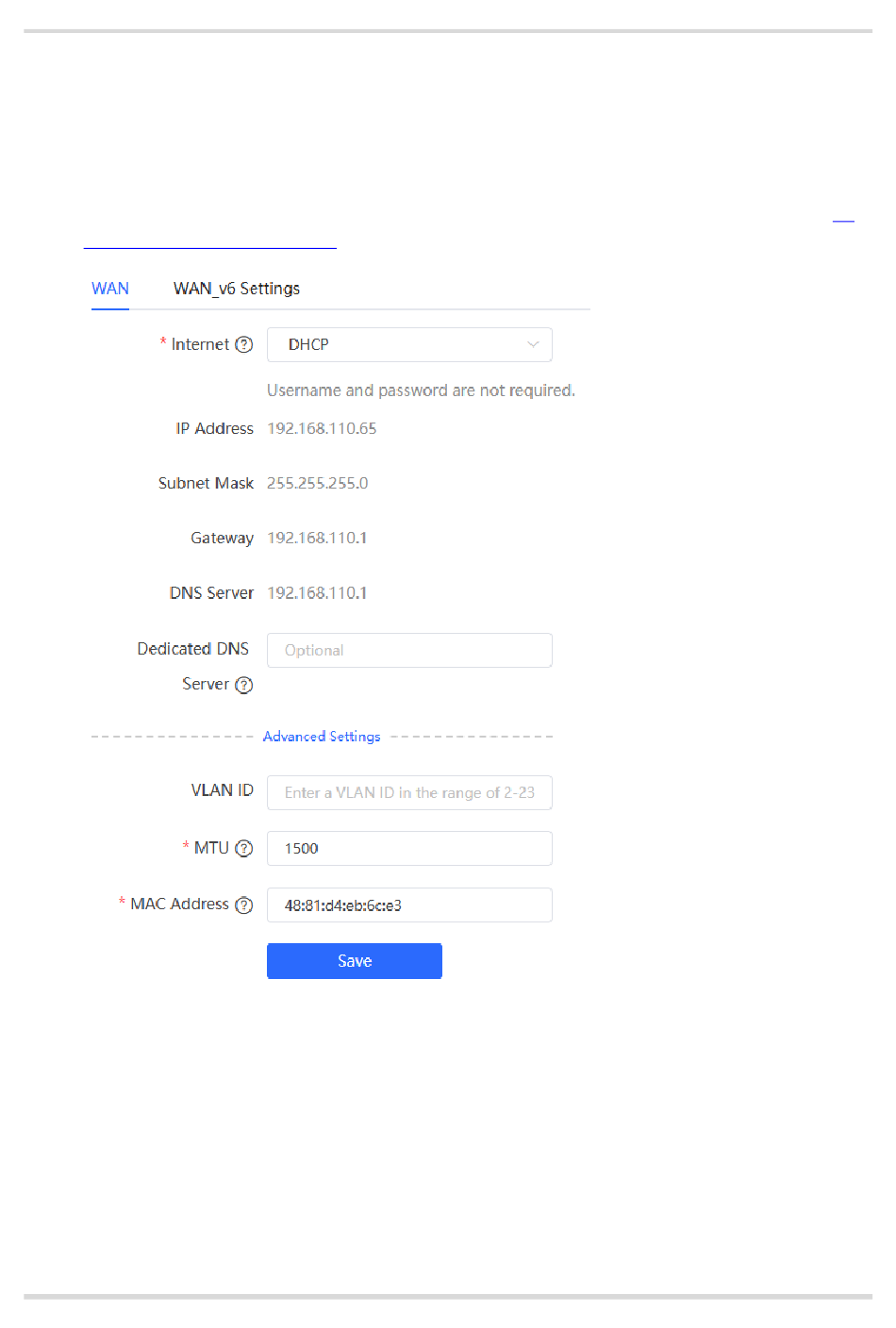

4.2 Configuring Internet Connection Type (IPv4)
Access the configuration page:

Method 1: Choose

Method 2: Choose Network-Wide > Workspace > Wired > WAN > WAN.
Select the Internet connection type after confirming with the ISP. For detailed configuration, see
Configuration Wizard (Router
The device supports the following Internet connection types:

PPPoE: This Internet connection type is supported only when the device works in routing mode. You need to
manually configure the PPPoE username and password.

DHCP: The current device will act as a DHCP client and apply for the IPv4 address/prefix from the upstream
network device.

Static IP: If this Internet connection type is selected, you need to manually configure a static IPv4 address,
subnet mask, gateway address, and DNS server.
One-Device > Config > Network > WLAN > WAN.
Mode). After completing the configuration, click Save.
110
Network Settings
1.5
