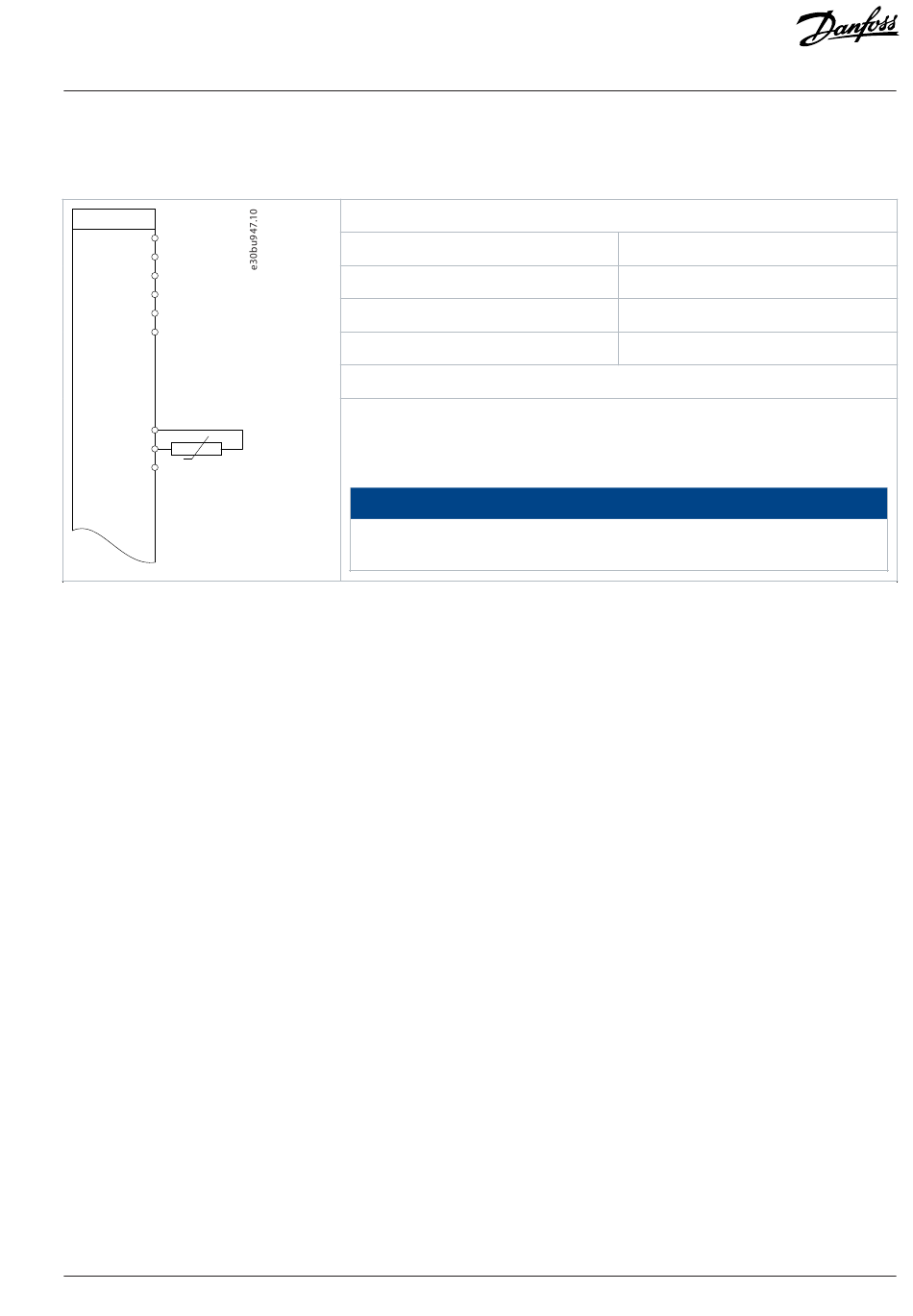

Motor Thermistor

7.6
Table 56: Motor Thermistor
FC
+24 V 12
+24 V
13
D IN 18
D IN 27
D IN 32
33
D IN
+10 V 50
A IN
53
COM
55
Danfoss A/S © 2024.10
Parameters
Function
Parameter 1-90 Motor Thermal Protection
Parameter 1-93 Thermistor Source
Parameter 6-19 Terminal 53 mode
*=Default value
Notes/comments:
If only a warning is needed, set parameter 1-90 Motor Thermal Protection to [1] Ther-
mistor warning.
To meet PELV insulation requirements, use reinforced or double insulation on the
thermistors.
Setting
[2] Thermistor trip
[1] Analog input 53
[1] Voltage
