Operating Guide | VLT® Midi Drive FC 280

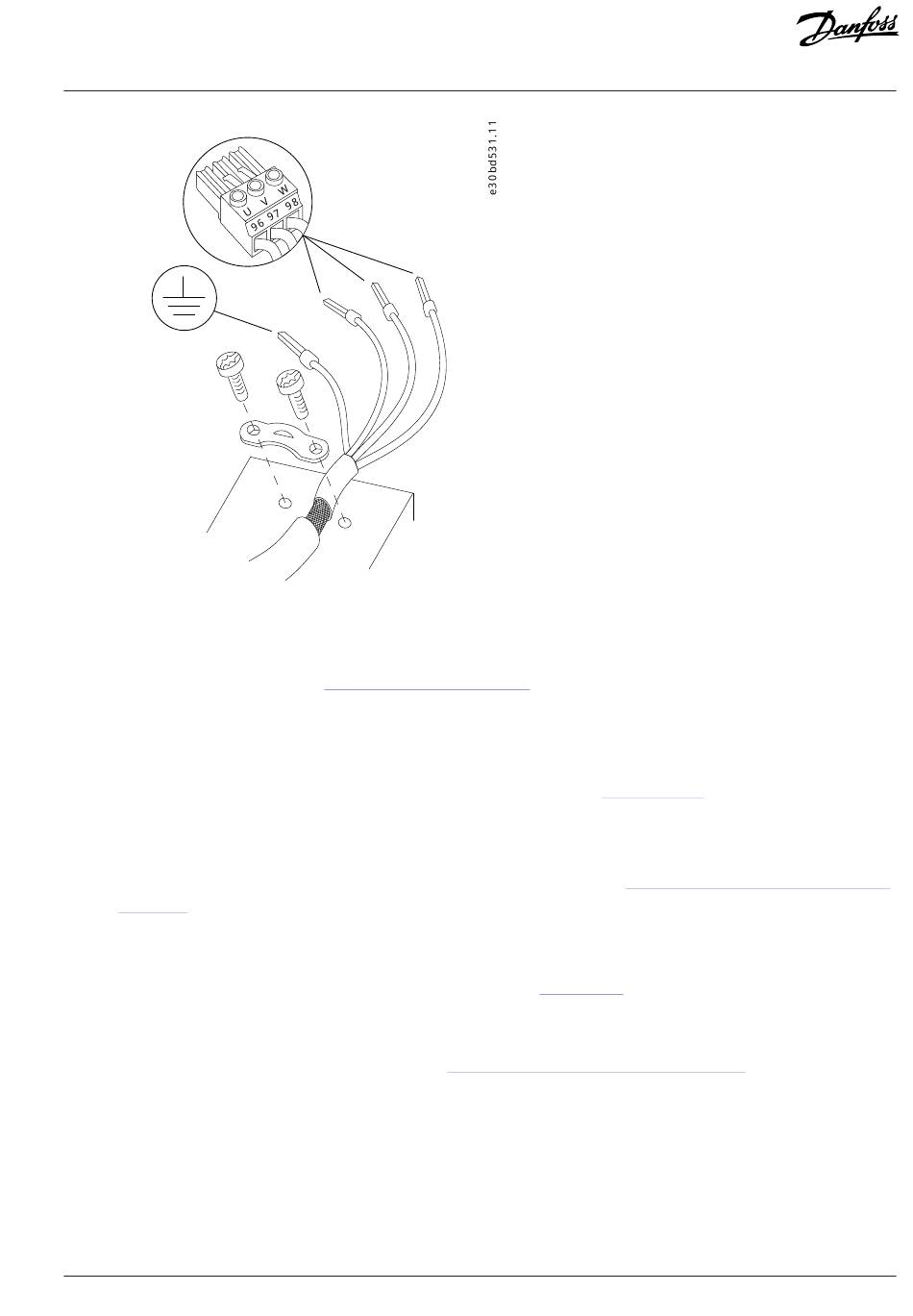

Figure 15: Motor Connection
4.
Connect the 3-phase motor wiring to terminals 96 (U), 97 (V), and 98 (W).
5. Torque-tighten the terminals, see

AC Mains Connection

4.8

Connecting AC Mains

4.8.1
Size the wiring based on the input current of the drive. For maximum wire sizes, see
l
Comply with local and national electrical codes for cable sizes.
l

Connecting the Drive to Mains

4.8.2
1.
Connect the AC input power cables to terminals N and L for single-phase units (see
Connection).
2.
Depending on the configuration of the equipment, connect the input power to the mains input terminals or the input
disconnect.
3. Ground the cable in accordance with the grounding instructions, see
4.
When supplied from an isolated mains source (IT mains or floating delta) or TT/TN-S mains with a grounded leg (grounded
delta), ensure that the RFI filter screw is removed. Removing the RFI screw prevents damage to the DC link and reduces ground
capacity currents in accordance with IEC 61800-3 (see
side of the drive).
Danfoss A/S © 2024.10
9.7 Connection Tightening Torques.
9.9 Enclosure Sizes, Power Ratings, and
9.1 Electrical Data.
4.6 Examples of Mains, Motor, and Grounding
4.3 Grounding.
Dimensions, the RFI screw is on the
AQ381425076031en-000201 / 130R1223 |
Electrical Installation
31
